Extends the struct ChannelMatrix by including information that are used within the class ThreeGppChannelModel. More...

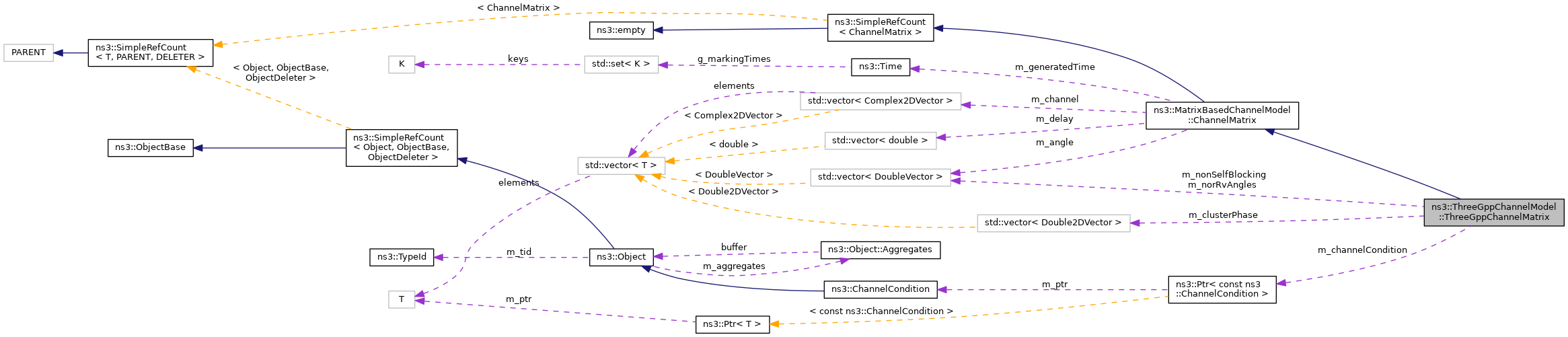

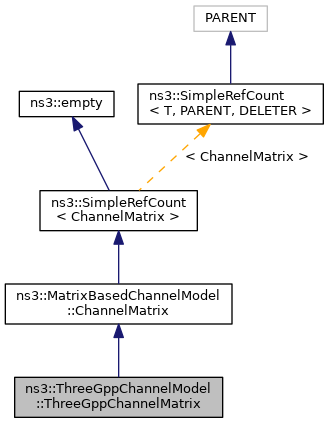

Inheritance diagram for ns3::ThreeGppChannelModel::ThreeGppChannelMatrix: Collaboration diagram for ns3::ThreeGppChannelModel::ThreeGppChannelMatrix:Public Attributes | |
| Ptr< const ChannelCondition > | m_channelCondition |
| the channel condition More... | |
| MatrixBasedChannelModel::Double3DVector | m_clusterPhase |
| the initial random phases More... | |
| double | m_dis2D |
| 2D distance between tx and rx More... | |
| double | m_dis3D |
| 3D distance between tx and rx More... | |
| double | m_DS |
| delay spread More... | |
| double | m_K |
| K factor. More... | |
| Vector | m_locUT |
| location of UT More... | |
| MatrixBasedChannelModel::Double2DVector | m_nonSelfBlocking |
| store the blockages More... | |
| MatrixBasedChannelModel::Double2DVector | m_norRvAngles |
| stores the normal variable for random angles angle[cluster][id] generated for equation (7.6-11)-(7.6-14), where id = 0(aoa),1(zoa),2(aod),3(zod) More... | |
| uint8_t | m_numCluster |
| reduced cluster number; More... | |
| Vector | m_preLocUT |
| location of UT when generating the previous channel More... | |
| Vector | m_speed |
| velocity More... | |
| Public Attributes inherited from ns3::MatrixBasedChannelModel::ChannelMatrix | |
| Double2DVector | m_angle |
| cluster angle angle[direction][n], where direction = 0(AOA), 1(ZOA), 2(AOD), 3(ZOD) in degree. More... | |
| Complex3DVector | m_channel |
| channel matrix H[u][s][n]. More... | |
| DoubleVector | m_delay |
| cluster delay in nanoseconds. More... | |
| Time | m_generatedTime |
| generation time More... | |
| std::pair< uint32_t, uint32_t > | m_nodeIds |
| the first element is the s-node ID (the transmitter when the channel was generated), the second element is the u-node ID (the receiver when the channel was generated) More... | |
Additional Inherited Members | |
| Public Member Functions inherited from ns3::MatrixBasedChannelModel::ChannelMatrix | |
| virtual | ~ChannelMatrix ()=default |
| Destructor for ChannelMatrix. More... | |
| bool | IsReverse (const uint32_t aId, const uint32_t bId) const |
| Returns true if the ChannelMatrix object was generated considering node b as transmitter and node a as receiver. More... | |
| Public Member Functions inherited from ns3::SimpleRefCount< ChannelMatrix > | |
| SimpleRefCount () | |
| Default constructor. More... | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. More... | |
| uint32_t | GetReferenceCount (void) const |
| Get the reference count of the object. More... | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment operator. More... | |
| void | Ref (void) const |
| Increment the reference count. More... | |
| void | Unref (void) const |
| Decrement the reference count. More... | |
Extends the struct ChannelMatrix by including information that are used within the class ThreeGppChannelModel.
Definition at line 156 of file three-gpp-channel-model.h.
| Ptr<const ChannelCondition> ns3::ThreeGppChannelModel::ThreeGppChannelMatrix::m_channelCondition |
the channel condition
Definition at line 158 of file three-gpp-channel-model.h.
Referenced by ns3::ThreeGppChannelModel::ChannelMatrixNeedsUpdate(), and ns3::ThreeGppChannelModel::GetNewChannel().
| MatrixBasedChannelModel::Double3DVector ns3::ThreeGppChannelModel::ThreeGppChannelMatrix::m_clusterPhase |
the initial random phases
Definition at line 170 of file three-gpp-channel-model.h.
Referenced by ns3::ThreeGppChannelModel::GetNewChannel().
| double ns3::ThreeGppChannelModel::ThreeGppChannelMatrix::m_dis2D |
2D distance between tx and rx
Definition at line 172 of file three-gpp-channel-model.h.
| double ns3::ThreeGppChannelModel::ThreeGppChannelMatrix::m_dis3D |
3D distance between tx and rx
Definition at line 173 of file three-gpp-channel-model.h.
| double ns3::ThreeGppChannelModel::ThreeGppChannelMatrix::m_DS |
delay spread
Definition at line 167 of file three-gpp-channel-model.h.
Referenced by ns3::ThreeGppChannelModel::GetNewChannel().
| double ns3::ThreeGppChannelModel::ThreeGppChannelMatrix::m_K |
K factor.
Definition at line 168 of file three-gpp-channel-model.h.
Referenced by ns3::ThreeGppChannelModel::GetNewChannel().
| Vector ns3::ThreeGppChannelModel::ThreeGppChannelMatrix::m_locUT |
location of UT
Definition at line 165 of file three-gpp-channel-model.h.
| MatrixBasedChannelModel::Double2DVector ns3::ThreeGppChannelModel::ThreeGppChannelMatrix::m_nonSelfBlocking |
store the blockages
Definition at line 163 of file three-gpp-channel-model.h.
| MatrixBasedChannelModel::Double2DVector ns3::ThreeGppChannelModel::ThreeGppChannelMatrix::m_norRvAngles |
stores the normal variable for random angles angle[cluster][id] generated for equation (7.6-11)-(7.6-14), where id = 0(aoa),1(zoa),2(aod),3(zod)
Definition at line 166 of file three-gpp-channel-model.h.
| uint8_t ns3::ThreeGppChannelModel::ThreeGppChannelMatrix::m_numCluster |
reduced cluster number;
Definition at line 169 of file three-gpp-channel-model.h.
Referenced by ns3::ThreeGppChannelModel::GetNewChannel().
| Vector ns3::ThreeGppChannelModel::ThreeGppChannelMatrix::m_preLocUT |
location of UT when generating the previous channel
Definition at line 164 of file three-gpp-channel-model.h.
| Vector ns3::ThreeGppChannelModel::ThreeGppChannelMatrix::m_speed |
velocity
Definition at line 171 of file three-gpp-channel-model.h.
