ns3::WifiAckAfterTbPpdu Struct Reference

WifiAckAfterTbPpdu is used when a station prepares a TB PPDU to send in response to a Basic Trigger Frame. More...

#include "wifi-acknowledgment.h"

+ Inheritance diagram for ns3::WifiAckAfterTbPpdu:

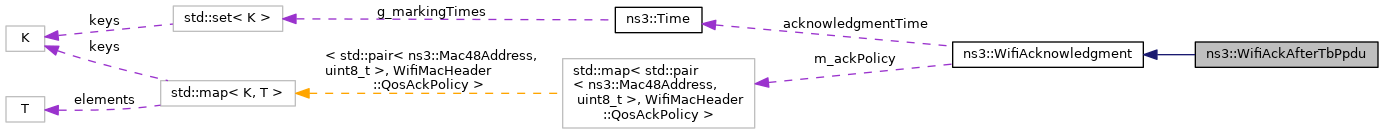

+ Collaboration diagram for ns3::WifiAckAfterTbPpdu:

Public Member Functions

 WifiAckAfterTbPpdu ()

bool CheckQosAckPolicy (Mac48Address receiver, uint8_t tid, WifiMacHeader::QosAckPolicy ackPolicy) const override
 Check whether the given QoS Ack policy can be used for the MPDUs addressed to the given receiver and belonging to the given TID. More...

std::unique_ptr< WifiAcknowledgmentCopy (void) const override
 Clone this object. More...

void Print (std::ostream &os) const override
 Print the object contents. More...

- Public Member Functions inherited from ns3::WifiAcknowledgment
 WifiAcknowledgment (Method m)
 Constructor. More...

virtual ~WifiAcknowledgment ()

WifiMacHeader::QosAckPolicy GetQosAckPolicy (Mac48Address receiver, uint8_t tid) const
 Get the QoS Ack policy to use for the MPDUs addressed to the given receiver and belonging to the given TID. More...

void SetQosAckPolicy (Mac48Address receiver, uint8_t tid, WifiMacHeader::QosAckPolicy ackPolicy)
 Set the QoS Ack policy to use for the MPDUs addressed to the given receiver and belonging to the given TID. More...


Additional Inherited Members

- Public Types inherited from ns3::WifiAcknowledgment
enum  Method {
  NONE = 0, NORMAL_ACK, BLOCK_ACK, BAR_BLOCK_ACK,
  DL_MU_BAR_BA_SEQUENCE, DL_MU_TF_MU_BAR, DL_MU_AGGREGATE_TF, UL_MU_MULTI_STA_BA,
  ACK_AFTER_TB_PPDU
}
 Available acknowledgment methods. More...

- Public Attributes inherited from ns3::WifiAcknowledgment
Time acknowledgmentTime
 time required by the acknowledgment method More...

const Method method
 acknowledgment method More...


Detailed Description

WifiAckAfterTbPpdu is used when a station prepares a TB PPDU to send in response to a Basic Trigger Frame.

The acknowledgment time must be zero because the time taken by the actual acknowledgment is not included in the duration indicated by the Trigger Frame. The QoS ack policy instead must be Normal Ack/Implicit Block Ack Request.

Definition at line 330 of file wifi-acknowledgment.h.

Constructor & Destructor Documentation

◆ WifiAckAfterTbPpdu()

ns3::WifiAckAfterTbPpdu::WifiAckAfterTbPpdu ( )

Definition at line 371 of file wifi-acknowledgment.cc.

Referenced by Copy().

+ Here is the caller graph for this function:

Member Function Documentation

◆ CheckQosAckPolicy()

bool ns3::WifiAckAfterTbPpdu::CheckQosAckPolicy ( Mac48Address  receiver,
uint8_t  tid,
WifiMacHeader::QosAckPolicy  ackPolicy
) const
overridevirtual

Check whether the given QoS Ack policy can be used for the MPDUs addressed to the given receiver and belonging to the given TID.

Parameters
receiverthe MAC address of the receiver
tidthe TID
ackPolicythe QoS Ack policy to use
Returns
true if the given QoS Ack policy can be used, false otherwise

Implements ns3::WifiAcknowledgment.

Definition at line 383 of file wifi-acknowledgment.cc.

References ns3::WifiMacHeader::NORMAL_ACK.

◆ Copy()

std::unique_ptr< WifiAcknowledgment > ns3::WifiAckAfterTbPpdu::Copy ( void  ) const
overridevirtual

Clone this object.

Returns
a pointer to the cloned object

Implements ns3::WifiAcknowledgment.

Definition at line 377 of file wifi-acknowledgment.cc.

References WifiAckAfterTbPpdu().

+ Here is the call graph for this function:

◆ Print()

void ns3::WifiAckAfterTbPpdu::Print ( std::ostream &  os) const
overridevirtual

Print the object contents.

Parameters
osoutput stream in which the data should be printed.

Implements ns3::WifiAcknowledgment.

Definition at line 395 of file wifi-acknowledgment.cc.


The documentation for this struct was generated from the following files:
