WifiCtsToSelfProtection specifies that CTS-to-self protection method is used. More...

#include "wifi-protection.h"

Inheritance diagram for ns3::WifiCtsToSelfProtection:

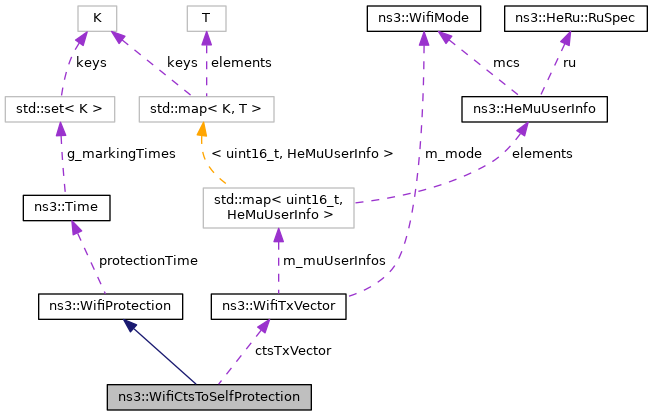

Collaboration diagram for ns3::WifiCtsToSelfProtection:

Public Member Functions
	WifiCtsToSelfProtection ()

std::unique_ptr< WifiProtection >	Copy (void) const override
	Clone this object. More...

void	Print (std::ostream &os) const override
	Print the object contents. More...

Public Member Functions inherited from ns3::WifiProtection
	WifiProtection (Method m)
	Constructor. More...

virtual	~WifiProtection ()

Public Attributes
WifiTxVector	ctsTxVector
	CTS TXVECTOR. More...

Public Attributes inherited from ns3::WifiProtection
const Method	method
	protection method More...

Time	protectionTime
	time required by the protection method More...

Additional Inherited Members
Public Types inherited from ns3::WifiProtection
enum	Method { NONE = 0, RTS_CTS, CTS_TO_SELF }
	Available protection methods. More...

Detailed Description

WifiCtsToSelfProtection specifies that CTS-to-self protection method is used.

Definition at line 112 of file wifi-protection.h.

Constructor & Destructor Documentation

◆ WifiCtsToSelfProtection()

ns3::WifiCtsToSelfProtection::WifiCtsToSelfProtection ( )

Definition at line 90 of file wifi-protection.cc.

Referenced by Copy().

Here is the caller graph for this function:

Member Function Documentation

◆ Copy()

std::unique_ptr< WifiProtection > ns3::WifiCtsToSelfProtection::Copy ( void ) const

overridevirtual

Clone this object.

Returns: a pointer to the cloned object

Implements ns3::WifiProtection.

Definition at line 96 of file wifi-protection.cc.

References WifiCtsToSelfProtection().

Here is the call graph for this function:

◆ Print()

void ns3::WifiCtsToSelfProtection::Print ( std::ostream & os ) const

overridevirtual

Print the object contents.

Parameters

os	output stream in which the data should be printed.

Implements ns3::WifiProtection.

Definition at line 102 of file wifi-protection.cc.

Member Data Documentation

◆ ctsTxVector

WifiTxVector ns3::WifiCtsToSelfProtection::ctsTxVector

CTS TXVECTOR.

Definition at line 119 of file wifi-protection.h.

Referenced by ns3::FrameExchangeManager::CalculateProtectionTime(), ns3::WifiDefaultProtectionManager::GetPsduProtection(), and ns3::FrameExchangeManager::SendCtsToSelf().

The documentation for this struct was generated from the following files:

src/wifi/model/wifi-protection.h
src/wifi/model/wifi-protection.cc
