WifiDlMuBarBaSequence specifies that a DL MU PPDU is acknowledged through a sequence of BlockAckReq and BlockAck frames. More...
#include "wifi-acknowledgment.h"

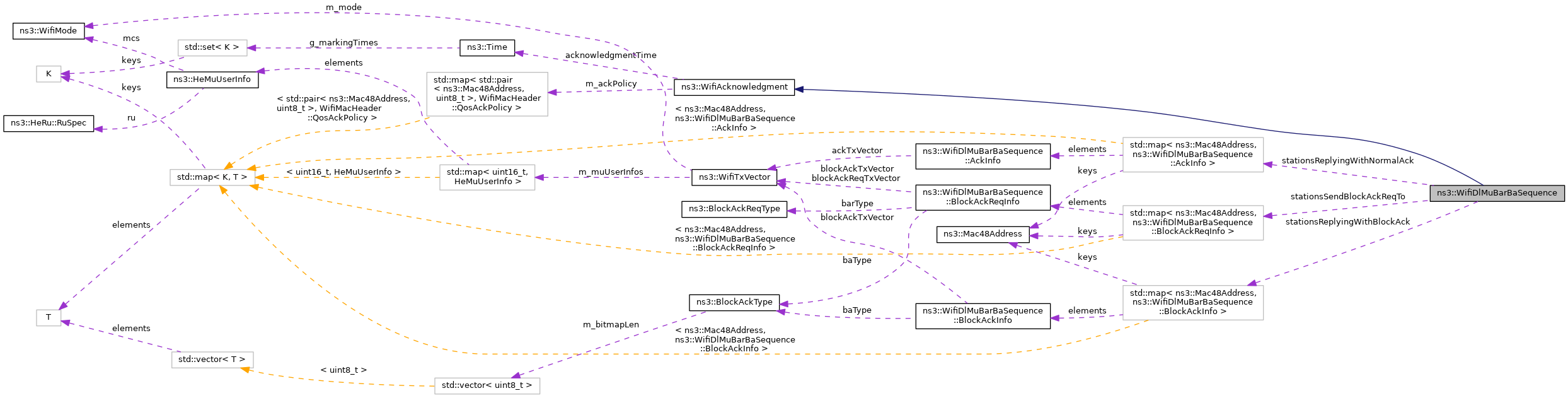

Inheritance diagram for ns3::WifiDlMuBarBaSequence: Collaboration diagram for ns3::WifiDlMuBarBaSequence:Classes | |
| struct | AckInfo |
| information related to an Ack frame sent by a station More... | |
| struct | BlockAckInfo |
| information related to a BlockAck frame sent by a station More... | |
| struct | BlockAckReqInfo |
| information related to a BlockAckReq frame sent to a station More... | |
Public Member Functions | |
| WifiDlMuBarBaSequence () | |
| bool | CheckQosAckPolicy (Mac48Address receiver, uint8_t tid, WifiMacHeader::QosAckPolicy ackPolicy) const override |
| Check whether the given QoS Ack policy can be used for the MPDUs addressed to the given receiver and belonging to the given TID. More... | |
| std::unique_ptr< WifiAcknowledgment > | Copy (void) const override |
| Clone this object. More... | |
| void | Print (std::ostream &os) const override |
| Print the object contents. More... | |
| Public Member Functions inherited from ns3::WifiAcknowledgment | |
| WifiAcknowledgment (Method m) | |
| Constructor. More... | |
| virtual | ~WifiAcknowledgment () |
| WifiMacHeader::QosAckPolicy | GetQosAckPolicy (Mac48Address receiver, uint8_t tid) const |
| Get the QoS Ack policy to use for the MPDUs addressed to the given receiver and belonging to the given TID. More... | |
| void | SetQosAckPolicy (Mac48Address receiver, uint8_t tid, WifiMacHeader::QosAckPolicy ackPolicy) |
| Set the QoS Ack policy to use for the MPDUs addressed to the given receiver and belonging to the given TID. More... | |
Public Attributes | |
| std::map< Mac48Address, BlockAckInfo > | stationsReplyingWithBlockAck |
| Set of stations replying with a BlockAck frame (no more than one) More... | |
| std::map< Mac48Address, AckInfo > | stationsReplyingWithNormalAck |
| Set of stations replying with an Ack frame (no more than one) More... | |
| std::map< Mac48Address, BlockAckReqInfo > | stationsSendBlockAckReqTo |
| Set of stations receiving a BlockAckReq frame and replying with a BlockAck frame. More... | |
| Public Attributes inherited from ns3::WifiAcknowledgment | |
| Time | acknowledgmentTime |
| time required by the acknowledgment method More... | |
| const Method | method |
| acknowledgment method More... | |
Additional Inherited Members | |
| Public Types inherited from ns3::WifiAcknowledgment | |
| enum | Method { NONE = 0, NORMAL_ACK, BLOCK_ACK, BAR_BLOCK_ACK, DL_MU_BAR_BA_SEQUENCE, DL_MU_TF_MU_BAR, DL_MU_AGGREGATE_TF, UL_MU_MULTI_STA_BA, ACK_AFTER_TB_PPDU } |
| Available acknowledgment methods. More... | |
WifiDlMuBarBaSequence specifies that a DL MU PPDU is acknowledged through a sequence of BlockAckReq and BlockAck frames.
Only one station may be allowed to reply a SIFS after the DL MU PPDU by sending either a Normal Ack or a BlockAck.
Definition at line 201 of file wifi-acknowledgment.h.
| ns3::WifiDlMuBarBaSequence::WifiDlMuBarBaSequence | ( | ) |
Definition at line 189 of file wifi-acknowledgment.cc.
Referenced by Copy().
Here is the caller graph for this function:
|
overridevirtual |
Check whether the given QoS Ack policy can be used for the MPDUs addressed to the given receiver and belonging to the given TID.
| receiver | the MAC address of the receiver |
| tid | the TID |
| ackPolicy | the QoS Ack policy to use |
Implements ns3::WifiAcknowledgment.
Definition at line 201 of file wifi-acknowledgment.cc.
References ns3::WifiMacHeader::BLOCK_ACK, ns3::WifiMacHeader::NORMAL_ACK, stationsReplyingWithBlockAck, and stationsReplyingWithNormalAck.
|
overridevirtual |
Clone this object.
Implements ns3::WifiAcknowledgment.
Definition at line 195 of file wifi-acknowledgment.cc.
References WifiDlMuBarBaSequence().
Here is the call graph for this function:
|
overridevirtual |
Print the object contents.
| os | output stream in which the data should be printed. |
Implements ns3::WifiAcknowledgment.
Definition at line 231 of file wifi-acknowledgment.cc.
References stationsReplyingWithBlockAck, stationsReplyingWithNormalAck, and stationsSendBlockAckReqTo.
| std::map<Mac48Address, BlockAckInfo> ns3::WifiDlMuBarBaSequence::stationsReplyingWithBlockAck |
Set of stations replying with a BlockAck frame (no more than one)
Definition at line 232 of file wifi-acknowledgment.h.
Referenced by ns3::HeFrameExchangeManager::CalculateAcknowledgmentTime(), CheckQosAckPolicy(), ns3::WifiDefaultAckManager::GetAckInfoIfBarBaSequence(), Print(), and ns3::HeFrameExchangeManager::SendPsduMap().
| std::map<Mac48Address, AckInfo> ns3::WifiDlMuBarBaSequence::stationsReplyingWithNormalAck |
Set of stations replying with an Ack frame (no more than one)
Definition at line 230 of file wifi-acknowledgment.h.
Referenced by ns3::HeFrameExchangeManager::CalculateAcknowledgmentTime(), CheckQosAckPolicy(), ns3::WifiDefaultAckManager::GetAckInfoIfBarBaSequence(), Print(), ns3::HeFrameExchangeManager::ReceiveMpdu(), and ns3::HeFrameExchangeManager::SendPsduMap().
| std::map<Mac48Address, BlockAckReqInfo> ns3::WifiDlMuBarBaSequence::stationsSendBlockAckReqTo |
Set of stations receiving a BlockAckReq frame and replying with a BlockAck frame.
Definition at line 234 of file wifi-acknowledgment.h.
Referenced by ns3::HeFrameExchangeManager::CalculateAcknowledgmentTime(), ns3::WifiDefaultAckManager::GetAckInfoIfBarBaSequence(), Print(), and ns3::HeFrameExchangeManager::SendPsduMap().
