ns3::WifiNoProtection Struct Reference

WifiNoProtection specifies that no protection method is used. More...

#include "wifi-protection.h"

Inheritance diagram for ns3::WifiNoProtection:

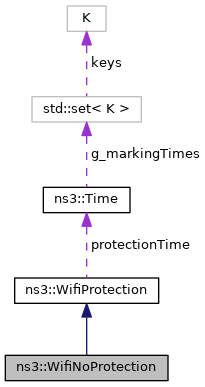

Collaboration diagram for ns3::WifiNoProtection:

Public Member Functions
	WifiNoProtection ()
std::unique_ptr< WifiProtection >	Copy (void) const override
	Clone this object. More...
void	Print (std::ostream &os) const override
	Print the object contents. More...
Public Member Functions inherited from ns3::WifiProtection
	WifiProtection (Method m)
	Constructor. More...
virtual	~WifiProtection ()

Additional Inherited Members
Public Types inherited from ns3::WifiProtection
enum	Method { NONE = 0, RTS_CTS, CTS_TO_SELF }
	Available protection methods. More...
Public Attributes inherited from ns3::WifiProtection
const Method	method
	protection method More...
Time	protectionTime
	time required by the protection method More...

Detailed Description

WifiNoProtection specifies that no protection method is used.

Definition at line 81 of file wifi-protection.h.

Constructor & Destructor Documentation

WifiNoProtection()

ns3::WifiNoProtection::WifiNoProtection

(

)

Definition at line 45 of file wifi-protection.cc.

References ns3::WifiProtection::protectionTime, and ns3::Seconds().

Referenced by Copy().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Function Documentation

Copy()

std::unique_ptr< WifiProtection > ns3::WifiNoProtection::Copy ( void  ) const

overridevirtual

Clone this object.

Returns

a pointer to the cloned object

Implements ns3::WifiProtection.

Definition at line 52 of file wifi-protection.cc.

References WifiNoProtection().

Here is the call graph for this function:

Print()

void ns3::WifiNoProtection::Print ( std::ostream &  os ) const

overridevirtual

Print the object contents.

Parameters

os	output stream in which the data should be printed.

Implements ns3::WifiProtection.

Definition at line 58 of file wifi-protection.cc.

---

The documentation for this struct was generated from the following files:

• src/wifi/model/wifi-protection.h
• src/wifi/model/wifi-protection.cc
