ns3::WifiNormalAck Struct Reference

WifiNormalAck specifies that acknowledgment via Normal Ack is required. More...

#include "wifi-acknowledgment.h"

Inheritance diagram for ns3::WifiNormalAck:

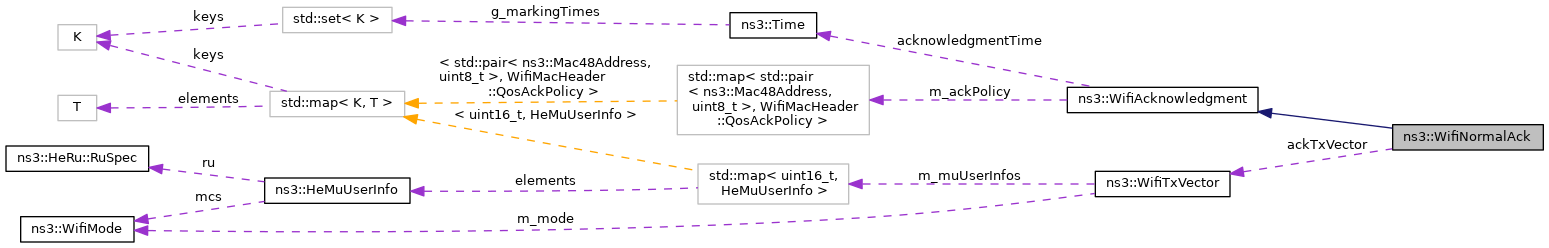

Collaboration diagram for ns3::WifiNormalAck:

Public Member Functions
	WifiNormalAck ()
bool	CheckQosAckPolicy (Mac48Address receiver, uint8_t tid, WifiMacHeader::QosAckPolicy ackPolicy) const override
	Check whether the given QoS Ack policy can be used for the MPDUs addressed to the given receiver and belonging to the given TID. More...
std::unique_ptr< WifiAcknowledgment >	Copy (void) const override
	Clone this object. More...
void	Print (std::ostream &os) const override
	Print the object contents. More...
Public Member Functions inherited from ns3::WifiAcknowledgment
	WifiAcknowledgment (Method m)
	Constructor. More...
virtual	~WifiAcknowledgment ()
WifiMacHeader::QosAckPolicy	GetQosAckPolicy (Mac48Address receiver, uint8_t tid) const
	Get the QoS Ack policy to use for the MPDUs addressed to the given receiver and belonging to the given TID. More...
void	SetQosAckPolicy (Mac48Address receiver, uint8_t tid, WifiMacHeader::QosAckPolicy ackPolicy)
	Set the QoS Ack policy to use for the MPDUs addressed to the given receiver and belonging to the given TID. More...

Public Attributes
WifiTxVector	ackTxVector
	Ack TXVECTOR. More...
Public Attributes inherited from ns3::WifiAcknowledgment
Time	acknowledgmentTime
	time required by the acknowledgment method More...
const Method	method
	acknowledgment method More...

Additional Inherited Members
Public Types inherited from ns3::WifiAcknowledgment
enum	Method {   NONE = 0, NORMAL_ACK, BLOCK_ACK, BAR_BLOCK_ACK,   DL_MU_BAR_BA_SEQUENCE, DL_MU_TF_MU_BAR, DL_MU_AGGREGATE_TF, UL_MU_MULTI_STA_BA,   ACK_AFTER_TB_PPDU }
	Available acknowledgment methods. More...

Detailed Description

WifiNormalAck specifies that acknowledgment via Normal Ack is required.

Definition at line 144 of file wifi-acknowledgment.h.

Constructor & Destructor Documentation

WifiNormalAck()

ns3::WifiNormalAck::WifiNormalAck

(

)

Definition at line 94 of file wifi-acknowledgment.cc.

Referenced by Copy().

Here is the caller graph for this function:

Member Function Documentation

CheckQosAckPolicy()

bool ns3::WifiNormalAck::CheckQosAckPolicy ( Mac48Address  receiver, uint8_t  tid, WifiMacHeader::QosAckPolicy  ackPolicy  ) const

overridevirtual

Check whether the given QoS Ack policy can be used for the MPDUs addressed to the given receiver and belonging to the given TID.

Parameters

receiver	the MAC address of the receiver
tid	the TID
ackPolicy	the QoS Ack policy to use

Returns

true if the given QoS Ack policy can be used, false otherwise

Implements ns3::WifiAcknowledgment.

Definition at line 106 of file wifi-acknowledgment.cc.

References ns3::WifiMacHeader::NORMAL_ACK.

Copy()

std::unique_ptr< WifiAcknowledgment > ns3::WifiNormalAck::Copy ( void  ) const

overridevirtual

Clone this object.

Returns

a pointer to the cloned object

Implements ns3::WifiAcknowledgment.

Definition at line 100 of file wifi-acknowledgment.cc.

References WifiNormalAck().

Here is the call graph for this function:

Print()

void ns3::WifiNormalAck::Print ( std::ostream &  os ) const

overridevirtual

Print the object contents.

Parameters

os	output stream in which the data should be printed.

Implements ns3::WifiAcknowledgment.

Definition at line 116 of file wifi-acknowledgment.cc.

Member Data Documentation

ackTxVector

WifiTxVector ns3::WifiNormalAck::ackTxVector

Ack TXVECTOR.

Definition at line 152 of file wifi-acknowledgment.h.

Referenced by ns3::FrameExchangeManager::CalculateAcknowledgmentTime(), ns3::FrameExchangeManager::SendMpdu(), and ns3::WifiDefaultAckManager::TryAddMpdu().

---

The documentation for this struct was generated from the following files:

• src/wifi/model/wifi-acknowledgment.h
• src/wifi/model/wifi-acknowledgment.cc
