WifiRtsCtsProtection specifies that RTS/CTS protection method is used. More...

#include "wifi-protection.h"

Inheritance diagram for ns3::WifiRtsCtsProtection:

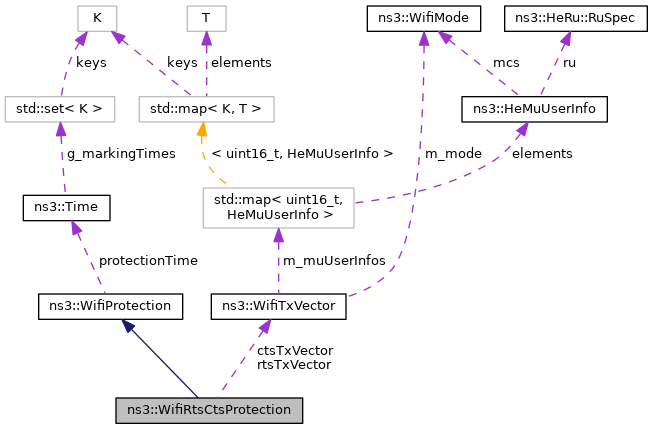

Collaboration diagram for ns3::WifiRtsCtsProtection:

Public Member Functions
	WifiRtsCtsProtection ()

std::unique_ptr< WifiProtection >	Copy (void) const override
	Clone this object. More...

void	Print (std::ostream &os) const override
	Print the object contents. More...

Public Member Functions inherited from ns3::WifiProtection
	WifiProtection (Method m)
	Constructor. More...

virtual	~WifiProtection ()

Public Attributes
WifiTxVector	ctsTxVector
	CTS TXVECTOR. More...

WifiTxVector	rtsTxVector
	RTS TXVECTOR. More...

Public Attributes inherited from ns3::WifiProtection
const Method	method
	protection method More...

Time	protectionTime
	time required by the protection method More...

Additional Inherited Members
Public Types inherited from ns3::WifiProtection
enum	Method { NONE = 0, RTS_CTS, CTS_TO_SELF }
	Available protection methods. More...

Detailed Description

WifiRtsCtsProtection specifies that RTS/CTS protection method is used.

Definition at line 95 of file wifi-protection.h.

Constructor & Destructor Documentation

◆ WifiRtsCtsProtection()

ns3::WifiRtsCtsProtection::WifiRtsCtsProtection ( )

Definition at line 68 of file wifi-protection.cc.

Referenced by Copy().

Here is the caller graph for this function:

Member Function Documentation

◆ Copy()

std::unique_ptr< WifiProtection > ns3::WifiRtsCtsProtection::Copy ( void ) const

overridevirtual

Clone this object.

Returns: a pointer to the cloned object

Implements ns3::WifiProtection.

Definition at line 74 of file wifi-protection.cc.

References WifiRtsCtsProtection().

Here is the call graph for this function:

◆ Print()

void ns3::WifiRtsCtsProtection::Print ( std::ostream & os ) const

overridevirtual

Print the object contents.

Parameters

os	output stream in which the data should be printed.

Implements ns3::WifiProtection.

Definition at line 80 of file wifi-protection.cc.

Member Data Documentation

◆ ctsTxVector

WifiTxVector ns3::WifiRtsCtsProtection::ctsTxVector

CTS TXVECTOR.

Definition at line 103 of file wifi-protection.h.

Referenced by ns3::FrameExchangeManager::CalculateProtectionTime(), ns3::WifiDefaultProtectionManager::GetPsduProtection(), and ns3::FrameExchangeManager::SendRts().

◆ rtsTxVector

WifiTxVector ns3::WifiRtsCtsProtection::rtsTxVector

RTS TXVECTOR.

Definition at line 102 of file wifi-protection.h.
