#include <map>
#include "wifi-phy-band.h"
#include "ns3/abort.h"

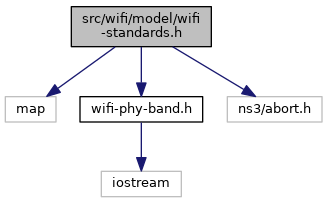

Include dependency graph for wifi-standards.h:

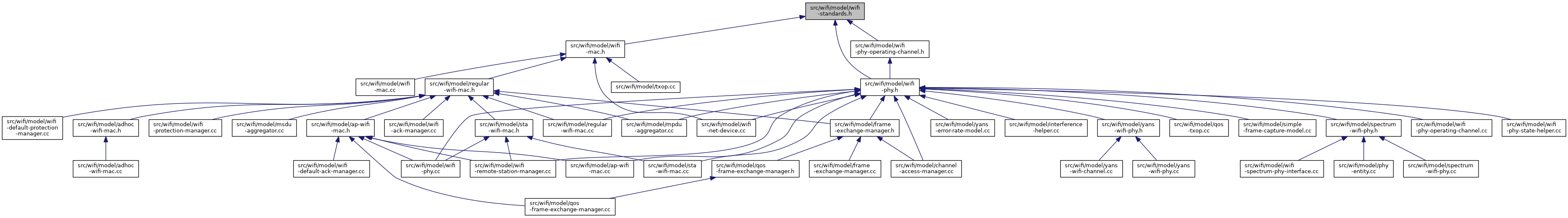

This graph shows which files directly or indirectly include this file:

Classes
struct	ns3::WifiStandardInfo
	hold PHY and MAC information based on the selected standard. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Enumerations
enum	ns3::FrequencyChannelType : uint8_t { ns3::WIFI_PHY_DSSS_CHANNEL = 0, ns3::WIFI_PHY_OFDM_CHANNEL, ns3::WIFI_PHY_80211p_CHANNEL }
	Enumeration of frequency channel types. More...

enum	ns3::WifiMacStandard { ns3::WIFI_MAC_STANDARD_80211, ns3::WIFI_MAC_STANDARD_80211n, ns3::WIFI_MAC_STANDARD_80211ac, ns3::WIFI_MAC_STANDARD_80211ax }
	Identifies the MAC specification that a Wifi device is configured to use. More...

enum	ns3::WifiPhyStandard { ns3::WIFI_PHY_STANDARD_80211a, ns3::WIFI_PHY_STANDARD_80211b, ns3::WIFI_PHY_STANDARD_80211g, ns3::WIFI_PHY_STANDARD_80211_10MHZ, ns3::WIFI_PHY_STANDARD_80211_5MHZ, ns3::WIFI_PHY_STANDARD_80211p, ns3::WIFI_PHY_STANDARD_80211n_2_4GHZ, ns3::WIFI_PHY_STANDARD_80211n_5GHZ, ns3::WIFI_PHY_STANDARD_80211n, ns3::WIFI_PHY_STANDARD_80211ac, ns3::WIFI_PHY_STANDARD_80211ax, ns3::WIFI_PHY_STANDARD_UNSPECIFIED }
	Identifies the PHY specification that a Wifi device is configured to use. More...

enum	ns3::WifiStandard { ns3::WIFI_STANDARD_80211a, ns3::WIFI_STANDARD_80211b, ns3::WIFI_STANDARD_80211g, ns3::WIFI_STANDARD_80211p, ns3::WIFI_STANDARD_80211n_2_4GHZ, ns3::WIFI_STANDARD_80211n_5GHZ, ns3::WIFI_STANDARD_80211ac, ns3::WIFI_STANDARD_80211ax_2_4GHZ, ns3::WIFI_STANDARD_80211ax_5GHZ, ns3::WIFI_STANDARD_80211ax_6GHZ }
	Identifies the allowed configurations that a Wifi device is configured to use. More...

Functions
uint16_t	ns3::GetDefaultChannelWidth (WifiPhyStandard standard, WifiPhyBand band)
	Get the default channel width for the given PHY standard and band. More...

FrequencyChannelType	ns3::GetFrequencyChannelType (WifiPhyStandard standard)
	Get the type of the frequency channel for the given PHY standard. More...

uint16_t	ns3::GetMaximumChannelWidth (WifiPhyStandard standard)
	Get the maximum channel width in MHz allowed for the given PHY standard. More...

std::ostream &	ns3::operator<< (std::ostream &os, WifiPhyStandard standard)
	Stream insertion operator. More...

std::ostream &	ns3::operator<< (std::ostream &os, WifiMacStandard standard)
	Stream insertion operator. More...

std::ostream &	ns3::operator<< (std::ostream &os, WifiStandard standard)
	Stream insertion operator. More...

Variables
const std::map< WifiStandard, WifiStandardInfo >	ns3::wifiStandards
	map a given standard configured by the user to the corresponding WifiStandardInfo More...
