ns3::DropTailQueue< Item > Class Template Reference

A FIFO packet queue that drops tail-end packets on overflow. More...

#include "drop-tail-queue.h"

Inheritance diagram for ns3::DropTailQueue< Item >:

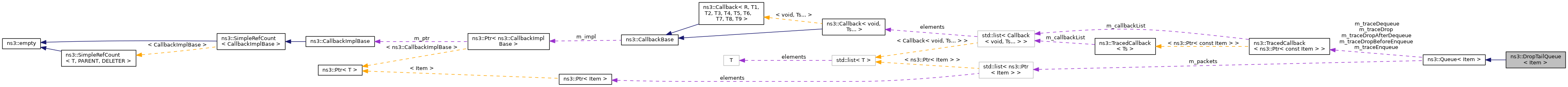

Collaboration diagram for ns3::DropTailQueue< Item >:

Public Member Functions
	DropTailQueue ()
	DropTailQueue Constructor. More...
virtual	~DropTailQueue ()
virtual Ptr< Item >	Dequeue (void)
	Remove an item from the Queue (each subclass defines the position), counting it and tracing it as dequeued. More...
virtual bool	Enqueue (Ptr< Item > item)
	Place an item into the Queue (each subclass defines the position) More...
virtual Ptr< const Item >	Peek (void) const
	Get a copy of an item in the queue (each subclass defines the position) without removing it. More...
virtual Ptr< Item >	Remove (void)
	Remove an item from the Queue (each subclass defines the position), counting it and tracing it as both dequeued and dropped. More...
Public Member Functions inherited from ns3::Queue< Item >
	Queue ()
virtual	~Queue ()
void	Flush (void)
	Flush the queue by calling Remove() on each item enqueued. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...
Static Public Member Functions inherited from ns3::Queue< Item >
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
	NS_LOG_TEMPLATE_DECLARE
	redefinition of the log component More...

Additional Inherited Members
Public Types inherited from ns3::Queue< Item >
typedef Item	ItemType
	Define ItemType as the type of the stored elements. More...
Protected Types inherited from ns3::Queue< Item >
typedef std::list< Ptr< Item > >::const_iterator	ConstIterator
	Const iterator. More...
typedef std::list< Ptr< Item > >::iterator	Iterator
	Iterator. More...
Protected Member Functions inherited from ns3::Queue< Item >
Iterator	begin (void)
	Get an iterator which refers to the first item in the queue. More...
ConstIterator	begin (void) const
	Get a const iterator which refers to the first item in the queue. More...
Ptr< Item >	DoDequeue (ConstIterator pos)
	Pull the item to dequeue from the queue. More...
void	DoDispose (void) override
bool	DoEnqueue (ConstIterator pos, Ptr< Item > item)
	Push an item in the queue. More...
bool	DoEnqueue (ConstIterator pos, Ptr< Item > item, Iterator &ret)
	Push an item in the queue. More...
Ptr< const Item >	DoPeek (ConstIterator pos) const
	Peek the front item in the queue. More...
Ptr< Item >	DoRemove (ConstIterator pos)
	Pull the item to drop from the queue. More...
void	DropAfterDequeue (Ptr< Item > item)
	Drop a packet after dequeue. More...
void	DropBeforeEnqueue (Ptr< Item > item)
	Drop a packet before enqueue. More...
Iterator	end (void)
	Get an iterator which indicates past-the-last item in the queue. More...
ConstIterator	end (void) const
	Get a const iterator which indicates past-the-last item in the queue. More...

Detailed Description

template<typename Item>
class ns3::DropTailQueue< Item >

A FIFO packet queue that drops tail-end packets on overflow.

Definition at line 32 of file drop-tail-queue.h.

Constructor & Destructor Documentation

DropTailQueue()

template<typename Item >

ns3::DropTailQueue< Item >::DropTailQueue

DropTailQueue Constructor.

Creates a droptail queue with a maximum size of 100 packets by default

Definition at line 89 of file drop-tail-queue.h.

References NS_LOG_FUNCTION.

~DropTailQueue()

template<typename Item >

ns3::DropTailQueue< Item >::~DropTailQueue

virtual

Definition at line 97 of file drop-tail-queue.h.

References NS_LOG_FUNCTION.

Member Function Documentation

Dequeue()

template<typename Item >

Ptr< Item > ns3::DropTailQueue< Item >::Dequeue ( void  )

virtual

Remove an item from the Queue (each subclass defines the position), counting it and tracing it as dequeued.

Returns

0 if the operation was not successful; the item otherwise.

Implements ns3::Queue< Item >.

Definition at line 113 of file drop-tail-queue.h.

References NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Enqueue()

template<typename Item >

bool ns3::DropTailQueue< Item >::Enqueue ( Ptr< Item >  item )

virtual

Place an item into the Queue (each subclass defines the position)

Parameters

item	item to enqueue

Returns

True if the operation was successful; false otherwise

Implements ns3::Queue< Item >.

Definition at line 104 of file drop-tail-queue.h.

References NS_LOG_FUNCTION.

GetTypeId()

template<typename Item >

TypeId ns3::DropTailQueue< Item >::GetTypeId ( void  )

static

Get the type ID.

Implementation of the templates declared above.

Returns

the object TypeId

Definition at line 72 of file drop-tail-queue.h.

References ns3::QueueBase::GetMaxSize(), ns3::GetTypeParamName(), ns3::MakeQueueSizeAccessor(), ns3::MakeQueueSizeChecker(), ns3::QueueBase::SetMaxSize(), and ns3::TypeId::SetParent().

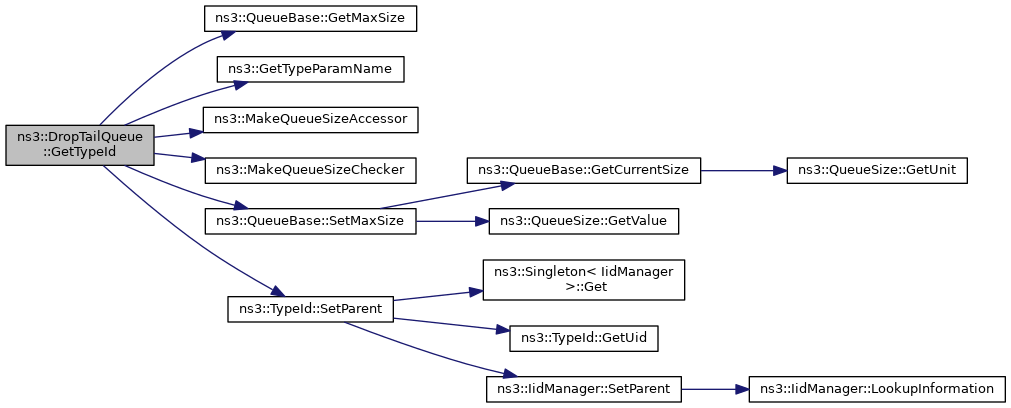

Here is the call graph for this function:

Peek()

template<typename Item >

Ptr< const Item > ns3::DropTailQueue< Item >::Peek ( void  ) const

virtual

Get a copy of an item in the queue (each subclass defines the position) without removing it.

Returns

0 if the operation was not successful; the item otherwise.

Implements ns3::Queue< Item >.

Definition at line 139 of file drop-tail-queue.h.

References NS_LOG_FUNCTION.

Remove()

template<typename Item >

Ptr< Item > ns3::DropTailQueue< Item >::Remove ( void  )

virtual

Remove an item from the Queue (each subclass defines the position), counting it and tracing it as both dequeued and dropped.

Returns

0 if the operation was not successful; the item otherwise.

Implements ns3::Queue< Item >.

Definition at line 126 of file drop-tail-queue.h.

References NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Member Data Documentation

NS_LOG_TEMPLATE_DECLARE

template<typename Item >

ns3::DropTailQueue< Item >::NS_LOG_TEMPLATE_DECLARE

private

redefinition of the log component

Definition at line 62 of file drop-tail-queue.h.

---

The documentation for this class was generated from the following file:

• src/network/utils/drop-tail-queue.h
