WifiMacQueueItem stores (const) packets along with their Wifi MAC headers and the time when they were enqueued. More...

#include "wifi-mac-queue-item.h"

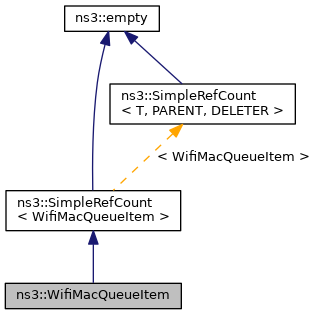

Inheritance diagram for ns3::WifiMacQueueItem:

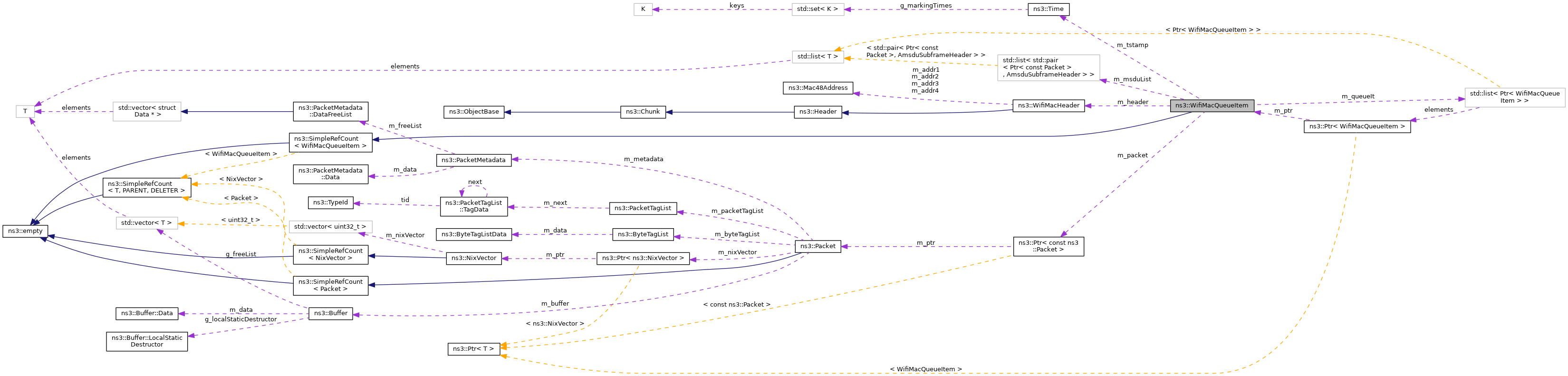

Collaboration diagram for ns3::WifiMacQueueItem:

Public Types
typedef std::list< Ptr< WifiMacQueueItem > >::const_iterator	ConstIterator
	Const iterator typedef. More...

typedef std::list< std::pair< Ptr< const Packet >, AmsduSubframeHeader > >	DeaggregatedMsdus
	DeaggregatedMsdus typedef. More...

typedef std::list< std::pair< Ptr< const Packet >, AmsduSubframeHeader > >::const_iterator	DeaggregatedMsdusCI
	DeaggregatedMsdusCI typedef. More...

Public Member Functions
	WifiMacQueueItem (Ptr< const Packet > p, const WifiMacHeader &header)
	Create a Wifi MAC queue item containing a packet and a Wifi MAC header. More...

	WifiMacQueueItem (Ptr< const Packet > p, const WifiMacHeader &header, Time tstamp)
	Create a Wifi MAC queue item containing a packet and a Wifi MAC header. More...

virtual	~WifiMacQueueItem ()

void	Aggregate (Ptr< const WifiMacQueueItem > msdu)
	Aggregate the MSDU contained in the given MPDU to this MPDU (thus constituting an A-MSDU). More...

DeaggregatedMsdusCI	begin (void)
	Get a constant iterator pointing to the first MSDU in the list of aggregated MSDUs. More...

DeaggregatedMsdusCI	end (void)
	Get a constant iterator indicating past-the-last MSDU in the list of aggregated MSDUs. More...

Mac48Address	GetDestinationAddress (void) const
	Return the destination address present in the header. More...

WifiMacHeader &	GetHeader (void)
	Get the header stored in this item. More...

const WifiMacHeader &	GetHeader (void) const
	Get the header stored in this item. More...

Ptr< const Packet >	GetPacket (void) const
	Get the packet stored in this item. More...

uint32_t	GetPacketSize (void) const
	Return the size in bytes of the packet or control header or management header stored by this item. More...

Ptr< Packet >	GetProtocolDataUnit (void) const
	Get the MAC protocol data unit (MPDU) corresponding to this item (i.e. More...

AcIndex	GetQueueAc (void) const
	Get the AC of the queue this item is stored into. More...

ConstIterator	GetQueueIterator (void) const
	Get a const iterator pointing to the position of the MPDU in the queue. More...

uint32_t	GetSize (void) const
	Return the size of the packet stored by this item, including header size and trailer size. More...

Time	GetTimeStamp (void) const
	Get the timestamp included in this item. More...

bool	IsFragment (void) const
	Return true if this item contains an MSDU fragment, false otherwise. More...

bool	IsInFlight (void) const
	Return true if this MPDU is in flight, false otherwise. More...

bool	IsQueued (void) const
	Return true if this item is stored in some queue, false otherwise. More...

virtual void	Print (std::ostream &os) const
	Print the item contents. More...

void	ResetInFlight (void)
	Mark this MPDU as not being in flight (only used if Block Ack agreement established). More...

void	SetInFlight (void)
	Mark this MPDU as being in flight (only used if Block Ack agreement established). More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiMacQueueItem >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Member Functions
void	DoAggregate (Ptr< const WifiMacQueueItem > msdu)
	Aggregate the MSDU contained in the given MPDU to this MPDU (thus constituting an A-MSDU). More...

Private Attributes
WifiMacHeader	m_header
	Wifi MAC header associated with the packet. More...

bool	m_inFlight
	whether the MPDU is in flight More...

DeaggregatedMsdus	m_msduList
	The list of aggregated MSDUs included in this MPDU. More...

Ptr< const Packet >	m_packet
	The packet (MSDU or A-MSDU) contained in this queue item. More...

AcIndex	m_queueAc
	AC associated with the queue this MPDU is stored into. More...

ConstIterator	m_queueIt
	Queue iterator pointing to this MPDU, if queued. More...

Time	m_tstamp
	timestamp when the packet arrived at the queue More...

Friends
class	WifiMacQueue

Detailed Description

WifiMacQueueItem stores (const) packets along with their Wifi MAC headers and the time when they were enqueued.

Definition at line 44 of file wifi-mac-queue-item.h.

Member Typedef Documentation

◆ ConstIterator

typedef std::list<Ptr<WifiMacQueueItem> >::const_iterator ns3::WifiMacQueueItem::ConstIterator

Const iterator typedef.

Definition at line 144 of file wifi-mac-queue-item.h.

◆ DeaggregatedMsdus

typedef std::list<std::pair<Ptr<const Packet>, AmsduSubframeHeader> > ns3::WifiMacQueueItem::DeaggregatedMsdus

DeaggregatedMsdus typedef.

Definition at line 126 of file wifi-mac-queue-item.h.

◆ DeaggregatedMsdusCI

typedef std::list<std::pair<Ptr<const Packet>, AmsduSubframeHeader> >::const_iterator ns3::WifiMacQueueItem::DeaggregatedMsdusCI

DeaggregatedMsdusCI typedef.

Definition at line 128 of file wifi-mac-queue-item.h.

Constructor & Destructor Documentation

◆ WifiMacQueueItem() [1/2]

ns3::WifiMacQueueItem::WifiMacQueueItem	(	Ptr< const Packet >	p,
		const WifiMacHeader &	header
	)

Create a Wifi MAC queue item containing a packet and a Wifi MAC header.

Parameters

p	the const packet included in the created item.
header	the Wifi MAC header included in the created item.

Definition at line 36 of file wifi-mac-queue-item.cc.

◆ WifiMacQueueItem() [2/2]

ns3::WifiMacQueueItem::WifiMacQueueItem	(	Ptr< const Packet >	p,
		const WifiMacHeader &	header,
		Time	tstamp
	)

Create a Wifi MAC queue item containing a packet and a Wifi MAC header.

Parameters

p	the const packet included in the created item.
header	the Wifi MAC header included in the created item.
tstamp	the timestamp associated with the created item.

Definition at line 41 of file wifi-mac-queue-item.cc.

References ns3::Packet::Copy(), ns3::MsduAggregator::Deaggregate(), ns3::WifiMacHeader::IsQosAmsdu(), ns3::WifiMacHeader::IsQosData(), m_inFlight, and m_msduList.

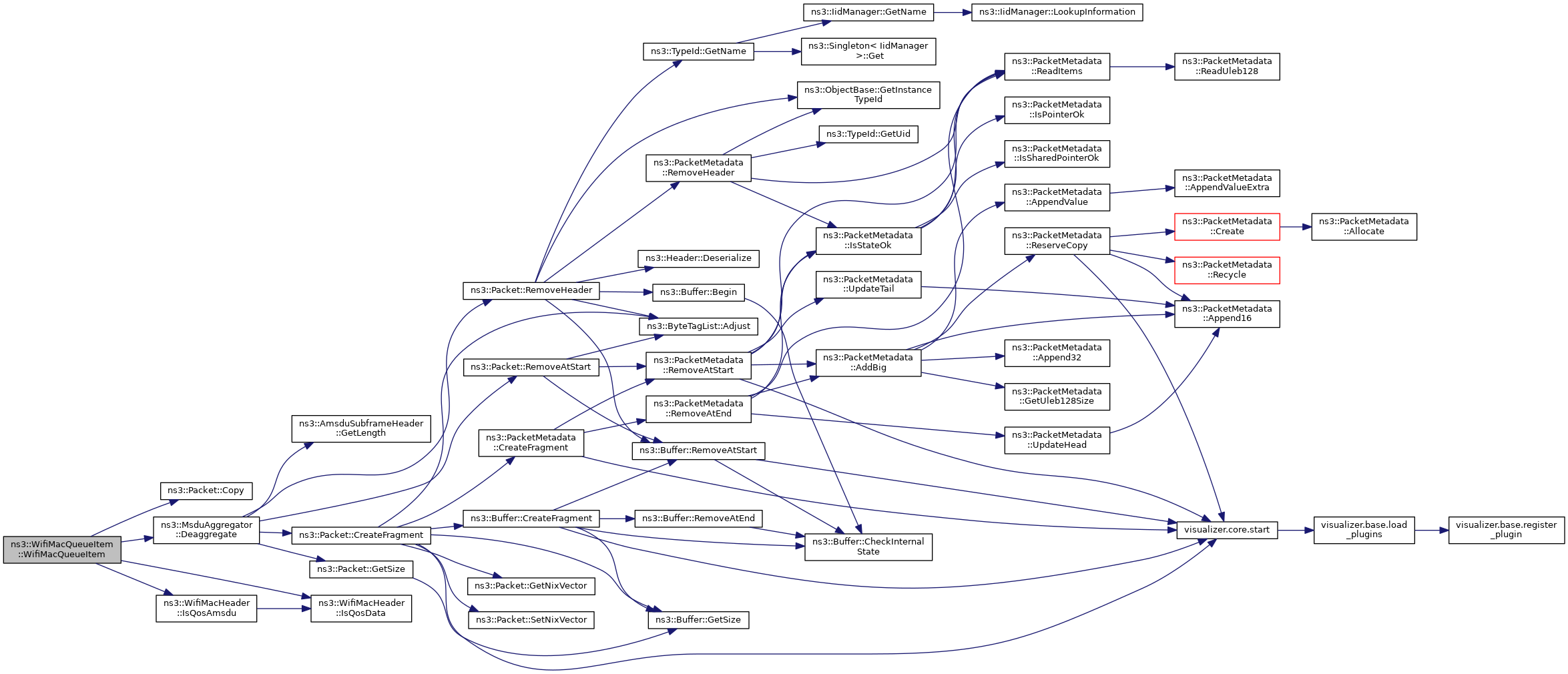

Here is the call graph for this function:

◆ ~WifiMacQueueItem()

ns3::WifiMacQueueItem::~WifiMacQueueItem ( )

virtual

Definition at line 54 of file wifi-mac-queue-item.cc.

Member Function Documentation

◆ Aggregate()

void ns3::WifiMacQueueItem::Aggregate ( Ptr< const WifiMacQueueItem > msdu )

Aggregate the MSDU contained in the given MPDU to this MPDU (thus constituting an A-MSDU).

Note that the given MPDU cannot contain an A-MSDU.

Parameters

msdu	the MPDU containing the MSDU to aggregate

Definition at line 116 of file wifi-mac-queue-item.cc.

References DoAggregate(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), ns3::WifiMacHeader::IsFromDs(), ns3::WifiMacHeader::IsToDs(), m_header, m_msduList, m_packet, NS_ABORT_MSG_IF, NS_ASSERT, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetAddr3(), and ns3::WifiMacHeader::SetQosAmsdu().

Referenced by ns3::MsduAggregator::GetNextAmsdu().

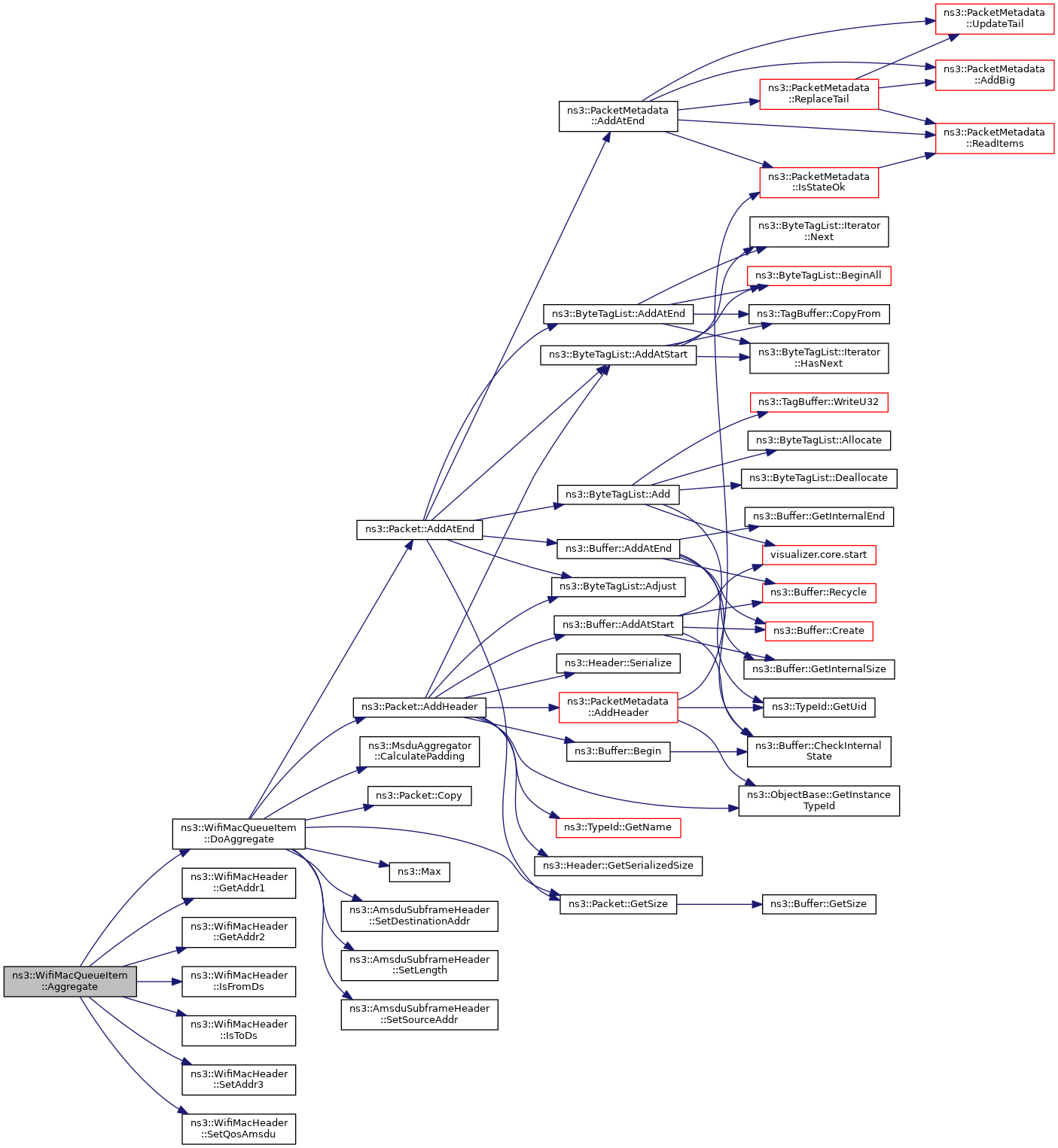

Here is the call graph for this function:

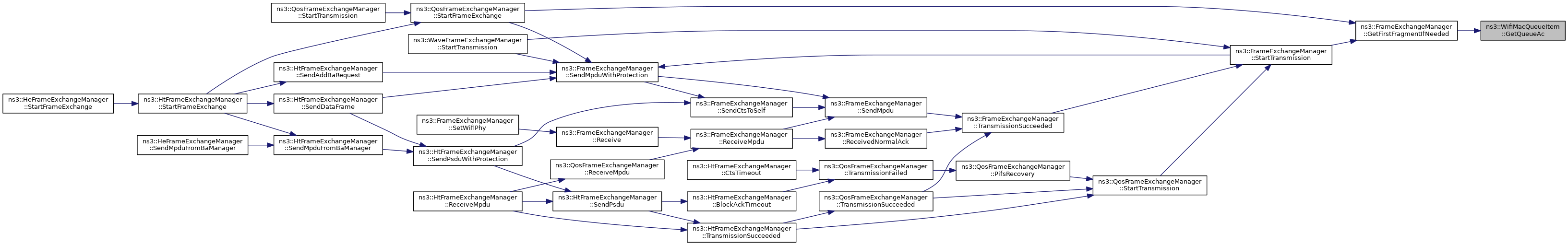

Here is the caller graph for this function:

◆ begin()

WifiMacQueueItem::DeaggregatedMsdusCI ns3::WifiMacQueueItem::begin ( void )

Get a constant iterator pointing to the first MSDU in the list of aggregated MSDUs.

Returns: a constant iterator pointing to the first MSDU in the list of aggregated MSDUs

Definition at line 243 of file wifi-mac-queue-item.cc.

References m_msduList.

Referenced by TwoLevelAggregationTest::DoRun().

Here is the caller graph for this function:

◆ DoAggregate()

void ns3::WifiMacQueueItem::DoAggregate ( Ptr< const WifiMacQueueItem > msdu )

private

Aggregate the MSDU contained in the given MPDU to this MPDU (thus constituting an A-MSDU).

Note that the given MPDU cannot contain an A-MSDU.

Parameters

msdu	the MPDU containing the MSDU to aggregate

Definition at line 150 of file wifi-mac-queue-item.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::AddHeader(), ns3::MsduAggregator::CalculatePadding(), ns3::Packet::Copy(), ns3::Packet::GetSize(), m_msduList, m_packet, m_tstamp, ns3::Max(), NS_ASSERT, NS_LOG_FUNCTION, ns3::AmsduSubframeHeader::SetDestinationAddr(), ns3::AmsduSubframeHeader::SetLength(), and ns3::AmsduSubframeHeader::SetSourceAddr().

Referenced by Aggregate().

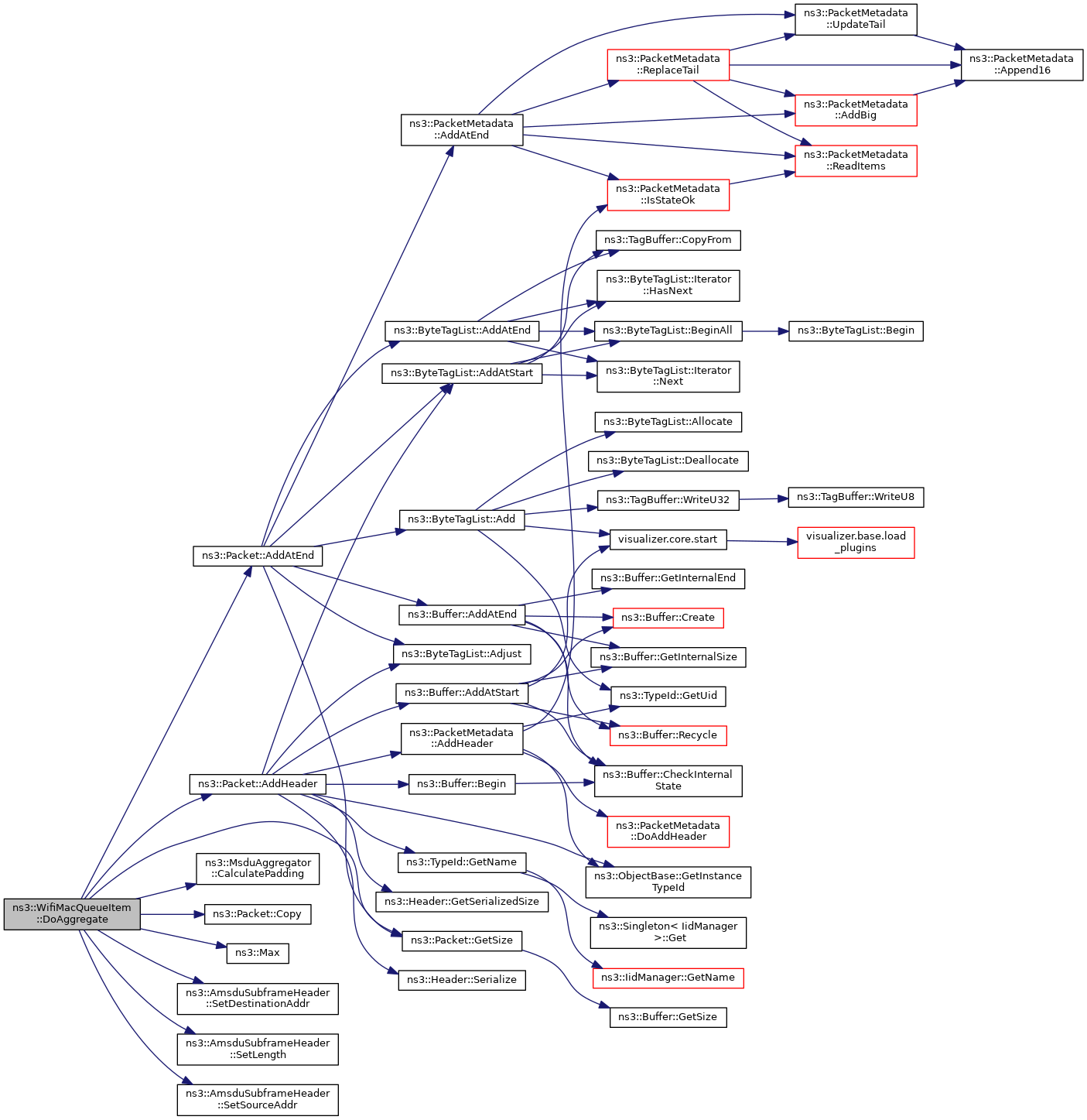

Here is the call graph for this function:

Here is the caller graph for this function:

◆ end()

WifiMacQueueItem::DeaggregatedMsdusCI ns3::WifiMacQueueItem::end ( void )

Get a constant iterator indicating past-the-last MSDU in the list of aggregated MSDUs.

Returns: a constant iterator indicating past-the-last MSDU in the list of aggregated MSDUs

Definition at line 249 of file wifi-mac-queue-item.cc.

References m_msduList.

Referenced by TwoLevelAggregationTest::DoRun().

Here is the caller graph for this function:

◆ GetDestinationAddress()

Mac48Address ns3::WifiMacQueueItem::GetDestinationAddress ( void ) const

Return the destination address present in the header.

Returns: the destination address

Definition at line 77 of file wifi-mac-queue-item.cc.

References ns3::WifiMacHeader::GetAddr1(), and m_header.

Here is the call graph for this function:

◆ GetHeader() [1/2]

WifiMacHeader & ns3::WifiMacQueueItem::GetHeader ( void )

Get the header stored in this item.

Returns: the header stored in this item.

Definition at line 71 of file wifi-mac-queue-item.cc.

References m_header.

◆ GetHeader() [2/2]

const WifiMacHeader & ns3::WifiMacQueueItem::GetHeader ( void ) const

Get the header stored in this item.

Returns: the header stored in this item.

Definition at line 65 of file wifi-mac-queue-item.cc.

References m_header.

Here is the caller graph for this function:

◆ GetPacket()

Ptr< const Packet > ns3::WifiMacQueueItem::GetPacket ( void ) const

Get the packet stored in this item.

Returns: the packet stored in this item.

Definition at line 59 of file wifi-mac-queue-item.cc.

References m_packet.

Referenced by ns3::FrameExchangeManager::GetFirstFragmentIfNeeded(), ns3::HtFrameExchangeManager::NotifyReceivedNormalAck(), WifiAcMappingTest::PacketEnqueuedInWifiMacQueue(), ns3::MeshWifiInterfaceMac::Receive(), ns3::OcbWifiMac::Receive(), ns3::MacRxMiddle::Receive(), ns3::RegularWifiMac::Receive(), ns3::AdhocWifiMac::Receive(), ns3::ApWifiMac::Receive(), ns3::StaWifiMac::Receive(), ns3::FrameExchangeManager::ReceiveMpdu(), ns3::HeFrameExchangeManager::ReceiveMpdu(), ns3::HtFrameExchangeManager::ReceiveMpdu(), and ns3::RrMultiUserScheduler::TrySendingBasicTf().

Here is the caller graph for this function:

◆ GetPacketSize()

uint32_t ns3::WifiMacQueueItem::GetPacketSize ( void ) const

Return the size in bytes of the packet or control header or management header stored by this item.

Returns: the size in bytes of the packet or control header or management header stored by this item

Definition at line 89 of file wifi-mac-queue-item.cc.

References ns3::Packet::GetSize(), and m_packet.

Referenced by TwoLevelAggregationTest::DoRun(), ns3::FrameExchangeManager::GetNextFragment(), GetSize(), Print(), and ns3::FrameExchangeManager::StartTransmission().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetProtocolDataUnit()

Ptr< Packet > ns3::WifiMacQueueItem::GetProtocolDataUnit ( void ) const

Get the MAC protocol data unit (MPDU) corresponding to this item (i.e.

a copy of the packet stored in this item wrapped with MAC header and trailer)

Returns: the MAC protocol data unit corresponding to this item.

Definition at line 107 of file wifi-mac-queue-item.cc.

References ns3::Packet::AddHeader(), ns3::AddWifiMacTrailer(), ns3::Packet::Copy(), m_header, and m_packet.

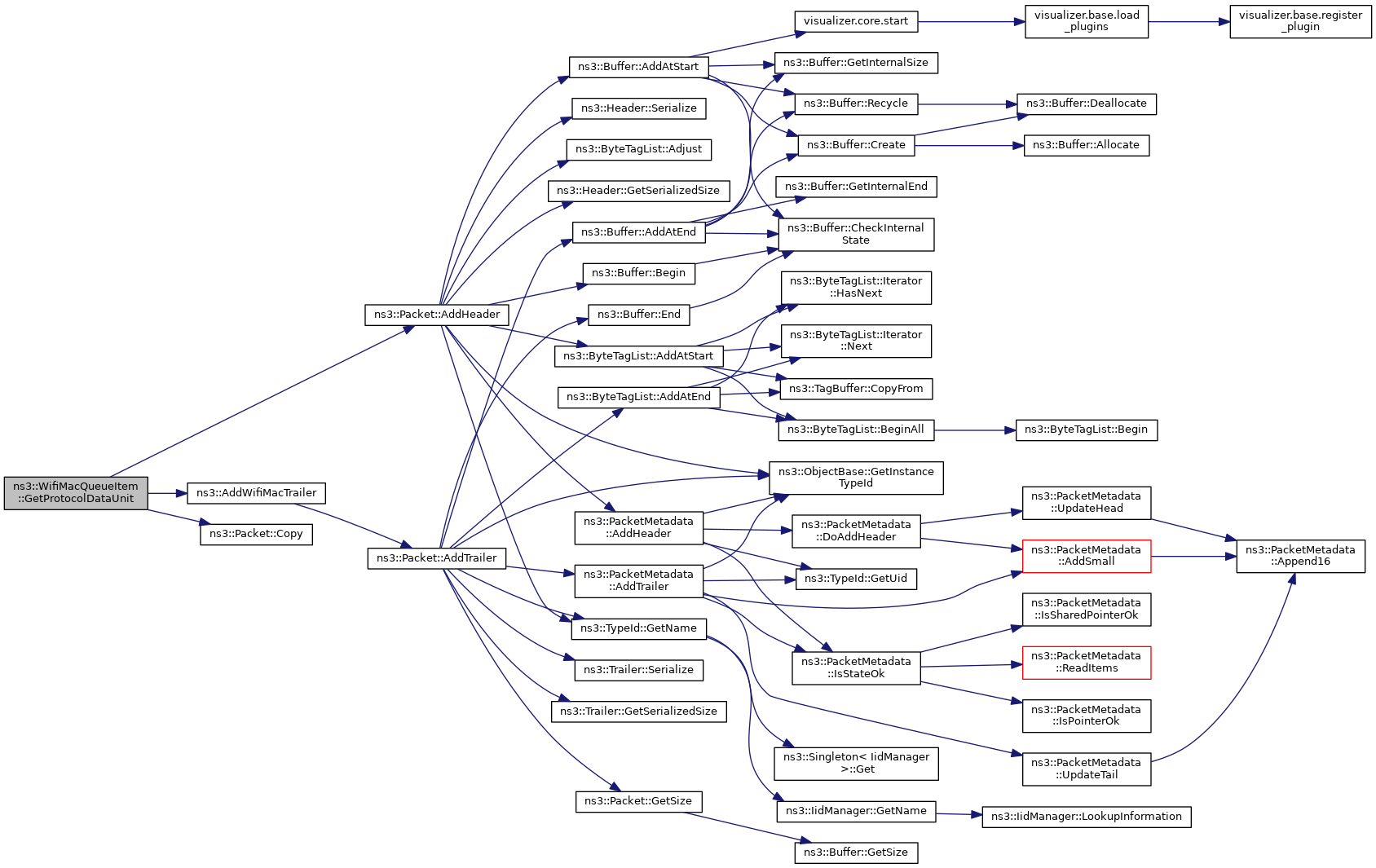

Here is the call graph for this function:

◆ GetQueueAc()

AcIndex ns3::WifiMacQueueItem::GetQueueAc ( void ) const

Get the AC of the queue this item is stored into.

Abort if this item is not stored in a queue.

Returns: the AC of the queue this item is stored into

Definition at line 211 of file wifi-mac-queue-item.cc.

References IsQueued(), m_queueAc, and NS_ASSERT.

Referenced by ns3::FrameExchangeManager::GetFirstFragmentIfNeeded().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetQueueIterator()

WifiMacQueueItem::ConstIterator ns3::WifiMacQueueItem::GetQueueIterator ( void ) const

Get a const iterator pointing to the position of the MPDU in the queue.

This method should not be called if the MPDU is not stored in a queue.

Returns: an iterator pointing to the position of the MPDU in the queue

Definition at line 218 of file wifi-mac-queue-item.cc.

References IsQueued(), m_queueIt, and NS_ASSERT.

Referenced by TwoLevelAggregationTest::DoRun(), and ns3::MsduAggregator::GetNextAmsdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSize()

uint32_t ns3::WifiMacQueueItem::GetSize ( void ) const

Return the size of the packet stored by this item, including header size and trailer size.

Returns: the size of the packet stored by this item in bytes.

Definition at line 95 of file wifi-mac-queue-item.cc.

References GetPacketSize(), ns3::WifiMacHeader::GetSerializedSize(), m_header, and ns3::WIFI_MAC_FCS_LENGTH.

Referenced by ns3::WifiPsdu::WifiPsdu(), ns3::WifiMacQueue::DoDequeue(), ns3::WifiMacQueue::DoEnqueue(), ns3::WifiMacQueue::DoRemove(), ns3::MpduAggregator::GetNextAmpdu(), ns3::FrameExchangeManager::SendMpdu(), ns3::HeFrameExchangeManager::SendPsduMap(), and ns3::QosFrameExchangeManager::StartFrameExchange().

Here is the call graph for this function:

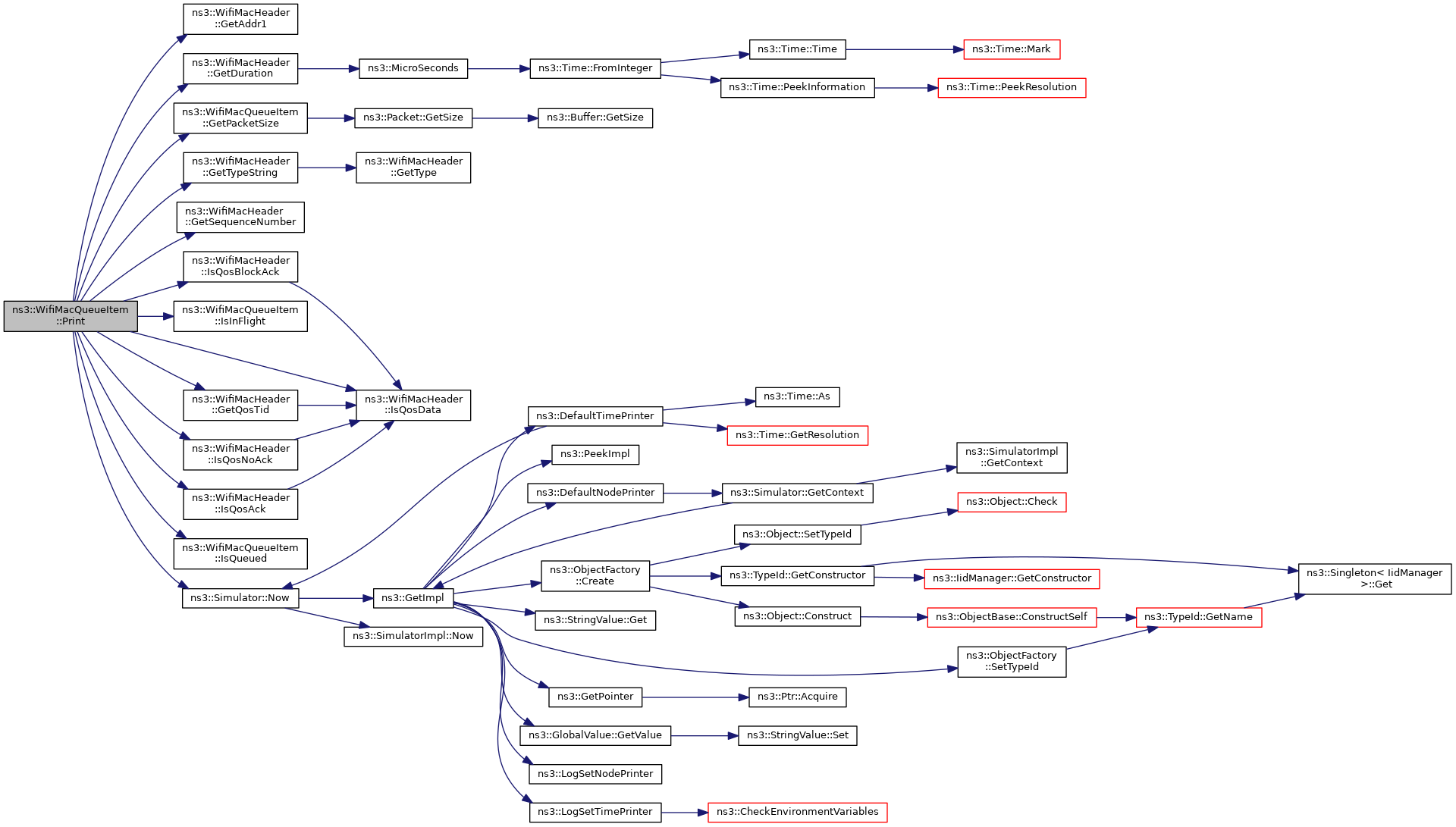

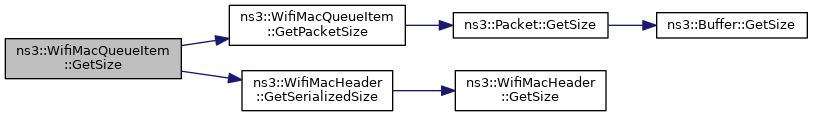

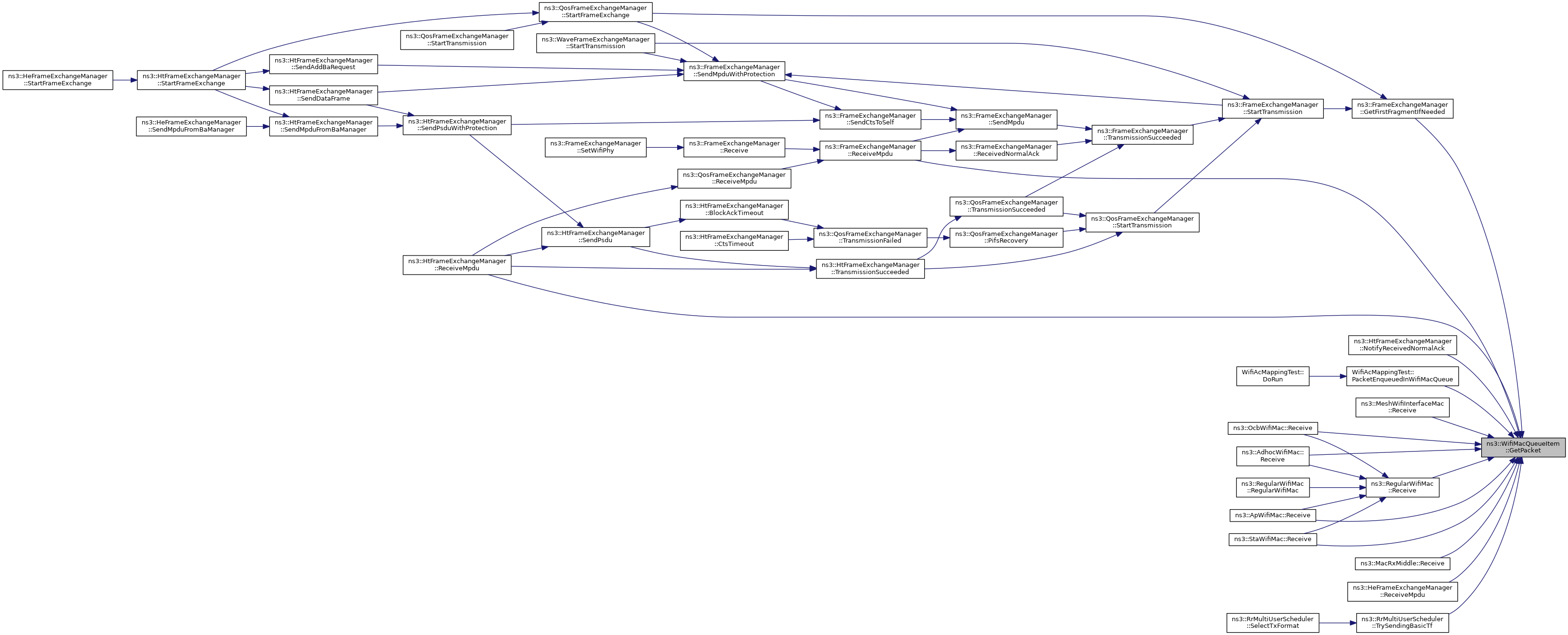

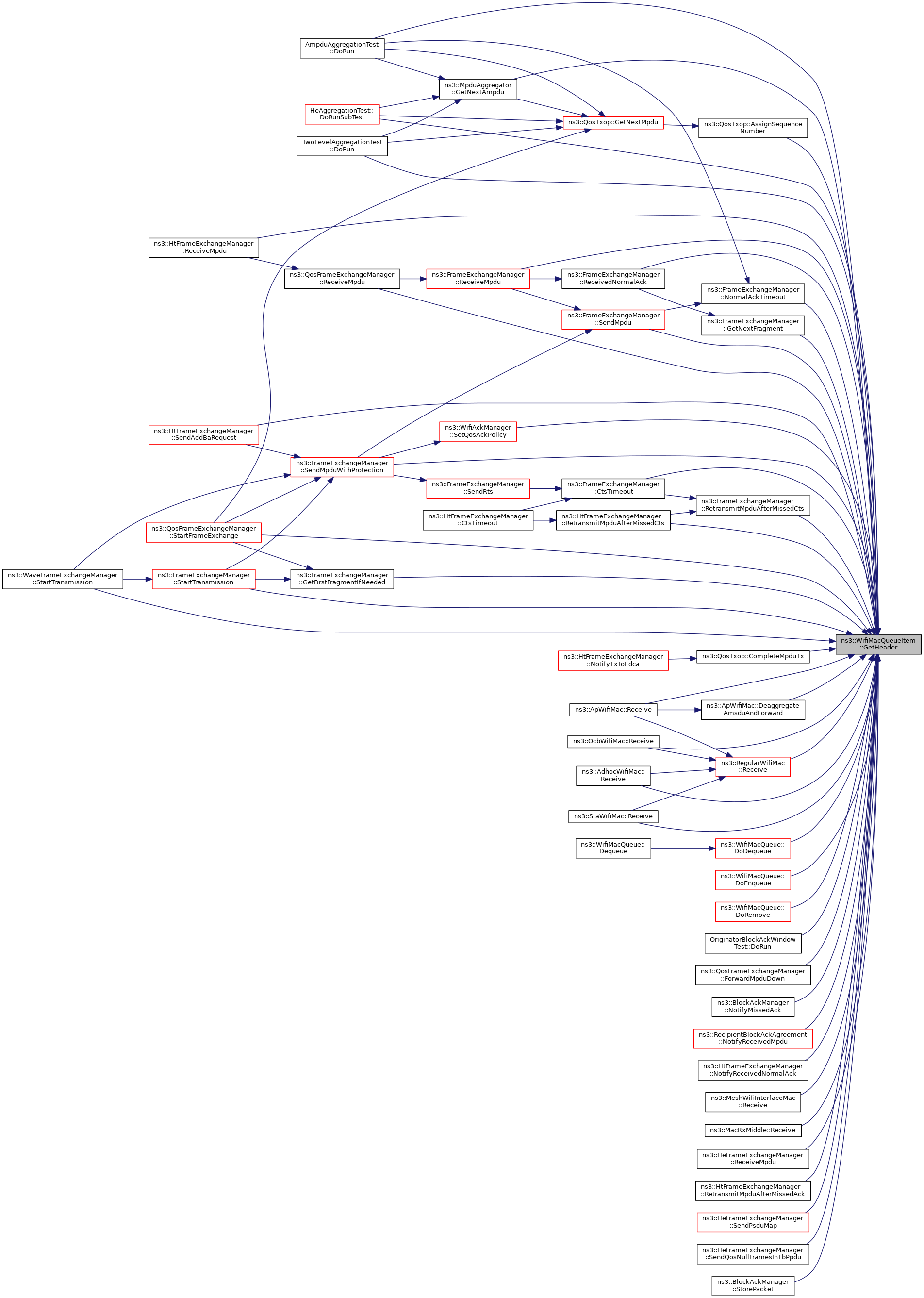

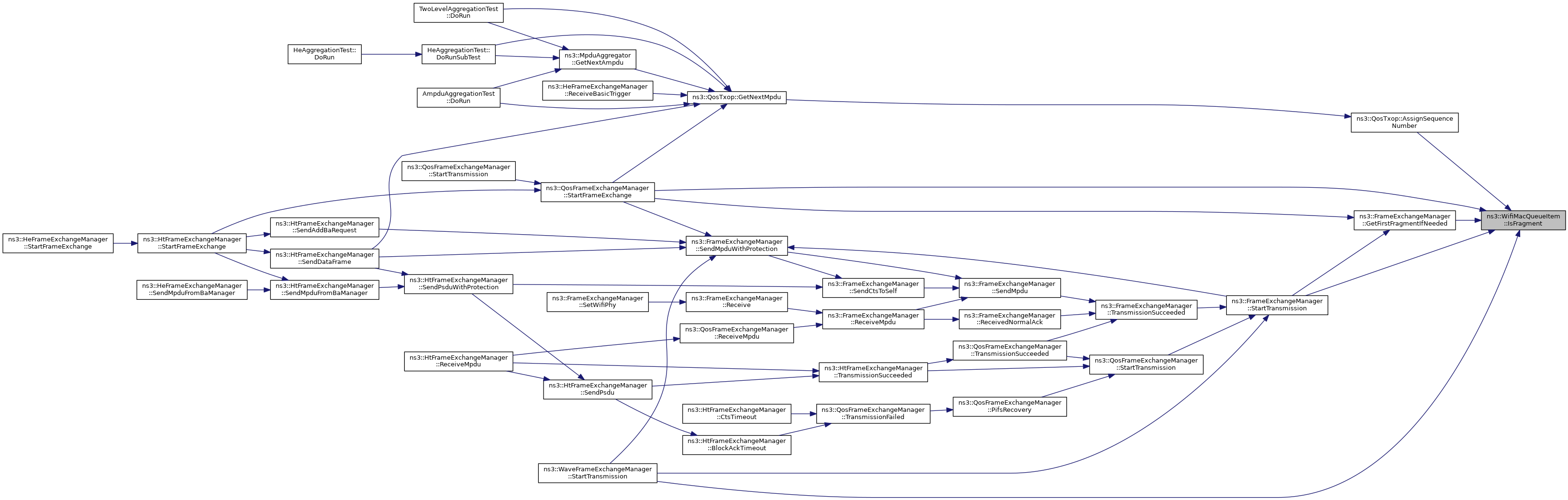

Here is the caller graph for this function:

◆ GetTimeStamp()

Time ns3::WifiMacQueueItem::GetTimeStamp ( void ) const

Get the timestamp included in this item.

Returns: the timestamp included in this item.

Definition at line 83 of file wifi-mac-queue-item.cc.

References m_tstamp.

Referenced by ns3::FrameExchangeManager::GetFirstFragmentIfNeeded().

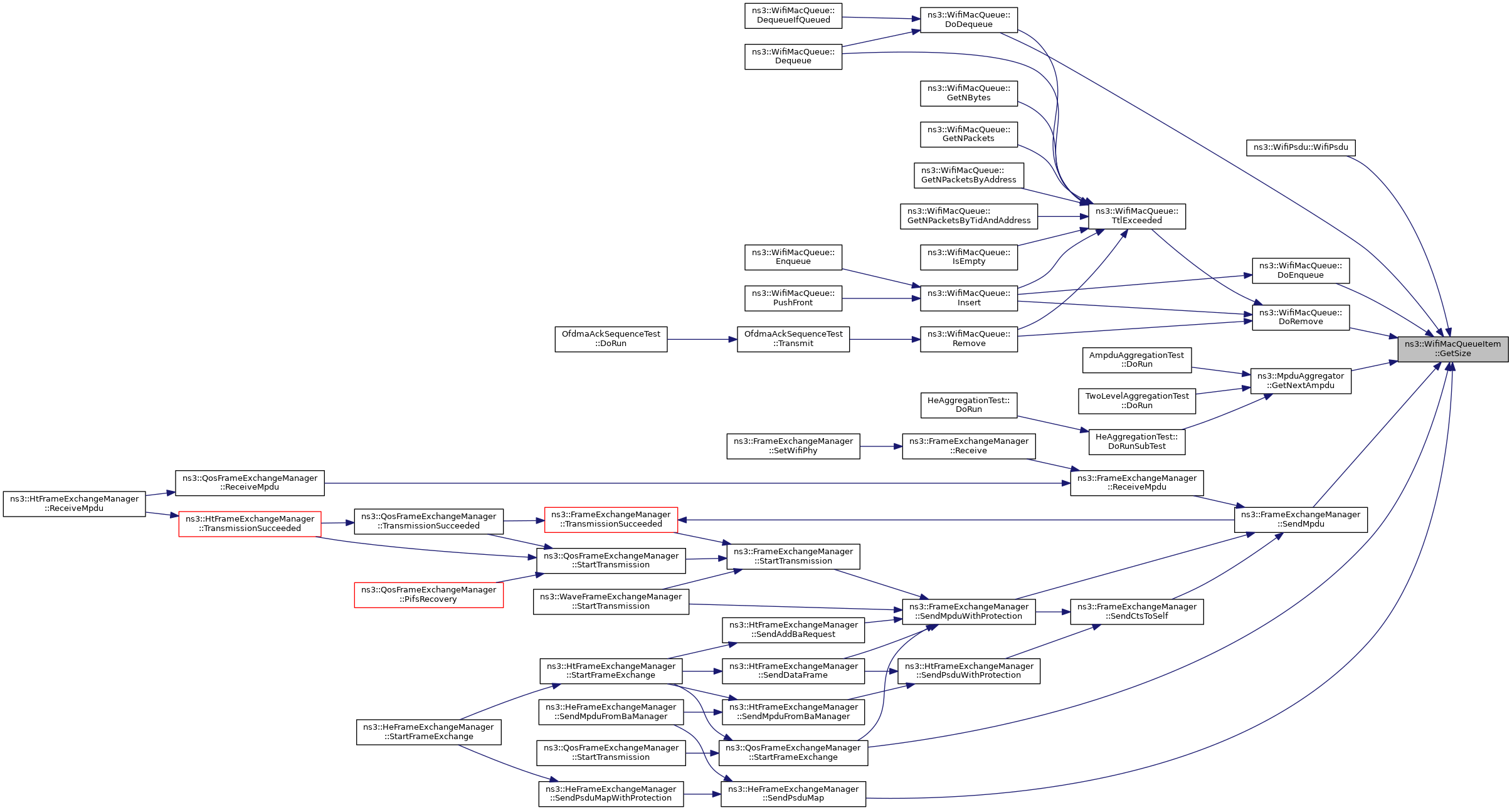

Here is the caller graph for this function:

◆ IsFragment()

bool ns3::WifiMacQueueItem::IsFragment ( void ) const

Return true if this item contains an MSDU fragment, false otherwise.

Returns: true if this item contains an MSDU fragment, false otherwise

Definition at line 101 of file wifi-mac-queue-item.cc.

References ns3::WifiMacHeader::GetFragmentNumber(), ns3::WifiMacHeader::IsMoreFragments(), and m_header.

Referenced by ns3::QosTxop::AssignSequenceNumber(), ns3::FrameExchangeManager::GetFirstFragmentIfNeeded(), ns3::QosFrameExchangeManager::StartFrameExchange(), ns3::WaveFrameExchangeManager::StartTransmission(), and ns3::FrameExchangeManager::StartTransmission().

Here is the call graph for this function:

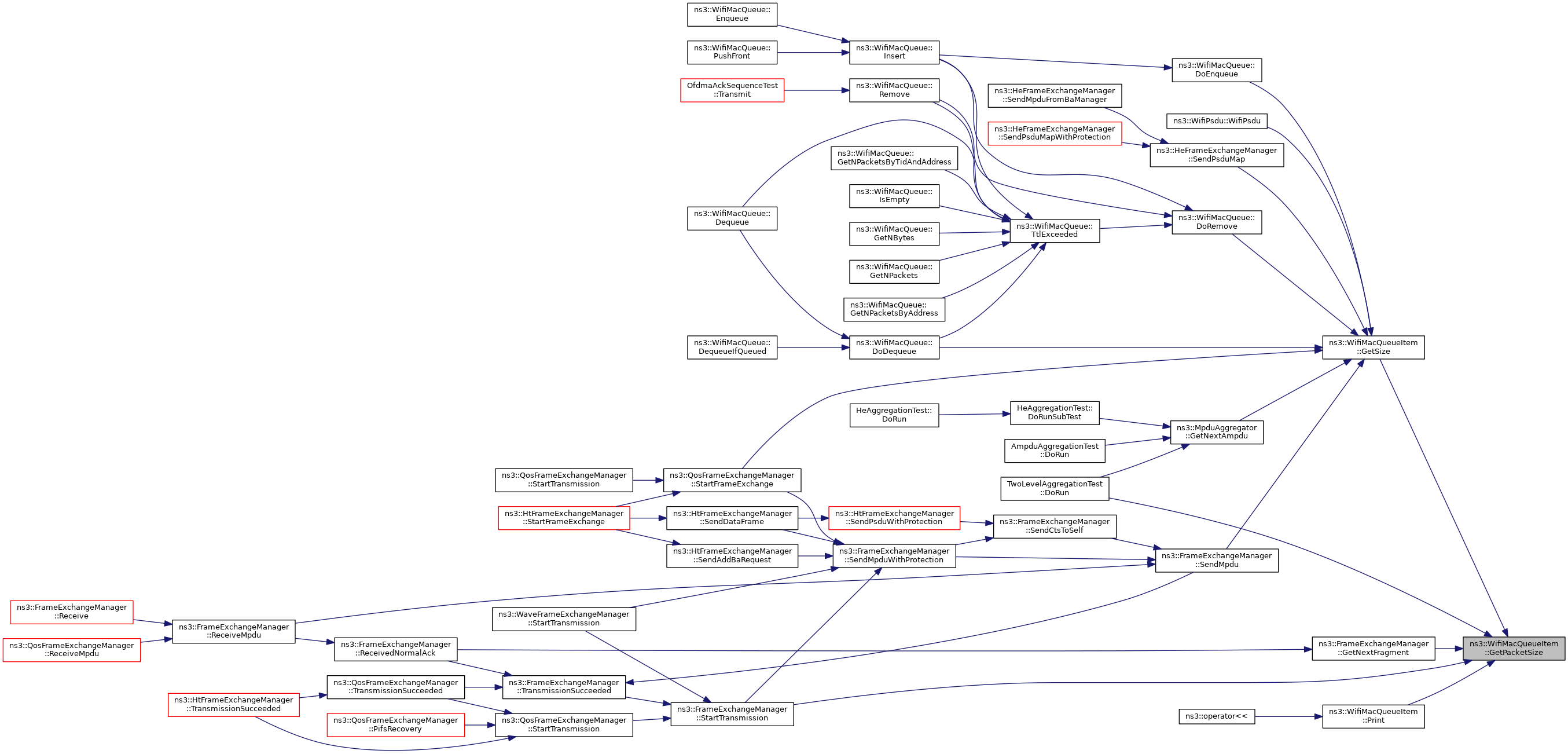

Here is the caller graph for this function:

◆ IsInFlight()

bool ns3::WifiMacQueueItem::IsInFlight ( void ) const

Return true if this MPDU is in flight, false otherwise.

Returns: true if this MPDU is in flight, false otherwise

Definition at line 237 of file wifi-mac-queue-item.cc.

References m_inFlight.

Referenced by ns3::QosTxop::AssignSequenceNumber(), and Print().

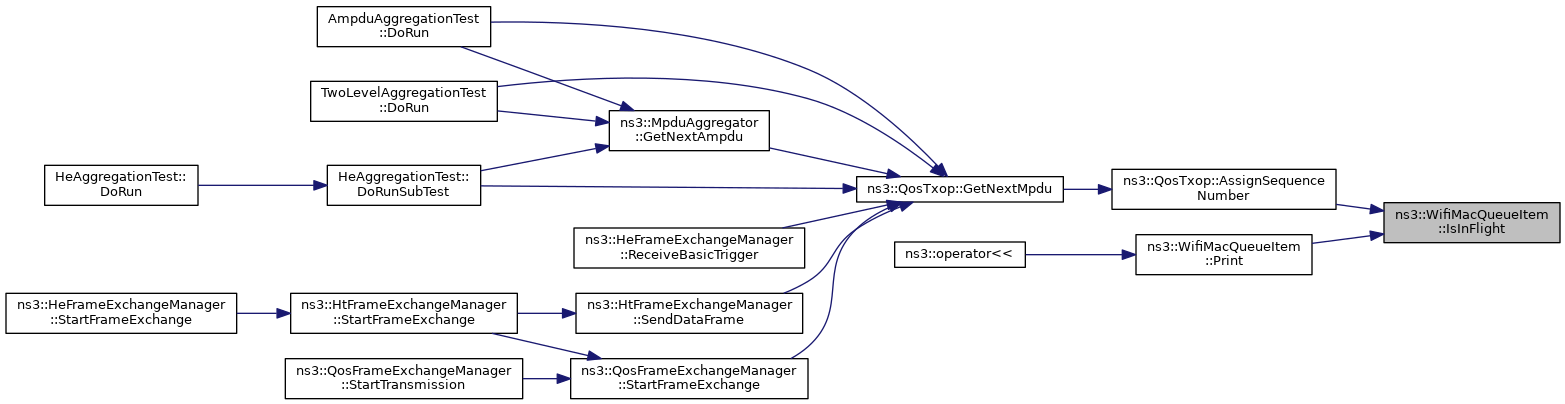

Here is the caller graph for this function:

◆ IsQueued()

bool ns3::WifiMacQueueItem::IsQueued ( void ) const

Return true if this item is stored in some queue, false otherwise.

Returns: true if this item is stored in some queue, false otherwise

Definition at line 205 of file wifi-mac-queue-item.cc.

References ns3::AC_UNDEF, and m_queueAc.

Referenced by ns3::WifiMacQueue::DoDequeue(), ns3::WifiMacQueue::DoRemove(), GetQueueAc(), GetQueueIterator(), Print(), and ns3::FrameExchangeManager::SendMpduWithProtection().

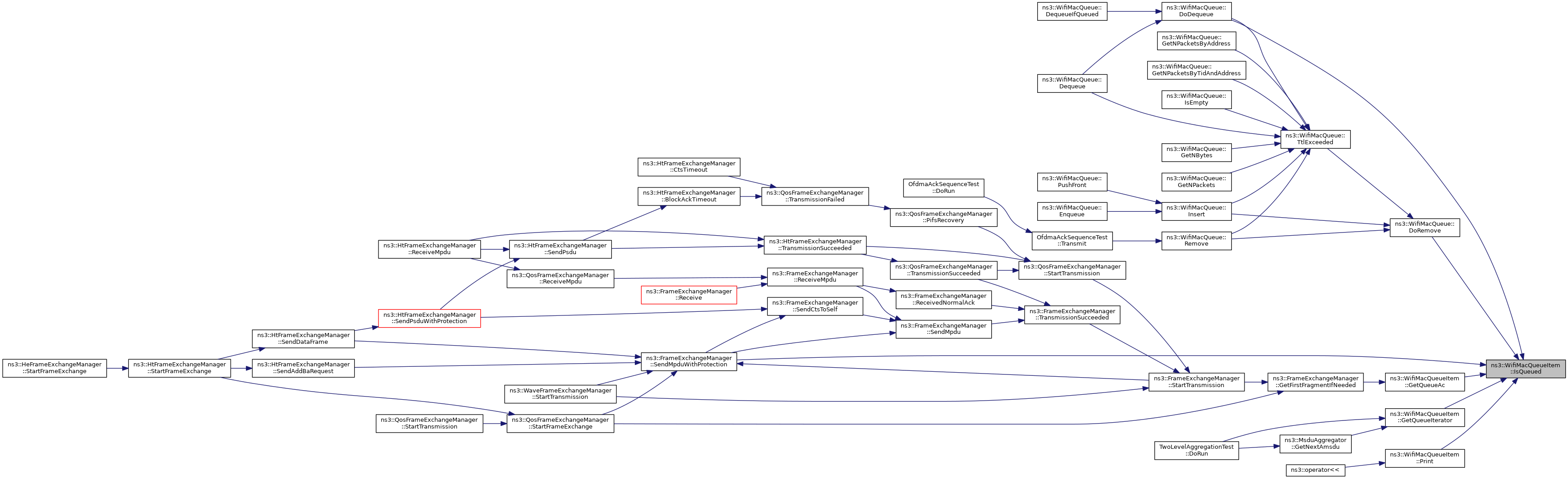

Here is the caller graph for this function:

◆ Print()

void ns3::WifiMacQueueItem::Print ( std::ostream & os ) const

virtual

Print the item contents.

Parameters

os	output stream in which the data should be printed.

Definition at line 255 of file wifi-mac-queue-item.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetDuration(), GetPacketSize(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::GetSequenceNumber(), ns3::WifiMacHeader::GetTypeString(), IsInFlight(), ns3::WifiMacHeader::IsQosAck(), ns3::WifiMacHeader::IsQosBlockAck(), ns3::WifiMacHeader::IsQosData(), ns3::WifiMacHeader::IsQosNoAck(), IsQueued(), m_header, m_packet, m_tstamp, ns3::Simulator::Now(), and ns3::Time::US.

Referenced by ns3::operator<<().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ResetInFlight()

void ns3::WifiMacQueueItem::ResetInFlight ( void )

Mark this MPDU as not being in flight (only used if Block Ack agreement established).

Definition at line 231 of file wifi-mac-queue-item.cc.

References m_inFlight.

◆ SetInFlight()

void ns3::WifiMacQueueItem::SetInFlight ( void )

Mark this MPDU as being in flight (only used if Block Ack agreement established).

Definition at line 225 of file wifi-mac-queue-item.cc.

References m_inFlight.

Referenced by ns3::BlockAckManager::StorePacket().

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ WifiMacQueue

friend class WifiMacQueue

friend

Definition at line 205 of file wifi-mac-queue-item.h.

Member Data Documentation

◆ m_header

WifiMacHeader ns3::WifiMacQueueItem::m_header

private

Wifi MAC header associated with the packet.

Definition at line 208 of file wifi-mac-queue-item.h.

Referenced by Aggregate(), GetDestinationAddress(), GetHeader(), GetProtocolDataUnit(), GetSize(), IsFragment(), and Print().

◆ m_inFlight

bool ns3::WifiMacQueueItem::m_inFlight

private

whether the MPDU is in flight

Definition at line 213 of file wifi-mac-queue-item.h.

Referenced by WifiMacQueueItem(), IsInFlight(), ResetInFlight(), and SetInFlight().

◆ m_msduList

DeaggregatedMsdus ns3::WifiMacQueueItem::m_msduList

private

The list of aggregated MSDUs included in this MPDU.

Definition at line 210 of file wifi-mac-queue-item.h.

Referenced by WifiMacQueueItem(), Aggregate(), begin(), DoAggregate(), and end().

◆ m_packet

Ptr<const Packet> ns3::WifiMacQueueItem::m_packet

private

The packet (MSDU or A-MSDU) contained in this queue item.

Definition at line 207 of file wifi-mac-queue-item.h.

Referenced by Aggregate(), DoAggregate(), GetPacket(), GetPacketSize(), GetProtocolDataUnit(), and Print().

◆ m_queueAc

AcIndex ns3::WifiMacQueueItem::m_queueAc

private

AC associated with the queue this MPDU is stored into.

Definition at line 212 of file wifi-mac-queue-item.h.

Referenced by ns3::WifiMacQueue::DoDequeue(), ns3::WifiMacQueue::DoEnqueue(), ns3::WifiMacQueue::DoRemove(), GetQueueAc(), and IsQueued().

◆ m_queueIt

ConstIterator ns3::WifiMacQueueItem::m_queueIt

private

Queue iterator pointing to this MPDU, if queued.

Definition at line 211 of file wifi-mac-queue-item.h.

Referenced by ns3::WifiMacQueue::DoEnqueue(), and GetQueueIterator().

◆ m_tstamp

Time ns3::WifiMacQueueItem::m_tstamp

private

timestamp when the packet arrived at the queue

Definition at line 209 of file wifi-mac-queue-item.h.

Referenced by DoAggregate(), GetTimeStamp(), and Print().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-mac-queue-item.h
src/wifi/model/wifi-mac-queue-item.cc

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ ConstIterator

◆ DeaggregatedMsdus

◆ DeaggregatedMsdusCI

Constructor & Destructor Documentation

◆ WifiMacQueueItem() [1/2]

◆ WifiMacQueueItem() [2/2]

◆ ~WifiMacQueueItem()

Member Function Documentation

◆ Aggregate()

◆ begin()

◆ DoAggregate()

◆ end()

◆ GetDestinationAddress()

◆ GetHeader() [1/2]

◆ GetHeader() [2/2]

◆ GetPacket()

◆ GetPacketSize()

◆ GetProtocolDataUnit()

◆ GetQueueAc()

◆ GetQueueIterator()

◆ GetSize()

◆ GetTimeStamp()

◆ IsFragment()

◆ IsInFlight()

◆ IsQueued()

◆ Print()

◆ ResetInFlight()

◆ SetInFlight()

Friends And Related Function Documentation

◆ WifiMacQueue

Member Data Documentation

◆ m_header

◆ m_inFlight

◆ m_msduList

◆ m_packet

◆ m_queueAc

◆ m_queueIt

◆ m_tstamp
