codel-vs-pfifo-asymmetric.cc File Reference

#include <iostream>
#include <fstream>
#include <string>
#include "ns3/core-module.h"
#include "ns3/network-module.h"
#include "ns3/internet-module.h"
#include "ns3/point-to-point-module.h"
#include "ns3/applications-module.h"
#include "ns3/config-store-module.h"
#include "ns3/error-model.h"
#include "ns3/tcp-header.h"
#include "ns3/udp-header.h"
#include "ns3/enum.h"
#include "ns3/event-id.h"
#include "ns3/ipv4-global-routing-helper.h"
#include "ns3/traffic-control-module.h"

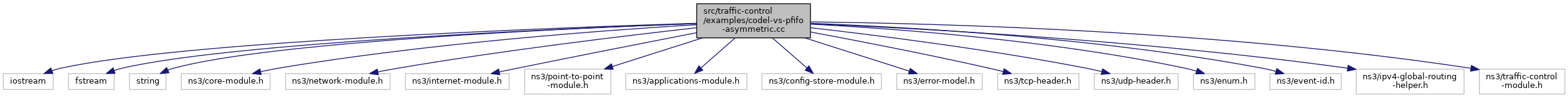

Include dependency graph for codel-vs-pfifo-asymmetric.cc:

Go to the source code of this file.

Functions
void	CreateBulkFlow (AddressValue remoteAddress, Ptr< Node > sender, uint32_t pktSize, float stopTime)
void	CreateOnOffFlow (AddressValue remoteAddress, Ptr< Node > sender, float stopTime)
static void	CwndTracer (Ptr< OutputStreamWrapper >stream, uint32_t oldval, uint32_t newval)
static void	DroppingStateTracer (Ptr< OutputStreamWrapper >stream, bool oldVal, bool newVal)
static void	EveryDropTracer (Ptr< OutputStreamWrapper >stream, Ptr< const QueueDiscItem > item)
static void	QueueLengthTracer (Ptr< OutputStreamWrapper >stream, uint32_t oldval, uint32_t newval)
static void	SojournTracer (Ptr< OutputStreamWrapper >stream, Time newval)
static void	TraceCwnd (std::string cwndTrFileName)
static void	TraceDroppingState (std::string dropStateTrFileName)
static void	TraceEveryDrop (std::string everyDropTrFileName)
static void	TraceQueueLength (std::string queueLengthTrFileName)
static void	TraceSojourn (std::string sojournTrFileName)

Function Documentation

CreateBulkFlow()

void CreateBulkFlow	(	AddressValue	remoteAddress,
		Ptr< Node >	sender,
		uint32_t	pktSize,
		float	stopTime
	)

Definition at line 192 of file codel-vs-pfifo-asymmetric.cc.

References ns3::BulkSendHelper::Install(), pktSize, ns3::Seconds(), ns3::BulkSendHelper::SetAttribute(), ns3::ApplicationContainer::Start(), ns3::ApplicationContainer::Stop(), and stopTime.

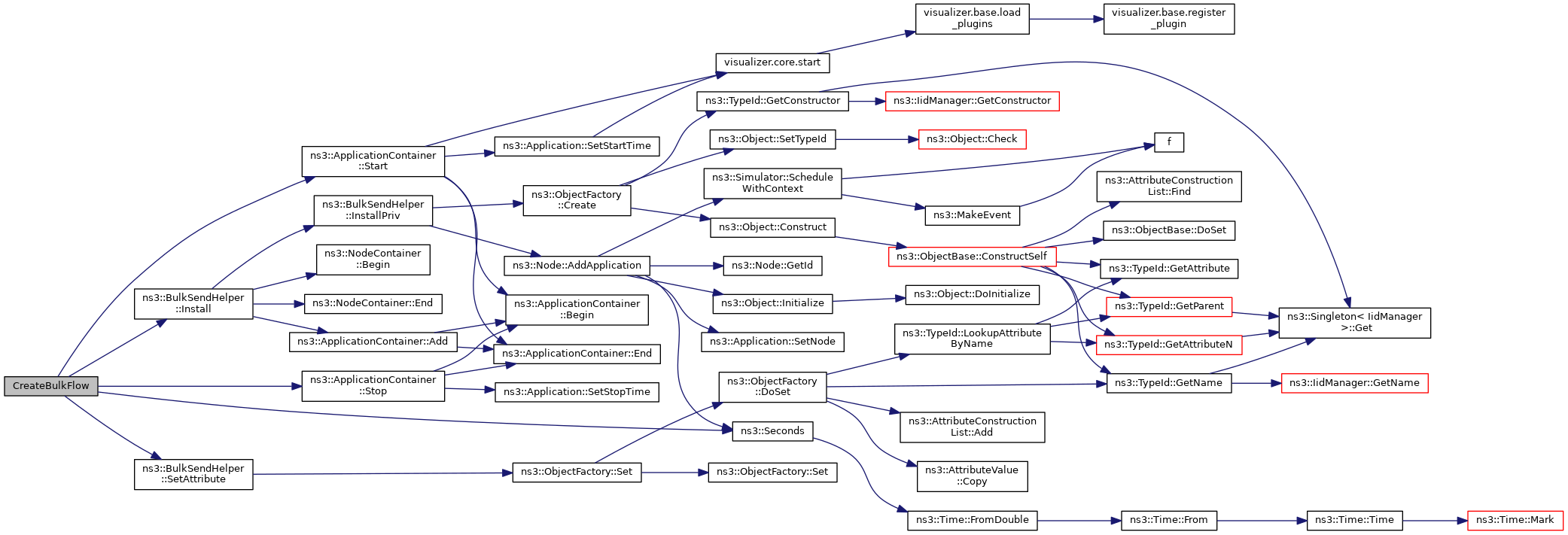

Here is the call graph for this function:

CreateOnOffFlow()

void CreateOnOffFlow	(	AddressValue	remoteAddress,
		Ptr< Node >	sender,
		float	stopTime
	)

Definition at line 204 of file codel-vs-pfifo-asymmetric.cc.

References ns3::OnOffHelper::Install(), ns3::Seconds(), ns3::OnOffHelper::SetAttribute(), ns3::ApplicationContainer::Start(), ns3::ApplicationContainer::Stop(), and stopTime.

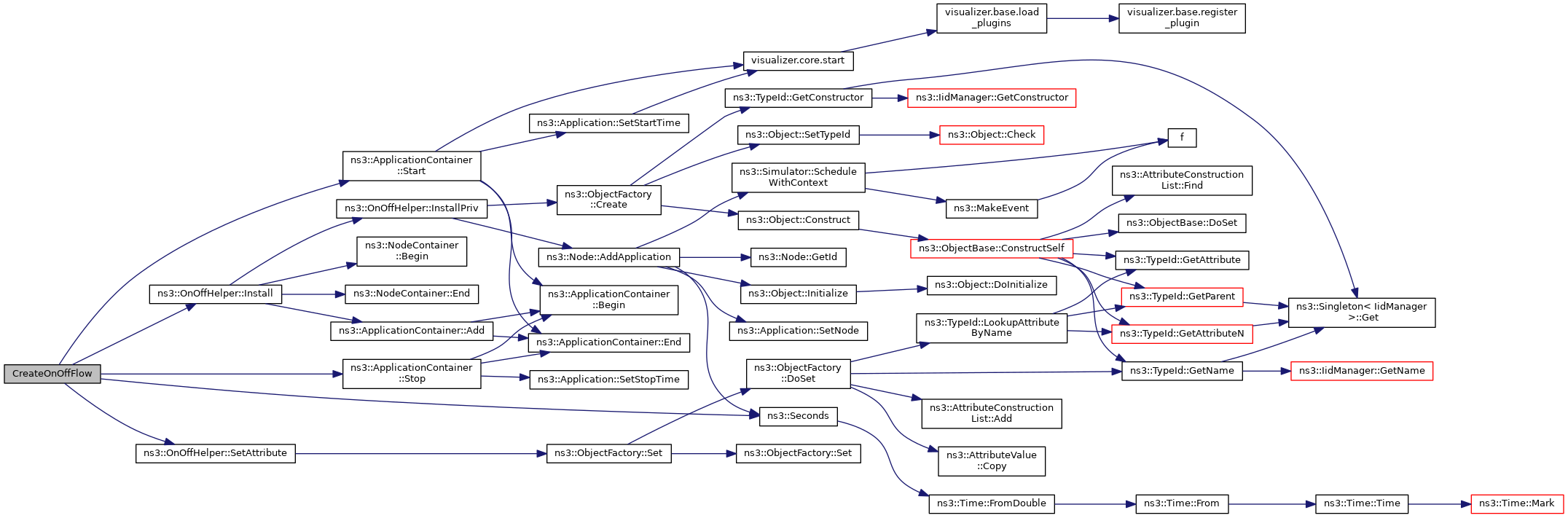

Here is the call graph for this function:

CwndTracer()

static void CwndTracer ( Ptr< OutputStreamWrapper >  stream, uint32_t  oldval, uint32_t  newval  )

static

Definition at line 73 of file codel-vs-pfifo-asymmetric.cc.

References ns3::OutputStreamWrapper::GetStream().

Referenced by TraceCwnd().

Here is the call graph for this function:

Here is the caller graph for this function:

DroppingStateTracer()

static void DroppingStateTracer ( Ptr< OutputStreamWrapper >  stream, bool  oldVal, bool  newVal  )

static

Definition at line 161 of file codel-vs-pfifo-asymmetric.cc.

References ns3::Time::GetSeconds(), ns3::OutputStreamWrapper::GetStream(), ns3::Simulator::Now(), and NS_LOG_INFO.

Referenced by TraceDroppingState().

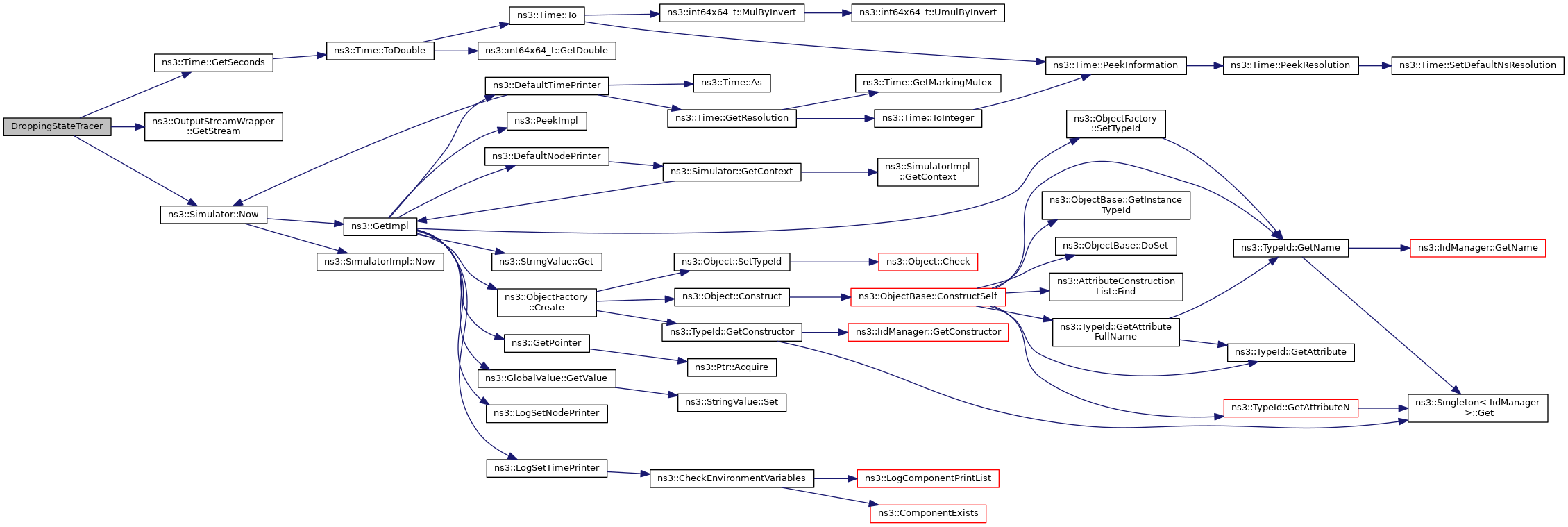

Here is the call graph for this function:

Here is the caller graph for this function:

EveryDropTracer()

static void EveryDropTracer ( Ptr< OutputStreamWrapper >  stream, Ptr< const QueueDiscItem >  item  )

static

Definition at line 139 of file codel-vs-pfifo-asymmetric.cc.

References ns3::Time::GetSeconds(), ns3::OutputStreamWrapper::GetStream(), and ns3::Simulator::Now().

Referenced by TraceEveryDrop().

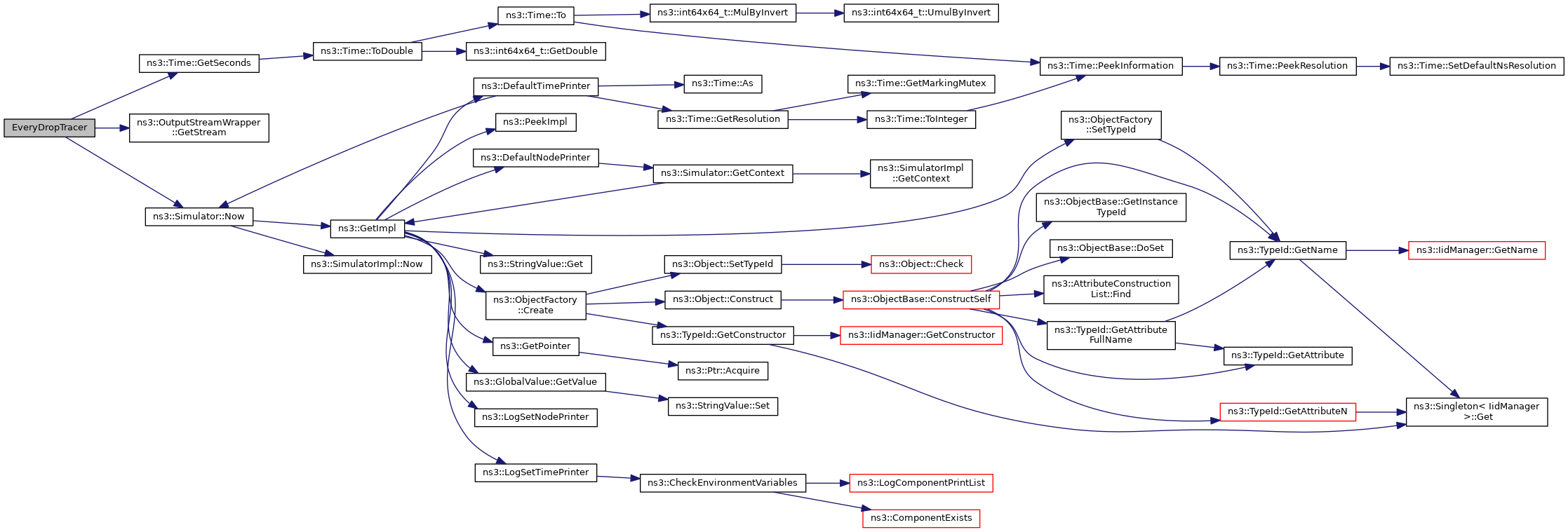

Here is the call graph for this function:

Here is the caller graph for this function:

QueueLengthTracer()

static void QueueLengthTracer ( Ptr< OutputStreamWrapper >  stream, uint32_t  oldval, uint32_t  newval  )

static

Definition at line 117 of file codel-vs-pfifo-asymmetric.cc.

References ns3::OutputStreamWrapper::GetStream().

Referenced by TraceQueueLength().

Here is the call graph for this function:

Here is the caller graph for this function:

SojournTracer()

static void SojournTracer ( Ptr< OutputStreamWrapper >  stream, Time  newval  )

static

Definition at line 95 of file codel-vs-pfifo-asymmetric.cc.

References ns3::OutputStreamWrapper::GetStream().

Referenced by TraceSojourn().

Here is the call graph for this function:

Here is the caller graph for this function:

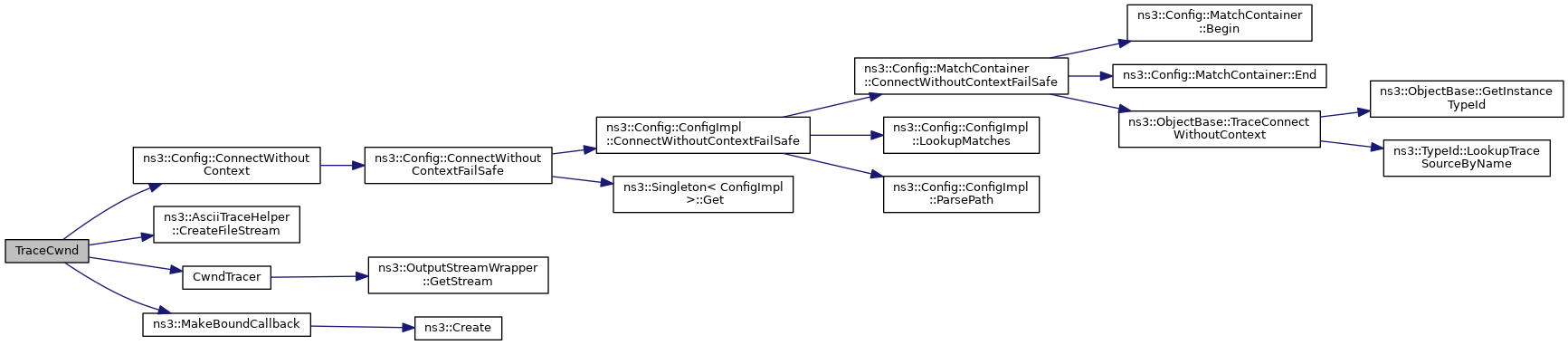

TraceCwnd()

static void TraceCwnd ( std::string  cwndTrFileName )

static

Definition at line 79 of file codel-vs-pfifo-asymmetric.cc.

References ns3::Config::ConnectWithoutContext(), ns3::AsciiTraceHelper::CreateFileStream(), CwndTracer(), ns3::MakeBoundCallback(), and NS_LOG_DEBUG.

Here is the call graph for this function:

TraceDroppingState()

static void TraceDroppingState ( std::string  dropStateTrFileName )

static

Definition at line 176 of file codel-vs-pfifo-asymmetric.cc.

References ns3::Config::ConnectWithoutContext(), ns3::AsciiTraceHelper::CreateFileStream(), DroppingStateTracer(), ns3::MakeBoundCallback(), and NS_LOG_DEBUG.

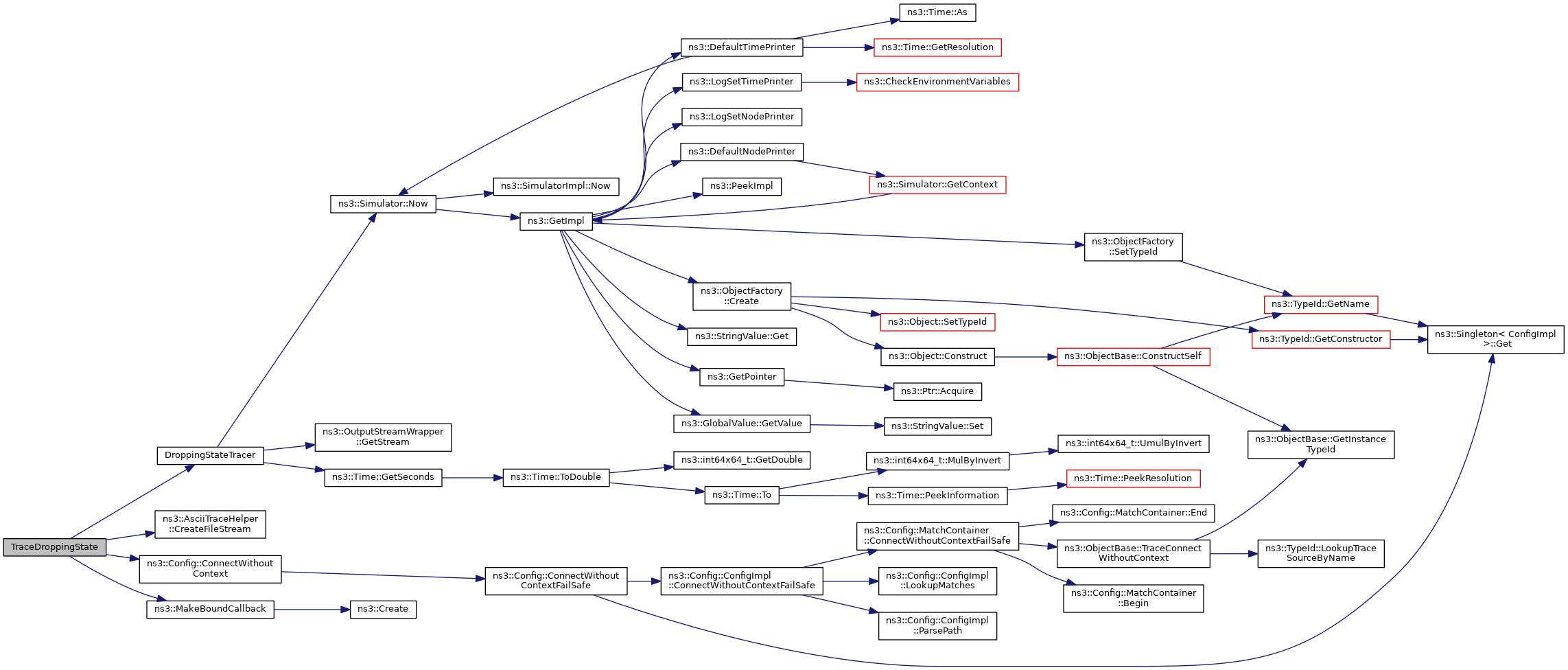

Here is the call graph for this function:

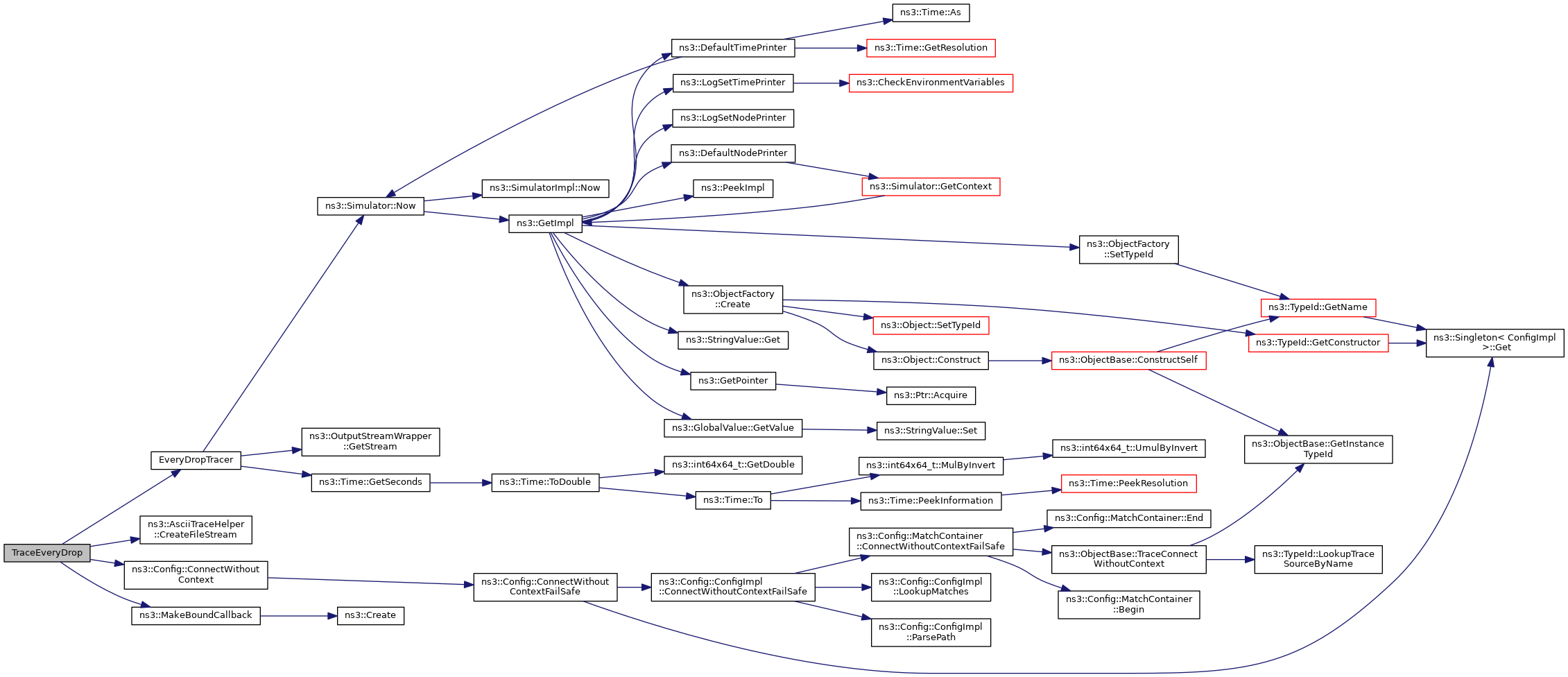

TraceEveryDrop()

static void TraceEveryDrop ( std::string  everyDropTrFileName )

static

Definition at line 145 of file codel-vs-pfifo-asymmetric.cc.

References ns3::Config::ConnectWithoutContext(), ns3::AsciiTraceHelper::CreateFileStream(), EveryDropTracer(), ns3::MakeBoundCallback(), and NS_LOG_DEBUG.

Here is the call graph for this function:

TraceQueueLength()

static void TraceQueueLength ( std::string  queueLengthTrFileName )

static

Definition at line 123 of file codel-vs-pfifo-asymmetric.cc.

References ns3::Config::ConnectWithoutContext(), ns3::AsciiTraceHelper::CreateFileStream(), ns3::MakeBoundCallback(), NS_LOG_DEBUG, and QueueLengthTracer().

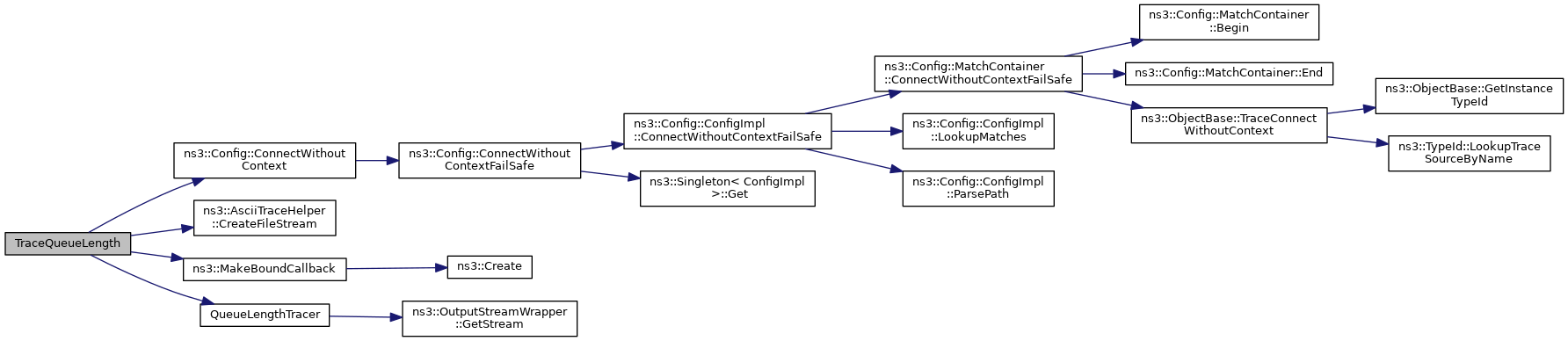

Here is the call graph for this function:

TraceSojourn()

static void TraceSojourn ( std::string  sojournTrFileName )

static

Definition at line 101 of file codel-vs-pfifo-asymmetric.cc.

References ns3::Config::ConnectWithoutContext(), ns3::AsciiTraceHelper::CreateFileStream(), ns3::MakeBoundCallback(), NS_LOG_DEBUG, and SojournTracer().

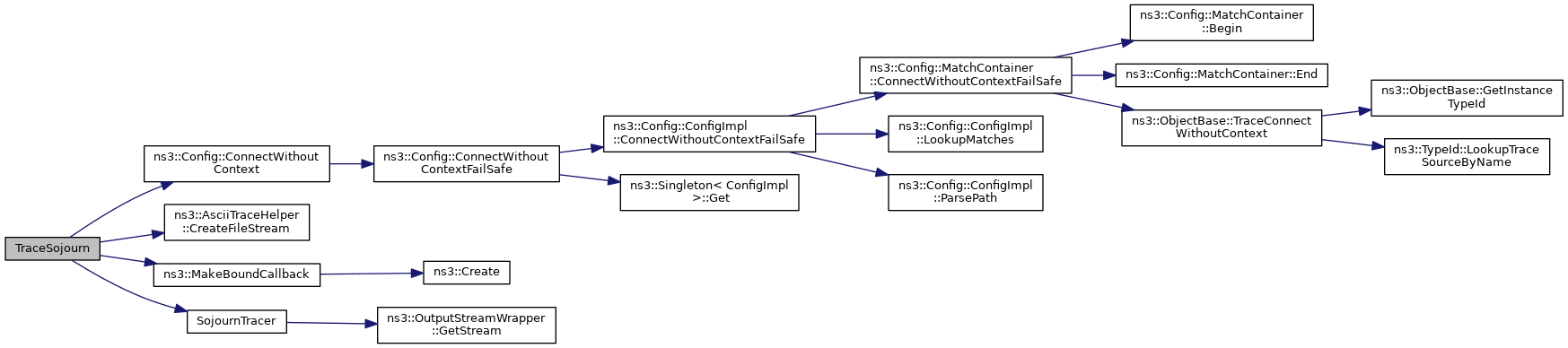

Here is the call graph for this function:
