ns3::WifiNoAck Struct Reference

WifiNoAck specifies that no acknowledgment is required. More...

#include "wifi-acknowledgment.h"

Inheritance diagram for ns3::WifiNoAck:

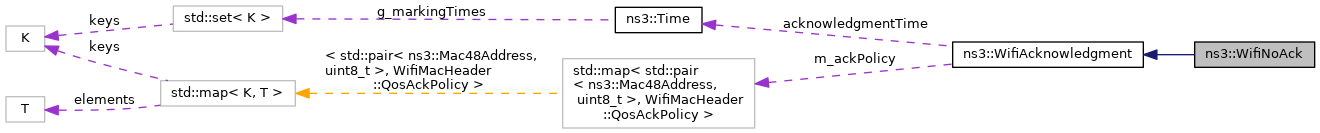

Collaboration diagram for ns3::WifiNoAck:

Public Member Functions
	WifiNoAck ()
bool	CheckQosAckPolicy (Mac48Address receiver, uint8_t tid, WifiMacHeader::QosAckPolicy ackPolicy) const override
	Check whether the given QoS Ack policy can be used for the MPDUs addressed to the given receiver and belonging to the given TID. More...
std::unique_ptr< WifiAcknowledgment >	Copy (void) const override
	Clone this object. More...
void	Print (std::ostream &os) const override
	Print the object contents. More...
Public Member Functions inherited from ns3::WifiAcknowledgment
	WifiAcknowledgment (Method m)
	Constructor. More...
virtual	~WifiAcknowledgment ()
WifiMacHeader::QosAckPolicy	GetQosAckPolicy (Mac48Address receiver, uint8_t tid) const
	Get the QoS Ack policy to use for the MPDUs addressed to the given receiver and belonging to the given TID. More...
void	SetQosAckPolicy (Mac48Address receiver, uint8_t tid, WifiMacHeader::QosAckPolicy ackPolicy)
	Set the QoS Ack policy to use for the MPDUs addressed to the given receiver and belonging to the given TID. More...

Additional Inherited Members
Public Types inherited from ns3::WifiAcknowledgment
enum	Method {   NONE = 0, NORMAL_ACK, BLOCK_ACK, BAR_BLOCK_ACK,   DL_MU_BAR_BA_SEQUENCE, DL_MU_TF_MU_BAR, DL_MU_AGGREGATE_TF, UL_MU_MULTI_STA_BA,   ACK_AFTER_TB_PPDU }
	Available acknowledgment methods. More...
Public Attributes inherited from ns3::WifiAcknowledgment
Time	acknowledgmentTime
	time required by the acknowledgment method More...
const Method	method
	acknowledgment method More...

Detailed Description

WifiNoAck specifies that no acknowledgment is required.

Definition at line 129 of file wifi-acknowledgment.h.

Constructor & Destructor Documentation

WifiNoAck()

ns3::WifiNoAck::WifiNoAck

(

)

Definition at line 61 of file wifi-acknowledgment.cc.

References ns3::WifiAcknowledgment::acknowledgmentTime, and ns3::Seconds().

Here is the call graph for this function:

Member Function Documentation

CheckQosAckPolicy()

bool ns3::WifiNoAck::CheckQosAckPolicy ( Mac48Address  receiver, uint8_t  tid, WifiMacHeader::QosAckPolicy  ackPolicy  ) const

overridevirtual

Check whether the given QoS Ack policy can be used for the MPDUs addressed to the given receiver and belonging to the given TID.

Parameters

receiver	the MAC address of the receiver
tid	the TID
ackPolicy	the QoS Ack policy to use

Returns

true if the given QoS Ack policy can be used, false otherwise

Implements ns3::WifiAcknowledgment.

Definition at line 74 of file wifi-acknowledgment.cc.

References ns3::WifiMacHeader::BLOCK_ACK, and ns3::WifiMacHeader::NO_ACK.

Copy()

std::unique_ptr< WifiAcknowledgment > ns3::WifiNoAck::Copy ( void  ) const

overridevirtual

Clone this object.

Returns

a pointer to the cloned object

Implements ns3::WifiAcknowledgment.

Definition at line 68 of file wifi-acknowledgment.cc.

Print()

void ns3::WifiNoAck::Print ( std::ostream &  os ) const

overridevirtual

Print the object contents.

Parameters

os	output stream in which the data should be printed.

Implements ns3::WifiAcknowledgment.

Definition at line 84 of file wifi-acknowledgment.cc.

---

The documentation for this struct was generated from the following files:

• src/wifi/model/wifi-acknowledgment.h
• src/wifi/model/wifi-acknowledgment.cc
