WifiUlMuMultiStaBa specifies that a Basic Trigger Frame is being sent to solicit TB PPDUs that will be acknowledged through a multi-STA BlockAck frame. More...

#include "wifi-acknowledgment.h"

Inheritance diagram for ns3::WifiUlMuMultiStaBa:

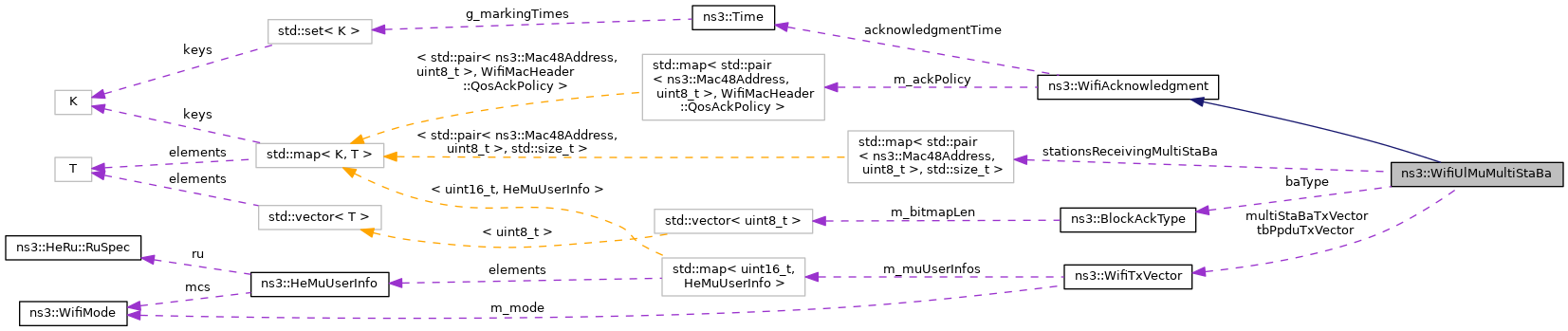

Collaboration diagram for ns3::WifiUlMuMultiStaBa:

Public Member Functions
	WifiUlMuMultiStaBa ()

bool	CheckQosAckPolicy (Mac48Address receiver, uint8_t tid, WifiMacHeader::QosAckPolicy ackPolicy) const override
	Check whether the given QoS Ack policy can be used for the MPDUs addressed to the given receiver and belonging to the given TID. More...

std::unique_ptr< WifiAcknowledgment >	Copy (void) const override
	Clone this object. More...

void	Print (std::ostream &os) const override
	Print the object contents. More...

Public Member Functions inherited from ns3::WifiAcknowledgment
	WifiAcknowledgment (Method m)
	Constructor. More...

virtual	~WifiAcknowledgment ()

WifiMacHeader::QosAckPolicy	GetQosAckPolicy (Mac48Address receiver, uint8_t tid) const
	Get the QoS Ack policy to use for the MPDUs addressed to the given receiver and belonging to the given TID. More...

void	SetQosAckPolicy (Mac48Address receiver, uint8_t tid, WifiMacHeader::QosAckPolicy ackPolicy)
	Set the QoS Ack policy to use for the MPDUs addressed to the given receiver and belonging to the given TID. More...

Public Attributes
BlockAckType	baType
	BlockAck type. More...

WifiTxVector	multiStaBaTxVector
	TXVECTOR for the Multi-STA BlockAck. More...

std::map< std::pair< Mac48Address, uint8_t >, std::size_t >	stationsReceivingMultiStaBa
	Map (originator, tid) pairs to the their index in baType. More...

WifiTxVector	tbPpduTxVector
	TXVECTOR for a TB PPDU. More...

Public Attributes inherited from ns3::WifiAcknowledgment
Time	acknowledgmentTime
	time required by the acknowledgment method More...

const Method	method
	acknowledgment method More...

Additional Inherited Members
Public Types inherited from ns3::WifiAcknowledgment
enum	Method { NONE = 0, NORMAL_ACK, BLOCK_ACK, BAR_BLOCK_ACK, DL_MU_BAR_BA_SEQUENCE, DL_MU_TF_MU_BAR, DL_MU_AGGREGATE_TF, UL_MU_MULTI_STA_BA, ACK_AFTER_TB_PPDU }
	Available acknowledgment methods. More...

Detailed Description

WifiUlMuMultiStaBa specifies that a Basic Trigger Frame is being sent to solicit TB PPDUs that will be acknowledged through a multi-STA BlockAck frame.

Definition at line 305 of file wifi-acknowledgment.h.

Constructor & Destructor Documentation

◆ WifiUlMuMultiStaBa()

ns3::WifiUlMuMultiStaBa::WifiUlMuMultiStaBa ( )

Definition at line 336 of file wifi-acknowledgment.cc.

Member Function Documentation

◆ CheckQosAckPolicy()

bool ns3::WifiUlMuMultiStaBa::CheckQosAckPolicy	(	Mac48Address	receiver,
		uint8_t	tid,
		WifiMacHeader::QosAckPolicy	ackPolicy
	)		const

overridevirtual

Check whether the given QoS Ack policy can be used for the MPDUs addressed to the given receiver and belonging to the given TID.

Parameters

receiver	the MAC address of the receiver
tid	the TID
ackPolicy	the QoS Ack policy to use

Returns: true if the given QoS Ack policy can be used, false otherwise

Implements ns3::WifiAcknowledgment.

Definition at line 348 of file wifi-acknowledgment.cc.

◆ Copy()

std::unique_ptr< WifiAcknowledgment > ns3::WifiUlMuMultiStaBa::Copy ( void ) const

overridevirtual

Clone this object.

Returns: a pointer to the cloned object

Implements ns3::WifiAcknowledgment.

Definition at line 342 of file wifi-acknowledgment.cc.

◆ Print()

void ns3::WifiUlMuMultiStaBa::Print ( std::ostream & os ) const

overridevirtual

Print the object contents.

Parameters

os	output stream in which the data should be printed.

Implements ns3::WifiAcknowledgment.

Definition at line 356 of file wifi-acknowledgment.cc.

References stationsReceivingMultiStaBa.

Member Data Documentation

◆ baType

BlockAckType ns3::WifiUlMuMultiStaBa::baType

BlockAck type.

Definition at line 315 of file wifi-acknowledgment.h.

Referenced by ns3::HeFrameExchangeManager::CalculateAcknowledgmentTime(), ns3::HeFrameExchangeManager::EndReceiveAmpdu(), ns3::HeFrameExchangeManager::ReceiveMpdu(), ns3::HeFrameExchangeManager::SendMultiStaBlockAck(), and ns3::WifiDefaultAckManager::TryUlMuTransmission().

◆ multiStaBaTxVector

WifiTxVector ns3::WifiUlMuMultiStaBa::multiStaBaTxVector

TXVECTOR for the Multi-STA BlockAck.

Definition at line 317 of file wifi-acknowledgment.h.

Referenced by ns3::HeFrameExchangeManager::CalculateAcknowledgmentTime(), ns3::HeFrameExchangeManager::SendMultiStaBlockAck(), and ns3::WifiDefaultAckManager::TryUlMuTransmission().

◆ stationsReceivingMultiStaBa

std::map<std::pair<Mac48Address, uint8_t>, std::size_t> ns3::WifiUlMuMultiStaBa::stationsReceivingMultiStaBa

Map (originator, tid) pairs to the their index in baType.

Definition at line 314 of file wifi-acknowledgment.h.

Referenced by ns3::HeFrameExchangeManager::EndReceiveAmpdu(), Print(), ns3::HeFrameExchangeManager::ReceiveMpdu(), ns3::HeFrameExchangeManager::SendMultiStaBlockAck(), and ns3::WifiDefaultAckManager::TryUlMuTransmission().

◆ tbPpduTxVector

WifiTxVector ns3::WifiUlMuMultiStaBa::tbPpduTxVector

TXVECTOR for a TB PPDU.

Definition at line 316 of file wifi-acknowledgment.h.

Referenced by ns3::WifiDefaultAckManager::TryUlMuTransmission().

The documentation for this struct was generated from the following files:

src/wifi/model/wifi-acknowledgment.h
src/wifi/model/wifi-acknowledgment.cc
