OkumuraHataPropagationLossModelTestCase Class Reference

OkumuraHataPropagationLossModel Test Case. More...

Inheritance diagram for OkumuraHataPropagationLossModelTestCase:

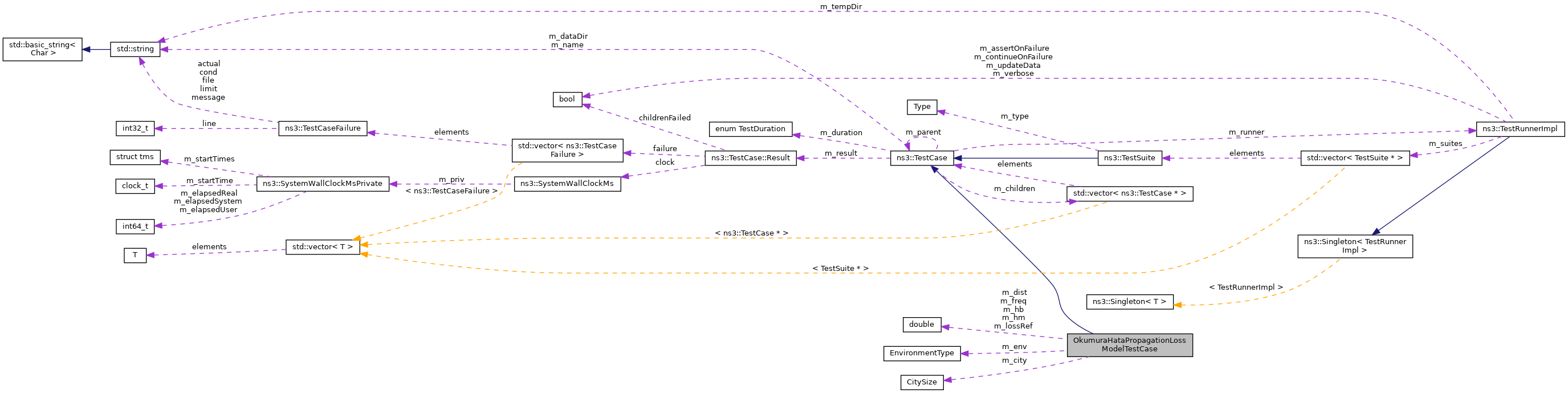

Collaboration diagram for OkumuraHataPropagationLossModelTestCase:

Public Member Functions
	OkumuraHataPropagationLossModelTestCase (double freq, double dist, double hb, double hm, EnvironmentType env, CitySize city, double refValue, std::string name)
	Constructor. More...
virtual	~OkumuraHataPropagationLossModelTestCase ()
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
Ptr< MobilityModel >	CreateMobilityModel (uint16_t index)
	Create a MobilityModel. More...
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Private Attributes
CitySize	m_city
	city type More...
double	m_dist
	2D distance between UT and BS in meters More...
EnvironmentType	m_env
	environment type More...
double	m_freq
	carrier frequency in Hz More...
double	m_hb
	height of BS in meters More...
double	m_hm
	height of UT in meters More...
double	m_lossRef
	reference loss More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

OkumuraHataPropagationLossModel Test Case.

Definition at line 41 of file okumura-hata-test-suite.cc.

Constructor & Destructor Documentation

OkumuraHataPropagationLossModelTestCase()

OkumuraHataPropagationLossModelTestCase::OkumuraHataPropagationLossModelTestCase	(	double	freq,
		double	dist,
		double	hb,
		double	hm,
		EnvironmentType	env,
		CitySize	city,
		double	refValue,
		std::string	name
	)

Constructor.

Parameters

freq	carrier frequency in Hz
dist	2D distance between UT and BS in meters
hb	height of BS in meters
hm	height of UT in meters
env	environment type
city	city type
refValue	reference loss value
name	TestCase name

Definition at line 78 of file okumura-hata-test-suite.cc.

~OkumuraHataPropagationLossModelTestCase()

OkumuraHataPropagationLossModelTestCase::~OkumuraHataPropagationLossModelTestCase ( )

virtual

Definition at line 90 of file okumura-hata-test-suite.cc.

Member Function Documentation

CreateMobilityModel()

Ptr< MobilityModel > OkumuraHataPropagationLossModelTestCase::CreateMobilityModel ( uint16_t  index )

private

Create a MobilityModel.

Parameters

index

mobility model index

Returns

a new MobilityModel

DoRun()

void OkumuraHataPropagationLossModelTestCase::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 97 of file okumura-hata-test-suite.cc.

References m_city, m_dist, m_env, m_freq, m_hb, m_hm, m_lossRef, NS_LOG_FUNCTION, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, and ns3::MobilityModel::SetPosition().

Here is the call graph for this function:

Member Data Documentation

m_city

CitySize OkumuraHataPropagationLossModelTestCase::m_city

private

city type

Definition at line 74 of file okumura-hata-test-suite.cc.

Referenced by DoRun().

m_dist

double OkumuraHataPropagationLossModelTestCase::m_dist

private

2D distance between UT and BS in meters

Definition at line 70 of file okumura-hata-test-suite.cc.

Referenced by DoRun().

m_env

EnvironmentType OkumuraHataPropagationLossModelTestCase::m_env

private

environment type

Definition at line 73 of file okumura-hata-test-suite.cc.

Referenced by DoRun().

m_freq

double OkumuraHataPropagationLossModelTestCase::m_freq

private

carrier frequency in Hz

Definition at line 69 of file okumura-hata-test-suite.cc.

Referenced by DoRun().

m_hb

double OkumuraHataPropagationLossModelTestCase::m_hb

private

height of BS in meters

Definition at line 71 of file okumura-hata-test-suite.cc.

Referenced by DoRun().

m_hm

double OkumuraHataPropagationLossModelTestCase::m_hm

private

height of UT in meters

Definition at line 72 of file okumura-hata-test-suite.cc.

Referenced by DoRun().

m_lossRef

double OkumuraHataPropagationLossModelTestCase::m_lossRef

private

reference loss

Definition at line 75 of file okumura-hata-test-suite.cc.

Referenced by DoRun().

---

The documentation for this class was generated from the following file:

• src/propagation/test/okumura-hata-test-suite.cc
