Packet Metadata unit tests. More...

Inheritance diagram for PacketMetadataTest:

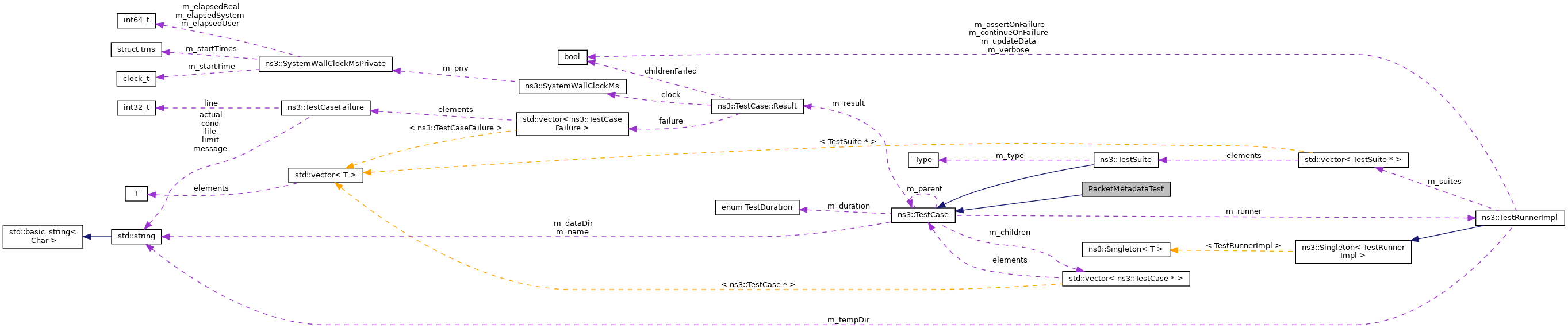

Collaboration diagram for PacketMetadataTest:

Public Member Functions
	PacketMetadataTest ()

virtual	~PacketMetadataTest ()

void	CheckHistory (Ptr< Packet > p, uint32_t n,...)
	Checks the packet header and trailer history. More...

virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
Ptr< Packet >	DoAddHeader (Ptr< Packet > p)
	Adds an header to the packet. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Packet Metadata unit tests.

Definition at line 319 of file packet-metadata-test.cc.

Constructor & Destructor Documentation

◆ PacketMetadataTest()

PacketMetadataTest::PacketMetadataTest ( )

Definition at line 340 of file packet-metadata-test.cc.

◆ ~PacketMetadataTest()

PacketMetadataTest::~PacketMetadataTest ( )

virtual

Definition at line 345 of file packet-metadata-test.cc.

Member Function Documentation

◆ CheckHistory()

void PacketMetadataTest::CheckHistory	(	Ptr< Packet >	p,
		uint32_t	n,
			...
	)

Checks the packet header and trailer history.

Parameters

p	The packet
n	The number of variable arguments
...	The variable arguments

Definition at line 350 of file packet-metadata-test.cc.

References ns3::Packet::BeginItem(), ns3::PacketMetadata::Item::current, ns3::PacketMetadata::Item::currentSize, ns3::TypeId::GetConstructor(), ns3::PacketMetadata::Item::isFragment, bianchi11ax::k, NS_ASSERT, NS_TEST_ASSERT_MSG_EQ, ns3::PacketMetadata::Item::tid, and ns3::PacketMetadata::Item::type.

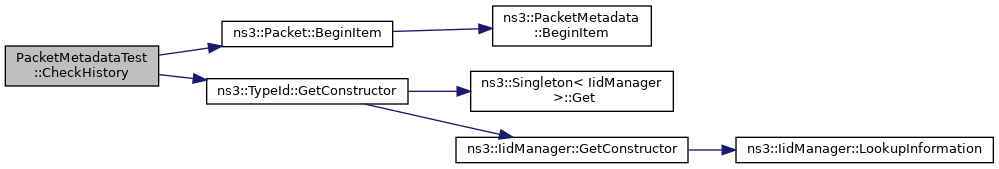

Here is the call graph for this function:

◆ DoAddHeader()

Ptr< Packet > PacketMetadataTest::DoAddHeader ( Ptr< Packet > p )

private

Adds an header to the packet.

Parameters

p	The packet

Returns: The packet with the header added.

Definition at line 469 of file packet-metadata-test.cc.

References ADD_HEADER.

Referenced by DoRun().

Here is the caller graph for this function:

◆ DoRun()

void PacketMetadataTest::DoRun ( void )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Internal:: See Bug 179

Internal:: See Bug 1072

Internal:: See Bug 1072

Implements ns3::TestCase.

Definition at line 476 of file packet-metadata-test.cc.

References ADD_HEADER, ADD_TRAILER, ns3::Packet::AddAtEnd(), CHECK_HISTORY, ns3::Packet::Copy(), ns3::Packet::CopyData(), ns3::Packet::CreateFragment(), DoAddHeader(), ns3::Packet::GetSize(), NS_TEST_EXPECT_MSG_EQ, REM_HEADER, REM_TRAILER, ns3::Packet::RemoveAtEnd(), and ns3::Packet::RemoveAtStart().

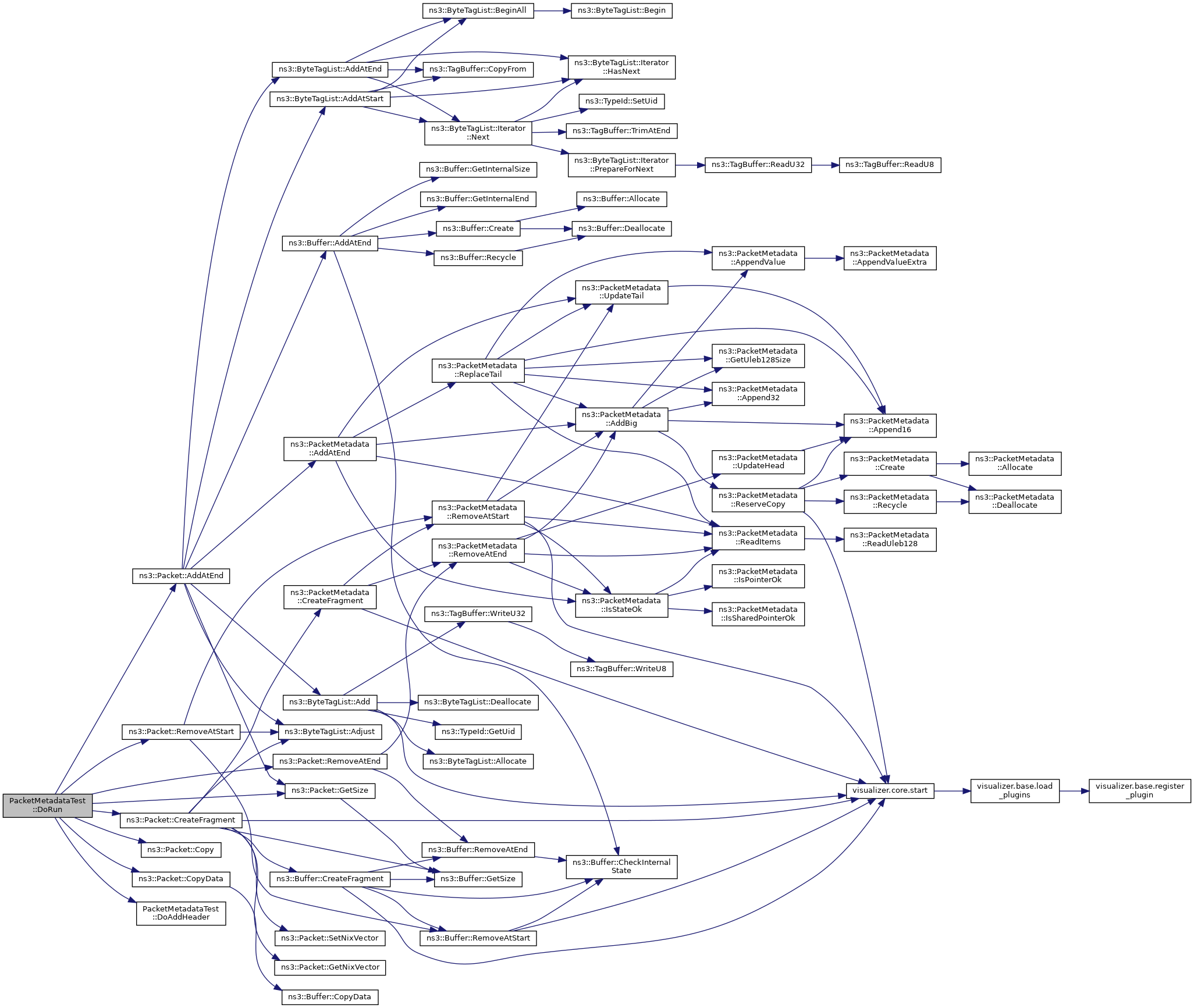

Here is the call graph for this function:

The documentation for this class was generated from the following file:

src/network/test/packet-metadata-test.cc
