PacketTest Class Reference

Packet unit tests. More...

Inheritance diagram for PacketTest:

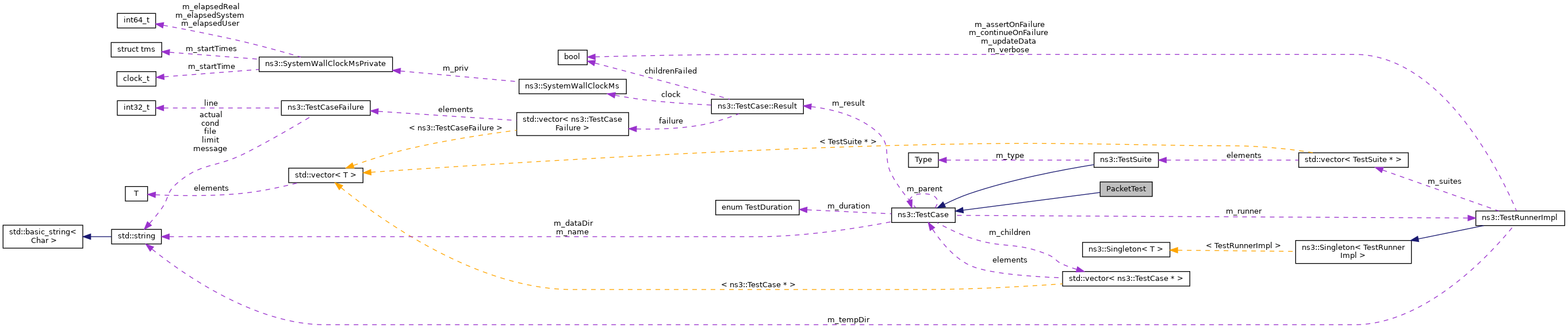

Collaboration diagram for PacketTest:

Public Member Functions
	PacketTest ()
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DoCheck (Ptr< const Packet > p, uint32_t n,...)
	Checks the packet. More...
void	DoCheckData (Ptr< const Packet > p, uint32_t n,...)
	Checks the packet and its data. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Packet unit tests.

Definition at line 436 of file packet-test-suite.cc.

Constructor & Destructor Documentation

PacketTest()

PacketTest::PacketTest

(

)

Definition at line 459 of file packet-test-suite.cc.

Member Function Documentation

DoCheck()

void PacketTest::DoCheck ( Ptr< const Packet >  p, uint32_t  n,   ...  )

private

Checks the packet.

Parameters

p	The packet
n	The number of variable arguments
...	The variable arguments

Definition at line 464 of file packet-test-suite.cc.

References ns3::Packet::GetByteTagIterator(), ns3::TypeId::GetConstructor(), ns3::ByteTagIterator::Item::GetEnd(), ns3::TypeId::GetName(), ns3::ByteTagIterator::Item::GetStart(), ns3::ByteTagIterator::Item::GetTag(), ns3::ByteTagIterator::Item::GetTypeId(), ns3::ByteTagIterator::HasNext(), bianchi11ax::k, ns3::ByteTagIterator::Next(), NS_TEST_EXPECT_MSG_EQ, NS_TEST_EXPECT_MSG_NE, and visualizer.core::start().

Here is the call graph for this function:

DoCheckData()

void PacketTest::DoCheckData ( Ptr< const Packet >  p, uint32_t  n,   ...  )

private

Checks the packet and its data.

Parameters

p	The packet
n	The number of variable arguments
...	The variable arguments

Definition at line 501 of file packet-test-suite.cc.

References data, ns3::Packet::GetByteTagIterator(), ns3::TypeId::GetConstructor(), ns3::ByteTagIterator::Item::GetEnd(), ns3::TypeId::GetName(), ns3::ByteTagIterator::Item::GetStart(), ns3::ByteTagIterator::Item::GetTag(), ns3::ByteTagIterator::Item::GetTypeId(), ns3::ByteTagIterator::HasNext(), bianchi11ax::k, ns3::ByteTagIterator::Next(), NS_TEST_EXPECT_MSG_EQ, NS_TEST_EXPECT_MSG_NE, and visualizer.core::start().

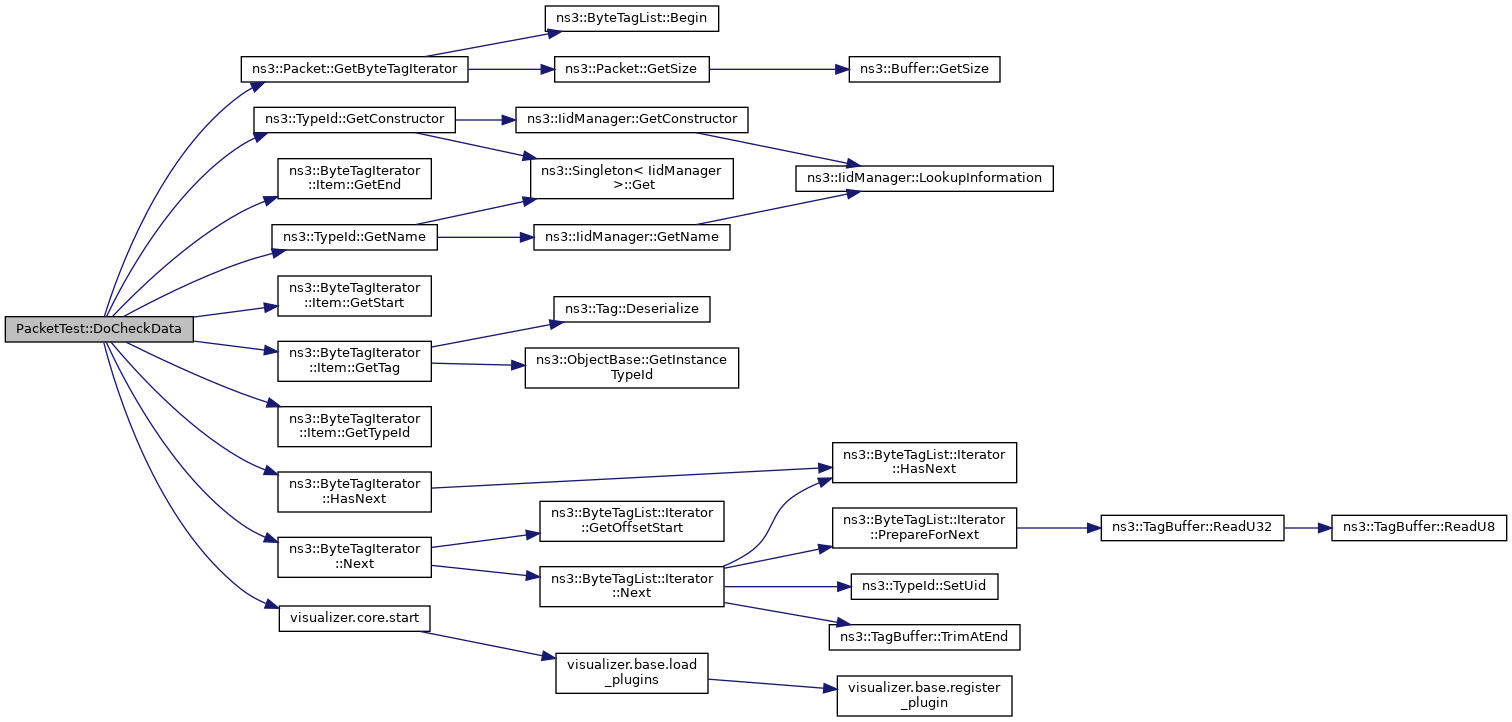

Here is the call graph for this function:

DoRun()

void PacketTest::DoRun ( void  )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Internal:

See Bug 572

Implements ns3::TestCase.

Definition at line 540 of file packet-test-suite.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::AddByteTag(), ns3::Packet::AddHeader(), ns3::Packet::AddPacketTag(), ns3::Packet::AddPaddingAtEnd(), ns3::Packet::AddTrailer(), CHECK, CHECK_DATA, ns3::Packet::Copy(), ns3::Packet::CopyData(), ns3::Packet::CreateFragment(), E, E_DATA, ns3::Packet::GetSerializedSize(), ns3::Packet::GetSize(), NS_TEST_EXPECT_MSG_EQ, ns3::Packet::PeekPacketTag(), ns3::Packet::RemoveAllPacketTags(), ns3::Packet::RemoveAtEnd(), ns3::Packet::RemoveAtStart(), ns3::Packet::RemoveHeader(), ns3::Packet::RemovePacketTag(), ns3::Packet::RemoveTrailer(), and ns3::Packet::Serialize().

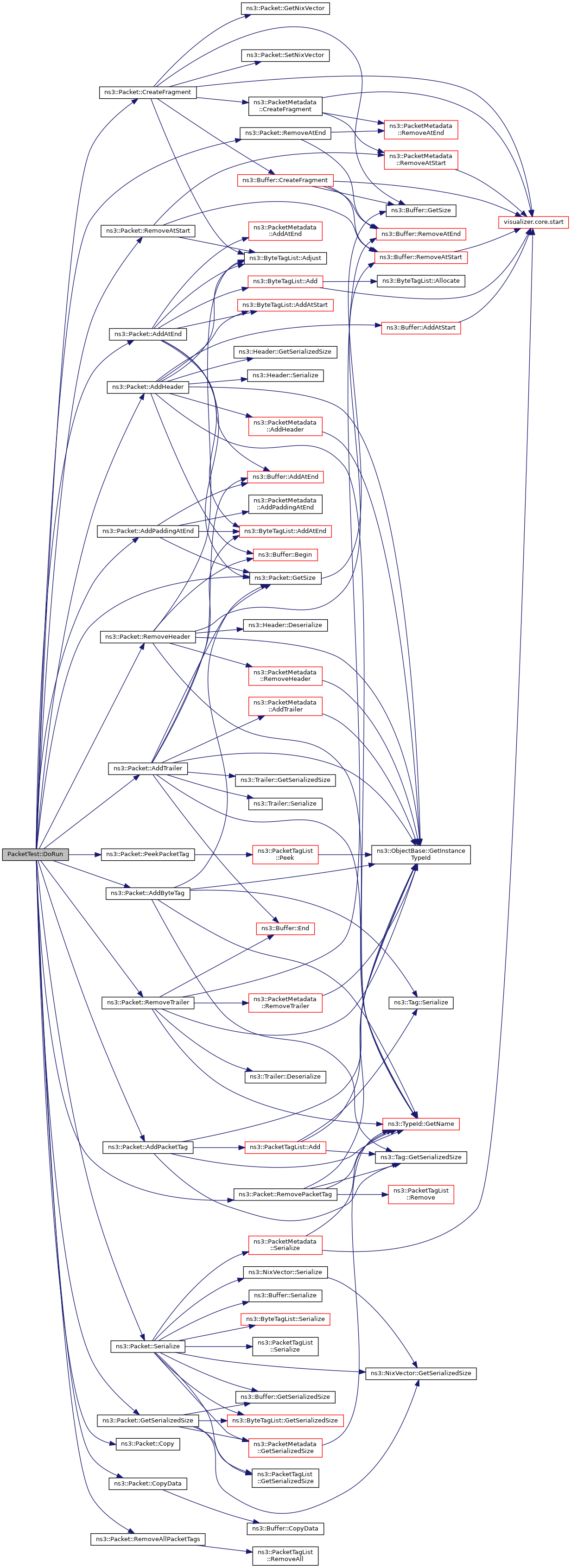

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• src/network/test/packet-test-suite.cc
