RoutingExperiment Class Reference

Routing experiment class. More...

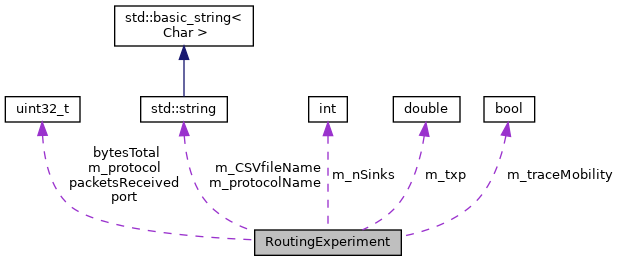

Collaboration diagram for RoutingExperiment:

Public Member Functions
	RoutingExperiment ()
std::string	CommandSetup (int argc, char **argv)
	Handles the command-line parmeters. More...
void	Run (int nSinks, double txp, std::string CSVfileName)
	Run the experiment. More...

Private Member Functions
void	CheckThroughput ()
	Compute the throughput. More...
void	ReceivePacket (Ptr< Socket > socket)
	Receive a packet. More...
Ptr< Socket >	SetupPacketReceive (Ipv4Address addr, Ptr< Node > node)
	Setup the receiving socket in a Sink Node. More...

Private Attributes
uint32_t	bytesTotal
	Total received bytes. More...
std::string	m_CSVfileName
	CSV filename. More...
int	m_nSinks
	Number of sink nodes. More...
uint32_t	m_protocol
	Protocol type. More...
std::string	m_protocolName
	Protocol name. More...
bool	m_traceMobility
	Enavle mobility tracing. More...
double	m_txp
	Tx power. More...
uint32_t	packetsReceived
	Total received packets. More...
uint32_t	port
	Receiving port number. More...

Detailed Description

Routing experiment class.

It handles the creation and run of an experiment.

Definition at line 91 of file manet-routing-compare.cc.

Constructor & Destructor Documentation

RoutingExperiment()

RoutingExperiment::RoutingExperiment

(

)

Definition at line 142 of file manet-routing-compare.cc.

Member Function Documentation

CheckThroughput()

void RoutingExperiment::CheckThroughput ( )

private

Compute the throughput.

Definition at line 185 of file manet-routing-compare.cc.

References bytesTotal, CheckThroughput(), m_CSVfileName, m_nSinks, m_protocolName, m_txp, ns3::Now(), packetsReceived, and ns3::Seconds().

Referenced by CheckThroughput(), and Run().

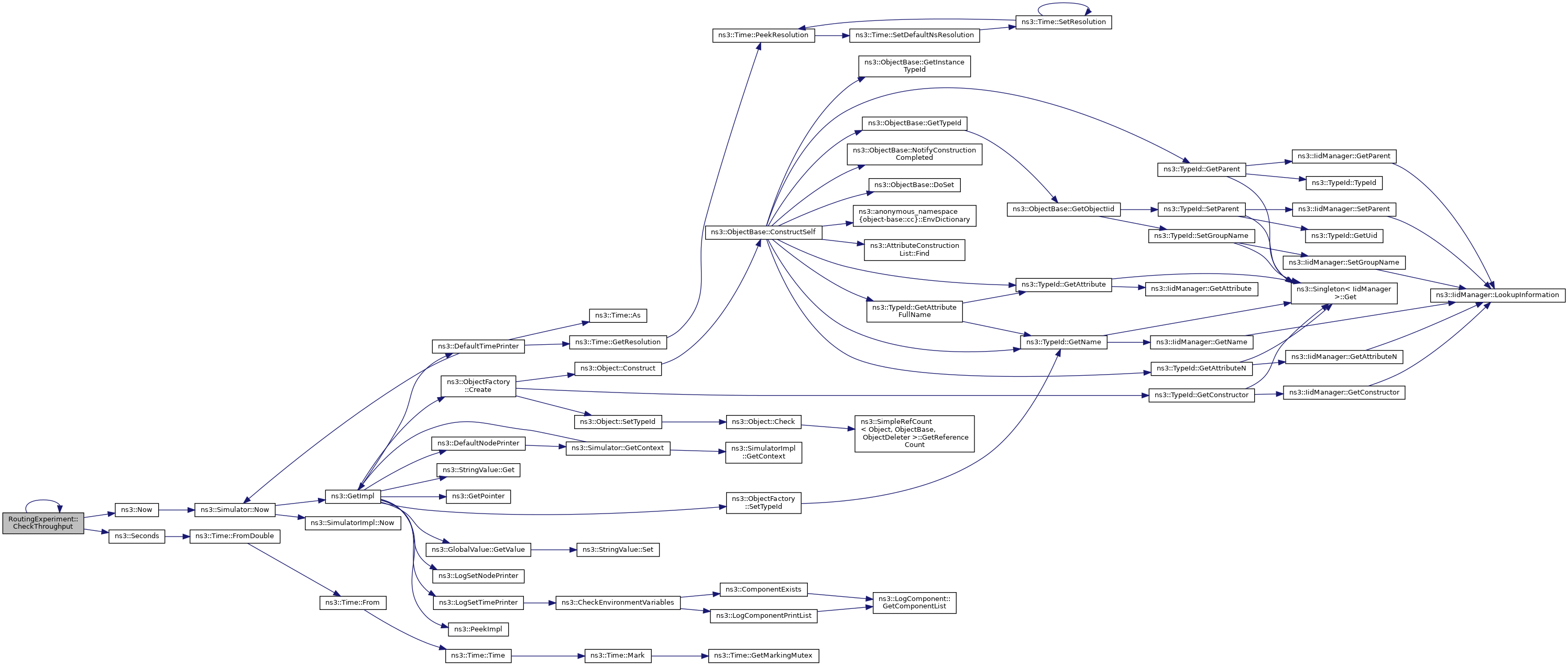

Here is the call graph for this function:

Here is the caller graph for this function:

CommandSetup()

std::string RoutingExperiment::CommandSetup	(	int	argc,
		char **	argv
	)

Handles the command-line parmeters.

Parameters

argc	The argument count.
argv	The argument vector.

Returns

the CSV filename.

Definition at line 218 of file manet-routing-compare.cc.

References second::cmd, m_CSVfileName, m_protocol, and m_traceMobility.

ReceivePacket()

void RoutingExperiment::ReceivePacket ( Ptr< Socket >  socket )

private

Receive a packet.

Parameters

socket

The receiving socket.

Definition at line 172 of file manet-routing-compare.cc.

References bytesTotal, ns3::Packet::GetSize(), NS_LOG_UNCOND, packetsReceived, PrintReceivedPacket(), and ns3::Socket::RecvFrom().

Referenced by SetupPacketReceive().

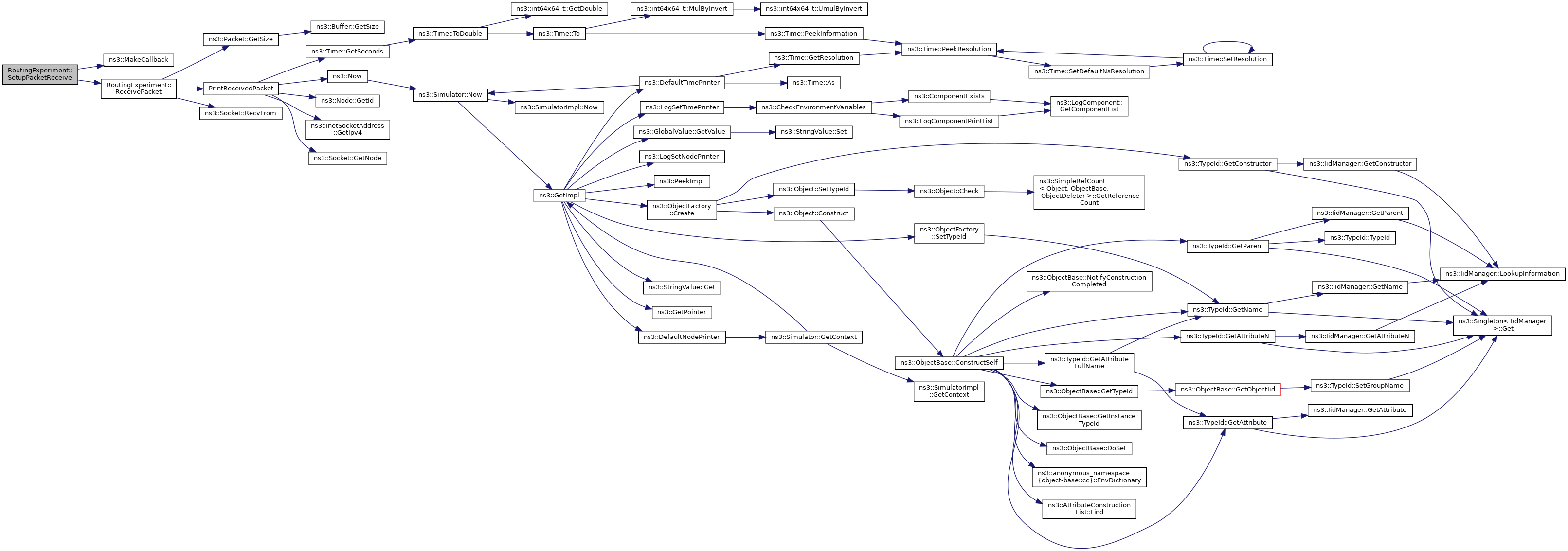

Here is the call graph for this function:

Here is the caller graph for this function:

Run()

void RoutingExperiment::Run	(	int	nSinks,
		double	txp,
		std::string	CSVfileName
	)

Run the experiment.

Parameters

nSinks	The number of Sink Nodes.
txp	The Tx power.
CSVfileName	The output CSV filename.

Definition at line 252 of file manet-routing-compare.cc.

References ns3::YansWifiChannelHelper::AddPropagationLoss(), ns3::Ipv4AddressHelper::Assign(), ns3::MobilityHelper::AssignStreams(), CheckThroughput(), ns3::NodeContainer::Create(), ns3::ObjectFactory::Create(), ns3::YansWifiChannelHelper::Create(), ns3::AsciiTraceHelper::CreateFileStream(), ns3::NodeContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::Object::GetObject(), ns3::UniformRandomVariable::GetValue(), ns3::DsrMainHelper::Install(), ns3::OnOffHelper::Install(), ns3::MobilityHelper::Install(), ns3::InternetStackHelper::Install(), list, m_CSVfileName, m_nSinks, m_protocol, m_protocolName, m_txp, first::nodes, NS_FATAL_ERROR, NS_LOG_INFO, port, ns3::Seconds(), ns3::ObjectFactory::Set(), ns3::WifiPhyHelper::Set(), ns3::OnOffHelper::SetAttribute(), ns3::Ipv4AddressHelper::SetBase(), ns3::YansWifiPhyHelper::SetChannel(), ns3::Config::SetDefault(), ns3::MobilityHelper::SetMobilityModel(), ns3::MobilityHelper::SetPositionAllocator(), ns3::YansWifiChannelHelper::SetPropagationDelay(), ns3::InternetStackHelper::SetRoutingHelper(), ns3::WifiMacHelper::SetType(), ns3::ObjectFactory::SetTypeId(), SetupPacketReceive(), sink, ns3::ApplicationContainer::Start(), ns3::ApplicationContainer::Stop(), third::wifi, and ns3::WIFI_STANDARD_80211b.

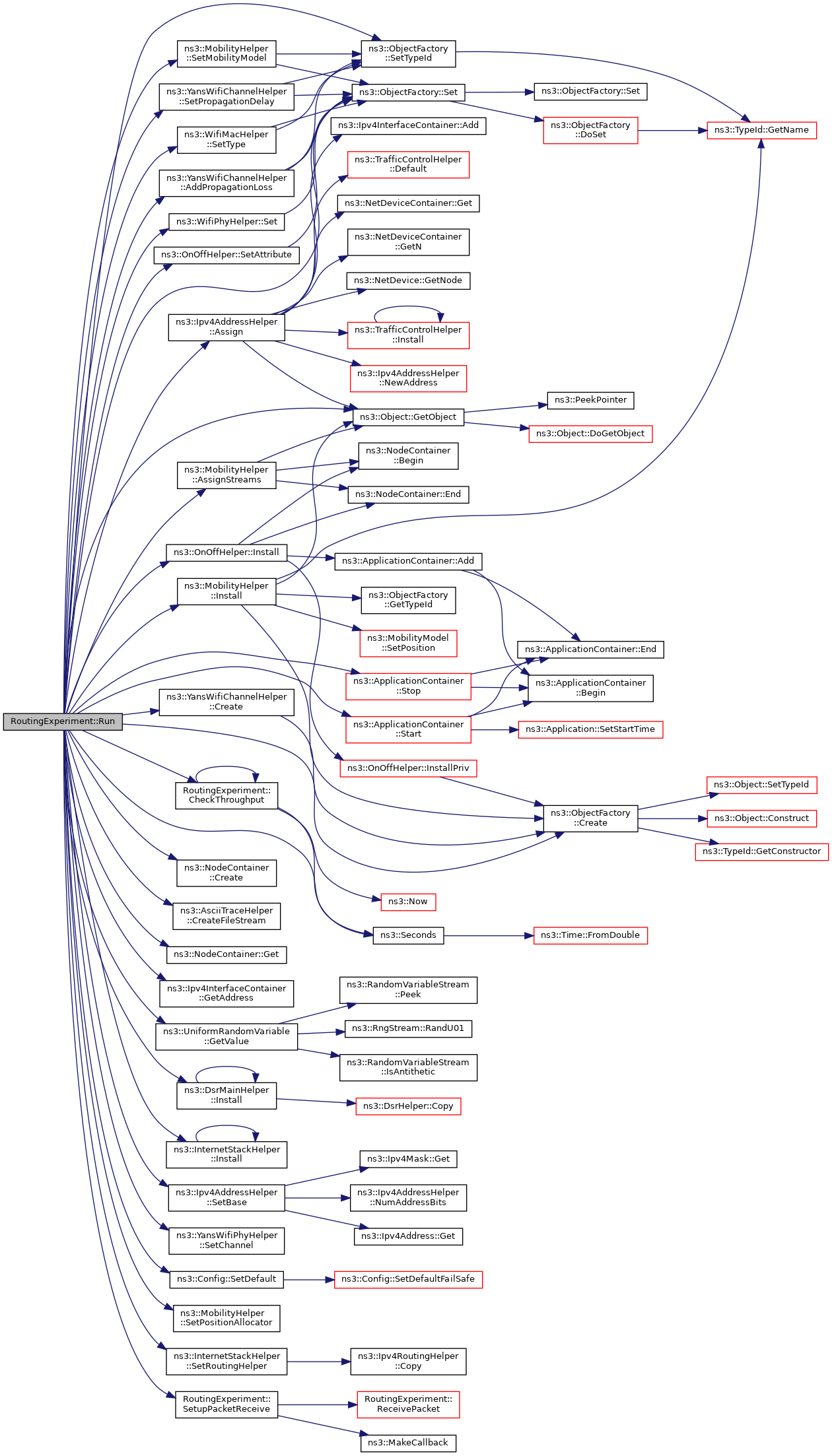

Here is the call graph for this function:

SetupPacketReceive()

Ptr< Socket > RoutingExperiment::SetupPacketReceive ( Ipv4Address  addr, Ptr< Node >  node  )

private

Setup the receiving socket in a Sink Node.

Parameters

addr	The address of the node.
node	The node pointer.

Returns

the socket.

Definition at line 206 of file manet-routing-compare.cc.

References ns3::MakeCallback(), port, ReceivePacket(), and sink.

Referenced by Run().

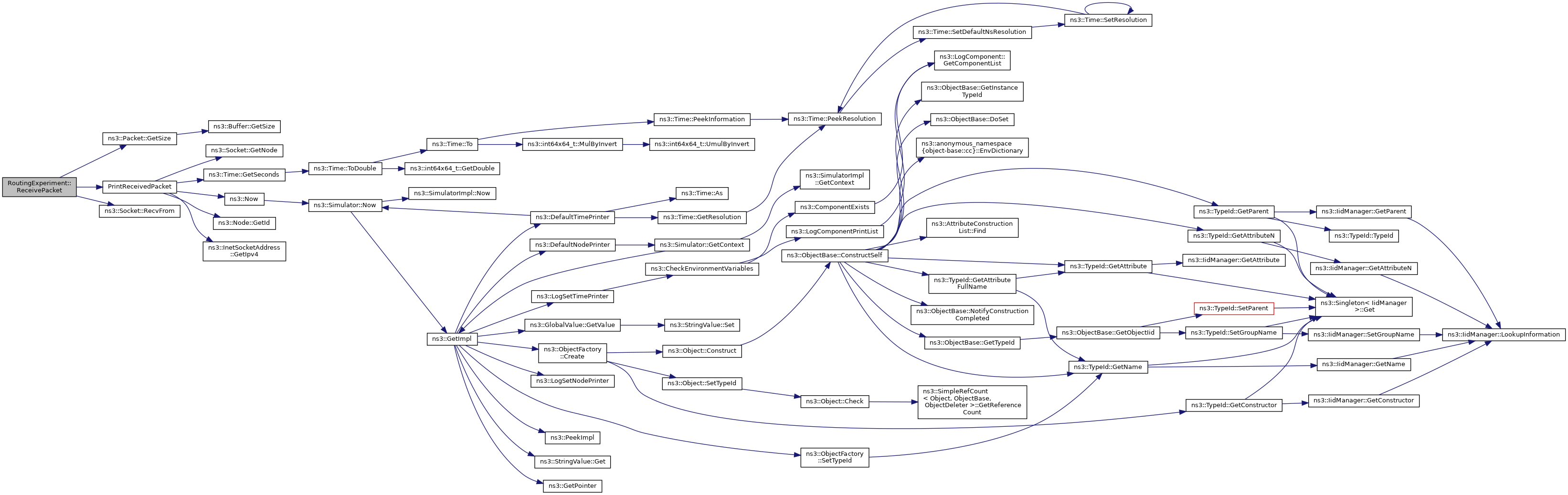

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

bytesTotal

uint32_t RoutingExperiment::bytesTotal

private

Total received bytes.

Definition at line 131 of file manet-routing-compare.cc.

Referenced by CheckThroughput(), and ReceivePacket().

m_CSVfileName

std::string RoutingExperiment::m_CSVfileName

private

CSV filename.

Definition at line 134 of file manet-routing-compare.cc.

Referenced by CheckThroughput(), CommandSetup(), and Run().

m_nSinks

int RoutingExperiment::m_nSinks

private

Number of sink nodes.

Definition at line 135 of file manet-routing-compare.cc.

Referenced by CheckThroughput(), and Run().

m_protocol

uint32_t RoutingExperiment::m_protocol

private

Protocol type.

Definition at line 139 of file manet-routing-compare.cc.

Referenced by CommandSetup(), and Run().

m_protocolName

std::string RoutingExperiment::m_protocolName

private

Protocol name.

Definition at line 136 of file manet-routing-compare.cc.

Referenced by CheckThroughput(), and Run().

m_traceMobility

bool RoutingExperiment::m_traceMobility

private

Enavle mobility tracing.

Definition at line 138 of file manet-routing-compare.cc.

Referenced by CommandSetup().

m_txp

double RoutingExperiment::m_txp

private

Tx power.

Definition at line 137 of file manet-routing-compare.cc.

Referenced by CheckThroughput(), and Run().

packetsReceived

uint32_t RoutingExperiment::packetsReceived

private

Total received packets.

Definition at line 132 of file manet-routing-compare.cc.

Referenced by CheckThroughput(), and ReceivePacket().

port

uint32_t RoutingExperiment::port

private

Receiving port number.

Definition at line 130 of file manet-routing-compare.cc.

Referenced by Run(), and SetupPacketReceive().

---

The documentation for this class was generated from the following file:

• examples/routing/manet-routing-compare.cc
