TbfQueueDiscTestCase Class Reference

Tbf Queue Disc Test Case. More...

Inheritance diagram for TbfQueueDiscTestCase:

Collaboration diagram for TbfQueueDiscTestCase:

Public Member Functions
	TbfQueueDiscTestCase ()
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DequeueAndCheck (Ptr< TbfQueueDisc > queue, bool flag, std::string printStatement)
	DequeueAndCheck function to check if a packet is blocked or not after dequeuing and verify against expected result. More...
void	Enqueue (Ptr< TbfQueueDisc > queue, Address dest, uint32_t size)
	Enqueue function. More...
void	RunTbfTest (QueueSizeUnit mode)
	Run TBF test function. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Tbf Queue Disc Test Case.

Definition at line 93 of file tbf-queue-disc-test-suite.cc.

Constructor & Destructor Documentation

TbfQueueDiscTestCase()

TbfQueueDiscTestCase::TbfQueueDiscTestCase

(

)

Definition at line 120 of file tbf-queue-disc-test-suite.cc.

Member Function Documentation

DequeueAndCheck()

void TbfQueueDiscTestCase::DequeueAndCheck ( Ptr< TbfQueueDisc >  queue, bool  flag, std::string  printStatement  )

private

DequeueAndCheck function to check if a packet is blocked or not after dequeuing and verify against expected result.

Parameters

queue	the queue disc on which DequeueAndCheck needs to be done
flag	the boolean value against which the return value of dequeue () has to be compared with
printStatement	the string to be printed in the NS_TEST_EXPECT_MSG_EQ

Definition at line 425 of file tbf-queue-disc-test-suite.cc.

References NS_TEST_EXPECT_MSG_EQ.

Referenced by RunTbfTest().

Here is the caller graph for this function:

DoRun()

void TbfQueueDiscTestCase::DoRun ( void  )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 432 of file tbf-queue-disc-test-suite.cc.

References ns3::BYTES, ns3::PACKETS, and RunTbfTest().

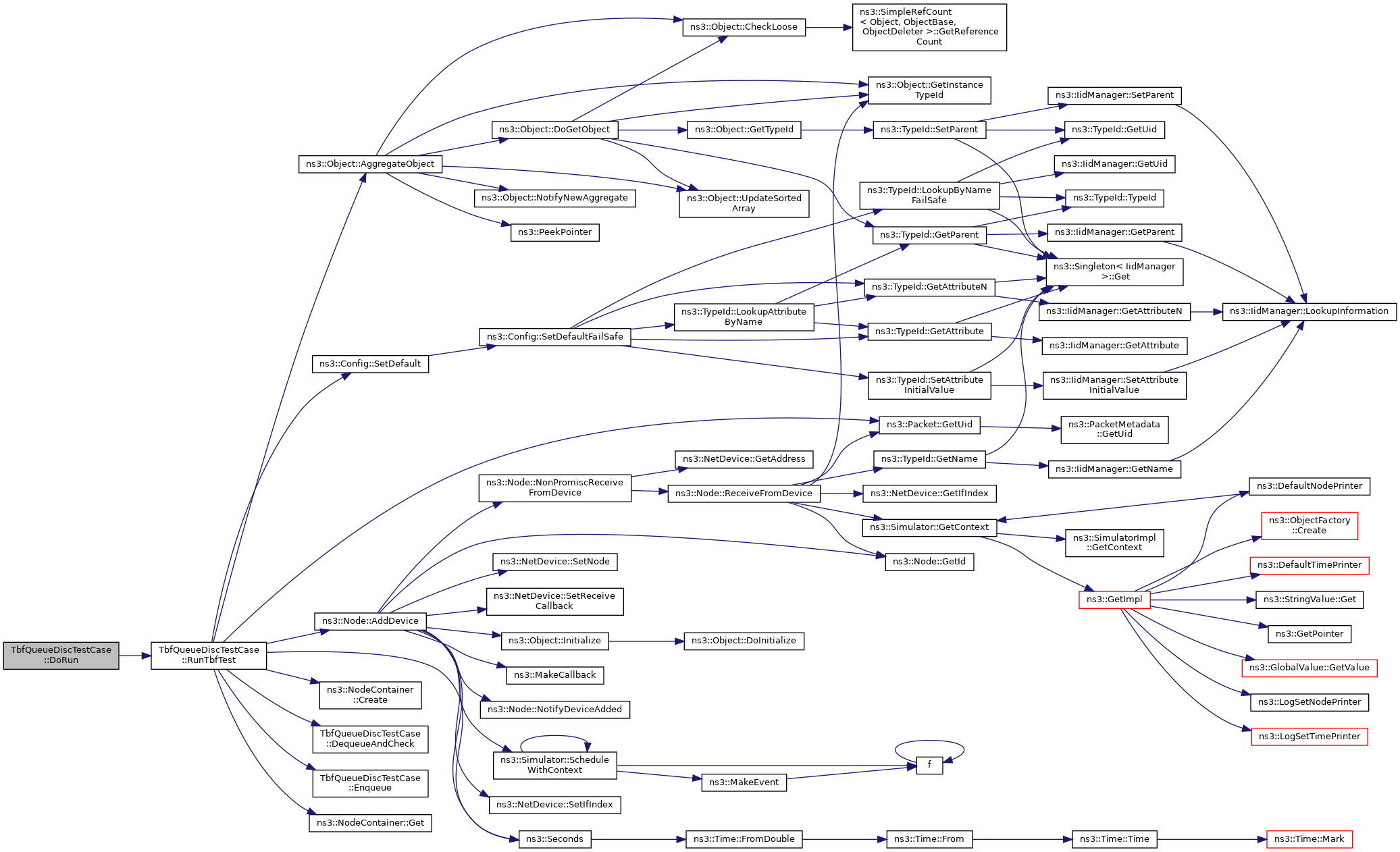

Here is the call graph for this function:

Enqueue()

void TbfQueueDiscTestCase::Enqueue ( Ptr< TbfQueueDisc >  queue, Address  dest, uint32_t  size  )

private

Enqueue function.

Parameters

queue	the queue disc into which enqueue needs to be done
dest	the destination address
size	the size of the packet in bytes to be enqueued

Definition at line 419 of file tbf-queue-disc-test-suite.cc.

Referenced by RunTbfTest().

Here is the caller graph for this function:

RunTbfTest()

void TbfQueueDiscTestCase::RunTbfTest ( QueueSizeUnit  mode )

private

Run TBF test function.

Parameters

mode

the mode

Definition at line 126 of file tbf-queue-disc-test-suite.cc.

References ns3::Node::AddDevice(), ns3::Object::AggregateObject(), ns3::BYTES, ns3::NodeContainer::Create(), DequeueAndCheck(), Enqueue(), ns3::NodeContainer::Get(), ns3::Packet::GetUid(), NS_TEST_ASSERT_MSG_EQ, pktSize, ns3::Seconds(), and ns3::Config::SetDefault().

Referenced by DoRun().

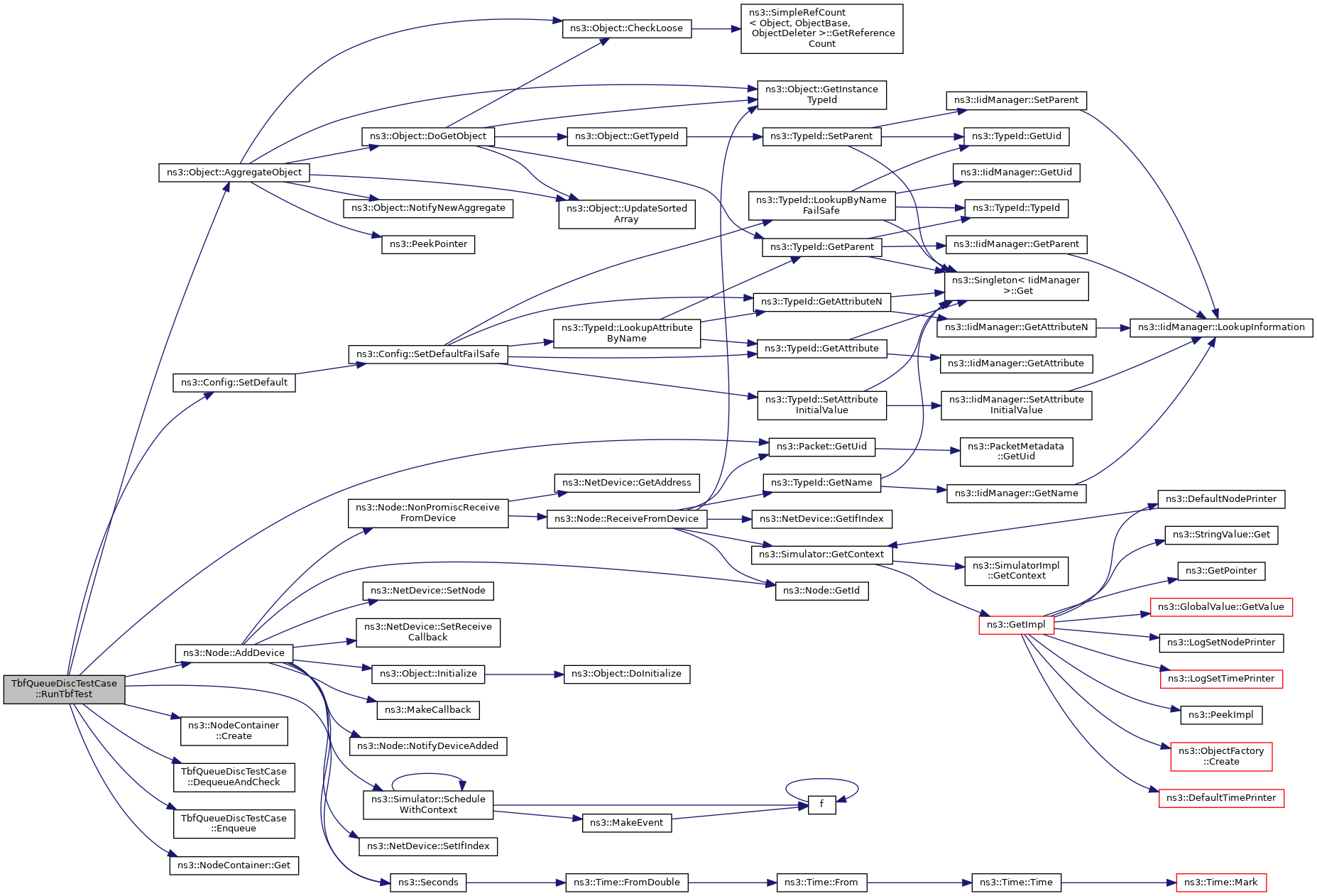

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• src/traffic-control/test/tbf-queue-disc-test-suite.cc
