ns3::BuildingList Class Reference

Container for Building class. More...

#include "building-list.h"

Public Types
typedef std::vector< Ptr< Building > >::const_iterator	Iterator
	Const Iterator. More...

Static Public Member Functions
static uint32_t	Add (Ptr< Building > building)
static Iterator	Begin (void)
static Iterator	End (void)
static Ptr< Building >	GetBuilding (uint32_t n)
static uint32_t	GetNBuildings (void)

Detailed Description

Container for Building class.

Definition at line 36 of file building-list.h.

Member Typedef Documentation

Iterator

typedef std::vector<Ptr<Building>>::const_iterator ns3::BuildingList::Iterator

Const Iterator.

Definition at line 40 of file building-list.h.

Member Function Documentation

Add()

uint32_t ns3::BuildingList::Add ( Ptr< Building >  building )

static

Parameters

building

building to add

Returns

index of building in list.

This method is called automatically from Building::Building so the user has little reason to call it himself.

Definition at line 211 of file building-list.cc.

References ns3::BuildingListPriv::Get().

Referenced by ns3::Building::Building().

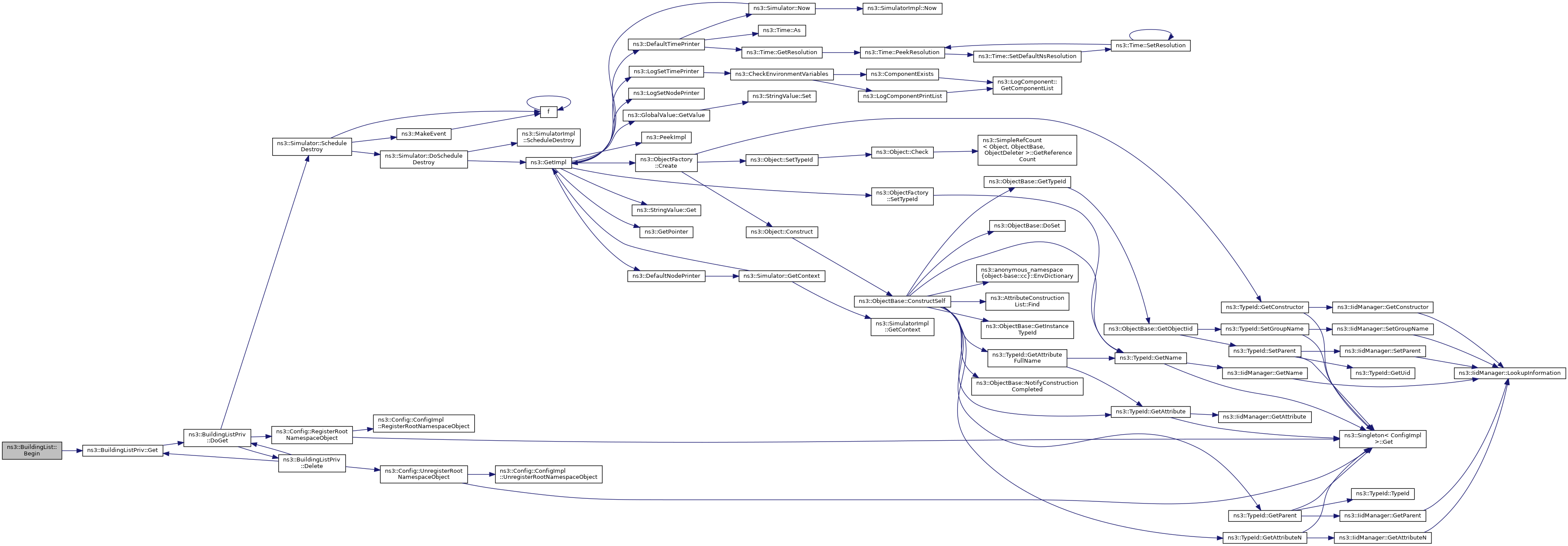

Here is the call graph for this function:

Here is the caller graph for this function:

Begin()

BuildingList::Iterator ns3::BuildingList::Begin ( void  )

static

Returns

a C++ iterator located at the beginning of this list.

Definition at line 216 of file building-list.cc.

References ns3::BuildingListPriv::Get().

Referenced by ns3::ThreeGppV2vHighwayChannelConditionModel::GetChCondAndFixCallback(), ns3::BuildingContainer::GetGlobal(), ns3::RandomBuildingPositionAllocator::GetNext(), ns3::OutdoorPositionAllocator::GetNext(), ns3::RandomRoomPositionAllocator::GetNext(), ns3::RandomWalk2dOutdoorMobilityModel::IsLineClearOfBuildings(), ns3::BuildingsChannelConditionModel::IsLineOfSightBlocked(), and ns3::MobilityBuildingInfo::MakeConsistent().

Here is the call graph for this function:

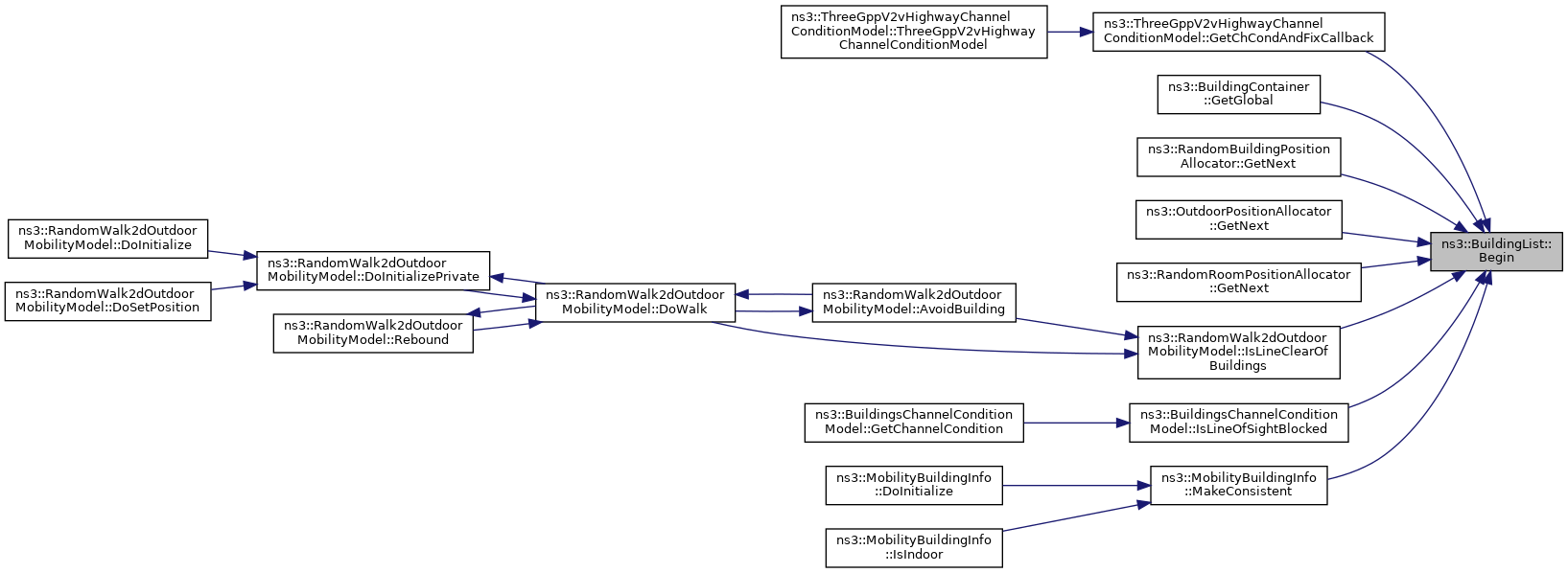

Here is the caller graph for this function:

End()

BuildingList::Iterator ns3::BuildingList::End ( void  )

static

Returns

a C++ iterator located at the end of this list.

Definition at line 221 of file building-list.cc.

References ns3::BuildingListPriv::Get().

Referenced by ns3::ThreeGppV2vHighwayChannelConditionModel::GetChCondAndFixCallback(), ns3::BuildingContainer::GetGlobal(), ns3::RandomBuildingPositionAllocator::GetNext(), ns3::OutdoorPositionAllocator::GetNext(), ns3::RandomRoomPositionAllocator::GetNext(), ns3::RandomWalk2dOutdoorMobilityModel::IsLineClearOfBuildings(), ns3::BuildingsChannelConditionModel::IsLineOfSightBlocked(), and ns3::MobilityBuildingInfo::MakeConsistent().

Here is the call graph for this function:

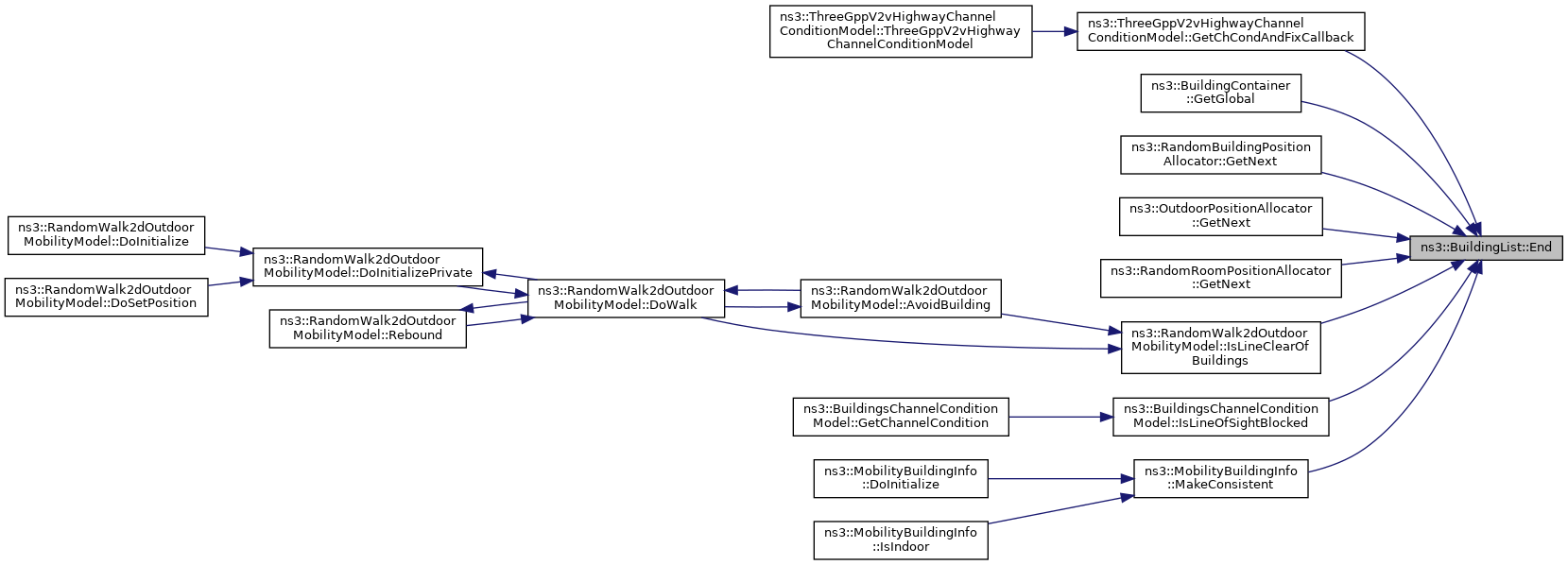

Here is the caller graph for this function:

GetBuilding()

Ptr< Building > ns3::BuildingList::GetBuilding ( uint32_t  n )

static

Parameters

n	index of requested building.

Returns

the Building associated to index n.

Definition at line 226 of file building-list.cc.

References ns3::BuildingListPriv::Get().

Referenced by ns3::RandomBuildingPositionAllocator::GetNext().

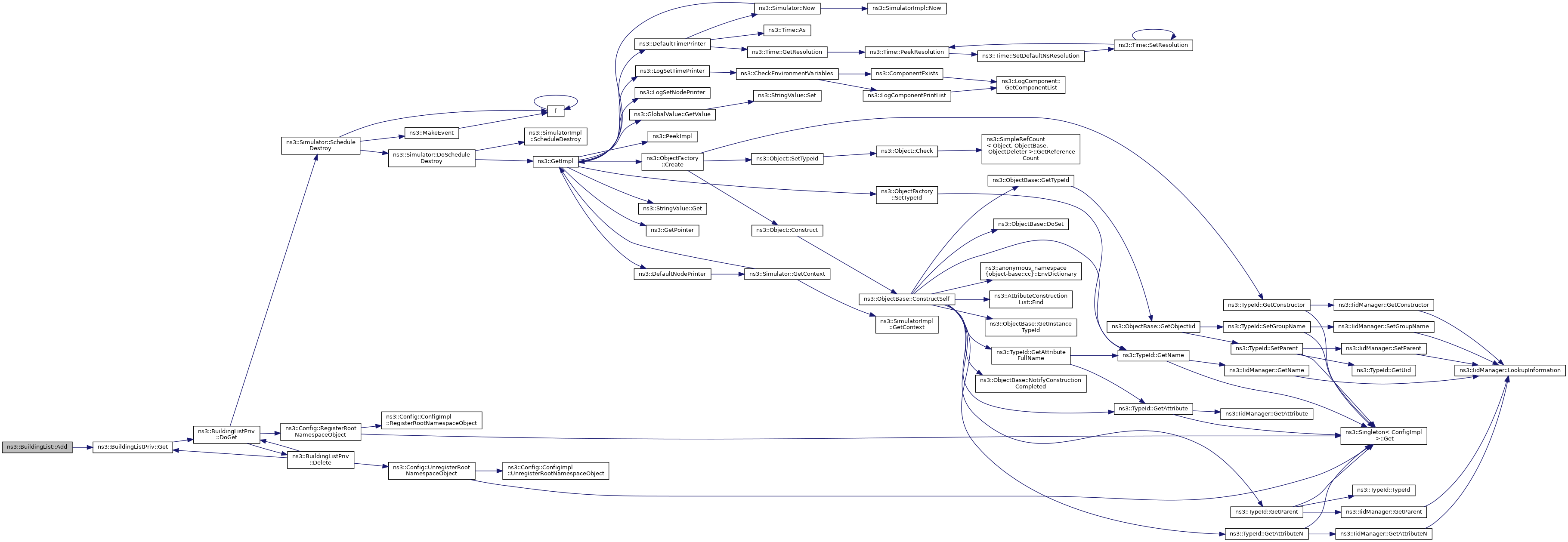

Here is the call graph for this function:

Here is the caller graph for this function:

GetNBuildings()

uint32_t ns3::BuildingList::GetNBuildings ( void  )

static

Returns

the number of buildings currently in the list.

Definition at line 231 of file building-list.cc.

References ns3::BuildingListPriv::Get().

Referenced by ns3::RandomBuildingPositionAllocator::GetNext(), ns3::OutdoorPositionAllocator::GetNext(), and ns3::RandomRoomPositionAllocator::GetNext().

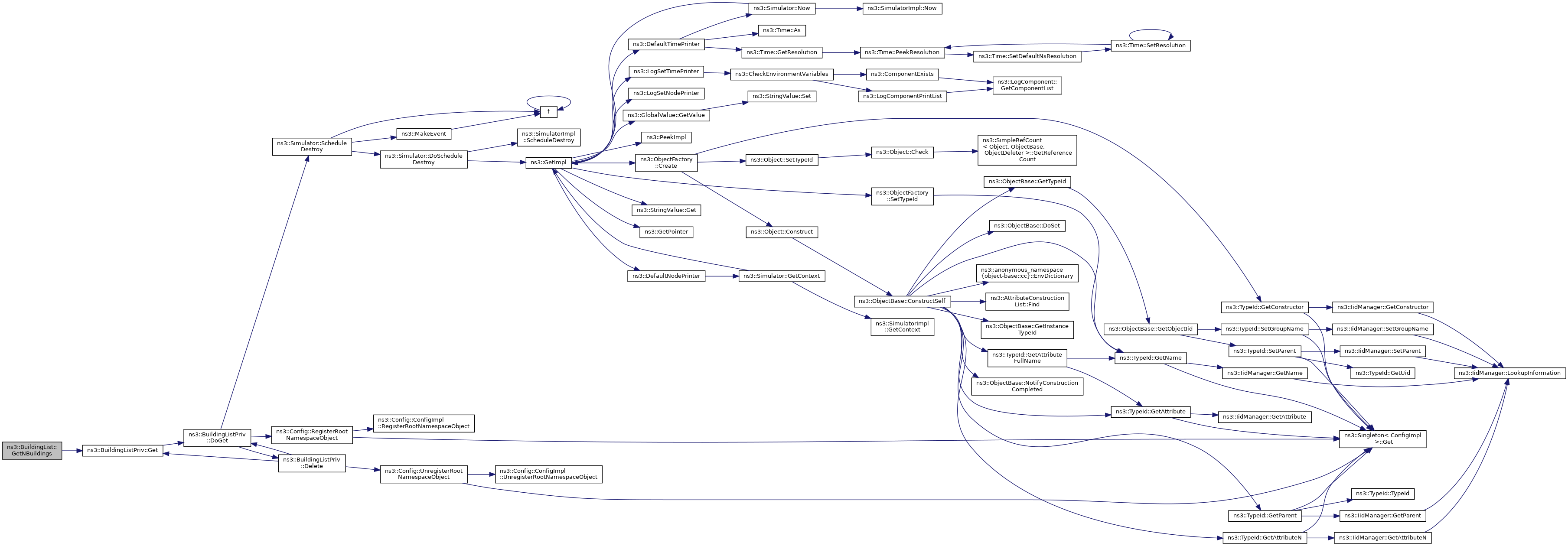

Here is the call graph for this function:

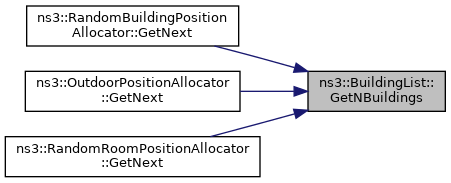

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/buildings/model/building-list.h
• src/buildings/model/building-list.cc
