Rip v2 Routing Table Entry (RTE) - see RFC 2453. More...

#include "rip-header.h"

Inheritance diagram for ns3::RipRte:

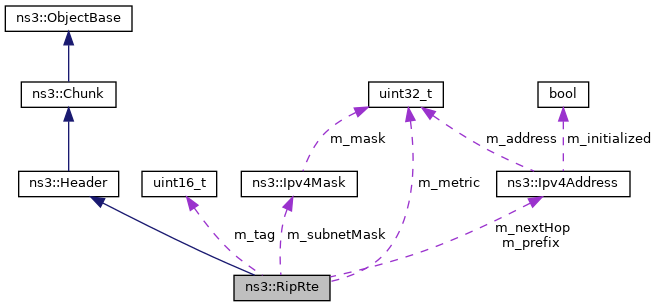

Collaboration diagram for ns3::RipRte:

Public Member Functions
	RipRte (void)

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

virtual TypeId	GetInstanceTypeId (void) const
	Return the instance type identifier. More...

Ipv4Address	GetNextHop (void) const
	Get the next hop. More...

Ipv4Address	GetPrefix (void) const
	Get the prefix. More...

uint32_t	GetRouteMetric (void) const
	Get the route metric. More...

uint16_t	GetRouteTag (void) const
	Get the route tag. More...

virtual uint32_t	GetSerializedSize (void) const
	Get the serialized size of the packet. More...

Ipv4Mask	GetSubnetMask (void) const
	Get the subnet mask. More...

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetNextHop (Ipv4Address nextHop)
	Set the next hop. More...

void	SetPrefix (Ipv4Address prefix)
	Set the prefix. More...

void	SetRouteMetric (uint32_t routeMetric)
	Set the route metric. More...

void	SetRouteTag (uint16_t routeTag)
	Set the route tag. More...

void	SetSubnetMask (Ipv4Mask subnetMask)
	Set the subnet mask. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)=0

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	GetSerializedSize (void) const =0

virtual void	Print (std::ostream &os) const =0

virtual void	Serialize (Buffer::Iterator start) const =0

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

virtual void	Print (std::ostream &os) const =0
	Print the object contents. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

virtual TypeId	GetInstanceTypeId (void) const =0
	Get the most derived TypeId for this Object. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint32_t	m_metric
	Route metric. More...

Ipv4Address	m_nextHop
	Next hop. More...

Ipv4Address	m_prefix
	Advertised prefix. More...

Ipv4Mask	m_subnetMask
	Subnet mask. More...

uint16_t	m_tag
	Route tag. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Rip v2 Routing Table Entry (RTE) - see RFC 2453.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 37 of file rip-header.h.

Constructor & Destructor Documentation

◆ RipRte()

ns3::RipRte::RipRte ( void )

Definition at line 32 of file rip-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::RipRte::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator.

Returns: Size of the packet.

Implements ns3::Header.

Definition at line 73 of file rip-header.cc.

References GetSerializedSize(), m_metric, m_nextHop, m_prefix, m_subnetMask, m_tag, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Ipv4Address::Set(), and ns3::Ipv4Mask::Set().

Referenced by ns3::RipHeader::Deserialize().

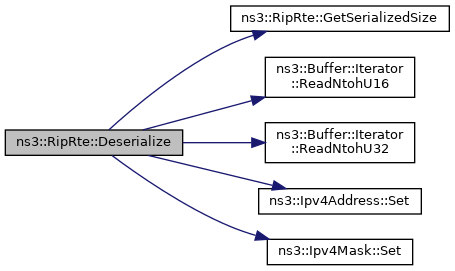

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::RipRte::GetInstanceTypeId ( void ) const

virtual

Return the instance type identifier.

Returns: Instance type ID.

Implements ns3::ObjectBase.

Definition at line 46 of file rip-header.cc.

References GetTypeId().

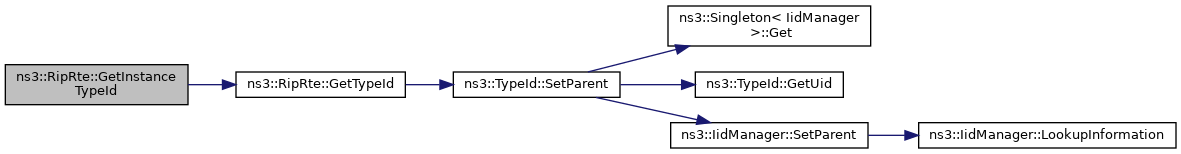

Here is the call graph for this function:

◆ GetNextHop()

Ipv4Address ns3::RipRte::GetNextHop ( void ) const

Get the next hop.

Returns: The next hop.

Definition at line 138 of file rip-header.cc.

References m_nextHop.

◆ GetPrefix()

Ipv4Address ns3::RipRte::GetPrefix ( void ) const

Get the prefix.

Returns: The prefix.

Definition at line 98 of file rip-header.cc.

References m_prefix.

◆ GetRouteMetric()

uint32_t ns3::RipRte::GetRouteMetric ( void ) const

Get the route metric.

Returns: The route metric.

Definition at line 128 of file rip-header.cc.

References m_metric.

◆ GetRouteTag()

uint16_t ns3::RipRte::GetRouteTag ( void ) const

Get the route tag.

Returns: The route tag.

Definition at line 118 of file rip-header.cc.

References m_tag.

◆ GetSerializedSize()

uint32_t ns3::RipRte::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: Size.

Implements ns3::Header.

Definition at line 57 of file rip-header.cc.

Referenced by Deserialize(), ns3::Rip::DoSendRouteUpdate(), ns3::RipHeader::GetSerializedSize(), and ns3::Rip::HandleRequests().

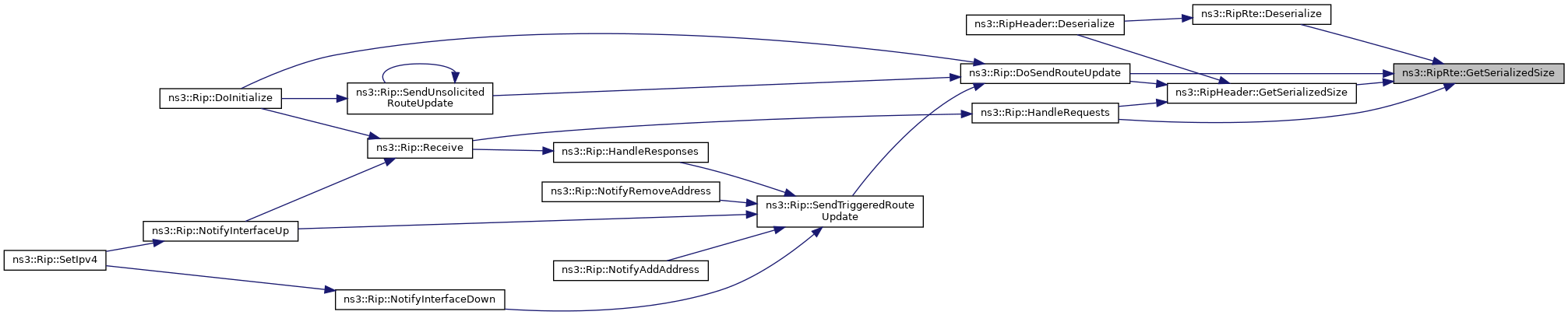

Here is the caller graph for this function:

◆ GetSubnetMask()

Ipv4Mask ns3::RipRte::GetSubnetMask ( void ) const

Get the subnet mask.

Returns: The subnet mask.

Definition at line 108 of file rip-header.cc.

References m_subnetMask.

◆ GetTypeId()

TypeId ns3::RipRte::GetTypeId ( void )

static

Get the type ID.

Returns: The object TypeId.

Definition at line 37 of file rip-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

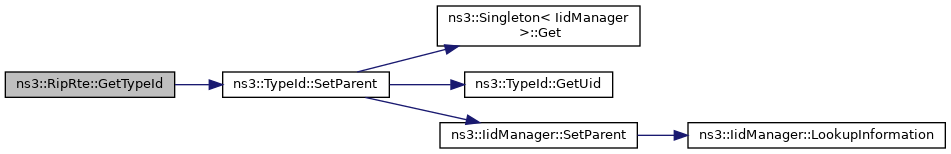

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::RipRte::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 51 of file rip-header.cc.

References ns3::Ipv4Mask::GetPrefixLength(), m_metric, m_nextHop, m_prefix, m_subnetMask, and m_tag.

Referenced by ns3::operator<<().

Here is the call graph for this function:
