A log distance path loss propagation model with three distance fields. More...

#include "propagation-loss-model.h"

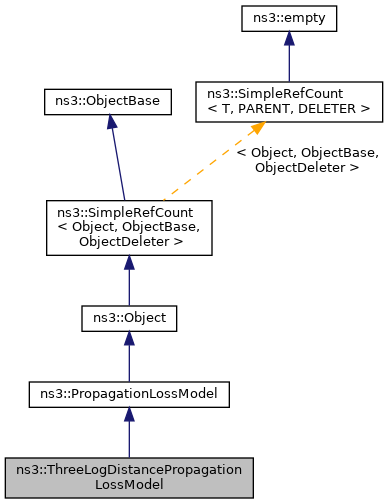

Inheritance diagram for ns3::ThreeLogDistancePropagationLossModel:

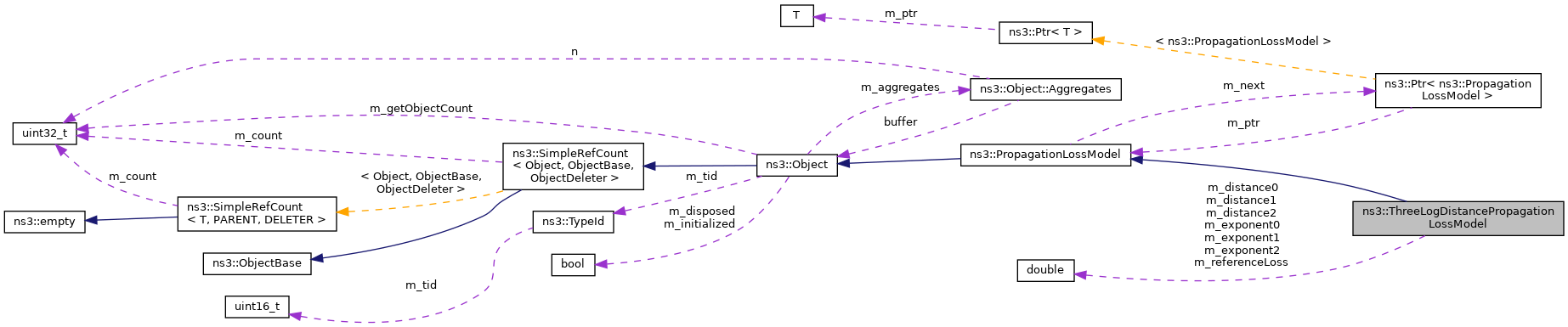

Collaboration diagram for ns3::ThreeLogDistancePropagationLossModel:

Public Member Functions
	ThreeLogDistancePropagationLossModel ()

	ThreeLogDistancePropagationLossModel (const ThreeLogDistancePropagationLossModel &)=delete

ThreeLogDistancePropagationLossModel &	operator= (const ThreeLogDistancePropagationLossModel &)=delete

Public Member Functions inherited from ns3::PropagationLossModel
	PropagationLossModel ()

	PropagationLossModel (const PropagationLossModel &)=delete

virtual	~PropagationLossModel ()

int64_t	AssignStreams (int64_t stream)
	If this loss model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'. More...

double	CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
	Returns the Rx Power taking into account all the PropagationLossModel(s) chained to the current one. More...

Ptr< PropagationLossModel >	GetNext ()
	Gets the next PropagationLossModel in the chain of loss models that act on the signal. More...

PropagationLossModel &	operator= (const PropagationLossModel &)=delete

void	SetNext (Ptr< PropagationLossModel > next)
	Enables a chain of loss models to act on the signal. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

virtual TypeId	GetInstanceTypeId (void) const =0
	Get the most derived TypeId for this Object. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::PropagationLossModel
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
int64_t	DoAssignStreams (int64_t stream) override
	Assign a fixed random variable stream number to the random variables used by this model. More...

double	DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const override
	PropagationLossModel. More...

Private Attributes
double	m_distance0
	Beginning of the first (near) distance field. More...

double	m_distance1
	Beginning of the second (middle) distance field. More...

double	m_distance2
	Beginning of the third (far) distance field. More...

double	m_exponent0
	The exponent for the first field. More...

double	m_exponent1
	The exponent for the second field. More...

double	m_exponent2
	The exponent for the third field. More...

double	m_referenceLoss
	The reference loss at distance d0 (dB). More...

Additional Inherited Members
virtual int64_t	DoAssignStreams (int64_t stream)=0
	Assign a fixed random variable stream number to the random variables used by this model. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

A log distance path loss propagation model with three distance fields.

This model is the same as ns3::LogDistancePropagationLossModel except that it has three distance fields: near, middle and far with different exponents.

Within each field the reception power is calculated using the log-distance propagation equation:

$L = L_0 + 10 \cdot n_0 log_{10}(\frac{d}{d_0})$

Each field begins where the previous ends and all together form a continuous function.

There are three valid distance fields: near, middle, far. Actually four: the first from 0 to the reference distance is invalid and returns txPowerDbm.

$\underbrace{0 \cdots\cdots}_{=0} \underbrace{d_0 \cdots\cdots}_{n_0} \underbrace{d_1 \cdots\cdots}_{n_1} \underbrace{d_2 \cdots\cdots}_{n_2} \infty$

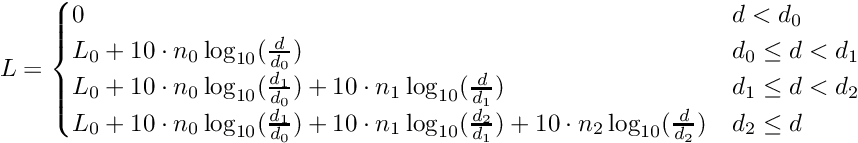

Complete formula for the path loss in dB:

$\displaystyle L = \begin{cases} 0 & d < d_0 \\ L_0 + 10 \cdot n_0 \log_{10}(\frac{d}{d_0}) & d_0 \leq d < d_1 \\ L_0 + 10 \cdot n_0 \log_{10}(\frac{d_1}{d_0}) + 10 \cdot n_1 \log_{10}(\frac{d}{d_1}) & d_1 \leq d < d_2 \\ L_0 + 10 \cdot n_0 \log_{10}(\frac{d_1}{d_0}) + 10 \cdot n_1 \log_{10}(\frac{d_2}{d_1}) + 10 \cdot n_2 \log_{10}(\frac{d}{d_2})& d_2 \leq d \end{cases}$

where:

: resulting path loss (dB)
: distance (m)
: three distance fields (m)
: path loss distance exponent for each field (unitless)
: path loss at reference distance (dB)

When the path loss is requested at a distance smaller than the reference distance , the tx power (with no path loss) is returned. The reference distance defaults to 1m and reference loss defaults to ns3::FriisPropagationLossModel with 5.15 GHz and is thus = 46.67 dB.

Config Paths

ns3::ThreeLogDistancePropagationLossModel is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel"
"/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel"
"/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeLogDistancePropagationLossModel"

Attributes

Distance0: Beginning of the first (near) distance field
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1
- Flags: construct write read
Distance1: Beginning of the second (middle) distance field.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 200
- Flags: construct write read
Distance2: Beginning of the third (far) distance field.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 500
- Flags: construct write read
Exponent0: The exponent for the first field.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1.9
- Flags: construct write read
Exponent1: The exponent for the second field.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 3.8
- Flags: construct write read
Exponent2: The exponent for the third field.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 3.8
- Flags: construct write read
ReferenceLoss: The reference loss at distance d0 (dB). (Default is Friis at 1m with 5.15 GHz)
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 46.6777
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 96 bytes (on a 64-bit architecture).

Definition at line 549 of file propagation-loss-model.h.

Constructor & Destructor Documentation

◆ ThreeLogDistancePropagationLossModel() [1/2]

ns3::ThreeLogDistancePropagationLossModel::ThreeLogDistancePropagationLossModel ( )

Definition at line 594 of file propagation-loss-model.cc.

◆ ThreeLogDistancePropagationLossModel() [2/2]

ns3::ThreeLogDistancePropagationLossModel::ThreeLogDistancePropagationLossModel ( const ThreeLogDistancePropagationLossModel & )

delete

Member Function Documentation

◆ DoAssignStreams()

int64_t ns3::ThreeLogDistancePropagationLossModel::DoAssignStreams ( int64_t stream )

overrideprivatevirtual

Assign a fixed random variable stream number to the random variables used by this model.

Subclasses must implement this; those not using random variables can return zero.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::PropagationLossModel.

Definition at line 640 of file propagation-loss-model.cc.

◆ DoCalcRxPower()

double ns3::ThreeLogDistancePropagationLossModel::DoCalcRxPower	(	double	txPowerDbm,
		Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

overrideprivatevirtual

PropagationLossModel.

Parameters

txPowerDbm	current transmission power (in dBm)
a	the mobility model of the source
b	the mobility model of the destination

Returns: the reception power after adding/multiplying propagation loss (in dBm)

Implements ns3::PropagationLossModel.

Definition at line 599 of file propagation-loss-model.cc.

References ns3::MobilityModel::GetDistanceFrom(), m_distance0, m_distance1, m_distance2, m_exponent0, m_exponent1, m_exponent2, m_referenceLoss, NS_ASSERT, and NS_LOG_DEBUG.

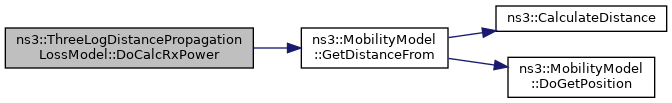

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::ThreeLogDistancePropagationLossModel::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 548 of file propagation-loss-model.cc.

References m_distance0, m_distance1, m_distance2, m_exponent0, m_exponent1, m_exponent2, m_referenceLoss, ns3::MakeDoubleAccessor(), and ns3::TypeId::SetParent().

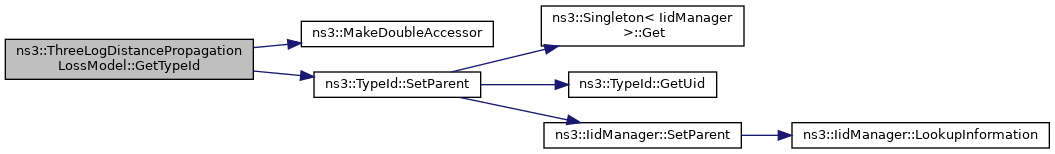

Here is the call graph for this function:

◆ operator=()

ThreeLogDistancePropagationLossModel & ns3::ThreeLogDistancePropagationLossModel::operator= ( const ThreeLogDistancePropagationLossModel & )

delete

Member Data Documentation

◆ m_distance0

double ns3::ThreeLogDistancePropagationLossModel::m_distance0

private

Beginning of the first (near) distance field.

Definition at line 572 of file propagation-loss-model.h.

Referenced by DoCalcRxPower(), and GetTypeId().

◆ m_distance1

double ns3::ThreeLogDistancePropagationLossModel::m_distance1

private

Beginning of the second (middle) distance field.

Definition at line 573 of file propagation-loss-model.h.

Referenced by DoCalcRxPower(), and GetTypeId().

◆ m_distance2

double ns3::ThreeLogDistancePropagationLossModel::m_distance2

private

Beginning of the third (far) distance field.

Definition at line 574 of file propagation-loss-model.h.

Referenced by DoCalcRxPower(), and GetTypeId().

◆ m_exponent0

double ns3::ThreeLogDistancePropagationLossModel::m_exponent0

private

The exponent for the first field.

Definition at line 576 of file propagation-loss-model.h.

Referenced by DoCalcRxPower(), and GetTypeId().

◆ m_exponent1

double ns3::ThreeLogDistancePropagationLossModel::m_exponent1

private

The exponent for the second field.

Definition at line 577 of file propagation-loss-model.h.

Referenced by DoCalcRxPower(), and GetTypeId().

◆ m_exponent2

double ns3::ThreeLogDistancePropagationLossModel::m_exponent2

private

The exponent for the third field.

Definition at line 578 of file propagation-loss-model.h.

Referenced by DoCalcRxPower(), and GetTypeId().

◆ m_referenceLoss

double ns3::ThreeLogDistancePropagationLossModel::m_referenceLoss

private

The reference loss at distance d0 (dB).

Definition at line 580 of file propagation-loss-model.h.

Referenced by DoCalcRxPower(), and GetTypeId().

The documentation for this class was generated from the following files:

src/propagation/model/propagation-loss-model.h
src/propagation/model/propagation-loss-model.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Constructor & Destructor Documentation

◆ ThreeLogDistancePropagationLossModel() [1/2]

◆ ThreeLogDistancePropagationLossModel() [2/2]

Member Function Documentation

◆ DoAssignStreams()

◆ DoCalcRxPower()

◆ GetTypeId()

◆ operator=()

Member Data Documentation

◆ m_distance0

◆ m_distance1

◆ m_distance2

◆ m_exponent0

◆ m_exponent1

◆ m_exponent2

◆ m_referenceLoss
