helps to create wifi 802.11p objects of WifiNetDevice class More...

#include "wifi-80211p-helper.h"

Inheritance diagram for ns3::Wifi80211pHelper:

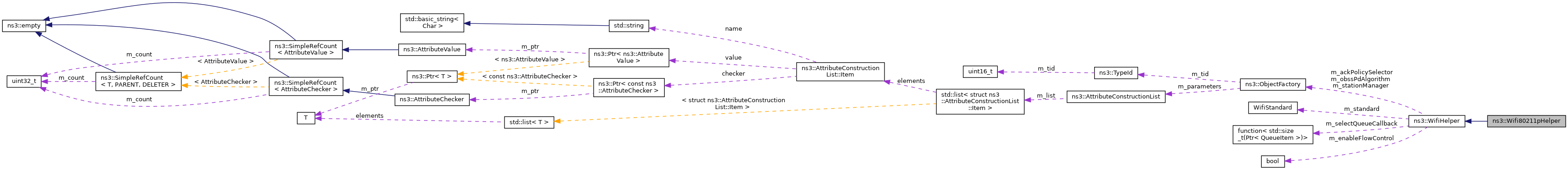

Collaboration diagram for ns3::Wifi80211pHelper:

Public Member Functions
	Wifi80211pHelper ()

virtual	~Wifi80211pHelper ()

virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &macHelper, NodeContainer c) const

virtual void	SetStandard (enum WifiStandard standard)

Public Member Functions inherited from ns3::WifiHelper
	WifiHelper ()
	Create a Wifi helper in an empty state: all its parameters must be set before calling ns3::WifiHelper::Install. More...

virtual	~WifiHelper ()

int64_t	AssignStreams (NetDeviceContainer c, int64_t stream)
	Assign a fixed random variable stream number to the random variables used by the PHY and MAC aspects of the Wifi models. More...

void	DisableFlowControl (void)
	Disable flow control only if you know what you are doing. More...

virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, NodeContainer c) const

virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, NodeContainer::Iterator first, NodeContainer::Iterator last) const

virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, Ptr< Node > node) const

virtual NetDeviceContainer	Install (const WifiPhyHelper &phy, const WifiMacHelper &mac, std::string nodeName) const

void	SetObssPdAlgorithm (std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())

void	SetRemoteStationManager (std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())

void	SetSelectQueueCallback (SelectQueueCallback f)

virtual void	SetStandard (WifiStandard standard)

Static Public Member Functions
static Wifi80211pHelper	Default (void)

static void	EnableLogComponents (void)
	Helper to enable all WifiNetDevice log components with one statement. More...

Static Public Member Functions inherited from ns3::WifiHelper
static void	EnableLogComponents (void)
	Helper to enable all WifiNetDevice log components with one statement. More...

Additional Inherited Members
Public Types inherited from ns3::WifiHelper
typedef std::function< std::size_t(Ptr< QueueItem >)>	SelectQueueCallback
	Callback invoked to determine the MAC queue selected for a given packet. More...

Protected Attributes inherited from ns3::WifiHelper
ObjectFactory	m_ackPolicySelector [4]
	ack policy selector for all ACs More...

bool	m_enableFlowControl
	whether to enable flow control More...

ObjectFactory	m_obssPdAlgorithm
	OBSS_PD algorithm. More...

SelectQueueCallback	m_selectQueueCallback
	select queue callback More...

WifiStandard	m_standard
	wifi standard More...

ObjectFactory	m_stationManager
	station manager More...

Detailed Description

helps to create wifi 802.11p objects of WifiNetDevice class

This class can help to create a large set of similar wifi 802.11p objects and to configure a large set of their attributes during creation.

Definition at line 40 of file wifi-80211p-helper.h.

Constructor & Destructor Documentation

◆ Wifi80211pHelper()

ns3::Wifi80211pHelper::Wifi80211pHelper ( )

Definition at line 32 of file wifi-80211p-helper.cc.

◆ ~Wifi80211pHelper()

ns3::Wifi80211pHelper::~Wifi80211pHelper ( )

virtual

Definition at line 36 of file wifi-80211p-helper.cc.

Member Function Documentation

◆ Default()

Wifi80211pHelper ns3::Wifi80211pHelper::Default ( void )

static

Returns: a new Wifi80211pHelper in a default state

The default state is defined as being an OcbWifiMac MAC layer with constant rate OfdmRate6MbpsBW10MHz and both objects using their default attribute values.

Definition at line 41 of file wifi-80211p-helper.cc.

References ns3::WifiHelper::SetRemoteStationManager(), SetStandard(), and ns3::WIFI_STANDARD_80211p.

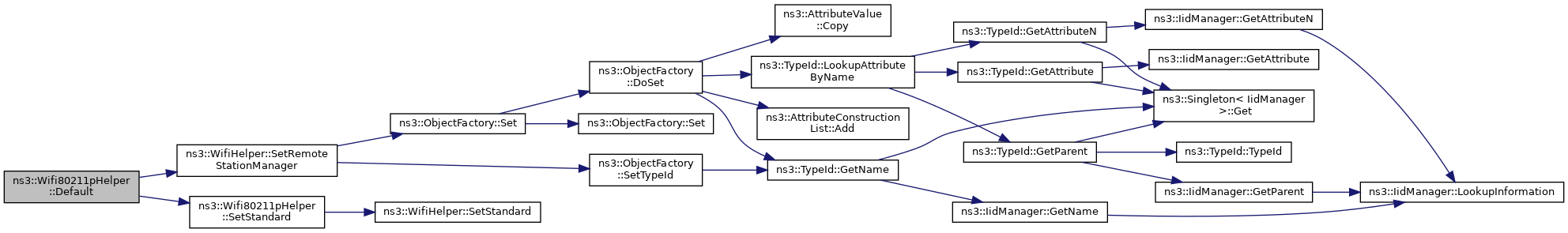

Here is the call graph for this function:
