mesh.cc File Reference

#include <iostream>
#include <sstream>
#include <fstream>
#include "ns3/core-module.h"
#include "ns3/internet-module.h"
#include "ns3/network-module.h"
#include "ns3/applications-module.h"
#include "ns3/mesh-module.h"
#include "ns3/mobility-module.h"
#include "ns3/mesh-helper.h"
#include "ns3/yans-wifi-helper.h"

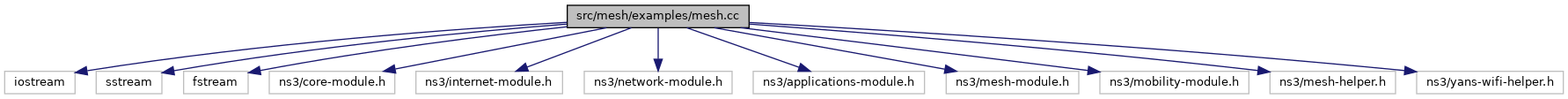

Include dependency graph for mesh.cc:

Go to the source code of this file.

Classes
class	MeshTest
	MeshTest class. More...

Functions
void	RxTrace (Ptr< const Packet > p)
void	TxTrace (Ptr< const Packet > p)

Variables
uint32_t	g_udpRxCount = 0
uint32_t	g_udpTxCount = 0

Detailed Description

Usage

$ ./ns3 run "mesh [Program Options]"

Program Options

--x-size

Number of nodes in a row grid [3]

--y-size

Number of rows in a grid [3]

--step

Size of edge in our grid (meters) [50]

--start

Maximum random start delay for beacon jitter (sec) [0.1]

--time

Simulation time (sec) [100]

--packet-interval

Interval between packets in UDP ping (sec) [1]

--packet-size

Size of packets in UDP ping (bytes) [1024]

--interfaces

Number of radio interfaces used by each mesh point [1]

--channels

Use different frequency channels for different interfaces [true]

--pcap

Enable PCAP traces on interfaces [false]

--ascii

Enable Ascii traces on interfaces [false]

--stack

Type of protocol stack. ns3::Dot11sStack by default [ns3::Dot11sStack]

--root

Mac address of root mesh point in HWMP [ff:ff:ff:ff:ff:ff]

Definition in file mesh.cc.

Function Documentation

RxTrace()

void RxTrace

(

Ptr< const Packet >

p

)

Definition at line 101 of file mesh.cc.

References g_udpRxCount, ns3::Packet::GetSize(), and NS_LOG_DEBUG.

Referenced by MeshTest::InstallApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

TxTrace()

void TxTrace

(

Ptr< const Packet >

p

)

Definition at line 94 of file mesh.cc.

References g_udpTxCount, ns3::Packet::GetSize(), and NS_LOG_DEBUG.

Referenced by MeshTest::InstallApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

g_udpRxCount

uint32_t g_udpRxCount = 0

Definition at line 91 of file mesh.cc.

Referenced by MeshTest::Run(), and RxTrace().

g_udpTxCount

uint32_t g_udpTxCount = 0

Definition at line 90 of file mesh.cc.

Referenced by MeshTest::Run(), and TxTrace().
