#include "ns3/buildings-module.h"
#include "ns3/mobility-module.h"
#include "ns3/core-module.h"
#include "ns3/network-module.h"
#include <fstream>
#include "ns3/uniform-planar-array.h"
#include "ns3/three-gpp-spectrum-propagation-loss-model.h"
#include "ns3/three-gpp-v2v-propagation-loss-model.h"
#include "ns3/three-gpp-channel-model.h"

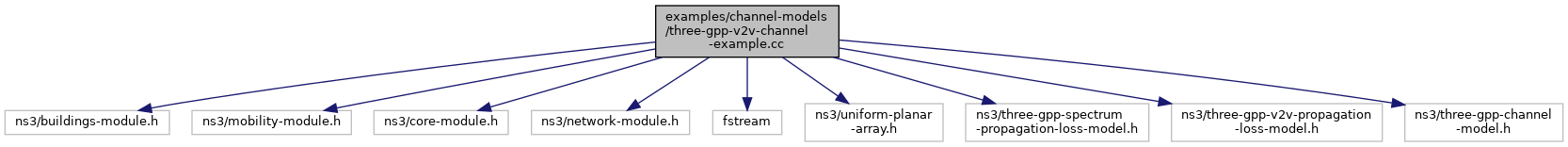

Include dependency graph for three-gpp-v2v-channel-example.cc:

Classes
struct	ComputeSnrParams
	A structure that holds the parameters for the ComputeSnr function. More...

Functions
static void	ComputeSnr (ComputeSnrParams &params)
	Compute the average SNR. More...

static void	DoBeamforming (Ptr< NetDevice > thisDevice, Ptr< PhasedArrayModel > thisAntenna, Ptr< NetDevice > otherDevice)
	Perform the beamforming using the DFT beamforming method. More...

void	PrintGnuplottableBuildingListToFile (std::string filename)
	Generates a GNU-plottable file representig the buildings deployed in the scenario. More...

Variables
static Ptr< ChannelConditionModel >	m_condModel
	the ChannelConditionModel object More...

static Ptr< ThreeGppPropagationLossModel >	m_propagationLossModel
	the PropagationLossModel object More...

static Ptr< ThreeGppSpectrumPropagationLossModel >	m_spectrumLossModel
	the SpectrumPropagationLossModel object More...

Detailed Description

Usage

$ ./ns3 run "three-gpp-v2v-channel-example [Program Options]"

Program Options

--frequency: operating frequency in Hz [2.8e+10]
--txPow: tx power in dBm [30]
--noiseFigure: noise figure in dB [9]
--scenario: 3GPP propagation scenario, V2V-Urban or V2V-Highway [V2V-Urban]

Definition in file three-gpp-v2v-channel-example.cc.

Function Documentation

◆ ComputeSnr()

static void ComputeSnr ( ComputeSnrParams & params )

static

Compute the average SNR.

Parameters

params A structure that holds a bunch of parameters needed by ComputSnr function to calculate the average SNR

Definition at line 120 of file three-gpp-v2v-channel-example.cc.

References ns3::PropagationLossModel::CalcRxPower(), ns3::PhasedArraySpectrumPropagationLossModel::CalcRxPowerSpectralDensity(), ns3::SpectrumValue::Copy(), f(), ns3::MobilityModel::GetPosition(), ns3::Time::GetSeconds(), ns3::SpectrumValue::GetSpectrumModel(), m_condModel, m_propagationLossModel, m_spectrumLossModel, ComputeSnrParams::noiseFigure, ns3::Now(), NS_LOG_DEBUG, ComputeSnrParams::rxAntenna, ComputeSnrParams::rxMob, ns3::Sum(), ComputeSnrParams::txAntenna, ComputeSnrParams::txMob, and ComputeSnrParams::txPsd.

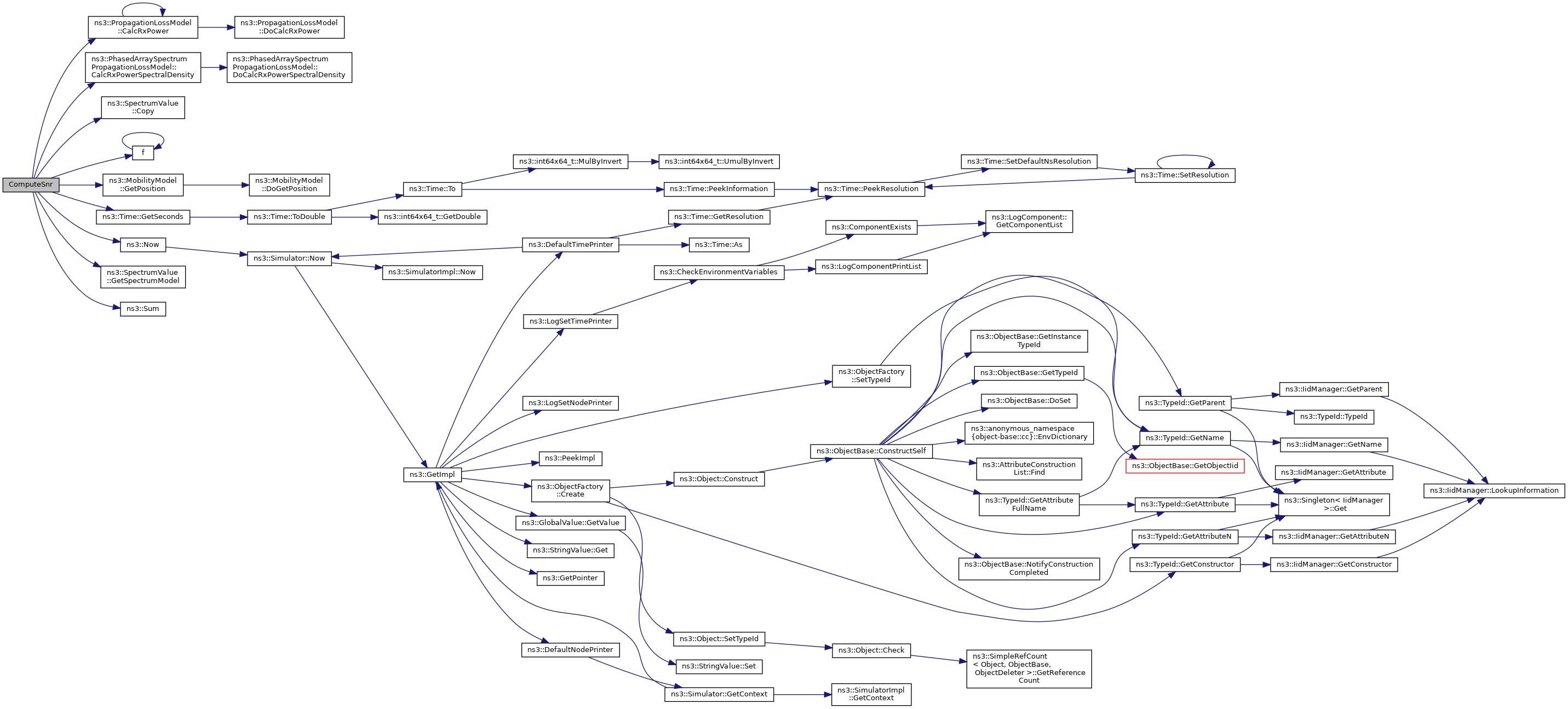

Here is the call graph for this function:

◆ DoBeamforming()

static void DoBeamforming	(	Ptr< NetDevice >	thisDevice,
		Ptr< PhasedArrayModel >	thisAntenna,
		Ptr< NetDevice >	otherDevice
	)

static

Perform the beamforming using the DFT beamforming method.

Parameters

thisDevice	the device performing the beamforming
thisAntenna	the antenna object associated to thisDevice
otherDevice	the device towards which point the beam

Definition at line 100 of file three-gpp-v2v-channel-example.cc.

References ns3::PhasedArrayModel::GetBeamformingVector(), ns3::NetDevice::GetNode(), ns3::Object::GetObject(), GetPosition(), and ns3::PhasedArrayModel::SetBeamformingVector().

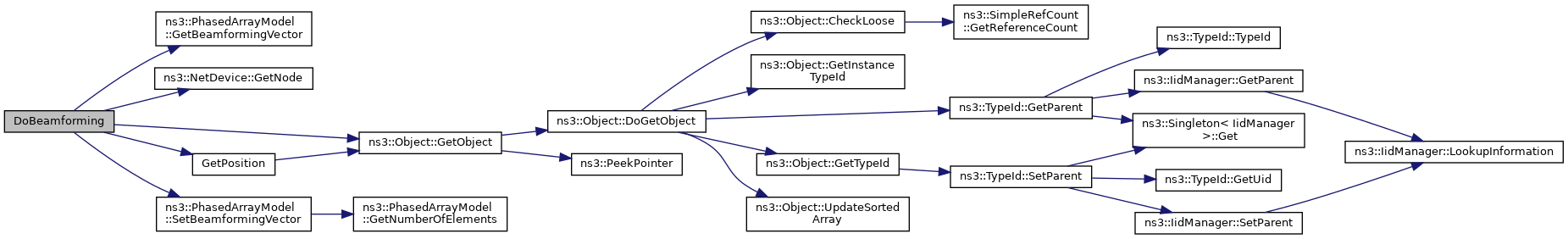

Here is the call graph for this function:
