#include <fstream>
#include <iostream>
#include "ns3/core-module.h"
#include "ns3/network-module.h"
#include "ns3/internet-module.h"
#include "ns3/mobility-module.h"
#include "ns3/aodv-module.h"
#include "ns3/olsr-module.h"
#include "ns3/dsdv-module.h"
#include "ns3/dsr-module.h"
#include "ns3/applications-module.h"
#include "ns3/itu-r-1411-los-propagation-loss-model.h"
#include "ns3/ocb-wifi-mac.h"
#include "ns3/wifi-80211p-helper.h"
#include "ns3/wave-mac-helper.h"
#include "ns3/flow-monitor-module.h"
#include "ns3/config-store-module.h"
#include "ns3/integer.h"
#include "ns3/wave-bsm-helper.h"
#include "ns3/wave-helper.h"
#include "ns3/yans-wifi-helper.h"

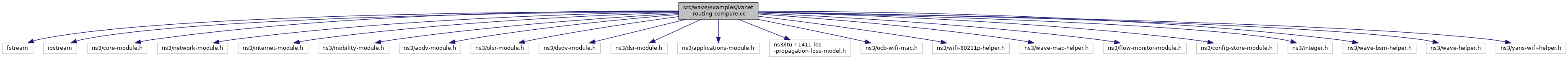

Include dependency graph for vanet-routing-compare.cc:

Classes
class	ConfigStoreHelper
	The ConfigStoreHelper class simplifies config-store raw text load and save. More...

class	RoutingHelper
	The RoutingHelper class generates routing data between nodes (vehicles) and uses the RoutingStats class to collect statistics on routing data (application-data packet and byte counts). More...

class	RoutingStats
	The RoutingStats class manages collects statistics on routing data (application-data packet and byte counts) for the vehicular network. More...

class	VanetRoutingExperiment
	The VanetRoutingExperiment class implements a wifi app that allows VANET routing experiments to be simulated. More...

class	WifiApp
	The WifiApp class enforces program flow for ns-3 wifi applications. More...

class	WifiPhyStats
	The WifiPhyStats class collects Wifi MAC/PHY statistics. More...

Functions
static std::string	PrintReceivedRoutingPacket (Ptr< Socket > socket, Ptr< Packet > packet, Address srcAddress)
	Print a received routing packet on a string. More...

Variables
static ns3::GlobalValue	g_80211mode ("VRC80211mode", "802.11 mode (0=802.11a;1=802.11p)", ns3::UintegerValue(1), ns3::MakeUintegerChecker< uint32_t >())
	802.11 mode (0=802.11a;1=802.11p) More...

static ns3::GlobalValue	g_asciiTrace ("VRCasciiTrace", "Dump ASCII trace 0=no;1=yes", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())
	Dump ASCII trace 0=no;1=yes. More...

static ns3::GlobalValue	g_CSVfileName ("VRCCSVfileName", "CSV filename (for time series data)", ns3::StringValue("vanet-routing.output.csv"), ns3::MakeStringChecker())
	CSV filename (for time series data) More...

static ns3::GlobalValue	g_CSVfileName2 ("VRCCSVfileName2", "CSV filename 2 (for overall simulation scenario results)", ns3::StringValue("vanet-routing.output2.csv"), ns3::MakeStringChecker())
	CSV filename 2 (for overall simulation scenario results) More...

static ns3::GlobalValue	g_cumulativeBsmCaptureStart ("VRCcumulativeBsmCaptureStart", "Simulation start time for capturing cumulative BSM", ns3::TimeValue(Seconds(0)), ns3::MakeTimeChecker())
	Simulation start time for capturing cumulative BSM. More...

static ns3::GlobalValue	g_fading ("VRCfading", "Fast Fading Model", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())
	Fast Fading Model. More...

static ns3::GlobalValue	g_gpsAccuracyNs ("VRCgpsAccuracyNs", "GPS sync accuracy (ns)", ns3::DoubleValue(40), ns3::MakeDoubleChecker< double >())
	GPS sync accuracy (ns) More...

static ns3::GlobalValue	g_logFile ("VRClogFile", "Log filename", ns3::StringValue("low99-ct-unterstrass-1day.filt.7.adj.log"), ns3::MakeStringChecker())
	Log filename. More...

static ns3::GlobalValue	g_lossModel ("VRClossModel", "Propagation Loss Model", ns3::UintegerValue(3), ns3::MakeUintegerChecker< uint32_t >())
	Propagation Loss Model. More...

static ns3::GlobalValue	g_mobility ("VRCmobility", "Mobility mode 0=random waypoint;1=mobility trace file", ns3::UintegerValue(1), ns3::MakeUintegerChecker< uint32_t >())
	Mobility mode 0=random waypoint;1=mobility trace file. More...

static ns3::GlobalValue	g_nNodes ("VRCnNodes", "Number of nodes (vehicles)", ns3::UintegerValue(156), ns3::MakeUintegerChecker< uint32_t >())
	Number of nodes (vehicles) More...

static ns3::GlobalValue	g_nodePause ("VRCnodePause", "Node pause time (s) for RWP model", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())
	Node pause time (s) for RWP model. More...

static ns3::GlobalValue	g_nodeSpeed ("VRCnodeSpeed", "Node speed (m/s) for RWP model", ns3::UintegerValue(20), ns3::MakeUintegerChecker< uint32_t >())
	Node speed (m/s) for RWP model. More...

static ns3::GlobalValue	g_nSinks ("VRCnSinks", "Number of sink nodes for routing non-BSM traffic", ns3::UintegerValue(10), ns3::MakeUintegerChecker< uint32_t >())
	Number of sink nodes for routing non-BSM traffic. More...

static ns3::GlobalValue	g_pcap ("VRCpcap", "Generate PCAP files 0=no;1=yes", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())
	Generate PCAP files 0=no;1=yes. More...

static ns3::GlobalValue	g_phyMode ("VRCphyMode", "PHY mode (802.11p)", ns3::StringValue("OfdmRate6MbpsBW10MHz"), ns3::MakeStringChecker())
	PHY mode (802.11p) More...

static ns3::GlobalValue	g_phyModeB ("VRCphyModeB", "PHY mode (802.11a)", ns3::StringValue("DsssRate11Mbps"), ns3::MakeStringChecker())
	PHY mode (802.11a) More...

static ns3::GlobalValue	g_port ("VRCport", "Port", ns3::UintegerValue(9), ns3::MakeUintegerChecker< uint32_t >())
	Port. More...

static ns3::GlobalValue	g_protocol ("VRCprotocol", "Routing protocol", ns3::UintegerValue(2), ns3::MakeUintegerChecker< uint32_t >())
	Routing protocol. More...

static ns3::GlobalValue	g_rate ("VRCrate", "Data rate", ns3::StringValue("2048bps"), ns3::MakeStringChecker())
	Data rate. More...

static ns3::GlobalValue	g_routingTables ("VRCroutingTables", "Dump routing tables at t=5 seconds 0=no;1=yes", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())
	Dump routing tables at t=5 seconds 0=no;1=yes. More...

static ns3::GlobalValue	g_scenario ("VRCscenario", "Scenario", ns3::UintegerValue(1), ns3::MakeUintegerChecker< uint32_t >())
	Scenario. More...

static ns3::GlobalValue	g_totalTime ("VRCtotalTime", "Total simulation time (s)", ns3::DoubleValue(300.01), ns3::MakeDoubleChecker< double >())
	Total simulation time (s) More...

static ns3::GlobalValue	g_traceFile ("VRCtraceFile", "Mobility trace filename", ns3::StringValue("./src/wave/examples/low99-ct-unterstrass-1day.filt.7.adj.mob"), ns3::MakeStringChecker())
	Mobility trace filename. More...

static ns3::GlobalValue	g_traceMobility ("VRCtraceMobility", "Trace mobility 1=yes;0=no", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())
	Trace mobility 1=yes;0=no. More...

static ns3::GlobalValue	g_trName ("VRCtrName", "Trace name", ns3::StringValue("vanet-routing-compare"), ns3::MakeStringChecker())
	Trace name) More...

static ns3::GlobalValue	g_txMaxDelayMs ("VRCtxMaxDelayMs", "Tx May Delay (ms)", ns3::DoubleValue(10), ns3::MakeDoubleChecker< double >())
	Tx May Delay (ms) More...

static ns3::GlobalValue	g_txp ("VRCtxp", "Transmission power dBm", ns3::DoubleValue(7.5), ns3::MakeDoubleChecker< double >())
	Transmission power dBm. More...

static ns3::GlobalValue	g_txSafetyRange1 ("VRCtxSafetyRange1", "BSM range for PDR inclusion", ns3::DoubleValue(50.0), ns3::MakeDoubleChecker< double >())
	BSM range for PDR inclusion. More...

static ns3::GlobalValue	g_txSafetyRange10 ("VRCtxSafetyRange10", "BSM range for PDR inclusion", ns3::DoubleValue(500.0), ns3::MakeDoubleChecker< double >())
	BSM range for PDR inclusion. More...

static ns3::GlobalValue	g_txSafetyRange2 ("VRCtxSafetyRange2", "BSM range for PDR inclusion", ns3::DoubleValue(100.0), ns3::MakeDoubleChecker< double >())
	BSM range for PDR inclusion. More...

static ns3::GlobalValue	g_txSafetyRange3 ("VRCtxSafetyRange3", "BSM range for PDR inclusion", ns3::DoubleValue(150.0), ns3::MakeDoubleChecker< double >())
	BSM range for PDR inclusion. More...

static ns3::GlobalValue	g_txSafetyRange4 ("VRCtxSafetyRange4", "BSM range for PDR inclusion", ns3::DoubleValue(200.0), ns3::MakeDoubleChecker< double >())
	BSM range for PDR inclusion. More...

static ns3::GlobalValue	g_txSafetyRange5 ("VRCtxSafetyRange5", "BSM range for PDR inclusion", ns3::DoubleValue(250.0), ns3::MakeDoubleChecker< double >())
	BSM range for PDR inclusion. More...

static ns3::GlobalValue	g_txSafetyRange6 ("VRCtxSafetyRange6", "BSM range for PDR inclusion", ns3::DoubleValue(300.0), ns3::MakeDoubleChecker< double >())
	BSM range for PDR inclusion. More...

static ns3::GlobalValue	g_txSafetyRange7 ("VRCtxSafetyRange7", "BSM range for PDR inclusion", ns3::DoubleValue(350.0), ns3::MakeDoubleChecker< double >())
	BSM range for PDR inclusion. More...

static ns3::GlobalValue	g_txSafetyRange8 ("VRCtxSafetyRange8", "BSM range for PDR inclusion", ns3::DoubleValue(400.0), ns3::MakeDoubleChecker< double >())
	BSM range for PDR inclusion. More...

static ns3::GlobalValue	g_txSafetyRange9 ("VRCtxSafetyRange9", "BSM range for PDR inclusion", ns3::DoubleValue(450.0), ns3::MakeDoubleChecker< double >())
	BSM range for PDR inclusion. More...

static ns3::GlobalValue	g_verbose ("VRCverbose", "Verbose 0=no;1=yes", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())
	Verbose 0=no;1=yes. More...

static ns3::GlobalValue	g_waveInterval ("VRCwaveInterval", "Interval (s) between WAVE BSMs", ns3::DoubleValue(0.1), ns3::MakeDoubleChecker< double >())
	Interval (s) between WAVE BSMs. More...

static ns3::GlobalValue	g_wavePacketSize ("VRCwavePacketSize", "Size in bytes of WAVE BSM", ns3::UintegerValue(200), ns3::MakeUintegerChecker< uint32_t >())
	Size in bytes of WAVE BSM. More...

Detailed Description

Usage

$ ./ns3 run "vanet-routing-compare [Program Options]"

Program Options

--CSVfileName: The name of the CSV output file name [vanet-routing.output.csv]
--CSVfileName2: The name of the CSV output file name2 [vanet-routing.output2.csv]
--totaltime: Simulation end time [300.01]
--nodes: Number of nodes (i.e. vehicles) [156]
--sinks: Number of routing sinks [10]
--txp: Transmit power (dB), e.g. txp=7.5 [20]
--traceMobility: Enable mobility tracing [false]
--protocol: 1=OLSR;2=AODV;3=DSDV;4=DSR [2]
--lossModel: 1=Friis;2=ItuR1411Los;3=TwoRayGround;4=LogDistance [3]
--fading: 0=None;1=Nakagami;(buildings=1 overrides) [0]
--phyMode: Wifi Phy mode [OfdmRate6MbpsBW10MHz]
--80211Mode: 1=802.11p; 2=802.11b; 3=WAVE-PHY [1]
--traceFile: Ns2 movement trace file
--logFile: Log file [low99-ct-unterstrass-1day.filt.7.adj.log]
--mobility: 1=trace;2=RWP [1]
--rate: Rate [2048bps]
--phyModeB: Phy mode 802.11b [DsssRate11Mbps]
--speed: Node speed (m/s) [20]
--pause: Node pause (s) [0]
--verbose: 0=quiet;1=verbose [0]
--bsm: (WAVE) BSM size (bytes) [200]
--interval: (WAVE) BSM interval (s) [0.1]
--scenario: 1=synthetic, 2=playback-trace [1]
--txdist1: Expected BSM tx range, m [50]
--txdist2: Expected BSM tx range, m [100]
--txdist3: Expected BSM tx range, m [150]
--txdist4: Expected BSM tx range, m [200]
--txdist5: Expected BSM tx range, m [250]
--txdist6: Expected BSM tx range, m [300]
--txdist7: Expected BSM tx range, m [350]
--txdist8: Expected BSM tx range, m [350]
--txdist9: Expected BSM tx range, m [350]
--txdist10: Expected BSM tx range, m [350]
--gpsaccuracy: GPS time accuracy, in ns [40]
--txmaxdelay: Tx max delay, in ms [10]
--routingTables: Dump routing tables at t=5 seconds [0]
--asciiTrace: Dump ASCII Trace data [0]
--pcap: Create PCAP files for all nodes [0]
--loadconfig: Config-store filename to load [load-config.txt]
--saveconfig: Config-store filename to save
--exp: Experiment
--BsmCaptureStart: Start time to begin capturing pkts for cumulative Bsm [+0fs]

Definition in file vanet-routing-compare.cc.

Function Documentation

◆ PrintReceivedRoutingPacket()

static std::string PrintReceivedRoutingPacket	(	Ptr< Socket >	socket,
		Ptr< Packet >	packet,
		Address	srcAddress
	)

inlinestatic

Print a received routing packet on a string.

Parameters

socket	Rx socket
packet	Rx packet
srcAddress	source address

Returns: the built string

Definition at line 652 of file vanet-routing-compare.cc.

References ns3::Time::As(), ns3::Node::GetId(), ns3::InetSocketAddress::GetIpv4(), ns3::Socket::GetNode(), and ns3::Now().

Referenced by RoutingHelper::ReceiveRoutingPacket().

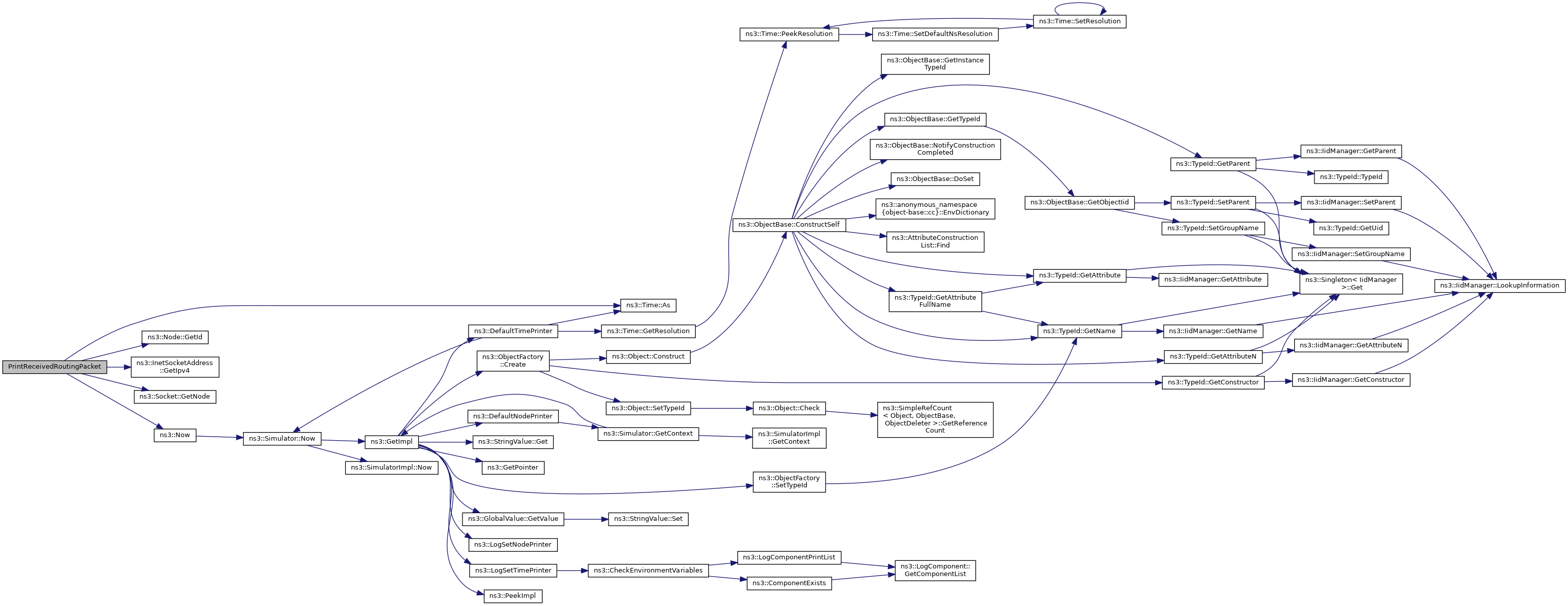

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

◆ g_80211mode

ns3::GlobalValue g_80211mode("VRC80211mode", "802.11 mode (0=802.11a;1=802.11p)", ns3::UintegerValue(1), ns3::MakeUintegerChecker< uint32_t >())	(	"VRC80211mode"	,
		"802.11 mode (0=802.11a;1=802.11p)"	,
		ns3::UintegerValue(1)	,
		ns3::MakeUintegerChecker< uint32_t >	()
	)

static

802.11 mode (0=802.11a;1=802.11p)

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_asciiTrace

ns3::GlobalValue g_asciiTrace("VRCasciiTrace", "Dump ASCII trace 0=no;1=yes", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >()) ( "VRCasciiTrace" )

static

Dump ASCII trace 0=no;1=yes.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_CSVfileName

ns3::GlobalValue g_CSVfileName("VRCCSVfileName", "CSV filename (for time series data)", ns3::StringValue("vanet-routing.output.csv"), ns3::MakeStringChecker())	(	"VRCCSVfileName"	,
		"CSV filename (for time series data)"	,
		ns3::StringValue("vanet-routing.output.csv")	,
		ns3::MakeStringChecker()
	)

static

CSV filename (for time series data)

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_CSVfileName2

ns3::GlobalValue g_CSVfileName2("VRCCSVfileName2", "CSV filename 2 (for overall simulation scenario results)", ns3::StringValue("vanet-routing.output2.csv"), ns3::MakeStringChecker())	(	"VRCCSVfileName2"	,
		"CSV filename 2 (for overall simulation scenario results)"	,
		ns3::StringValue("vanet-routing.output2.csv")	,
		ns3::MakeStringChecker()
	)

static

CSV filename 2 (for overall simulation scenario results)

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_cumulativeBsmCaptureStart

ns3::GlobalValue g_cumulativeBsmCaptureStart("VRCcumulativeBsmCaptureStart", "Simulation start time for capturing cumulative BSM", ns3::TimeValue(Seconds(0)), ns3::MakeTimeChecker())	(	"VRCcumulativeBsmCaptureStart"	,
		"Simulation start time for capturing cumulative BSM"	,
		ns3::TimeValue(Seconds(0))	,
		ns3::MakeTimeChecker()
	)

static

Simulation start time for capturing cumulative BSM.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_fading

ns3::GlobalValue g_fading("VRCfading", "Fast Fading Model", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())	(	"VRCfading"	,
		"Fast Fading Model"	,
		ns3::UintegerValue(0)	,
		ns3::MakeUintegerChecker< uint32_t >	()
	)

static

Fast Fading Model.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_gpsAccuracyNs

ns3::GlobalValue g_gpsAccuracyNs("VRCgpsAccuracyNs", "GPS sync accuracy (ns)", ns3::DoubleValue(40), ns3::MakeDoubleChecker< double >())	(	"VRCgpsAccuracyNs"	,
		"GPS sync accuracy (ns)"	,
		ns3::DoubleValue(40)	,
		ns3::MakeDoubleChecker< double >	()
	)

static

GPS sync accuracy (ns)

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_logFile

ns3::GlobalValue g_logFile("VRClogFile", "Log filename", ns3::StringValue("low99-ct-unterstrass-1day.filt.7.adj.log"), ns3::MakeStringChecker())	(	"VRClogFile"	,
		"Log filename"	,
		ns3::StringValue("low99-ct-unterstrass-1day.filt.7.adj.log")	,
		ns3::MakeStringChecker()
	)

static

Log filename.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_lossModel

ns3::GlobalValue g_lossModel("VRClossModel", "Propagation Loss Model", ns3::UintegerValue(3), ns3::MakeUintegerChecker< uint32_t >())	(	"VRClossModel"	,
		"Propagation Loss Model"	,
		ns3::UintegerValue(3)	,
		ns3::MakeUintegerChecker< uint32_t >	()
	)

static

Propagation Loss Model.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_mobility

ns3::GlobalValue g_mobility("VRCmobility", "Mobility mode 0=random waypoint;1=mobility trace file", ns3::UintegerValue(1), ns3::MakeUintegerChecker< uint32_t >()) ( "VRCmobility" )

static

Mobility mode 0=random waypoint;1=mobility trace file.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_nNodes

ns3::GlobalValue g_nNodes("VRCnNodes", "Number of nodes (vehicles)", ns3::UintegerValue(156), ns3::MakeUintegerChecker< uint32_t >())	(	"VRCnNodes"	,
		"Number of nodes (vehicles)"	,
		ns3::UintegerValue(156)	,
		ns3::MakeUintegerChecker< uint32_t >	()
	)

static

Number of nodes (vehicles)

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_nodePause

ns3::GlobalValue g_nodePause("VRCnodePause", "Node pause time (s) for RWP model", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >())	(	"VRCnodePause"	,
		"Node pause time (s) for RWP model"	,
		ns3::UintegerValue(0)	,
		ns3::MakeUintegerChecker< uint32_t >	()
	)

static

Node pause time (s) for RWP model.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_nodeSpeed

ns3::GlobalValue g_nodeSpeed("VRCnodeSpeed", "Node speed (m/s) for RWP model", ns3::UintegerValue(20), ns3::MakeUintegerChecker< uint32_t >())	(	"VRCnodeSpeed"	,
		"Node speed (m/s) for RWP model"	,
		ns3::UintegerValue(20)	,
		ns3::MakeUintegerChecker< uint32_t >	()
	)

static

Node speed (m/s) for RWP model.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_nSinks

ns3::GlobalValue g_nSinks("VRCnSinks", "Number of sink nodes for routing non-BSM traffic", ns3::UintegerValue(10), ns3::MakeUintegerChecker< uint32_t >())	(	"VRCnSinks"	,
		"Number of sink nodes for routing non-BSM traffic"	,
		ns3::UintegerValue(10)	,
		ns3::MakeUintegerChecker< uint32_t >	()
	)

static

Number of sink nodes for routing non-BSM traffic.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_pcap

ns3::GlobalValue g_pcap("VRCpcap", "Generate PCAP files 0=no;1=yes", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >()) ( "VRCpcap" )

static

Generate PCAP files 0=no;1=yes.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_phyMode

ns3::GlobalValue g_phyMode("VRCphyMode", "PHY mode (802.11p)", ns3::StringValue("OfdmRate6MbpsBW10MHz"), ns3::MakeStringChecker())	(	"VRCphyMode"	,
		"PHY mode (802.11p)"	,
		ns3::StringValue("OfdmRate6MbpsBW10MHz")	,
		ns3::MakeStringChecker()
	)

static

PHY mode (802.11p)

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_phyModeB

ns3::GlobalValue g_phyModeB("VRCphyModeB", "PHY mode (802.11a)", ns3::StringValue("DsssRate11Mbps"), ns3::MakeStringChecker())	(	"VRCphyModeB"	,
		"PHY mode (802.11a)"	,
		ns3::StringValue("DsssRate11Mbps")	,
		ns3::MakeStringChecker()
	)

static

PHY mode (802.11a)

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_port

ns3::GlobalValue g_port("VRCport", "Port", ns3::UintegerValue(9), ns3::MakeUintegerChecker< uint32_t >())	(	"VRCport"	,
		"Port"	,
		ns3::UintegerValue(9)	,
		ns3::MakeUintegerChecker< uint32_t >	()
	)

static

Port.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_protocol

ns3::GlobalValue g_protocol("VRCprotocol", "Routing protocol", ns3::UintegerValue(2), ns3::MakeUintegerChecker< uint32_t >())	(	"VRCprotocol"	,
		"Routing protocol"	,
		ns3::UintegerValue(2)	,
		ns3::MakeUintegerChecker< uint32_t >	()
	)

static

Routing protocol.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_rate

ns3::GlobalValue g_rate("VRCrate", "Data rate", ns3::StringValue("2048bps"), ns3::MakeStringChecker())	(	"VRCrate"	,
		"Data rate"	,
		ns3::StringValue("2048bps")	,
		ns3::MakeStringChecker()
	)

static

Data rate.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_routingTables

ns3::GlobalValue g_routingTables("VRCroutingTables", "Dump routing tables at t=5 seconds 0=no;1=yes", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >()) ( "VRCroutingTables" )

static

Dump routing tables at t=5 seconds 0=no;1=yes.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_scenario

ns3::GlobalValue g_scenario("VRCscenario", "Scenario", ns3::UintegerValue(1), ns3::MakeUintegerChecker< uint32_t >())	(	"VRCscenario"	,
		"Scenario"	,
		ns3::UintegerValue(1)	,
		ns3::MakeUintegerChecker< uint32_t >	()
	)

static

Scenario.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_totalTime

ns3::GlobalValue g_totalTime("VRCtotalTime", "Total simulation time (s)", ns3::DoubleValue(300.01), ns3::MakeDoubleChecker< double >())	(	"VRCtotalTime"	,
		"Total simulation time (s)"	,
		ns3::DoubleValue(300.01)	,
		ns3::MakeDoubleChecker< double >	()
	)

static

Total simulation time (s)

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_traceFile

ns3::GlobalValue g_traceFile("VRCtraceFile", "Mobility trace filename", ns3::StringValue("./src/wave/examples/low99-ct-unterstrass-1day.filt.7.adj.mob"), ns3::MakeStringChecker())	(	"VRCtraceFile"	,
		"Mobility trace filename"	,
		ns3::StringValue("./src/wave/examples/low99-ct-unterstrass-1day.filt.7.adj.mob")	,
		ns3::MakeStringChecker()
	)

static

Mobility trace filename.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_traceMobility

ns3::GlobalValue g_traceMobility("VRCtraceMobility", "Trace mobility 1=yes;0=no", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >()) ( "VRCtraceMobility" )

static

Trace mobility 1=yes;0=no.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_trName

ns3::GlobalValue g_trName("VRCtrName", "Trace name", ns3::StringValue("vanet-routing-compare"), ns3::MakeStringChecker())	(	"VRCtrName"	,
		"Trace name"	,
		ns3::StringValue("vanet-routing-compare")	,
		ns3::MakeStringChecker()
	)

static

Trace name)

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_txMaxDelayMs

ns3::GlobalValue g_txMaxDelayMs("VRCtxMaxDelayMs", "Tx May Delay (ms)", ns3::DoubleValue(10), ns3::MakeDoubleChecker< double >())	(	"VRCtxMaxDelayMs"	,
		"Tx May Delay (ms)"	,
		ns3::DoubleValue(10)	,
		ns3::MakeDoubleChecker< double >	()
	)

static

Tx May Delay (ms)

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_txp

ns3::GlobalValue g_txp("VRCtxp", "Transmission power dBm", ns3::DoubleValue(7.5), ns3::MakeDoubleChecker< double >())	(	"VRCtxp"	,
		"Transmission power dBm"	,
		ns3::DoubleValue(7.5)	,
		ns3::MakeDoubleChecker< double >	()
	)

static

Transmission power dBm.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_txSafetyRange1

ns3::GlobalValue g_txSafetyRange1("VRCtxSafetyRange1", "BSM range for PDR inclusion", ns3::DoubleValue(50.0), ns3::MakeDoubleChecker< double >())	(	"VRCtxSafetyRange1"	,
		"BSM range for PDR inclusion"	,
		ns3::DoubleValue(50.0)	,
		ns3::MakeDoubleChecker< double >	()
	)

static

BSM range for PDR inclusion.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_txSafetyRange10

ns3::GlobalValue g_txSafetyRange10("VRCtxSafetyRange10", "BSM range for PDR inclusion", ns3::DoubleValue(500.0), ns3::MakeDoubleChecker< double >())	(	"VRCtxSafetyRange10"	,
		"BSM range for PDR inclusion"	,
		ns3::DoubleValue(500.0)	,
		ns3::MakeDoubleChecker< double >	()
	)

static

BSM range for PDR inclusion.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_txSafetyRange2

ns3::GlobalValue g_txSafetyRange2("VRCtxSafetyRange2", "BSM range for PDR inclusion", ns3::DoubleValue(100.0), ns3::MakeDoubleChecker< double >())	(	"VRCtxSafetyRange2"	,
		"BSM range for PDR inclusion"	,
		ns3::DoubleValue(100.0)	,
		ns3::MakeDoubleChecker< double >	()
	)

static

BSM range for PDR inclusion.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_txSafetyRange3

ns3::GlobalValue g_txSafetyRange3("VRCtxSafetyRange3", "BSM range for PDR inclusion", ns3::DoubleValue(150.0), ns3::MakeDoubleChecker< double >())	(	"VRCtxSafetyRange3"	,
		"BSM range for PDR inclusion"	,
		ns3::DoubleValue(150.0)	,
		ns3::MakeDoubleChecker< double >	()
	)

static

BSM range for PDR inclusion.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_txSafetyRange4

ns3::GlobalValue g_txSafetyRange4("VRCtxSafetyRange4", "BSM range for PDR inclusion", ns3::DoubleValue(200.0), ns3::MakeDoubleChecker< double >())	(	"VRCtxSafetyRange4"	,
		"BSM range for PDR inclusion"	,
		ns3::DoubleValue(200.0)	,
		ns3::MakeDoubleChecker< double >	()
	)

static

BSM range for PDR inclusion.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_txSafetyRange5

ns3::GlobalValue g_txSafetyRange5("VRCtxSafetyRange5", "BSM range for PDR inclusion", ns3::DoubleValue(250.0), ns3::MakeDoubleChecker< double >())	(	"VRCtxSafetyRange5"	,
		"BSM range for PDR inclusion"	,
		ns3::DoubleValue(250.0)	,
		ns3::MakeDoubleChecker< double >	()
	)

static

BSM range for PDR inclusion.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_txSafetyRange6

ns3::GlobalValue g_txSafetyRange6("VRCtxSafetyRange6", "BSM range for PDR inclusion", ns3::DoubleValue(300.0), ns3::MakeDoubleChecker< double >())	(	"VRCtxSafetyRange6"	,
		"BSM range for PDR inclusion"	,
		ns3::DoubleValue(300.0)	,
		ns3::MakeDoubleChecker< double >	()
	)

static

BSM range for PDR inclusion.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_txSafetyRange7

ns3::GlobalValue g_txSafetyRange7("VRCtxSafetyRange7", "BSM range for PDR inclusion", ns3::DoubleValue(350.0), ns3::MakeDoubleChecker< double >())	(	"VRCtxSafetyRange7"	,
		"BSM range for PDR inclusion"	,
		ns3::DoubleValue(350.0)	,
		ns3::MakeDoubleChecker< double >	()
	)

static

BSM range for PDR inclusion.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_txSafetyRange8

ns3::GlobalValue g_txSafetyRange8("VRCtxSafetyRange8", "BSM range for PDR inclusion", ns3::DoubleValue(400.0), ns3::MakeDoubleChecker< double >())	(	"VRCtxSafetyRange8"	,
		"BSM range for PDR inclusion"	,
		ns3::DoubleValue(400.0)	,
		ns3::MakeDoubleChecker< double >	()
	)

static

BSM range for PDR inclusion.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_txSafetyRange9

ns3::GlobalValue g_txSafetyRange9("VRCtxSafetyRange9", "BSM range for PDR inclusion", ns3::DoubleValue(450.0), ns3::MakeDoubleChecker< double >())	(	"VRCtxSafetyRange9"	,
		"BSM range for PDR inclusion"	,
		ns3::DoubleValue(450.0)	,
		ns3::MakeDoubleChecker< double >	()
	)

static

BSM range for PDR inclusion.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_verbose

ns3::GlobalValue g_verbose("VRCverbose", "Verbose 0=no;1=yes", ns3::UintegerValue(0), ns3::MakeUintegerChecker< uint32_t >()) ( "VRCverbose" )

static

Verbose 0=no;1=yes.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_waveInterval

ns3::GlobalValue g_waveInterval("VRCwaveInterval", "Interval (s) between WAVE BSMs", ns3::DoubleValue(0.1), ns3::MakeDoubleChecker< double >())	(	"VRCwaveInterval"	,
		"Interval (s) between WAVE BSMs"	,
		ns3::DoubleValue(0.1)	,
		ns3::MakeDoubleChecker< double >	()
	)

static

Interval (s) between WAVE BSMs.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

◆ g_wavePacketSize

ns3::GlobalValue g_wavePacketSize("VRCwavePacketSize", "Size in bytes of WAVE BSM", ns3::UintegerValue(200), ns3::MakeUintegerChecker< uint32_t >())	(	"VRCwavePacketSize"	,
		"Size in bytes of WAVE BSM"	,
		ns3::UintegerValue(200)	,
		ns3::MakeUintegerChecker< uint32_t >	()
	)

static

Size in bytes of WAVE BSM.

Referenced by VanetRoutingExperiment::SetGlobalsFromConfig().

Classes

Functions

Variables

Detailed Description

Usage

Program Options

Function Documentation

◆ PrintReceivedRoutingPacket()

Variable Documentation

◆ g_80211mode

◆ g_asciiTrace

◆ g_CSVfileName

◆ g_CSVfileName2

◆ g_cumulativeBsmCaptureStart

◆ g_fading

◆ g_gpsAccuracyNs

◆ g_logFile

◆ g_lossModel

◆ g_mobility

◆ g_nNodes

◆ g_nodePause

◆ g_nodeSpeed

◆ g_nSinks

◆ g_pcap

◆ g_phyMode

◆ g_phyModeB

◆ g_port

◆ g_protocol

◆ g_rate

◆ g_routingTables

◆ g_scenario

◆ g_totalTime

◆ g_traceFile

◆ g_traceMobility

◆ g_trName

◆ g_txMaxDelayMs

◆ g_txp

◆ g_txSafetyRange1

◆ g_txSafetyRange10

◆ g_txSafetyRange2

◆ g_txSafetyRange3

◆ g_txSafetyRange4

◆ g_txSafetyRange5

◆ g_txSafetyRange6

◆ g_txSafetyRange7

◆ g_txSafetyRange8

◆ g_txSafetyRange9

◆ g_verbose

◆ g_waveInterval

◆ g_wavePacketSize
