wave-simple-80211p.cc File Reference

#include "ns3/vector.h"
#include "ns3/string.h"
#include "ns3/socket.h"
#include "ns3/double.h"
#include "ns3/config.h"
#include "ns3/log.h"
#include "ns3/command-line.h"
#include "ns3/mobility-model.h"
#include "ns3/yans-wifi-helper.h"
#include "ns3/position-allocator.h"
#include "ns3/mobility-helper.h"
#include "ns3/internet-stack-helper.h"
#include "ns3/ipv4-address-helper.h"
#include "ns3/ipv4-interface-container.h"
#include <iostream>
#include "ns3/ocb-wifi-mac.h"
#include "ns3/wifi-80211p-helper.h"
#include "ns3/wave-mac-helper.h"

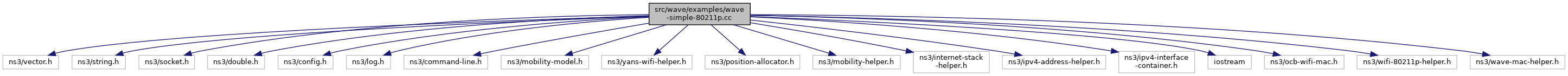

Include dependency graph for wave-simple-80211p.cc:

Go to the source code of this file.

Functions
static void	GenerateTraffic (Ptr< Socket > socket, uint32_t pktSize, uint32_t pktCount, Time pktInterval)
	Geerate traffic. More...
void	ReceivePacket (Ptr< Socket > socket)
	Receive a packet. More...

Detailed Description

Usage

$ ./ns3 run "wave-simple-80211p [Program Options]"

Program Options

--phyMode

Wifi Phy mode [OfdmRate6MbpsBW10MHz]

--packetSize

size of application packet sent [1000]

--numPackets

number of packets generated [1]

--interval

interval (seconds) between packets [1]

--verbose

turn on all WifiNetDevice log components [false]

Definition in file wave-simple-80211p.cc.

Function Documentation

GenerateTraffic()

static void GenerateTraffic ( Ptr< Socket >  socket, uint32_t  pktSize, uint32_t  pktCount, Time  pktInterval  )

static

Geerate traffic.

Parameters

socket	Tx socket
pktSize	packet size
pktCount	number of packets
pktInterval	interval between packet generation

Definition at line 96 of file wave-simple-80211p.cc.

References ns3::Socket::Close(), GenerateTraffic(), pktSize, and ns3::Socket::Send().

Referenced by GenerateTraffic().

Here is the call graph for this function:

Here is the caller graph for this function:

ReceivePacket()

void ReceivePacket

(

Ptr< Socket >

socket

)

Receive a packet.

Parameters

socket

Rx socket

Definition at line 81 of file wave-simple-80211p.cc.

References NS_LOG_UNCOND, and ns3::Socket::Recv().

Here is the call graph for this function:
