wifi-simple-adhoc-grid.cc File Reference

#include "ns3/command-line.h"
#include "ns3/config.h"
#include "ns3/uinteger.h"
#include "ns3/double.h"
#include "ns3/string.h"
#include "ns3/log.h"
#include "ns3/yans-wifi-helper.h"
#include "ns3/mobility-helper.h"
#include "ns3/ipv4-address-helper.h"
#include "ns3/yans-wifi-channel.h"
#include "ns3/mobility-model.h"
#include "ns3/olsr-helper.h"
#include "ns3/ipv4-static-routing-helper.h"
#include "ns3/ipv4-list-routing-helper.h"
#include "ns3/internet-stack-helper.h"

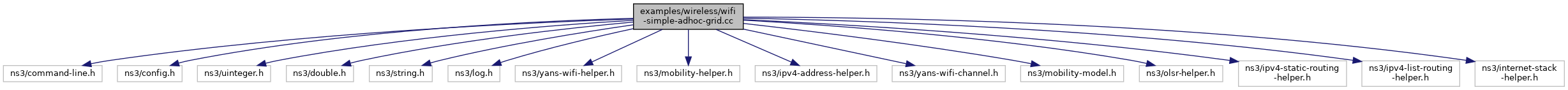

Include dependency graph for wifi-simple-adhoc-grid.cc:

Go to the source code of this file.

Functions
static void	GenerateTraffic (Ptr< Socket > socket, uint32_t pktSize, uint32_t pktCount, Time pktInterval)
void	ReceivePacket (Ptr< Socket > socket)

Detailed Description

Usage

$ ./ns3 run "wifi-simple-adhoc-grid [Program Options]"

Program Options

--phyMode

Wifi Phy mode [DsssRate1Mbps]

--distance

distance (m) [500]

--packetSize

size of application packet sent [1000]

--numPackets

number of packets generated [1]

--interval

interval (seconds) between packets [1]

--verbose

turn on all WifiNetDevice log components [false]

--tracing

turn on ascii and pcap tracing [false]

--numNodes

number of nodes [25]

--sinkNode

Receiver node number [0]

--sourceNode

Sender node number [24]

Definition in file wifi-simple-adhoc-grid.cc.

Function Documentation

GenerateTraffic()

static void GenerateTraffic ( Ptr< Socket >  socket, uint32_t  pktSize, uint32_t  pktCount, Time  pktInterval  )

static

Definition at line 100 of file wifi-simple-adhoc-grid.cc.

References ns3::Socket::Close(), GenerateTraffic(), pktSize, and ns3::Socket::Send().

Referenced by GenerateTraffic().

Here is the call graph for this function:

Here is the caller graph for this function:

ReceivePacket()

void ReceivePacket

(

Ptr< Socket >

socket

)

Definition at line 92 of file wifi-simple-adhoc-grid.cc.

References NS_LOG_UNCOND, and ns3::Socket::Recv().

Here is the call graph for this function:
