The Multi-Link element. More...

#include "multi-link-element.h"

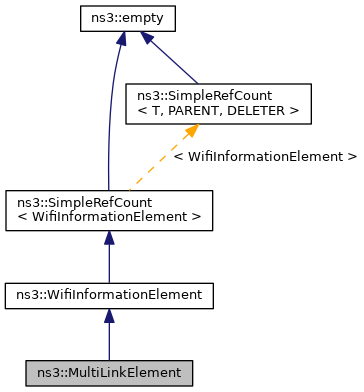

Inheritance diagram for ns3::MultiLinkElement:

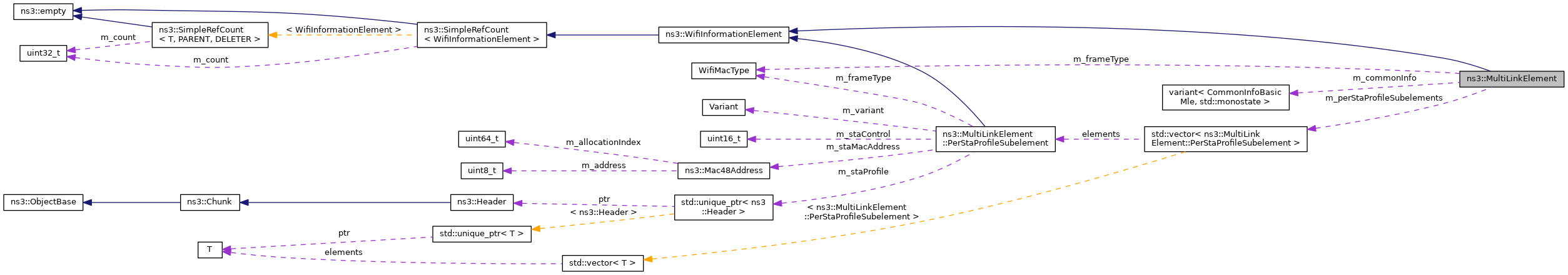

Collaboration diagram for ns3::MultiLinkElement:

Classes
class	PerStaProfileSubelement
	Per-STA Profile Subelement of Multi-Link element. More...

Public Types
enum	SubElementId : uint8_t { PER_STA_PROFILE_SUBELEMENT_ID = 0 }
	SubElement IDs. More...

enum	Variant : uint8_t { BASIC_VARIANT = 0 , UNSET }
	Multi-Link element variants. More...

Public Member Functions
	MultiLinkElement (Variant variant, WifiMacType frameType)
	Constructor. More...

	MultiLinkElement (WifiMacType frameType)
	Construct a Multi-Link Element with no variant set. More...

void	AddPerStaProfileSubelement ()
	Add a Per-STA Profile Subelement in the Link Info field. More...

uint16_t	DeserializeInformationField (Buffer::Iterator start, uint16_t length) override
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

WifiInformationElementId	ElementId () const override
	Get the wifi information element ID. More...

WifiInformationElementId	ElementIdExt () const override
	Get the wifi information element ID extension. More...

uint8_t	GetBssParamsChangeCount () const
	Return the BSS Parameters Change Count subfield in the Common Info field. More...

uint16_t	GetInformationFieldSize () const override
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

uint8_t	GetLinkIdInfo () const
	Return the Link ID Info subfield in the Common Info field. More...

Time	GetMediumSyncDelayTimer () const
	Get the Medium Synchronization Duration subfield of the Medium Synchronization Delay information in the Common Info field. More...

uint8_t	GetMediumSyncMaxNTxops () const
	Get the maximum number of TXOPs a non-AP STA is allowed to attempt to initiate while the MediumSyncDelay timer is running at a non-AP STA. More...

int8_t	GetMediumSyncOfdmEdThreshold () const
	Get the Medium Synchronization OFDM ED Threshold in dBm. More...

Mac48Address	GetMldMacAddress () const
	Return the MLD MAC Address subfield in the Common Info field. More...

std::size_t	GetNPerStaProfileSubelements () const
	Return the number of Per-STA Profile Subelement in the Link Info field. More...

PerStaProfileSubelement &	GetPerStaProfile (std::size_t i)
	Get a reference to the i-th Per-STA Profile Subelement in the Link Info field. More...

const PerStaProfileSubelement &	GetPerStaProfile (std::size_t i) const
	Get a reference to the i-th Per-STA Profile Subelement in the Link Info field. More...

Variant	GetVariant () const
	Get the Multi-Link element variant. More...

bool	HasBssParamsChangeCount () const
	Return true if the BSS Parameters Change Count subfield in the Common Info field is present and false otherwise. More...

bool	HasLinkIdInfo () const
	Return true if the Link ID Info subfield in the Common Info field is present and false otherwise. More...

bool	HasMediumSyncDelayInfo () const
	Return true if the Medium Synchronization Delay Information subfield in the Common Info field is present and false otherwise. More...

void	SerializeInformationField (Buffer::Iterator start) const override
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

void	SetBssParamsChangeCount (uint8_t count)
	Set the BSS Parameters Change Count subfield in the Common Info field. More...

void	SetLinkIdInfo (uint8_t linkIdInfo)
	Set the Link ID Info subfield in the Common Info field. More...

void	SetMediumSyncDelayTimer (Time delay)
	Set the Medium Synchronization Duration subfield of the Medium Synchronization Delay information in the Common Info field. More...

void	SetMediumSyncMaxNTxops (uint8_t nTxops)
	Set the Medium Synchronization Maximum Number of TXOPs subfield of the Medium Synchronization Delay information in the Common Info field. More...

void	SetMediumSyncOfdmEdThreshold (int8_t threshold)
	Set the Medium Synchronization OFDM ED Threshold subfield of the Medium Synchronization Delay information in the Common Info field. More...

void	SetMldMacAddress (Mac48Address address)
	Set the MLD MAC Address subfield in the Common Info field. More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE (which may possibly be fragmented into multiple elements), which must be present. More...

virtual WifiInformationElementId	ElementId () const =0
	Get the wifi information element ID. More...

virtual WifiInformationElementId	ElementIdExt () const
	Get the wifi information element ID extension. More...

uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields (for every element this IE is possibly fragmented into). More...

virtual bool	operator== (const WifiInformationElement &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

virtual void	Print (std::ostream &os) const
	Generate human-readable form of IE. More...

Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Private Types
using	CommonInfo = std::variant< CommonInfoBasicMle, std::monostate >
	Typedef for structure holding a Common Info field. More...

Private Member Functions
void	SetVariant (Variant variant)
	Set the variant of this Multi-Link Element. More...

Private Attributes
CommonInfo	m_commonInfo
	Common Info field. More...

WifiMacType	m_frameType
	type of the frame containing the Multi-Link Element More...

std::vector< PerStaProfileSubelement >	m_perStaProfileSubelements
	Per-STA Profile Subelements. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::WifiInformationElement
template<typename IE , typename... Args>
static Buffer::Iterator	DeserializeIfPresent (std::optional< IE > &optElem, Buffer::Iterator i, Args &&... args)
	Deserialize an entire IE (which may possibly be fragmented into multiple elements) that is optionally present. More...

Detailed Description

The Multi-Link element.

The 802.11be Multi-Link element (see Sec.9.4.2.312 of 802.11be D1.5)

TODO:

Add setters/getters for EML Capabilities and MLD Capabilities subfields of the Common Info field of the Basic variant of a Multi-Link Element.
Add support for variants other than the Basic one.

Definition at line 134 of file multi-link-element.h.

Member Typedef Documentation

◆ CommonInfo

using ns3::MultiLinkElement::CommonInfo = std::variant<CommonInfoBasicMle, std::monostate >

private

Typedef for structure holding a Common Info field.

Definition at line 513 of file multi-link-element.h.

Constructor & Destructor Documentation

◆ MultiLinkElement() [1/2]

ns3::MultiLinkElement::MultiLinkElement ( WifiMacType frameType )

Construct a Multi-Link Element with no variant set.

MultiLinkElement.

Parameters

frameType the type of the frame containing the Multi-Link Element

Definition at line 161 of file multi-link-element.cc.

◆ MultiLinkElement() [2/2]

ns3::MultiLinkElement::MultiLinkElement	(	Variant	variant,
		WifiMacType	frameType
	)

Constructor.

Parameters

variant	the Multi-Link element variant (cannot be UNSET)
frameType	the type of the frame containing the Multi-Link Element

Definition at line 167 of file multi-link-element.cc.

References NS_ASSERT, SetVariant(), and UNSET.

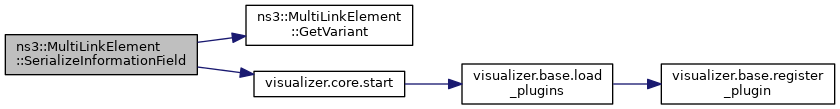

Here is the call graph for this function:

Member Function Documentation

◆ AddPerStaProfileSubelement()

void ns3::MultiLinkElement::AddPerStaProfileSubelement ( )

Add a Per-STA Profile Subelement in the Link Info field.

Definition at line 636 of file multi-link-element.cc.

References GetVariant(), m_frameType, m_perStaProfileSubelements, NS_ABORT_IF, UNSET, and ns3::WIFI_MAC_DATA.

Referenced by DeserializeInformationField(), ns3::StaWifiMac::GetMultiLinkElement(), BasicMultiLinkElementTest::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().

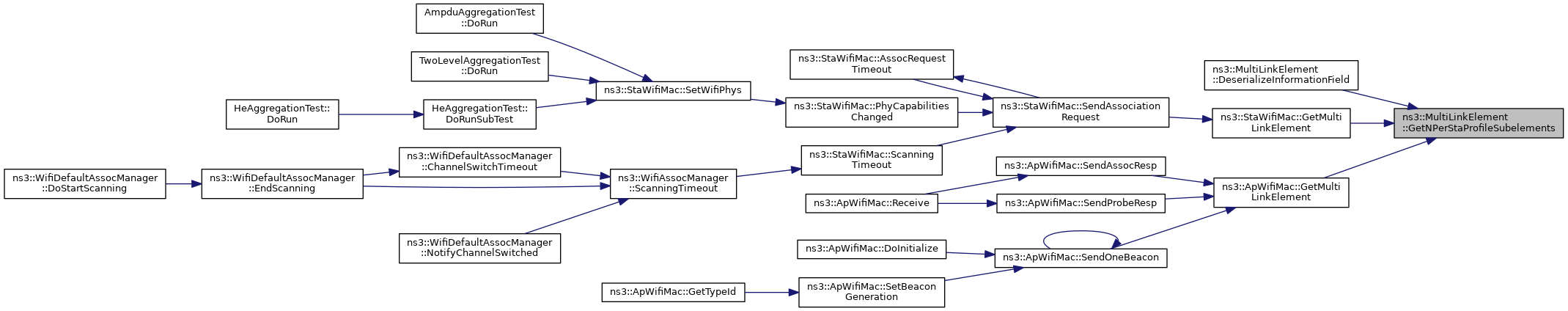

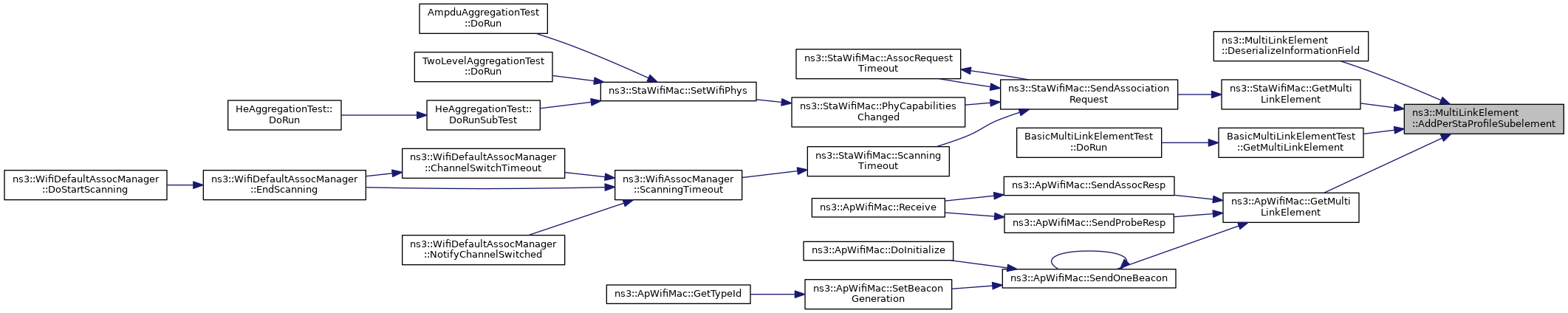

Here is the call graph for this function:

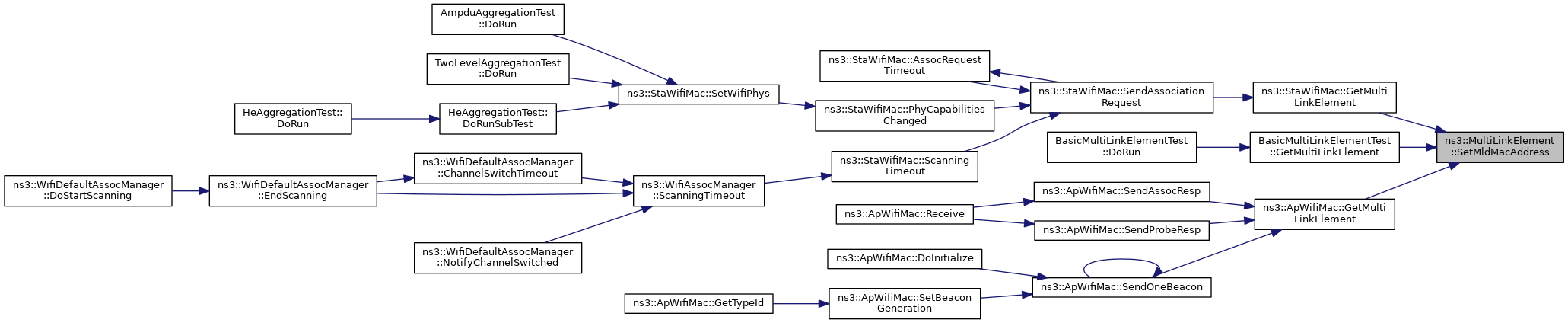

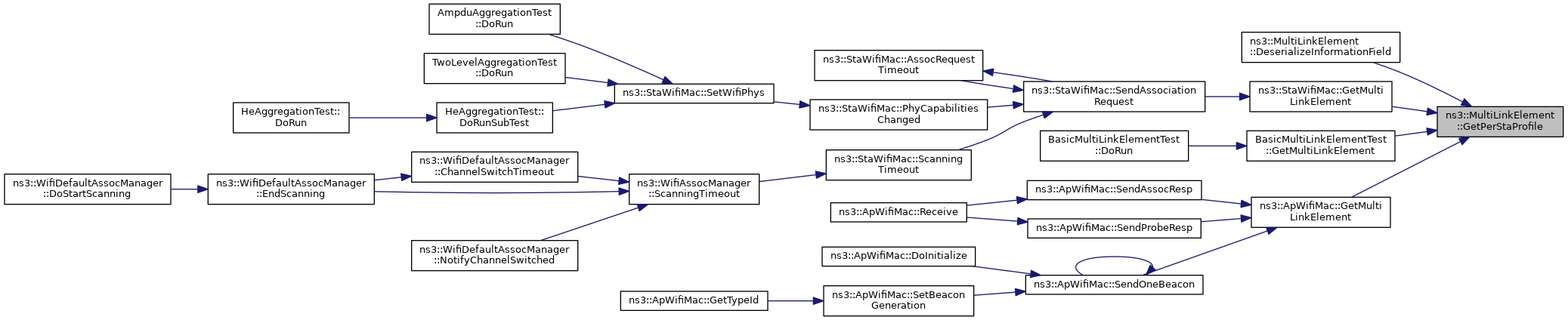

Here is the caller graph for this function:

◆ DeserializeInformationField()

uint16_t ns3::MultiLinkElement::DeserializeInformationField	(	Buffer::Iterator	start,
		uint16_t	length
	)

overridevirtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length	the expected number of bytes to read

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 719 of file multi-link-element.cc.

References AddPerStaProfileSubelement(), ns3::WifiInformationElement::Deserialize(), ns3::Buffer::Iterator::GetDistanceFrom(), GetNPerStaProfileSubelements(), GetPerStaProfile(), m_commonInfo, ns3::Buffer::Iterator::Next(), NS_ABORT_MSG, ns3::Buffer::Iterator::PeekU8(), PER_STA_PROFILE_SUBELEMENT_ID, ns3::Buffer::Iterator::ReadLsbtohU16(), SetVariant(), and visualizer.core::start().

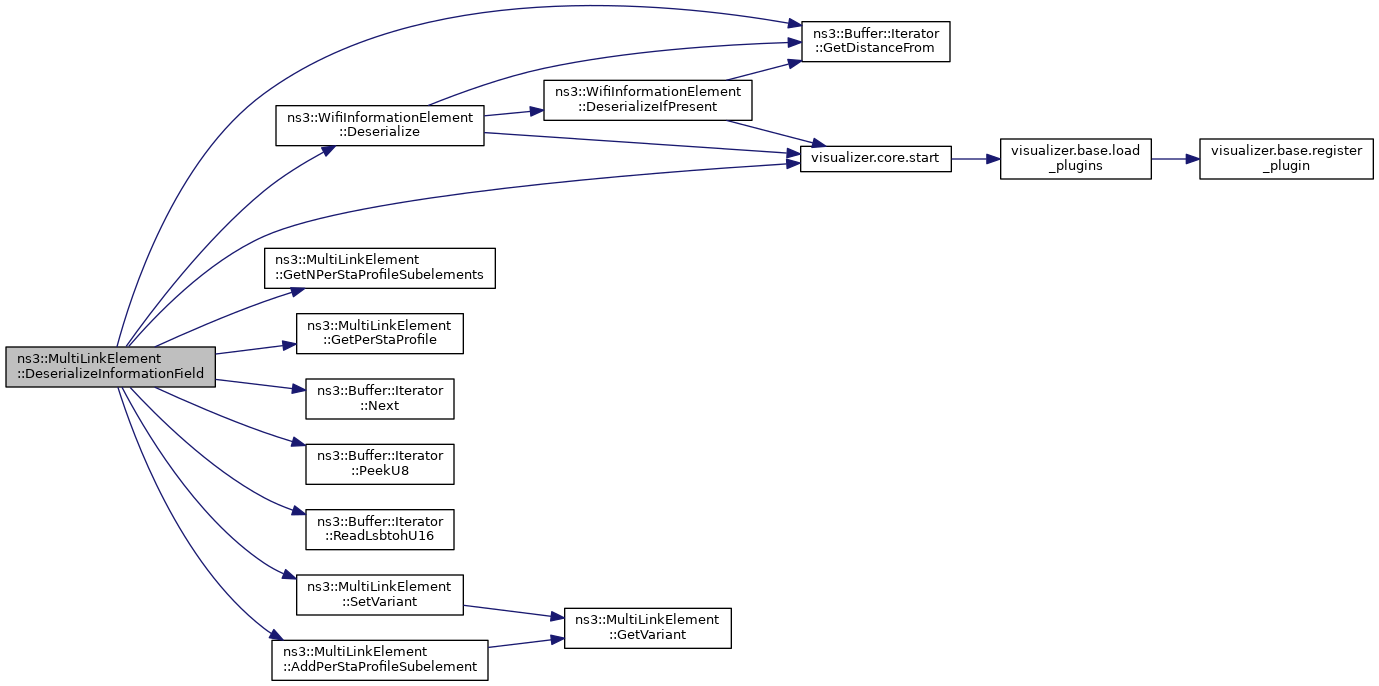

Here is the call graph for this function:

◆ ElementId()

WifiInformationElementId ns3::MultiLinkElement::ElementId ( ) const

overridevirtual

Get the wifi information element ID.

Returns: the wifi information element ID

Implements ns3::WifiInformationElement.

Definition at line 175 of file multi-link-element.cc.

References IE_EXTENSION.

◆ ElementIdExt()

WifiInformationElementId ns3::MultiLinkElement::ElementIdExt ( ) const

overridevirtual

Get the wifi information element ID extension.

Returns: the wifi information element ID extension

Reimplemented from ns3::WifiInformationElement.

Definition at line 181 of file multi-link-element.cc.

References IE_EXT_MULTI_LINK_ELEMENT.

◆ GetBssParamsChangeCount()

uint8_t ns3::MultiLinkElement::GetBssParamsChangeCount ( ) const

Return the BSS Parameters Change Count subfield in the Common Info field.

Make sure that this is a Basic Multi-Link Element and the BSS Parameters Change Count subfield is present.

Returns: the BSS Parameters Change Count subfield in the Common Info field

Definition at line 251 of file multi-link-element.cc.

References m_commonInfo.

◆ GetInformationFieldSize()

uint16_t ns3::MultiLinkElement::GetInformationFieldSize ( ) const

overridevirtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field - if the IE is not fragmented)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 663 of file multi-link-element.cc.

References m_commonInfo, m_perStaProfileSubelements, and NS_ABORT_MSG.

◆ GetLinkIdInfo()

uint8_t ns3::MultiLinkElement::GetLinkIdInfo ( ) const

Return the Link ID Info subfield in the Common Info field.

Make sure that this is a Basic Multi-Link Element and the Link ID Info subfield is present.

Returns: the Link ID Info subfield in the Common Info field

Definition at line 233 of file multi-link-element.cc.

References m_commonInfo.

◆ GetMediumSyncDelayTimer()

Time ns3::MultiLinkElement::GetMediumSyncDelayTimer ( ) const

Get the Medium Synchronization Duration subfield of the Medium Synchronization Delay information in the Common Info field.

Make sure that this is a Basic Multi-Link Element and the Medium Synchronization Duration subfield is present.

Returns: the timer duration

Definition at line 272 of file multi-link-element.cc.

References m_commonInfo, and ns3::MicroSeconds().

Here is the call graph for this function:

◆ GetMediumSyncMaxNTxops()

uint8_t ns3::MultiLinkElement::GetMediumSyncMaxNTxops ( ) const

Get the maximum number of TXOPs a non-AP STA is allowed to attempt to initiate while the MediumSyncDelay timer is running at a non-AP STA.

Make sure that this is a Basic Multi-Link Element and the Medium Synchronization Duration subfield is present.

Returns: the number of TXOPs

Definition at line 317 of file multi-link-element.cc.

References m_commonInfo.

◆ GetMediumSyncOfdmEdThreshold()

int8_t ns3::MultiLinkElement::GetMediumSyncOfdmEdThreshold ( ) const

Get the Medium Synchronization OFDM ED Threshold in dBm.

Make sure that this is a Basic Multi-Link Element and the Medium Synchronization Duration subfield is present.

Returns: the threshold in dBm

Definition at line 294 of file multi-link-element.cc.

References m_commonInfo.

◆ GetMldMacAddress()

Mac48Address ns3::MultiLinkElement::GetMldMacAddress ( ) const

Return the MLD MAC Address subfield in the Common Info field.

Make sure that this is a Basic Multi-Link Element.

Returns: the MLD MAC Address subfield in the Common Info field.

Definition at line 215 of file multi-link-element.cc.

References m_commonInfo.

◆ GetNPerStaProfileSubelements()

std::size_t ns3::MultiLinkElement::GetNPerStaProfileSubelements ( ) const

Return the number of Per-STA Profile Subelement in the Link Info field.

Returns: the number of Per-STA Profile Subelement in the Link Info field

Definition at line 645 of file multi-link-element.cc.

References m_perStaProfileSubelements.

Referenced by DeserializeInformationField(), ns3::StaWifiMac::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().

Here is the caller graph for this function:

◆ GetPerStaProfile() [1/2]

MultiLinkElement::PerStaProfileSubelement & ns3::MultiLinkElement::GetPerStaProfile ( std::size_t i )

Get a reference to the i-th Per-STA Profile Subelement in the Link Info field.

Parameters

i	the index of the Per-STA Profile Subelement in the Link Info field

Returns: a reference to the i-th Per-STA Profile Subelement in the Link Info field

Definition at line 651 of file multi-link-element.cc.

References m_perStaProfileSubelements.

Referenced by DeserializeInformationField(), ns3::StaWifiMac::GetMultiLinkElement(), BasicMultiLinkElementTest::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().

Here is the caller graph for this function:

◆ GetPerStaProfile() [2/2]

const MultiLinkElement::PerStaProfileSubelement & ns3::MultiLinkElement::GetPerStaProfile ( std::size_t i ) const

Get a reference to the i-th Per-STA Profile Subelement in the Link Info field.

Parameters

i	the index of the Per-STA Profile Subelement in the Link Info field

Returns: a reference to the i-th Per-STA Profile Subelement in the Link Info field

Definition at line 657 of file multi-link-element.cc.

References m_perStaProfileSubelements.

◆ GetVariant()

MultiLinkElement::Variant ns3::MultiLinkElement::GetVariant ( ) const

Get the Multi-Link element variant.

Returns: the Multi-Link element variant

Definition at line 187 of file multi-link-element.cc.

References m_commonInfo.

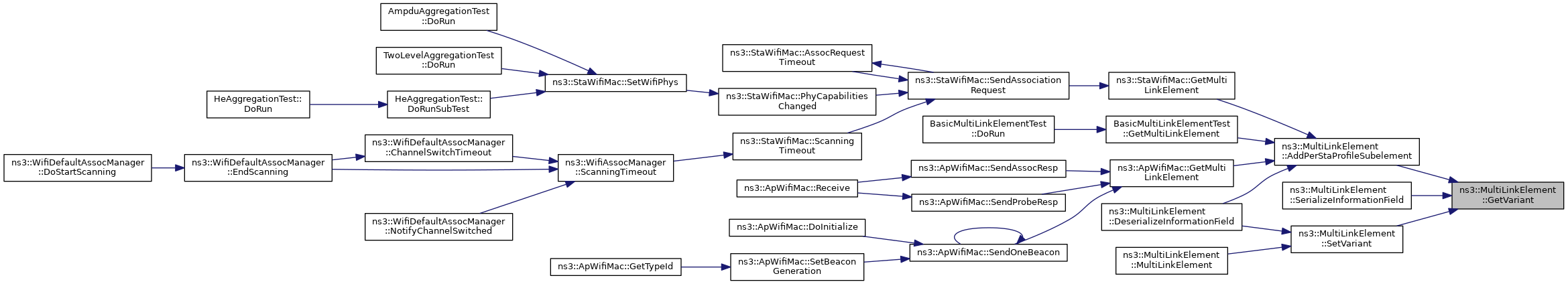

Referenced by AddPerStaProfileSubelement(), SerializeInformationField(), and SetVariant().

Here is the caller graph for this function:

◆ HasBssParamsChangeCount()

bool ns3::MultiLinkElement::HasBssParamsChangeCount ( ) const

Return true if the BSS Parameters Change Count subfield in the Common Info field is present and false otherwise.

Make sure that this is a Basic Multi-Link Element.

Returns: true if the BSS Parameters Change Count subfield in the Common Info field is present and false otherwise

Definition at line 245 of file multi-link-element.cc.

References m_commonInfo.

◆ HasLinkIdInfo()

bool ns3::MultiLinkElement::HasLinkIdInfo ( ) const

Return true if the Link ID Info subfield in the Common Info field is present and false otherwise.

Make sure that this is a Basic Multi-Link Element.

Returns: true if the Link ID Info subfield in the Common Info field is present and false otherwise

Definition at line 227 of file multi-link-element.cc.

References m_commonInfo.

◆ HasMediumSyncDelayInfo()

bool ns3::MultiLinkElement::HasMediumSyncDelayInfo ( ) const

Return true if the Medium Synchronization Delay Information subfield in the Common Info field is present and false otherwise.

Make sure that this is a Basic Multi-Link Element.

Returns: true if the Medium Synchronization Delay Information subfield in the Common Info field is present and false otherwise

Definition at line 326 of file multi-link-element.cc.

References m_commonInfo.

◆ SerializeInformationField()

void ns3::MultiLinkElement::SerializeInformationField ( Buffer::Iterator start ) const

overridevirtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 692 of file multi-link-element.cc.

References GetVariant(), m_commonInfo, m_perStaProfileSubelements, NS_ABORT_MSG, and visualizer.core::start().

Here is the call graph for this function:

◆ SetBssParamsChangeCount()

void ns3::MultiLinkElement::SetBssParamsChangeCount ( uint8_t count )

Set the BSS Parameters Change Count subfield in the Common Info field.

Make sure that this is a Basic Multi-Link Element.

Parameters

count the BSS Parameters Change Count

Definition at line 239 of file multi-link-element.cc.

References m_commonInfo.

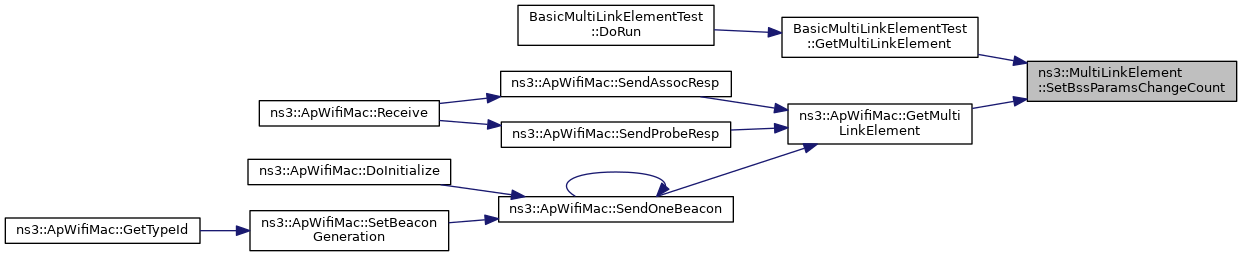

Referenced by BasicMultiLinkElementTest::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().

Here is the caller graph for this function:

◆ SetLinkIdInfo()

void ns3::MultiLinkElement::SetLinkIdInfo ( uint8_t linkIdInfo )

Set the Link ID Info subfield in the Common Info field.

Make sure that this is a Basic Multi-Link Element.

Parameters

linkIdInfo the link ID information

Definition at line 221 of file multi-link-element.cc.

References m_commonInfo.

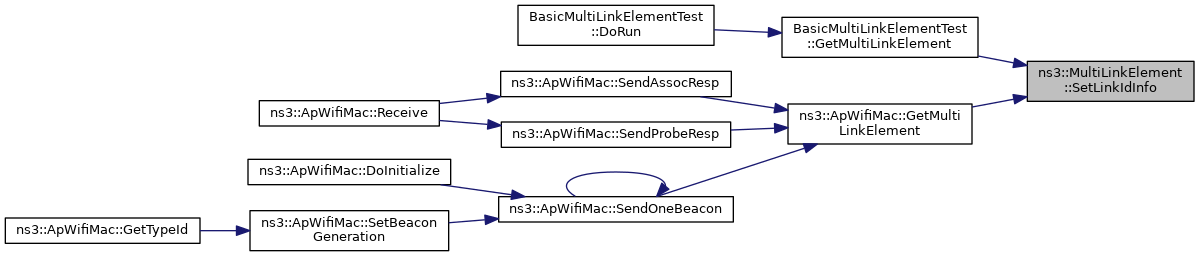

Referenced by BasicMultiLinkElementTest::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().

Here is the caller graph for this function:

◆ SetMediumSyncDelayTimer()

void ns3::MultiLinkElement::SetMediumSyncDelayTimer ( Time delay )

Set the Medium Synchronization Duration subfield of the Medium Synchronization Delay information in the Common Info field.

Make sure that this is a Basic Multi-Link Element.

Parameters

delay the timer duration (must be a multiple of 32 microseconds)

Definition at line 257 of file multi-link-element.cc.

References ns3::Time::GetMicroSeconds(), m_commonInfo, ns3::CommonInfoBasicMle::MediumSyncDelayInfo::mediumSyncDuration, and NS_ABORT_MSG_IF.

Referenced by BasicMultiLinkElementTest::GetMultiLinkElement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetMediumSyncMaxNTxops()

void ns3::MultiLinkElement::SetMediumSyncMaxNTxops ( uint8_t nTxops )

Set the Medium Synchronization Maximum Number of TXOPs subfield of the Medium Synchronization Delay information in the Common Info field.

Make sure that this is a Basic Multi-Link Element.

Parameters

nTxops the maximum number of TXOPs a non-AP STA is allowed to attempt to initiate while the MediumSyncDelay timer is running at a non-AP STA

Definition at line 303 of file multi-link-element.cc.

References m_commonInfo, ns3::CommonInfoBasicMle::MediumSyncDelayInfo::mediumSyncMaxNTxops, and NS_ASSERT.

Referenced by BasicMultiLinkElementTest::GetMultiLinkElement().

Here is the caller graph for this function:

◆ SetMediumSyncOfdmEdThreshold()

void ns3::MultiLinkElement::SetMediumSyncOfdmEdThreshold ( int8_t threshold )

Set the Medium Synchronization OFDM ED Threshold subfield of the Medium Synchronization Delay information in the Common Info field.

Make sure that this is a Basic Multi-Link Element.

Parameters

threshold the threshold in dBm (ranges from -72 to -62 dBm)

Definition at line 280 of file multi-link-element.cc.

References m_commonInfo, ns3::CommonInfoBasicMle::MediumSyncDelayInfo::mediumSyncOfdmEdThreshold, NS_ABORT_MSG_IF, and second::value.

Referenced by BasicMultiLinkElementTest::GetMultiLinkElement().

Here is the caller graph for this function:

◆ SetMldMacAddress()

void ns3::MultiLinkElement::SetMldMacAddress ( Mac48Address address )

Set the MLD MAC Address subfield in the Common Info field.

Make sure that this is a Basic Multi-Link Element.

Parameters

address the MLD MAC address

Definition at line 209 of file multi-link-element.cc.

References first::address, and m_commonInfo.

Referenced by ns3::StaWifiMac::GetMultiLinkElement(), BasicMultiLinkElementTest::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().

Here is the caller graph for this function:

◆ SetVariant()

void ns3::MultiLinkElement::SetVariant ( Variant variant )

private

Set the variant of this Multi-Link Element.

Parameters

variant the variant of this Multi-Link Element

Definition at line 193 of file multi-link-element.cc.

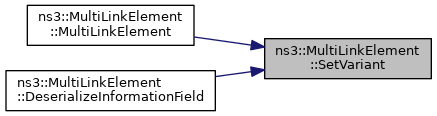

References BASIC_VARIANT, GetVariant(), m_commonInfo, NS_ABORT_MSG, NS_ABORT_MSG_IF, and UNSET.

Referenced by MultiLinkElement(), and DeserializeInformationField().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_commonInfo

CommonInfo ns3::MultiLinkElement::m_commonInfo

private

◆ m_frameType

WifiMacType ns3::MultiLinkElement::m_frameType

private

type of the frame containing the Multi-Link Element

Definition at line 510 of file multi-link-element.h.

Referenced by AddPerStaProfileSubelement(), ns3::MultiLinkElement::PerStaProfileSubelement::DeserializeInformationField(), ns3::MultiLinkElement::PerStaProfileSubelement::HasAssocRequest(), ns3::MultiLinkElement::PerStaProfileSubelement::HasAssocResponse(), ns3::MultiLinkElement::PerStaProfileSubelement::HasReassocRequest(), ns3::MultiLinkElement::PerStaProfileSubelement::operator=(), ns3::MultiLinkElement::PerStaProfileSubelement::SetAssocRequest(), and ns3::MultiLinkElement::PerStaProfileSubelement::SetAssocResponse().

◆ m_perStaProfileSubelements

std::vector<PerStaProfileSubelement> ns3::MultiLinkElement::m_perStaProfileSubelements

private

Per-STA Profile Subelements.

Definition at line 523 of file multi-link-element.h.

Referenced by AddPerStaProfileSubelement(), GetInformationFieldSize(), GetNPerStaProfileSubelements(), GetPerStaProfile(), and SerializeInformationField().

The documentation for this class was generated from the following files:

src/wifi/model/eht/multi-link-element.h
src/wifi/model/eht/multi-link-element.cc

Classes

Public Types

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ CommonInfo

Constructor & Destructor Documentation

◆ MultiLinkElement() [1/2]

◆ MultiLinkElement() [2/2]

Member Function Documentation

◆ AddPerStaProfileSubelement()

◆ DeserializeInformationField()

◆ ElementId()

◆ ElementIdExt()

◆ GetBssParamsChangeCount()

◆ GetInformationFieldSize()

◆ GetLinkIdInfo()

◆ GetMediumSyncDelayTimer()

◆ GetMediumSyncMaxNTxops()

◆ GetMediumSyncOfdmEdThreshold()

◆ GetMldMacAddress()

◆ GetNPerStaProfileSubelements()

◆ GetPerStaProfile() [1/2]

◆ GetPerStaProfile() [2/2]

◆ GetVariant()

◆ HasBssParamsChangeCount()

◆ HasLinkIdInfo()

◆ HasMediumSyncDelayInfo()

◆ SerializeInformationField()

◆ SetBssParamsChangeCount()

◆ SetLinkIdInfo()

◆ SetMediumSyncDelayTimer()

◆ SetMediumSyncMaxNTxops()

◆ SetMediumSyncOfdmEdThreshold()

◆ SetMldMacAddress()

◆ SetVariant()

Member Data Documentation

◆ m_commonInfo

◆ m_frameType

◆ m_perStaProfileSubelements
