ns3::PanDescriptor Struct Reference

PAN Descriptor, Table 17 IEEE 802.15.4-2011. More...

#include "lr-wpan-mac.h"

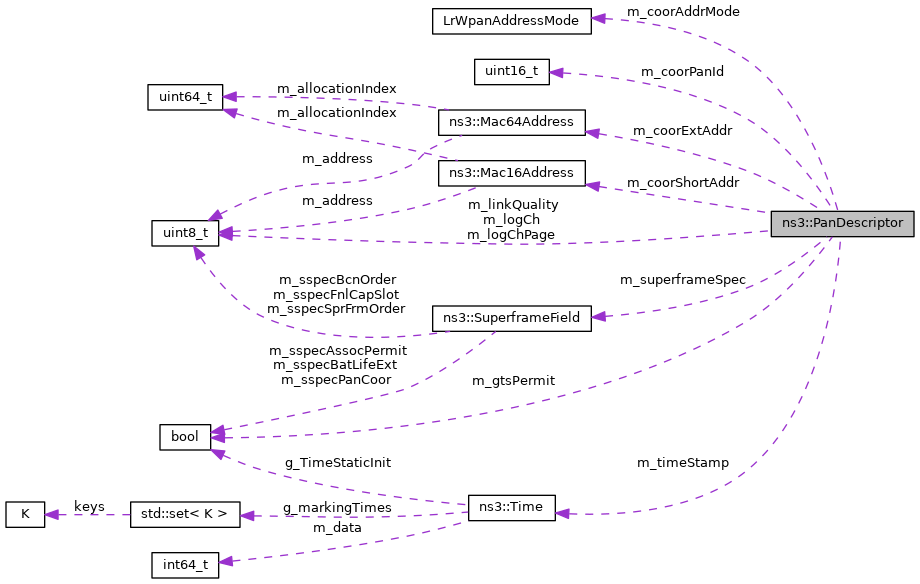

Collaboration diagram for ns3::PanDescriptor:

Public Attributes
LrWpanAddressMode	m_coorAddrMode {SHORT_ADDR}
	The coordinator addressing mode corresponding to the received beacon frame. More...
Mac64Address	m_coorExtAddr
	The coordinator extended address as specified in the coordinator address mode. More...
uint16_t	m_coorPanId
	The PAN ID of the coordinator as specified in the received beacon frame. More...
Mac16Address	m_coorShortAddr
	The coordinator short address as specified in the coordinator address mode. More...
bool	m_gtsPermit
	TRUE if the beacon is from the PAN coordinator that is accepting GTS requests. More...
uint8_t	m_linkQuality
	The LQI at which the network beacon was received. More...
uint8_t	m_logCh {11}
	The current channel number occupied by the network. More...
uint8_t	m_logChPage {0}
	The current channel page occupied by the network. More...
SuperframeField	m_superframeSpec
	The superframe specification as specified in the received beacon frame. More...
Time	m_timeStamp
	Beacon frame reception time. More...

Detailed Description

PAN Descriptor, Table 17 IEEE 802.15.4-2011.

Definition at line 317 of file lr-wpan-mac.h.

Member Data Documentation

m_coorAddrMode

LrWpanAddressMode ns3::PanDescriptor::m_coorAddrMode {SHORT_ADDR}

The coordinator addressing mode corresponding to the received beacon frame.

Definition at line 319 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::PdDataIndication().

m_coorExtAddr

Mac64Address ns3::PanDescriptor::m_coorExtAddr

The coordinator extended address as specified in the coordinator address mode.

Definition at line 325 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::PdDataIndication().

m_coorPanId

uint16_t ns3::PanDescriptor::m_coorPanId

Initial value:

{
        0xffff}

The PAN ID of the coordinator as specified in the received beacon frame.

Definition at line 321 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::PdDataIndication().

m_coorShortAddr

Mac16Address ns3::PanDescriptor::m_coorShortAddr

The coordinator short address as specified in the coordinator address mode.

Definition at line 323 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::PdDataIndication().

m_gtsPermit

bool ns3::PanDescriptor::m_gtsPermit

Initial value:

{
        false}

TRUE if the beacon is from the PAN coordinator that is accepting GTS requests.

Definition at line 331 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::PdDataIndication().

m_linkQuality

uint8_t ns3::PanDescriptor::m_linkQuality

Initial value:

{
        0}

The LQI at which the network beacon was received.

Lower values represent lower LQI.

Definition at line 333 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::PdDataIndication().

m_logCh

uint8_t ns3::PanDescriptor::m_logCh {11}

The current channel number occupied by the network.

Definition at line 327 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::PdDataIndication().

m_logChPage

uint8_t ns3::PanDescriptor::m_logChPage {0}

The current channel page occupied by the network.

Definition at line 328 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::PdDataIndication().

m_superframeSpec

SuperframeField ns3::PanDescriptor::m_superframeSpec

The superframe specification as specified in the received beacon frame.

Definition at line 329 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::PdDataIndication().

m_timeStamp

Time ns3::PanDescriptor::m_timeStamp

Beacon frame reception time.

Used as Time data type in ns-3 to avoid precision problems.

Definition at line 335 of file lr-wpan-mac.h.

Referenced by ns3::LrWpanMac::PdDataIndication().

---

The documentation for this struct was generated from the following file:

• src/lr-wpan/model/lr-wpan-mac.h
