ns3::ObjectPtrContainerValue Class Reference

Container for a set of ns3::Object pointers. More...

#include "object-ptr-container.h"

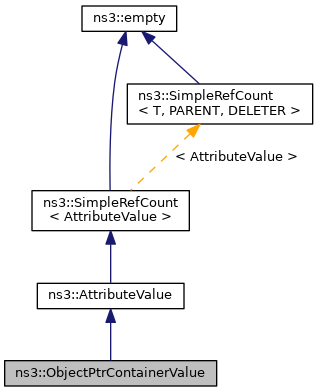

Inheritance diagram for ns3::ObjectPtrContainerValue:

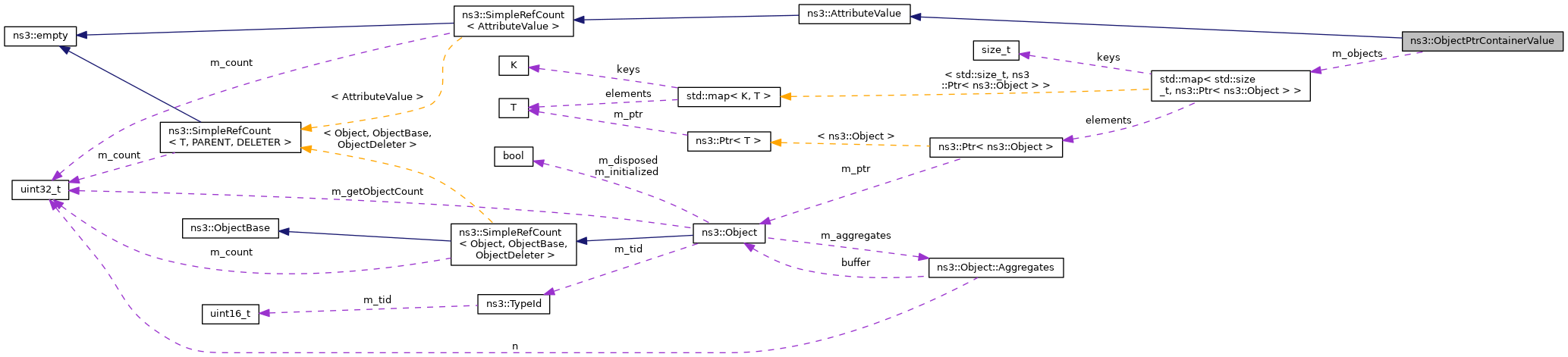

Collaboration diagram for ns3::ObjectPtrContainerValue:

Public Types
typedef std::map< std::size_t, Ptr< Object > >::const_iterator	Iterator
	Iterator type for traversing this container. More...

Public Member Functions
	ObjectPtrContainerValue ()
	Default constructor. More...
Iterator	Begin () const
	Get an iterator to the first Object. More...
Ptr< AttributeValue >	Copy () const override
	Get a copy of this container. More...
bool	DeserializeFromString (std::string value, Ptr< const AttributeChecker > checker) override
	Deserialize from a string. More...
Iterator	End () const
	Get an iterator to the past-the-end Object. More...
Ptr< Object >	Get (std::size_t i) const
	Get a specific Object. More...
std::size_t	GetN () const
	Get the number of Objects. More...
std::string	SerializeToString (Ptr< const AttributeChecker > checker) const override
	Serialize each of the Object pointers to a string. More...
Public Member Functions inherited from ns3::AttributeValue
	AttributeValue ()
virtual	~AttributeValue ()
virtual Ptr< AttributeValue >	Copy () const =0
virtual bool	DeserializeFromString (std::string value, Ptr< const AttributeChecker > checker)=0
virtual std::string	SerializeToString (Ptr< const AttributeChecker > checker) const =0
Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...
void	Ref () const
	Increment the reference count. More...
void	Unref () const
	Decrement the reference count. More...

Private Attributes
std::map< std::size_t, Ptr< Object > >	m_objects
	The container implementation. More...

Friends
class	ObjectPtrContainerAccessor
	ObjectPtrContainerAccessor::Get() needs access. More...

Detailed Description

Container for a set of ns3::Object pointers.

AttributeValue implementation for ObjectPtrContainer.

This class it used to get attribute access to an array of ns3::Object pointers.

See also

AttributeValue

Definition at line 45 of file object-ptr-container.h.

Member Typedef Documentation

Iterator

typedef std::map<std::size_t,Ptr<Object>>::const_iterator ns3::ObjectPtrContainerValue::Iterator

Iterator type for traversing this container.

Definition at line 49 of file object-ptr-container.h.

Constructor & Destructor Documentation

ObjectPtrContainerValue()

ObjectPtrContainer ns3::ObjectPtrContainerValue::ObjectPtrContainerValue

(

)

Default constructor.

Definition at line 34 of file object-ptr-container.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

Begin()

ObjectPtrContainerValue::Iterator ns3::ObjectPtrContainerValue::Begin

(

)

const

Get an iterator to the first Object.

Returns

An iterator to the first Object.

Definition at line 40 of file object-ptr-container.cc.

References m_objects, and NS_LOG_FUNCTION.

Referenced by LteRadioLinkFailureTestCase::CheckConnected(), LteRrcConnectionEstablishmentTestCase::CheckConnected(), LteX2HandoverMeasuresTestCase::CheckConnected(), LteX2HandoverTestCase::CheckConnected(), ns3::Config::Resolver::DoArrayResolve(), ns3::AttributeIterator::DoIterate(), and SerializeToString().

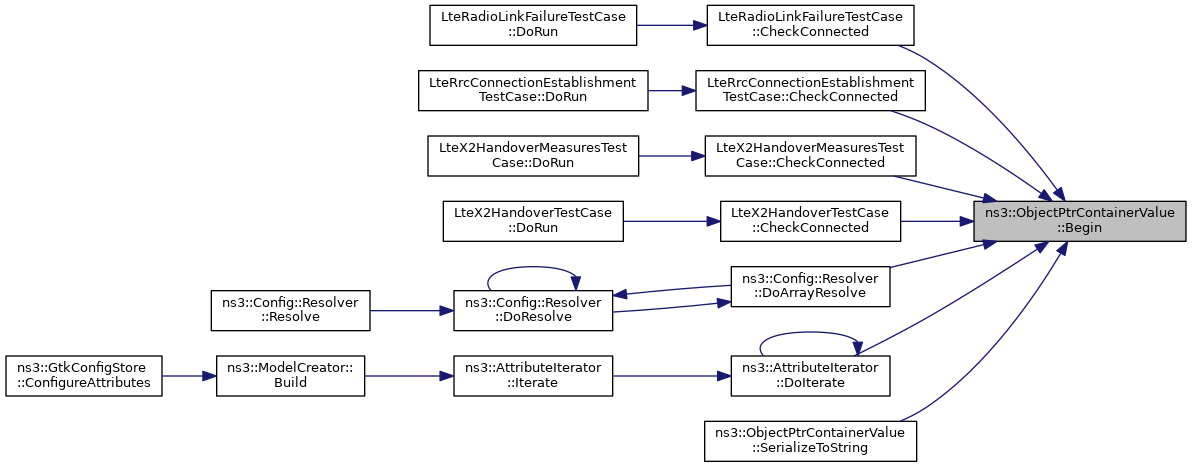

Here is the caller graph for this function:

Copy()

Ptr< AttributeValue > ns3::ObjectPtrContainerValue::Copy ( ) const

overridevirtual

Get a copy of this container.

Returns

A copy of this container.

Implements ns3::AttributeValue.

Definition at line 74 of file object-ptr-container.cc.

References NS_LOG_FUNCTION.

DeserializeFromString()

bool ns3::ObjectPtrContainerValue::DeserializeFromString ( std::string  value, Ptr< const AttributeChecker >  checker  )

overridevirtual

Deserialize from a string.

(Not implemented; raises a fatal error.)

Parameters

[in]	value	The serialized string form.
[in]	checker	The checker to use.

Returns

true.

Implements ns3::AttributeValue.

Definition at line 98 of file object-ptr-container.cc.

References NS_FATAL_ERROR, NS_LOG_FUNCTION, and second::value.

End()

ObjectPtrContainerValue::Iterator ns3::ObjectPtrContainerValue::End

(

)

const

Get an iterator to the past-the-end Object.

Returns

An iterator to the past-the-end Object.

Definition at line 47 of file object-ptr-container.cc.

References m_objects, and NS_LOG_FUNCTION.

Referenced by LteRadioLinkFailureTestCase::CheckConnected(), LteRrcConnectionEstablishmentTestCase::CheckConnected(), LteX2HandoverMeasuresTestCase::CheckConnected(), LteX2HandoverTestCase::CheckConnected(), ns3::Config::Resolver::DoArrayResolve(), ns3::AttributeIterator::DoIterate(), and SerializeToString().

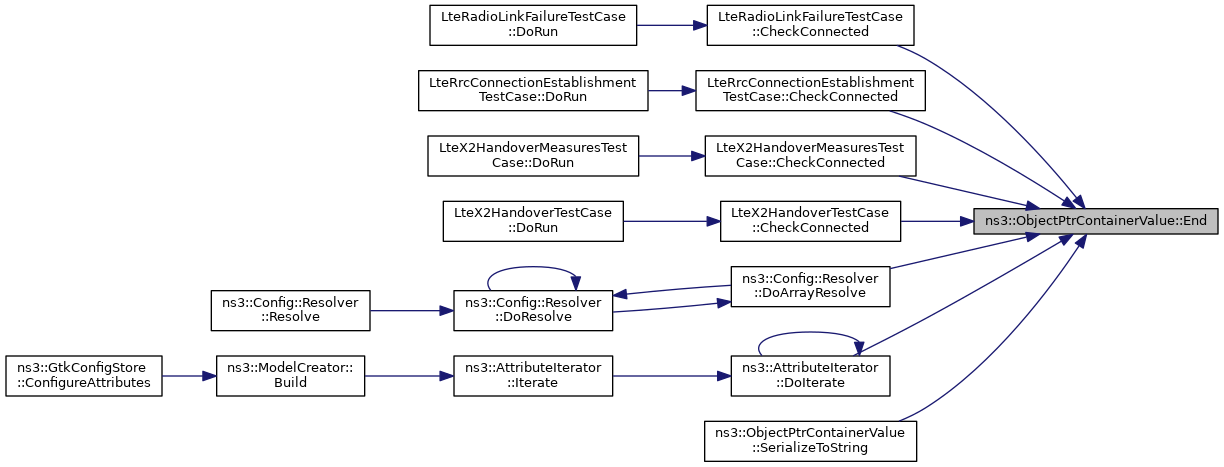

Here is the caller graph for this function:

Get()

ObjectPtrContainer ns3::ObjectPtrContainerValue::Get

(

std::size_t

i

)

const

Get a specific Object.

Parameters

[in]

i

The index of the requested object.

Returns

The requested object

The ObjectPtrContainer value.

Definition at line 61 of file object-ptr-container.cc.

References m_objects, NS_LOG_FUNCTION, and second::value.

Referenced by ObjectVectorAttributeTestCase::DoRun(), and ObjectMapAttributeTestCase::DoRun().

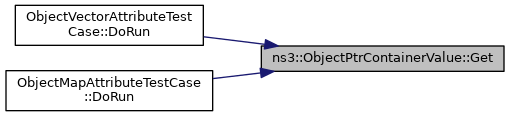

Here is the caller graph for this function:

GetN()

std::size_t ns3::ObjectPtrContainerValue::GetN

(

)

const

Get the number of Objects.

Returns

The number of objects.

Definition at line 54 of file object-ptr-container.cc.

References m_objects, and NS_LOG_FUNCTION.

Referenced by LteRadioLinkFailureTestCase::CheckConnected(), LteRrcConnectionEstablishmentTestCase::CheckConnected(), LteX2HandoverMeasuresTestCase::CheckConnected(), LteX2HandoverTestCase::CheckConnected(), ObjectVectorAttributeTestCase::DoRun(), and ObjectMapAttributeTestCase::DoRun().

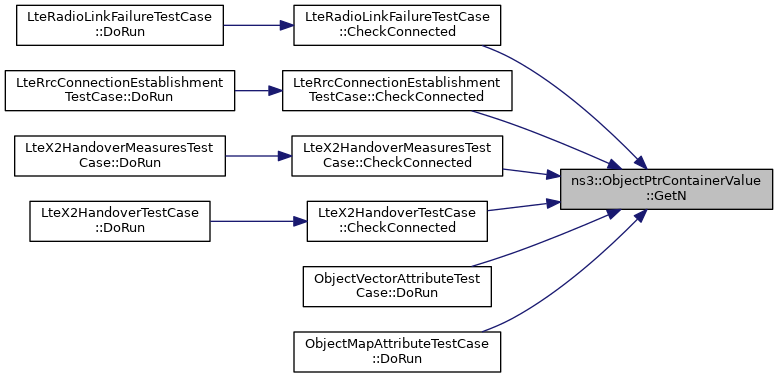

Here is the caller graph for this function:

SerializeToString()

std::string ns3::ObjectPtrContainerValue::SerializeToString ( Ptr< const AttributeChecker >  checker ) const

overridevirtual

Serialize each of the Object pointers to a string.

Note this serializes the Ptr values, not the Objects themselves.

Parameters

[in]

checker

The checker to use (currently not used.)

Returns

The string form of the Objects.

Implements ns3::AttributeValue.

Definition at line 81 of file object-ptr-container.cc.

References Begin(), End(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Friends And Related Function Documentation

ObjectPtrContainerAccessor

friend class ObjectPtrContainerAccessor

friend

ObjectPtrContainerAccessor::Get() needs access.

Definition at line 106 of file object-ptr-container.h.

Member Data Documentation

m_objects

std::map<std::size_t, Ptr<Object> > ns3::ObjectPtrContainerValue::m_objects

private

The container implementation.

Definition at line 108 of file object-ptr-container.h.

Referenced by Begin(), End(), ns3::ObjectPtrContainerAccessor::Get(), Get(), and GetN().

---

The documentation for this class was generated from the following files:

• src/core/model/object-ptr-container.h
• src/core/model/object-ptr-container.cc
• doc/introspected-doxygen.h
