ArpQueueDiscItem is a subclass of QueueDiscItem which stores ARP packets. More...

#include "arp-queue-disc-item.h"

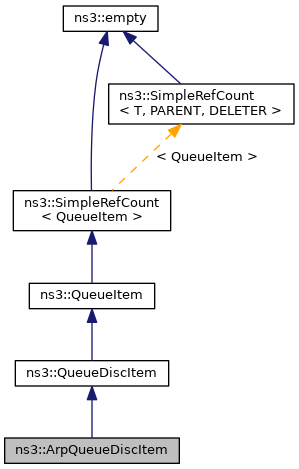

Inheritance diagram for ns3::ArpQueueDiscItem:

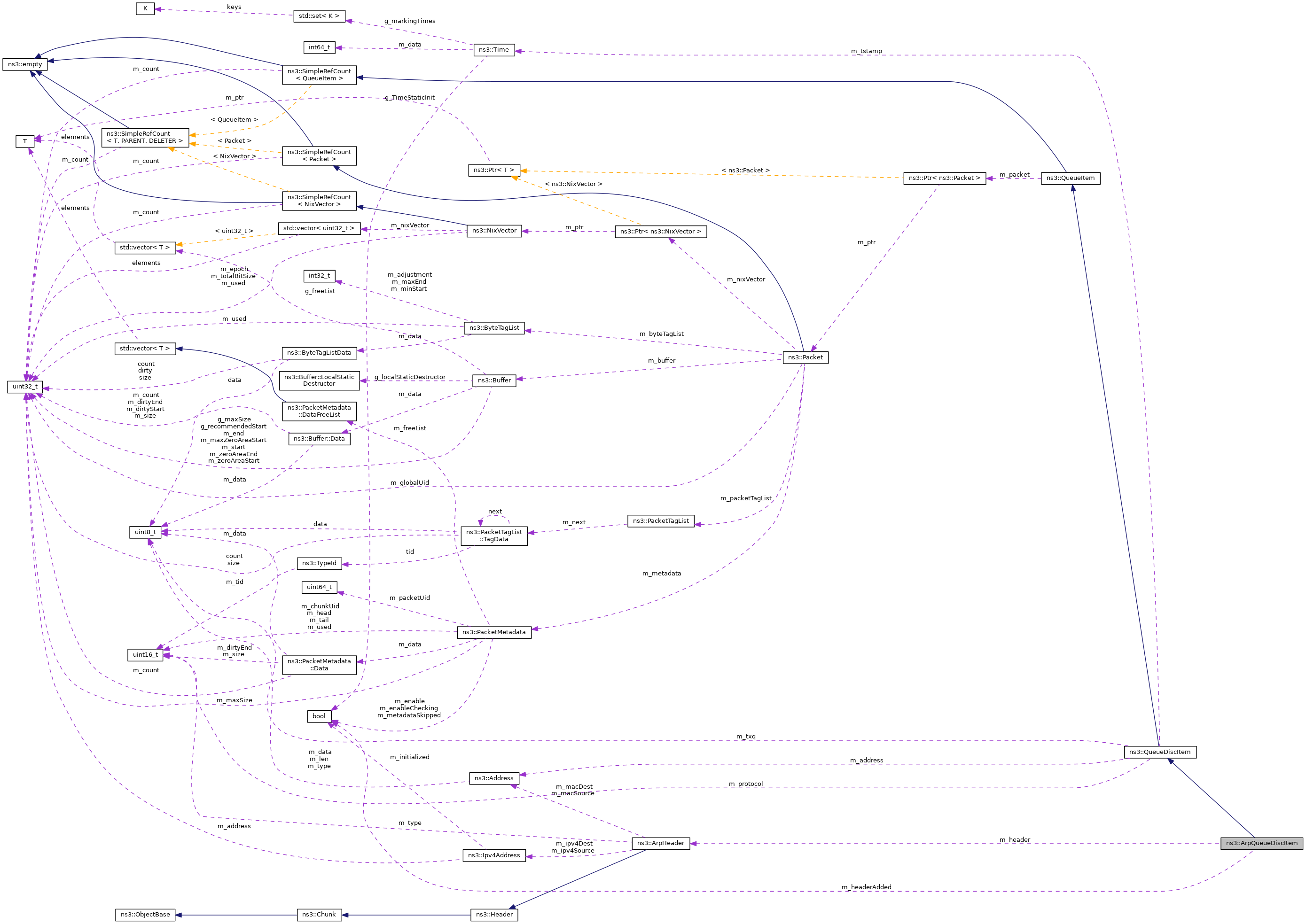

Collaboration diagram for ns3::ArpQueueDiscItem:

Public Member Functions
	ArpQueueDiscItem ()=delete

	ArpQueueDiscItem (const ArpQueueDiscItem &)=delete

	ArpQueueDiscItem (Ptr< Packet > p, const Address &addr, uint16_t protocol, const ArpHeader &header)
	Create an ARP queue disc item containing an ARP packet. More...

	~ArpQueueDiscItem () override
	Destructor. More...

void	AddHeader () override
	Add the header to the packet. More...

const ArpHeader &	GetHeader () const

uint32_t	GetSize () const override

uint32_t	Hash (uint32_t perturbation) const override
	Computes the hash of the packet's 5-tuple. More...

bool	Mark () override
	Inherited from the base class, but we cannot mark ARP packets. More...

ArpQueueDiscItem &	operator= (const ArpQueueDiscItem &)=delete

void	Print (std::ostream &os) const override
	Print the item contents. More...

Public Member Functions inherited from ns3::QueueDiscItem
	QueueDiscItem ()=delete

	QueueDiscItem (const QueueDiscItem &)=delete

	QueueDiscItem (Ptr< Packet > p, const Address &addr, uint16_t protocol)
	Create a queue disc item. More...

	~QueueDiscItem () override

virtual void	AddHeader ()=0
	Add the header to the packet. More...

Address	GetAddress () const
	Get the MAC address included in this item. More...

uint16_t	GetProtocol () const
	Get the L3 protocol included in this item. More...

Time	GetTimeStamp () const
	Get the timestamp included in this item. More...

uint8_t	GetTxQueueIndex () const
	Get the transmission queue index included in this item. More...

virtual uint32_t	Hash (uint32_t perturbation=0) const
	Computes the hash of various fields of the packet header. More...

virtual bool	Mark ()=0
	Marks the packet as a substitute for dropping it, such as for Explicit Congestion Notification. More...

QueueDiscItem &	operator= (const QueueDiscItem &)=delete

void	Print (std::ostream &os) const override
	Print the item contents. More...

void	SetTimeStamp (Time t)
	Set the timestamp included in this item. More...

void	SetTxQueueIndex (uint8_t txq)
	Set the transmission queue index to store in this item. More...

Public Member Functions inherited from ns3::QueueItem
	QueueItem ()=delete

	QueueItem (const QueueItem &)=delete

	QueueItem (Ptr< Packet > p)
	Create a queue item containing a packet. More...

virtual	~QueueItem ()

Ptr< Packet >	GetPacket () const

virtual uint32_t	GetSize () const
	Use this method (instead of GetPacket ()->GetSize ()) to get the packet size. More...

virtual bool	GetUint8Value (Uint8Values field, uint8_t &value) const
	Retrieve the value of a given field from the packet, if present. More...

QueueItem &	operator= (const QueueItem &)=delete

virtual void	Print (std::ostream &os) const
	Print the item contents. More...

Public Member Functions inherited from ns3::SimpleRefCount< QueueItem >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Private Attributes
ArpHeader	m_header
	The ARP header. More...

bool	m_headerAdded
	True if the header has already been added to the packet. More...

Additional Inherited Members
Public Types inherited from ns3::QueueItem
typedef void(*	TracedCallback) (Ptr< const QueueItem > item)
	TracedCallback signature for Ptr<QueueItem> More...

enum	Uint8Values { IP_DSFIELD }
	1-byte fields of the packet whose value can be retrieved, if present More...

Detailed Description

ArpQueueDiscItem is a subclass of QueueDiscItem which stores ARP packets.

Header and payload are kept separate to allow the queue disc to hash the fields of the header, which is added to the packet when the packet is dequeued.

Definition at line 37 of file arp-queue-disc-item.h.

Constructor & Destructor Documentation

◆ ArpQueueDiscItem() [1/3]

ns3::ArpQueueDiscItem::ArpQueueDiscItem	(	Ptr< Packet >	p,
		const Address &	addr,
		uint16_t	protocol,
		const ArpHeader &	header
	)

Create an ARP queue disc item containing an ARP packet.

Parameters

p	the packet included in the created item.
addr	the destination MAC address
protocol	the protocol number
header	the ARP header

Definition at line 27 of file arp-queue-disc-item.cc.

◆ ~ArpQueueDiscItem()

ns3::ArpQueueDiscItem::~ArpQueueDiscItem ( )

override

Destructor.

Definition at line 37 of file arp-queue-disc-item.cc.

References NS_LOG_FUNCTION.

◆ ArpQueueDiscItem() [2/3]

ns3::ArpQueueDiscItem::ArpQueueDiscItem ( )

delete

◆ ArpQueueDiscItem() [3/3]

ns3::ArpQueueDiscItem::ArpQueueDiscItem ( const ArpQueueDiscItem & )

delete

Member Function Documentation

◆ AddHeader()

void ns3::ArpQueueDiscItem::AddHeader ( )

overridevirtual

Add the header to the packet.

Implements ns3::QueueDiscItem.

Definition at line 63 of file arp-queue-disc-item.cc.

References ns3::Packet::AddHeader(), ns3::QueueItem::GetPacket(), m_header, m_headerAdded, NS_ASSERT, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

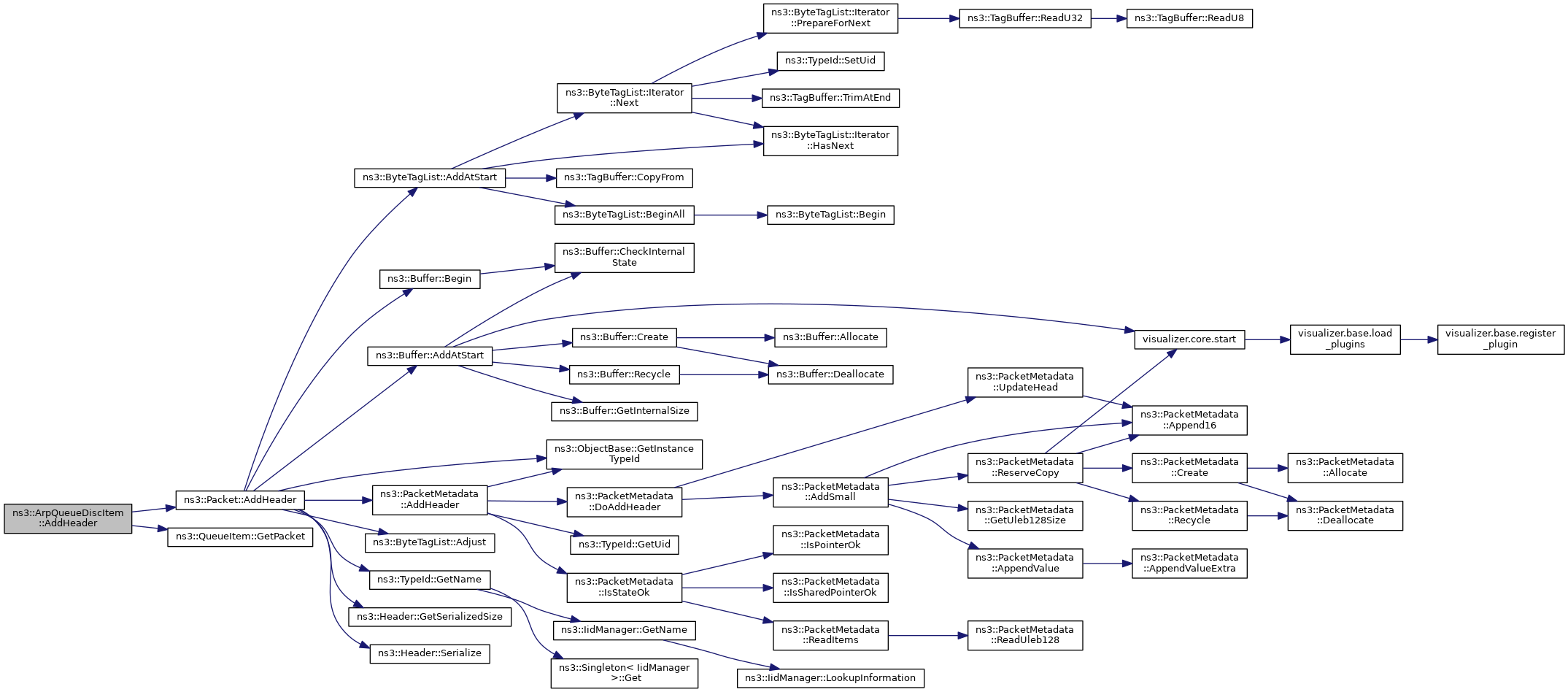

Here is the call graph for this function:

◆ GetHeader()

const ArpHeader & ns3::ArpQueueDiscItem::GetHeader ( ) const

Returns: the header stored in this item..

Definition at line 57 of file arp-queue-disc-item.cc.

References m_header.

◆ GetSize()

uint32_t ns3::ArpQueueDiscItem::GetSize ( ) const

overridevirtual

Returns: the correct packet size (header plus payload).

Reimplemented from ns3::QueueItem.

Definition at line 43 of file arp-queue-disc-item.cc.

References ns3::QueueItem::GetPacket(), ns3::ArpHeader::GetSerializedSize(), ns3::Packet::GetSize(), m_header, m_headerAdded, NS_ASSERT, and NS_LOG_FUNCTION.

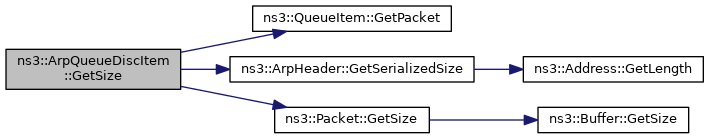

Here is the call graph for this function:

◆ Hash()

uint32_t ns3::ArpQueueDiscItem::Hash ( uint32_t perturbation ) const

overridevirtual

Computes the hash of the packet's 5-tuple.

Parameters

perturbation hash perturbation value

Returns: the hash of the packet's 5-tuple

Reimplemented from ns3::QueueDiscItem.

Definition at line 95 of file arp-queue-disc-item.cc.

References ns3::ArpHeader::ARP_TYPE_REPLY, ns3::ArpHeader::ARP_TYPE_REQUEST, ns3::Address::CopyTo(), ns3::ArpHeader::GetDestinationHardwareAddress(), ns3::ArpHeader::GetDestinationIpv4Address(), ns3::Address::GetLength(), ns3::ArpHeader::GetSourceHardwareAddress(), ns3::ArpHeader::GetSourceIpv4Address(), ns3::Hash32(), ns3::ArpHeader::IsRequest(), m_header, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Ipv4Address::Serialize(), and check-style-clang-format::type.

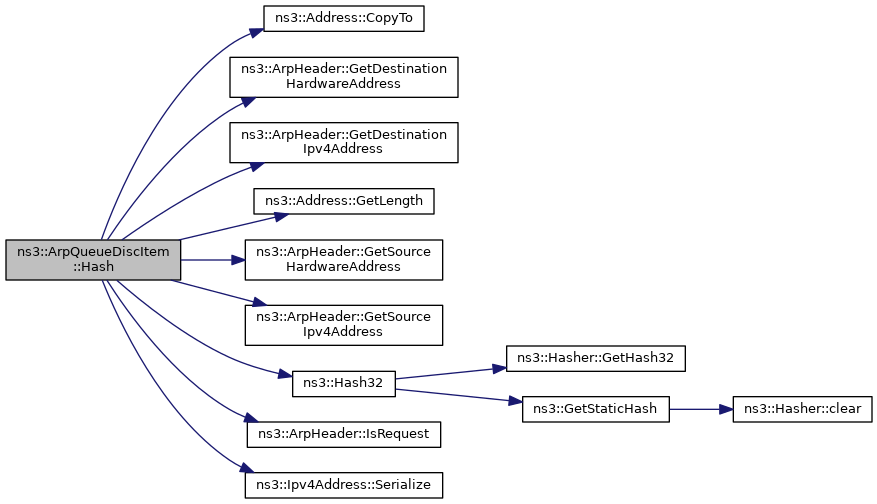

Here is the call graph for this function:

◆ Mark()

bool ns3::ArpQueueDiscItem::Mark ( )

overridevirtual

Inherited from the base class, but we cannot mark ARP packets.

Returns: false

Implements ns3::QueueDiscItem.

Definition at line 88 of file arp-queue-disc-item.cc.

References NS_LOG_FUNCTION.

◆ operator=()

ArpQueueDiscItem & ns3::ArpQueueDiscItem::operator= ( const ArpQueueDiscItem & )

delete

◆ Print()

void ns3::ArpQueueDiscItem::Print ( std::ostream & os ) const

overridevirtual

Print the item contents.

Parameters

os	output stream in which the data should be printed.

Reimplemented from ns3::QueueItem.

Definition at line 75 of file arp-queue-disc-item.cc.

References ns3::QueueDiscItem::GetAddress(), ns3::QueueItem::GetPacket(), ns3::QueueDiscItem::GetProtocol(), ns3::QueueDiscItem::GetTxQueueIndex(), m_header, and m_headerAdded.

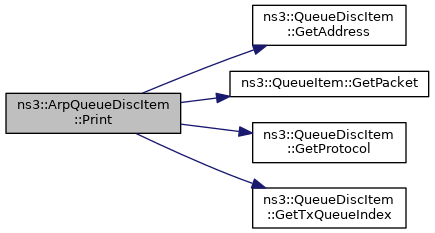

Here is the call graph for this function:

Member Data Documentation

◆ m_header

ArpHeader ns3::ArpQueueDiscItem::m_header

private

The ARP header.

Definition at line 96 of file arp-queue-disc-item.h.

Referenced by AddHeader(), GetHeader(), GetSize(), Hash(), and Print().

◆ m_headerAdded

bool ns3::ArpQueueDiscItem::m_headerAdded

private

True if the header has already been added to the packet.

Definition at line 97 of file arp-queue-disc-item.h.

Referenced by AddHeader(), GetSize(), and Print().

The documentation for this class was generated from the following files:

src/internet/model/arp-queue-disc-item.h
src/internet/model/arp-queue-disc-item.cc
