WifiMpdu stores (const) packets along with their Wifi MAC headers and the time when they were enqueued. More...

#include "wifi-mpdu.h"

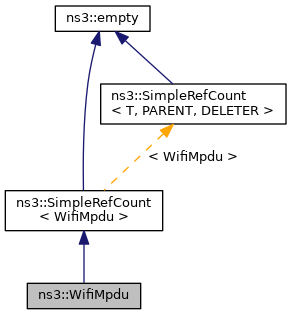

Inheritance diagram for ns3::WifiMpdu:

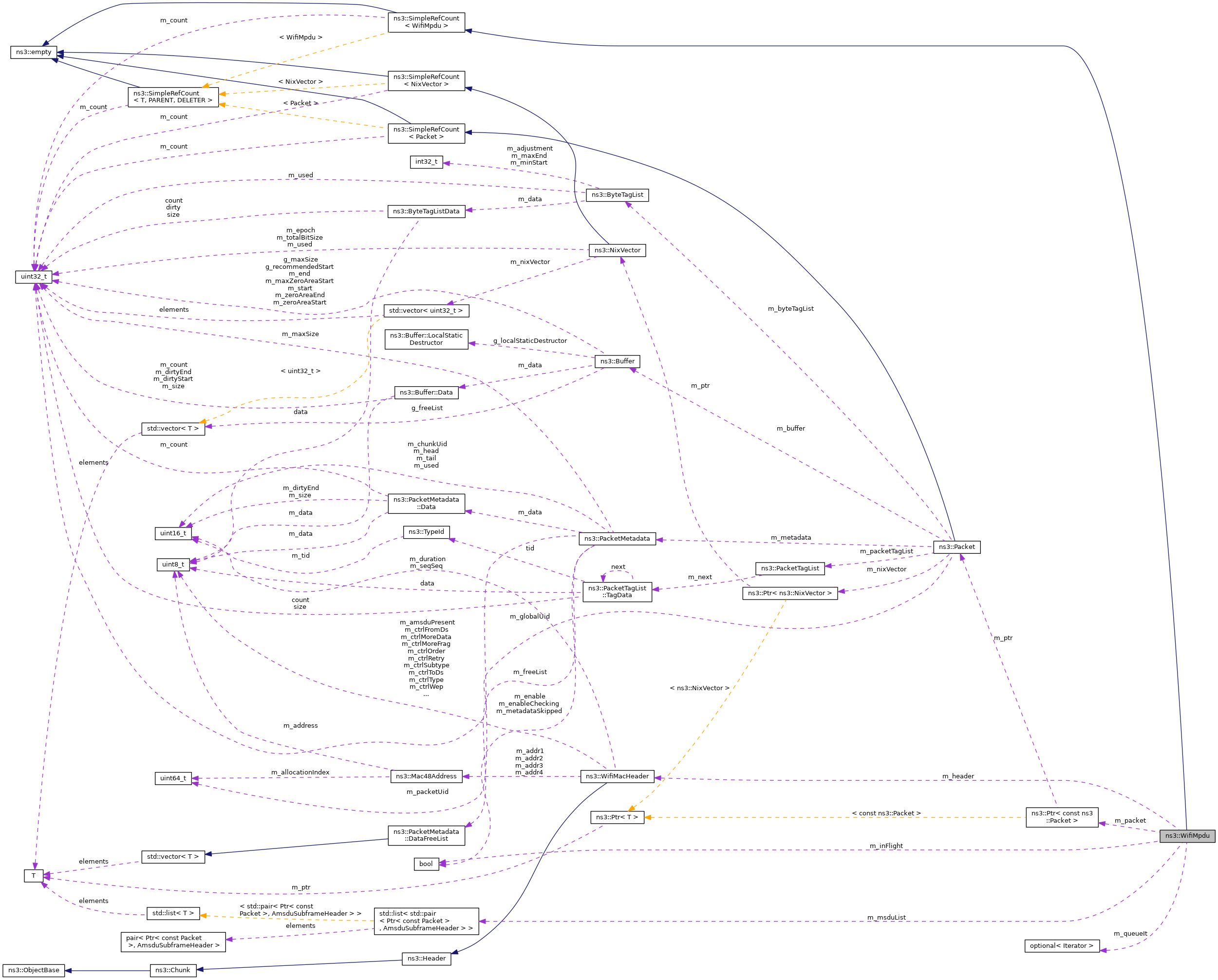

Collaboration diagram for ns3::WifiMpdu:

Public Types
typedef std::list< std::pair< Ptr< const Packet >, AmsduSubframeHeader > >	DeaggregatedMsdus
	DeaggregatedMsdus typedef. More...

typedef std::list< std::pair< Ptr< constPacket >, AmsduSubframeHeader > >::const_iterator	DeaggregatedMsdusCI
	DeaggregatedMsdusCI typedef. More...

typedef std::list< WifiMacQueueElem >::iterator	Iterator
	Const iterator typedef. More...

Public Member Functions
	WifiMpdu (Ptr< const Packet > p, const WifiMacHeader &header)
	Create a Wifi MAC queue item containing a packet and a Wifi MAC header. More...

virtual	~WifiMpdu ()

void	Aggregate (Ptr< const WifiMpdu > msdu)
	Aggregate the MSDU contained in the given MPDU to this MPDU (thus constituting an A-MSDU). More...

DeaggregatedMsdusCI	begin () const
	Get a constant iterator pointing to the first MSDU in the list of aggregated MSDUs. More...

DeaggregatedMsdusCI	end () const
	Get a constant iterator indicating past-the-last MSDU in the list of aggregated MSDUs. More...

Mac48Address	GetDestinationAddress () const
	Return the destination address present in the header. More...

Time	GetExpiryTime () const

WifiMacHeader &	GetHeader ()
	Get the header stored in this item. More...

const WifiMacHeader &	GetHeader () const
	Get the header stored in this item. More...

Ptr< const Packet >	GetPacket () const
	Get the packet stored in this item. More...

uint32_t	GetPacketSize () const
	Return the size in bytes of the packet or control header or management header stored by this item. More...

Ptr< Packet >	GetProtocolDataUnit () const
	Get the MAC protocol data unit (MPDU) corresponding to this item (i.e. More...

AcIndex	GetQueueAc () const
	Get the AC of the queue this item is stored into. More...

Iterator	GetQueueIt (WmqIteratorTag tag) const

uint32_t	GetSize () const
	Return the size of the packet stored by this item, including header size and trailer size. More...

bool	IsFragment () const
	Return true if this item contains an MSDU fragment, false otherwise. More...

bool	IsInFlight () const
	Return true if this MPDU is in flight, false otherwise. More...

bool	IsQueued () const
	Return true if this item is stored in some queue, false otherwise. More...

virtual void	Print (std::ostream &os) const
	Print the item contents. More...

void	ResetInFlight ()
	Mark this MPDU as not being in flight (only used if Block Ack agreement established). More...

void	SetInFlight ()
	Mark this MPDU as being in flight (only used if Block Ack agreement established). More...

void	SetQueueIt (std::optional< Iterator > queueIt, WmqIteratorTag tag)
	Set the queue iterator stored by this object. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiMpdu >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Private Member Functions
void	DoAggregate (Ptr< const WifiMpdu > msdu)
	Aggregate the MSDU contained in the given MPDU to this MPDU (thus constituting an A-MSDU). More...

Private Attributes
WifiMacHeader	m_header
	Wifi MAC header associated with the packet. More...

bool	m_inFlight
	whether the MPDU is in flight More...

DeaggregatedMsdus	m_msduList
	The list of aggregated MSDUs included in this MPDU. More...

Ptr< const Packet >	m_packet
	The packet (MSDU or A-MSDU) contained in this queue item. More...

std::optional< Iterator >	m_queueIt
	Queue iterator pointing to this MPDU, if queued. More...

Detailed Description

WifiMpdu stores (const) packets along with their Wifi MAC headers and the time when they were enqueued.

Definition at line 56 of file wifi-mpdu.h.

Member Typedef Documentation

◆ DeaggregatedMsdus

typedef std::list<std::pair<Ptr<const Packet>, AmsduSubframeHeader> > ns3::WifiMpdu::DeaggregatedMsdus

DeaggregatedMsdus typedef.

Definition at line 124 of file wifi-mpdu.h.

◆ DeaggregatedMsdusCI

typedef std::list<std::pair<Ptr<constPacket>,AmsduSubframeHeader>>::const_iterator ns3::WifiMpdu::DeaggregatedMsdusCI

DeaggregatedMsdusCI typedef.

Definition at line 127 of file wifi-mpdu.h.

◆ Iterator

typedef std::list<WifiMacQueueElem>::iterator ns3::WifiMpdu::Iterator

Const iterator typedef.

Definition at line 143 of file wifi-mpdu.h.

Constructor & Destructor Documentation

◆ WifiMpdu()

ns3::WifiMpdu::WifiMpdu	(	Ptr< const Packet >	p,
		const WifiMacHeader &	header
	)

Create a Wifi MAC queue item containing a packet and a Wifi MAC header.

Parameters

p	the const packet included in the created item.
header	the Wifi MAC header included in the created item.

Definition at line 38 of file wifi-mpdu.cc.

References ns3::Packet::Copy(), ns3::MsduAggregator::Deaggregate(), ns3::WifiMacHeader::IsQosAmsdu(), ns3::WifiMacHeader::IsQosData(), m_inFlight, and m_msduList.

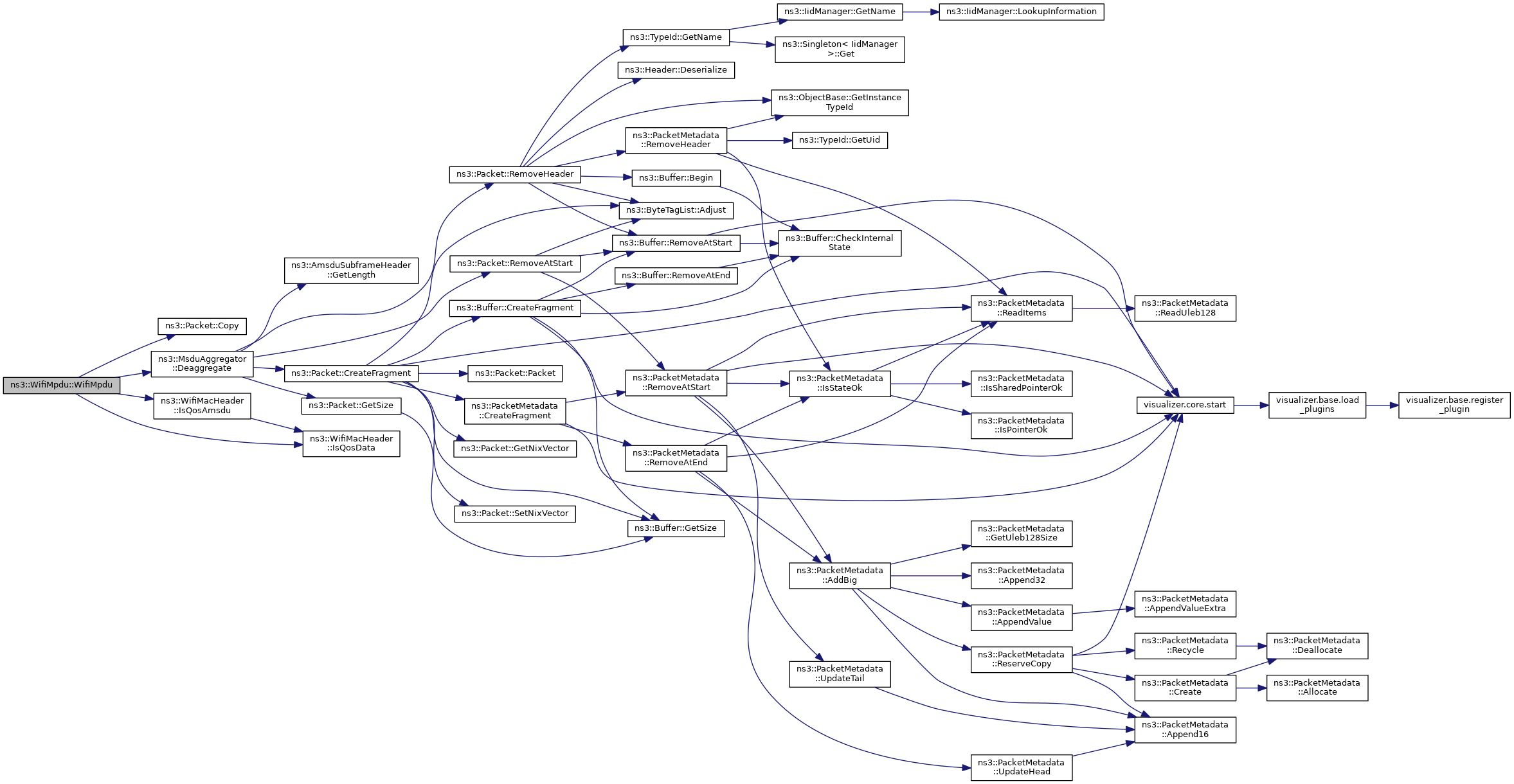

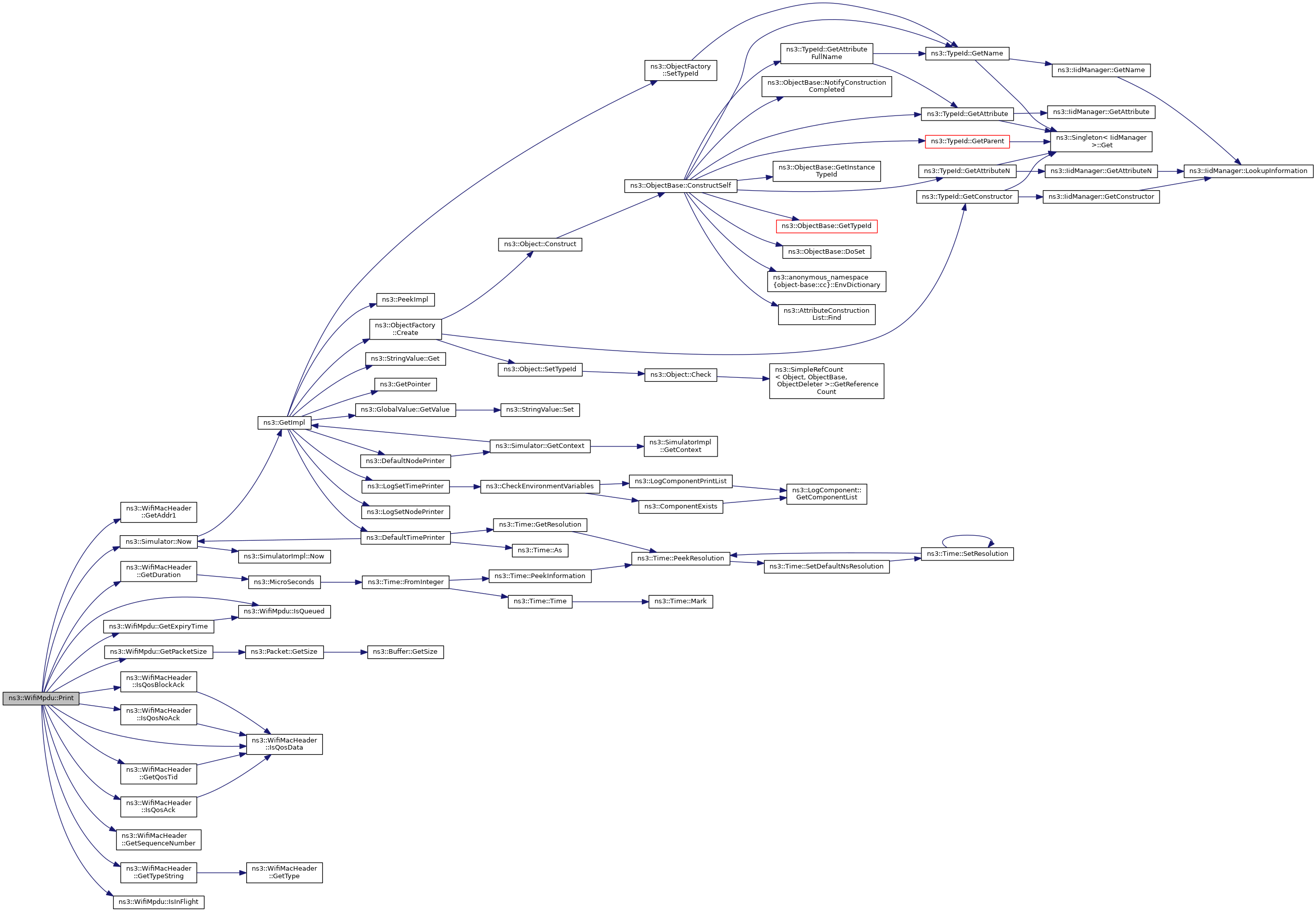

Here is the call graph for this function:

◆ ~WifiMpdu()

ns3::WifiMpdu::~WifiMpdu ( )

virtual

Definition at line 49 of file wifi-mpdu.cc.

Member Function Documentation

◆ Aggregate()

void ns3::WifiMpdu::Aggregate ( Ptr< const WifiMpdu > msdu )

Aggregate the MSDU contained in the given MPDU to this MPDU (thus constituting an A-MSDU).

Note that the given MPDU cannot contain an A-MSDU.

Parameters

msdu	the MPDU containing the MSDU to aggregate

Definition at line 105 of file wifi-mpdu.cc.

References DoAggregate(), ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetAddr2(), ns3::WifiMacHeader::IsFromDs(), ns3::WifiMacHeader::IsToDs(), m_header, m_msduList, m_packet, NS_ABORT_MSG_IF, NS_ASSERT, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetAddr3(), and ns3::WifiMacHeader::SetQosAmsdu().

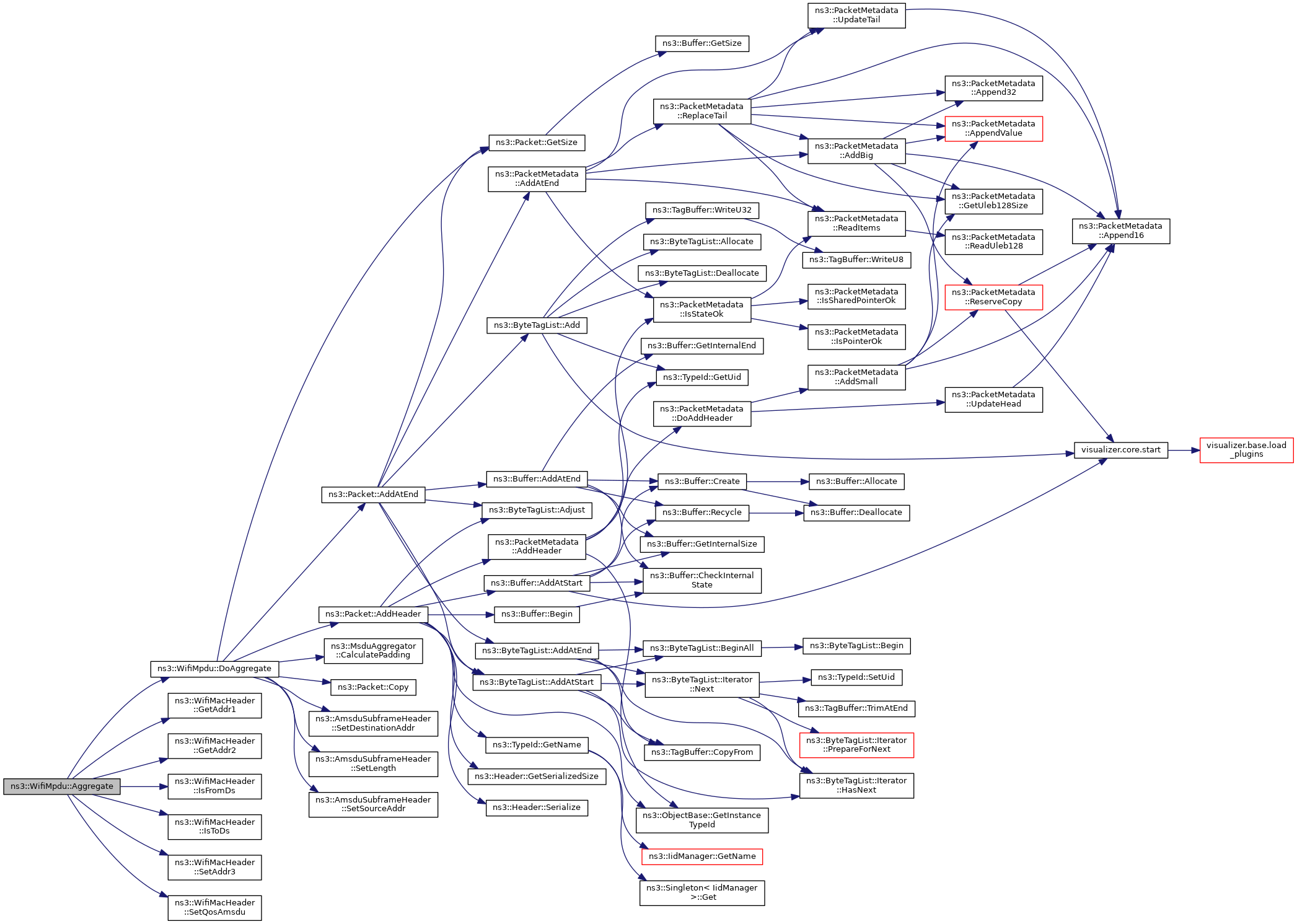

Here is the call graph for this function:

◆ begin()

WifiMpdu::DeaggregatedMsdusCI ns3::WifiMpdu::begin ( ) const

Get a constant iterator pointing to the first MSDU in the list of aggregated MSDUs.

Returns: a constant iterator pointing to the first MSDU in the list of aggregated MSDUs

Definition at line 238 of file wifi-mpdu.cc.

References m_msduList.

◆ DoAggregate()

void ns3::WifiMpdu::DoAggregate ( Ptr< const WifiMpdu > msdu )

private

Aggregate the MSDU contained in the given MPDU to this MPDU (thus constituting an A-MSDU).

Note that the given MPDU cannot contain an A-MSDU.

Parameters

msdu	the MPDU containing the MSDU to aggregate

Definition at line 139 of file wifi-mpdu.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::AddHeader(), ns3::MsduAggregator::CalculatePadding(), ns3::Packet::Copy(), ns3::Packet::GetSize(), m_msduList, m_packet, NS_ASSERT, NS_LOG_FUNCTION, ns3::AmsduSubframeHeader::SetDestinationAddr(), ns3::AmsduSubframeHeader::SetLength(), and ns3::AmsduSubframeHeader::SetSourceAddr().

Referenced by Aggregate().

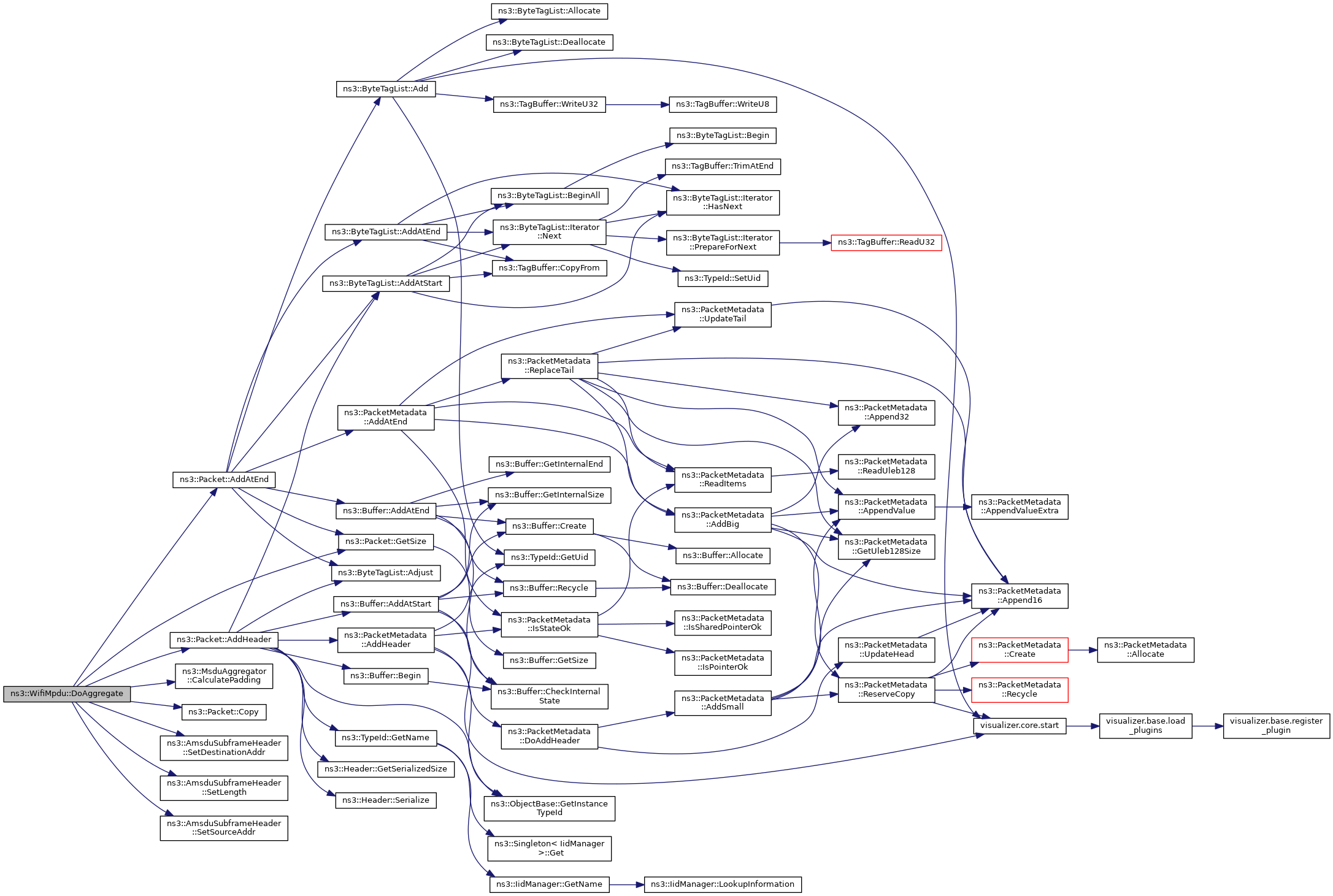

Here is the call graph for this function:

Here is the caller graph for this function:

◆ end()

WifiMpdu::DeaggregatedMsdusCI ns3::WifiMpdu::end ( ) const

Get a constant iterator indicating past-the-last MSDU in the list of aggregated MSDUs.

Returns: a constant iterator indicating past-the-last MSDU in the list of aggregated MSDUs

Definition at line 244 of file wifi-mpdu.cc.

References m_msduList.

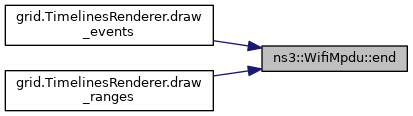

Referenced by grid.TimelinesRenderer::draw_events(), and grid.TimelinesRenderer::draw_ranges().

Here is the caller graph for this function:

◆ GetDestinationAddress()

Mac48Address ns3::WifiMpdu::GetDestinationAddress ( ) const

Return the destination address present in the header.

Returns: the destination address

Definition at line 72 of file wifi-mpdu.cc.

References ns3::WifiMacHeader::GetAddr1(), and m_header.

Here is the call graph for this function:

◆ GetExpiryTime()

Time ns3::WifiMpdu::GetExpiryTime ( ) const

Returns: the expiry time of this MPDU

Definition at line 213 of file wifi-mpdu.cc.

References IsQueued(), and NS_ASSERT.

Referenced by Print().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHeader() [1/2]

WifiMacHeader & ns3::WifiMpdu::GetHeader ( )

Get the header stored in this item.

Returns: the header stored in this item.

Definition at line 66 of file wifi-mpdu.cc.

References m_header.

◆ GetHeader() [2/2]

const WifiMacHeader & ns3::WifiMpdu::GetHeader ( ) const

Get the header stored in this item.

Returns: the header stored in this item.

Definition at line 60 of file wifi-mpdu.cc.

References m_header.

◆ GetPacket()

Ptr< const Packet > ns3::WifiMpdu::GetPacket ( ) const

Get the packet stored in this item.

Returns: the packet stored in this item.

Definition at line 54 of file wifi-mpdu.cc.

References m_packet.

◆ GetPacketSize()

uint32_t ns3::WifiMpdu::GetPacketSize ( ) const

Return the size in bytes of the packet or control header or management header stored by this item.

Returns: the size in bytes of the packet or control header or management header stored by this item

Definition at line 78 of file wifi-mpdu.cc.

References ns3::Packet::GetSize(), and m_packet.

Referenced by GetSize(), and Print().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetProtocolDataUnit()

Ptr< Packet > ns3::WifiMpdu::GetProtocolDataUnit ( ) const

Get the MAC protocol data unit (MPDU) corresponding to this item (i.e.

a copy of the packet stored in this item wrapped with MAC header and trailer)

Returns: the MAC protocol data unit corresponding to this item.

Definition at line 96 of file wifi-mpdu.cc.

References ns3::Packet::AddHeader(), ns3::AddWifiMacTrailer(), ns3::Packet::Copy(), m_header, and m_packet.

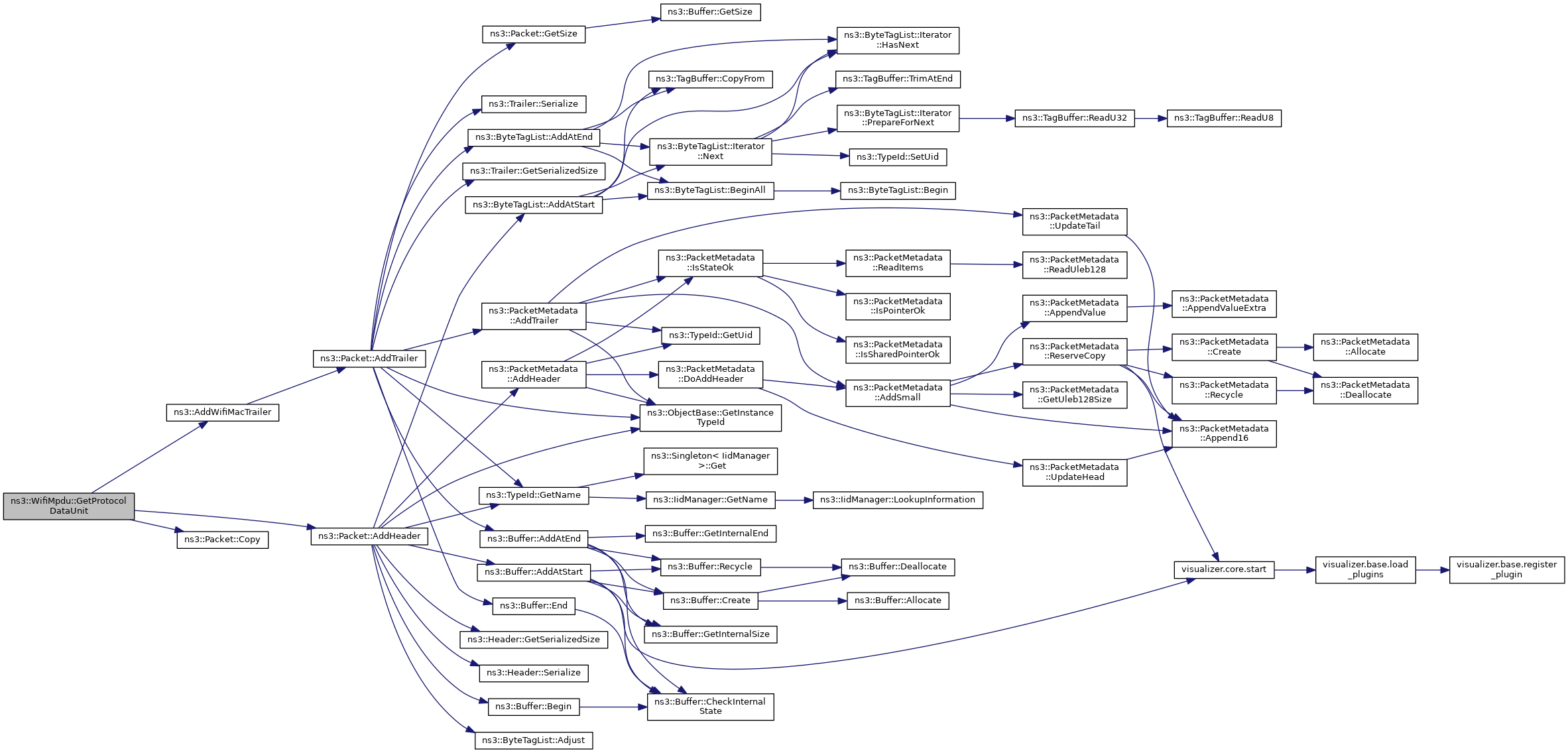

Here is the call graph for this function:

◆ GetQueueAc()

AcIndex ns3::WifiMpdu::GetQueueAc ( ) const

Get the AC of the queue this item is stored into.

Abort if this item is not stored in a queue.

Returns: the AC of the queue this item is stored into

Definition at line 206 of file wifi-mpdu.cc.

References IsQueued(), and NS_ASSERT.

Here is the call graph for this function:

◆ GetQueueIt()

WifiMpdu::Iterator ns3::WifiMpdu::GetQueueIt ( WmqIteratorTag tag ) const

Parameters

tag	a wifi MAC queue iterator tag (allows only WifiMacQueue to call this method)

Returns: the queue iterator stored by this object

Definition at line 199 of file wifi-mpdu.cc.

References IsQueued(), m_queueIt, and NS_ASSERT.

Here is the call graph for this function:

◆ GetSize()

uint32_t ns3::WifiMpdu::GetSize ( ) const

Return the size of the packet stored by this item, including header size and trailer size.

Returns: the size of the packet stored by this item in bytes.

Definition at line 84 of file wifi-mpdu.cc.

References GetPacketSize(), ns3::WifiMacHeader::GetSerializedSize(), m_header, and ns3::WIFI_MAC_FCS_LENGTH.

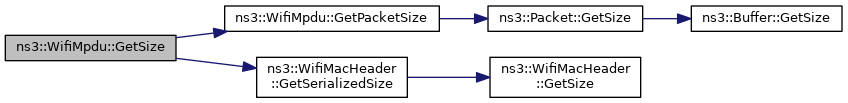

Here is the call graph for this function:

◆ IsFragment()

bool ns3::WifiMpdu::IsFragment ( ) const

Return true if this item contains an MSDU fragment, false otherwise.

Returns: true if this item contains an MSDU fragment, false otherwise

Definition at line 90 of file wifi-mpdu.cc.

References ns3::WifiMacHeader::GetFragmentNumber(), ns3::WifiMacHeader::IsMoreFragments(), and m_header.

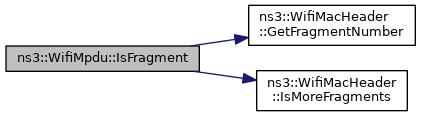

Here is the call graph for this function:

◆ IsInFlight()

bool ns3::WifiMpdu::IsInFlight ( ) const

Return true if this MPDU is in flight, false otherwise.

Returns: true if this MPDU is in flight, false otherwise

Definition at line 232 of file wifi-mpdu.cc.

References m_inFlight.

Referenced by Print().

Here is the caller graph for this function:

◆ IsQueued()

bool ns3::WifiMpdu::IsQueued ( ) const

Return true if this item is stored in some queue, false otherwise.

Returns: true if this item is stored in some queue, false otherwise

Definition at line 187 of file wifi-mpdu.cc.

References m_queueIt.

Referenced by GetExpiryTime(), GetQueueAc(), GetQueueIt(), and Print().

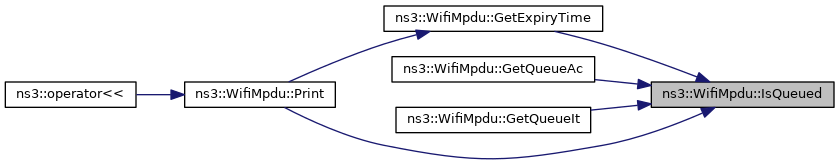

Here is the caller graph for this function:

◆ Print()

void ns3::WifiMpdu::Print ( std::ostream & os ) const

virtual

Print the item contents.

Parameters

os	output stream in which the data should be printed.

Definition at line 250 of file wifi-mpdu.cc.

References ns3::WifiMacHeader::GetAddr1(), ns3::WifiMacHeader::GetDuration(), GetExpiryTime(), GetPacketSize(), ns3::WifiMacHeader::GetQosTid(), ns3::WifiMacHeader::GetSequenceNumber(), ns3::WifiMacHeader::GetTypeString(), IsInFlight(), ns3::WifiMacHeader::IsQosAck(), ns3::WifiMacHeader::IsQosBlockAck(), ns3::WifiMacHeader::IsQosData(), ns3::WifiMacHeader::IsQosNoAck(), IsQueued(), m_header, m_packet, ns3::Simulator::Now(), and ns3::Time::US.

Referenced by ns3::operator<<().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ResetInFlight()

void ns3::WifiMpdu::ResetInFlight ( )

Mark this MPDU as not being in flight (only used if Block Ack agreement established).

Definition at line 226 of file wifi-mpdu.cc.

References m_inFlight.

◆ SetInFlight()

void ns3::WifiMpdu::SetInFlight ( )

Mark this MPDU as being in flight (only used if Block Ack agreement established).

Definition at line 220 of file wifi-mpdu.cc.

References m_inFlight.

◆ SetQueueIt()

void ns3::WifiMpdu::SetQueueIt	(	std::optional< Iterator >	queueIt,
		WmqIteratorTag	tag
	)

Set the queue iterator stored by this object.

Parameters

queueIt	the queue iterator for this object
tag	a wifi MAC queue iterator tag (allows only WifiMacQueue to call this method)

Definition at line 193 of file wifi-mpdu.cc.

References m_queueIt.

Member Data Documentation

◆ m_header

WifiMacHeader ns3::WifiMpdu::m_header

private

Wifi MAC header associated with the packet.

Definition at line 215 of file wifi-mpdu.h.

Referenced by Aggregate(), GetDestinationAddress(), GetHeader(), GetProtocolDataUnit(), GetSize(), IsFragment(), and Print().

◆ m_inFlight

bool ns3::WifiMpdu::m_inFlight

private

whether the MPDU is in flight

Definition at line 218 of file wifi-mpdu.h.

Referenced by WifiMpdu(), IsInFlight(), ResetInFlight(), and SetInFlight().

◆ m_msduList

DeaggregatedMsdus ns3::WifiMpdu::m_msduList

private

The list of aggregated MSDUs included in this MPDU.

Definition at line 216 of file wifi-mpdu.h.

Referenced by WifiMpdu(), Aggregate(), begin(), DoAggregate(), and end().

◆ m_packet

Ptr<const Packet> ns3::WifiMpdu::m_packet

private

The packet (MSDU or A-MSDU) contained in this queue item.

Definition at line 214 of file wifi-mpdu.h.

Referenced by Aggregate(), DoAggregate(), GetPacket(), GetPacketSize(), GetProtocolDataUnit(), and Print().

◆ m_queueIt

std::optional<Iterator> ns3::WifiMpdu::m_queueIt

private

Queue iterator pointing to this MPDU, if queued.

Definition at line 217 of file wifi-mpdu.h.

Referenced by GetQueueIt(), IsQueued(), and SetQueueIt().

The documentation for this class was generated from the following files:

src/wifi/model/wifi-mpdu.h
src/wifi/model/wifi-mpdu.cc

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ DeaggregatedMsdus

◆ DeaggregatedMsdusCI

◆ Iterator

Constructor & Destructor Documentation

◆ WifiMpdu()

◆ ~WifiMpdu()

Member Function Documentation

◆ Aggregate()

◆ begin()

◆ DoAggregate()

◆ end()

◆ GetDestinationAddress()

◆ GetExpiryTime()

◆ GetHeader() [1/2]

◆ GetHeader() [2/2]

◆ GetPacket()

◆ GetPacketSize()

◆ GetProtocolDataUnit()

◆ GetQueueAc()

◆ GetQueueIt()

◆ GetSize()

◆ IsFragment()

◆ IsInFlight()

◆ IsQueued()

◆ Print()

◆ ResetInFlight()

◆ SetInFlight()

◆ SetQueueIt()

Member Data Documentation

◆ m_header

◆ m_inFlight

◆ m_msduList

◆ m_packet

◆ m_queueIt
