NeighborCacheExample Class Reference

Neigbor Cache example class. More...

Collaboration diagram for NeighborCacheExample:

Public Member Functions
	NeighborCacheExample ()
void	CommandSetup (int argc, char **argv)
	description the command-line parameters. More...
void	Run ()
	Run the example. More...

Private Member Functions
void	ReceivePacket (Ptr< const Packet > pkt, const Address &from, const Address &dst, const SeqTsSizeHeader &header)
	Print the information of receive data. More...

Private Attributes
bool	m_enableLog {false}
	Enable ArpL3Protocol and Icmpv6L4Protocol logging. More...
bool	m_noGenerate {false}
	do not generate neighbor cache automatically More...
bool	m_sendTraffic {false}
	send data stream from n0 to n1 More...
bool	m_useChannel {false}
	Generate neighbor cache for specific Channel. More...
bool	m_useInterfaceContainer
	Generate neighbor cache for specific interfaceContainer. More...
bool	m_useIpv6 {false}
	Use IPv6 instead of IPv4. More...
bool	m_useNetDeviceContainer
	Generate neighbor cache for specific netDeviceContainer. More...

Detailed Description

Neigbor Cache example class.

It handles the creation and run of an example.

Definition at line 297 of file neighbor-cache-example.cc.

Constructor & Destructor Documentation

NeighborCacheExample()

NeighborCacheExample::NeighborCacheExample

(

)

Definition at line 338 of file neighbor-cache-example.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

CommandSetup()

void NeighborCacheExample::CommandSetup	(	int	argc,
		char **	argv
	)

description the command-line parameters.

Parameters

argc	The argument count.
argv	The argument vector.

Definition at line 353 of file neighbor-cache-example.cc.

References second::cmd, m_enableLog, m_noGenerate, m_sendTraffic, m_useChannel, m_useInterfaceContainer, m_useIpv6, and m_useNetDeviceContainer.

ReceivePacket()

void NeighborCacheExample::ReceivePacket ( Ptr< const Packet >  pkt, const Address &  from, const Address &  dst, const SeqTsSizeHeader &  header  )

private

Print the information of receive data.

Parameters

pkt	The received packet.
from	The sender.
dst	The receiver.
header	The header with a sequence, a timestamp, and a "size" attribute

Definition at line 344 of file neighbor-cache-example.cc.

Referenced by Run().

Here is the caller graph for this function:

Run()

void NeighborCacheExample::Run

(

)

Run the example.

Definition at line 381 of file neighbor-cache-example.cc.

References ns3::NodeContainer::Add(), first::address, ns3::NodeContainer::Create(), ns3::AsciiTraceHelper::CreateFileStream(), ns3::AsciiTraceHelperForDevice::EnableAsciiAll(), ns3::PcapHelperForDevice::EnablePcapAll(), ns3::Ipv4InterfaceContainer::Get(), ns3::Ipv6InterfaceContainer::Get(), ns3::ApplicationContainer::Get(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Ipv6InterfaceContainer::GetAddress(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::OnOffHelper::Install(), ns3::CsmaHelper::Install(), first::interfaces, ns3::LOG_LEVEL_LOGIC, ns3::LogComponentEnable(), m_enableLog, m_noGenerate, m_sendTraffic, m_useChannel, m_useInterfaceContainer, m_useIpv6, m_useNetDeviceContainer, ns3::MakeCallback(), ns3::MicroSeconds(), ns3::NeighborCacheHelper::PopulateNeighborCache(), port, ReceivePacket(), ns3::Seconds(), ns3::OnOffHelper::SetAttribute(), ns3::CsmaHelper::SetChannelAttribute(), ns3::OnOffHelper::SetConstantRate(), ns3::Ipv6InterfaceContainer::SetDefaultRouteInAllNodes(), ns3::Ipv6InterfaceContainer::SetForwarding(), sink, first::stack, ns3::ApplicationContainer::Start(), and ns3::ObjectBase::TraceConnectWithoutContext().

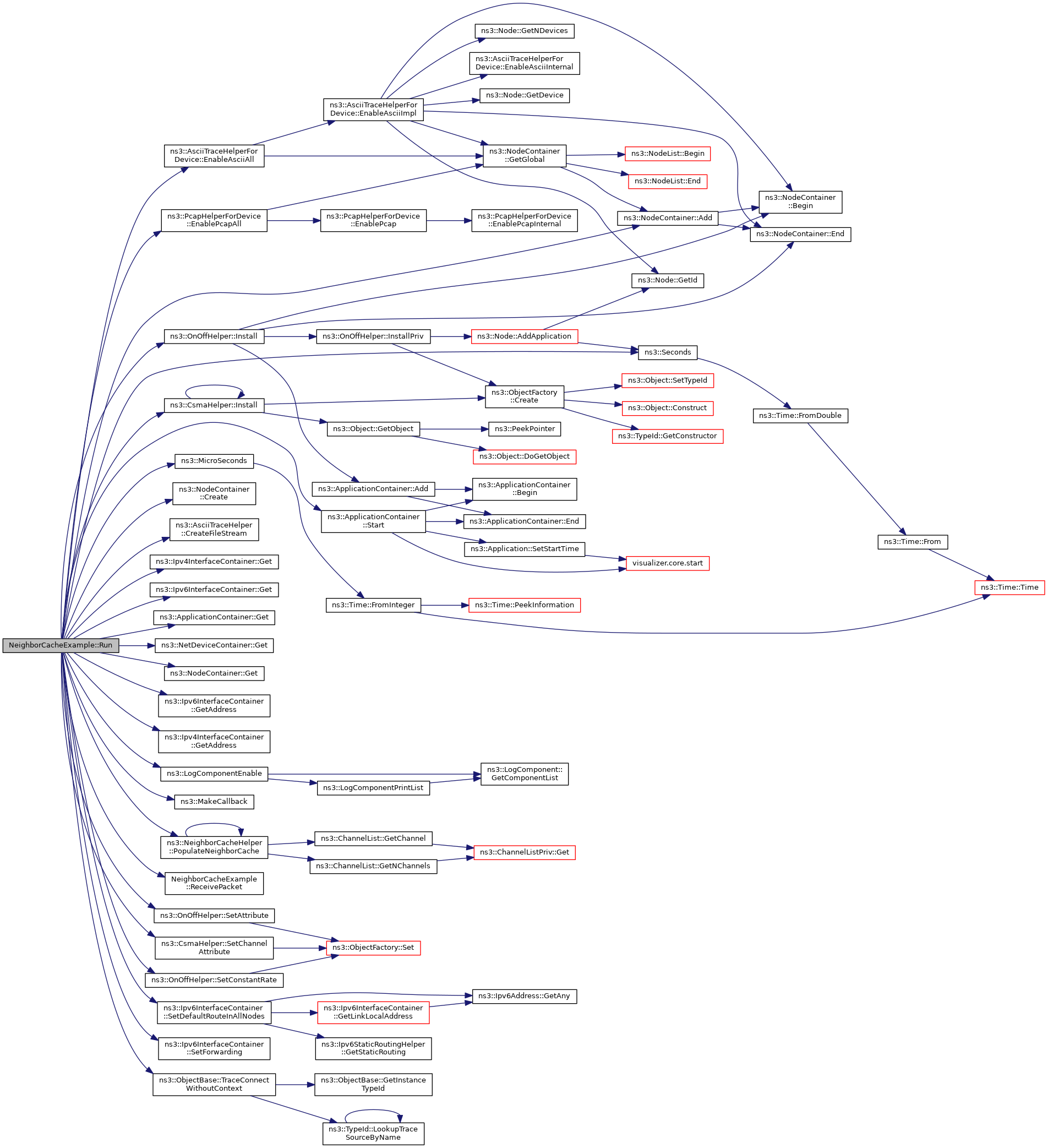

Here is the call graph for this function:

Member Data Documentation

m_enableLog

bool NeighborCacheExample::m_enableLog {false}

private

Enable ArpL3Protocol and Icmpv6L4Protocol logging.

Definition at line 328 of file neighbor-cache-example.cc.

Referenced by CommandSetup(), and Run().

m_noGenerate

bool NeighborCacheExample::m_noGenerate {false}

private

do not generate neighbor cache automatically

Definition at line 334 of file neighbor-cache-example.cc.

Referenced by CommandSetup(), and Run().

m_sendTraffic

bool NeighborCacheExample::m_sendTraffic {false}

private

send data stream from n0 to n1

Definition at line 335 of file neighbor-cache-example.cc.

Referenced by CommandSetup(), and Run().

m_useChannel

bool NeighborCacheExample::m_useChannel {false}

private

Generate neighbor cache for specific Channel.

Definition at line 329 of file neighbor-cache-example.cc.

Referenced by CommandSetup(), and Run().

m_useInterfaceContainer

bool NeighborCacheExample::m_useInterfaceContainer

private

Initial value:

{
        false}

Generate neighbor cache for specific interfaceContainer.

Definition at line 332 of file neighbor-cache-example.cc.

Referenced by CommandSetup(), and Run().

m_useIpv6

bool NeighborCacheExample::m_useIpv6 {false}

private

Use IPv6 instead of IPv4.

Definition at line 327 of file neighbor-cache-example.cc.

Referenced by CommandSetup(), and Run().

m_useNetDeviceContainer

bool NeighborCacheExample::m_useNetDeviceContainer

private

Initial value:

{
        false}

Generate neighbor cache for specific netDeviceContainer.

Definition at line 330 of file neighbor-cache-example.cc.

Referenced by CommandSetup(), and Run().

---

The documentation for this class was generated from the following file:

• src/internet/examples/neighbor-cache-example.cc
