ns3::MemberEpcS1apSapMme< C > Class Template Reference

Template for the implementation of the EpcS1apSapMme as a member of an owner class of type C to which all methods are forwarded. More...

#include "epc-s1ap-sap.h"

Inheritance diagram for ns3::MemberEpcS1apSapMme< C >:

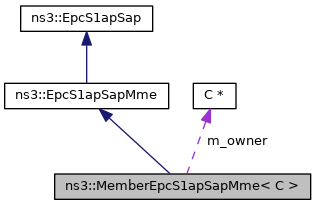

Collaboration diagram for ns3::MemberEpcS1apSapMme< C >:

Public Member Functions
	MemberEpcS1apSapMme (C *owner)
	Constructor. More...
void	ErabReleaseIndication (uint64_t mmeUeS1Id, uint16_t enbUeS1Id, std::list< ErabToBeReleasedIndication > erabToBeReleaseIndication) override
	ERAB Release Indiation function. More...
void	InitialContextSetupResponse (uint64_t mmeUeS1Id, uint16_t enbUeS1Id, std::list< ErabSetupItem > erabSetupList) override
	Initial context setup response. More...
void	InitialUeMessage (uint64_t mmeUeS1Id, uint16_t enbUeS1Id, uint64_t imsi, uint16_t ecgi) override
	Initial UE Message function. More...
void	PathSwitchRequest (uint64_t enbUeS1Id, uint64_t mmeUeS1Id, uint16_t cgi, std::list< ErabSwitchedInDownlinkItem > erabToBeSwitchedInDownlinkList) override
	Path switch request. More...
virtual void	ErabReleaseIndication (uint64_t mmeUeS1Id, uint16_t enbUeS1Id, std::list< ErabToBeReleasedIndication > erabToBeReleaseIndication)=0
	As per 3GPP TS 36.413 version 9.8.0 section 8.2.3.2.2, the eNB indicates bearer release by sending an E-RAB RELEASE INDICATION message towards MME. More...
virtual void	InitialContextSetupResponse (uint64_t mmeUeS1Id, uint16_t enbUeS1Id, std::list< ErabSetupItem > erabSetupList)=0
	INITIAL CONTEXT SETUP RESPONSE message, see 3GPP TS 36.413 9.1.4.2. More...
virtual void	InitialUeMessage (uint64_t mmeUeS1Id, uint16_t enbUeS1Id, uint64_t stmsi, uint16_t ecgi)=0
	Initial UE message. More...
virtual void	PathSwitchRequest (uint64_t enbUeS1Id, uint64_t mmeUeS1Id, uint16_t gci, std::list< ErabSwitchedInDownlinkItem > erabToBeSwitchedInDownlinkList)=0
	PATH SWITCH REQUEST message, see 3GPP TS 36.413 9.1.5.8. More...
Public Member Functions inherited from ns3::EpcS1apSap
virtual	~EpcS1apSap ()

Private Member Functions
	MemberEpcS1apSapMme ()

Private Attributes
C *	m_owner
	owner class More...

Detailed Description

template<class C>
class ns3::MemberEpcS1apSapMme< C >

Template for the implementation of the EpcS1apSapMme as a member of an owner class of type C to which all methods are forwarded.

Definition at line 195 of file epc-s1ap-sap.h.

Constructor & Destructor Documentation

MemberEpcS1apSapMme() [1/2]

template<class C >

ns3::MemberEpcS1apSapMme< C >::MemberEpcS1apSapMme

(

C *

owner

)

Constructor.

Parameters

owner

the owner class

Definition at line 256 of file epc-s1ap-sap.h.

MemberEpcS1apSapMme() [2/2]

template<class C >

ns3::MemberEpcS1apSapMme< C >::MemberEpcS1apSapMme

private

Definition at line 262 of file epc-s1ap-sap.h.

Member Function Documentation

ErabReleaseIndication()

template<class C >

void ns3::MemberEpcS1apSapMme< C >::ErabReleaseIndication ( uint64_t  mmeUeS1Id, uint16_t  enbUeS1Id, std::list< ErabToBeReleasedIndication >  erabToBeReleaseIndication  )

overridevirtual

ERAB Release Indiation function.

Parameters

mmeUeS1Id	in practice, we use the IMSI
enbUeS1Id	in practice, we use the RNTI
erabToBeReleaseIndication	List of ERAB to be release indication

Implements ns3::EpcS1apSapMme.

Definition at line 278 of file epc-s1ap-sap.h.

InitialContextSetupResponse()

template<class C >

void ns3::MemberEpcS1apSapMme< C >::InitialContextSetupResponse ( uint64_t  mmeUeS1Id, uint16_t  enbUeS1Id, std::list< ErabSetupItem >  erabSetupList  )

overridevirtual

Initial context setup response.

Parameters

mmeUeS1Id	in practice, we use the IMSI
enbUeS1Id	in practice, we use the RNTI
erabSetupList	List of ERAB setup

Implements ns3::EpcS1apSapMme.

Definition at line 288 of file epc-s1ap-sap.h.

InitialUeMessage()

template<class C >

void ns3::MemberEpcS1apSapMme< C >::InitialUeMessage ( uint64_t  mmeUeS1Id, uint16_t  enbUeS1Id, uint64_t  imsi, uint16_t  ecgi  )

overridevirtual

Initial UE Message function.

Parameters

mmeUeS1Id	in practice, we use the IMSI
enbUeS1Id	in practice, we use the RNTI
imsi	the IMSI
ecgi	ECGI

Implements ns3::EpcS1apSapMme.

Definition at line 268 of file epc-s1ap-sap.h.

PathSwitchRequest()

template<class C >

void ns3::MemberEpcS1apSapMme< C >::PathSwitchRequest ( uint64_t  enbUeS1Id, uint64_t  mmeUeS1Id, uint16_t  cgi, std::list< ErabSwitchedInDownlinkItem >  erabToBeSwitchedInDownlinkList  )

overridevirtual

Path switch request.

Parameters

enbUeS1Id	in practice, we use the RNTI
mmeUeS1Id	in practice, we use the IMSI
cgi	CGI
erabToBeSwitchedInDownlinkList	List of ERAB to be switched in downlink

Implements ns3::EpcS1apSapMme.

Definition at line 297 of file epc-s1ap-sap.h.

Member Data Documentation

m_owner

template<class C >

C* ns3::MemberEpcS1apSapMme< C >::m_owner

private

owner class

Definition at line 252 of file epc-s1ap-sap.h.

---

The documentation for this class was generated from the following file:

• src/lte/model/epc-s1ap-sap.h
