Test frequency reuse algorithm by teleporing UEs to different parts of area and checking if the frequency is used according to the frequency pattern for different parts of area. More...

#include "lte-test-frequency-reuse.h"

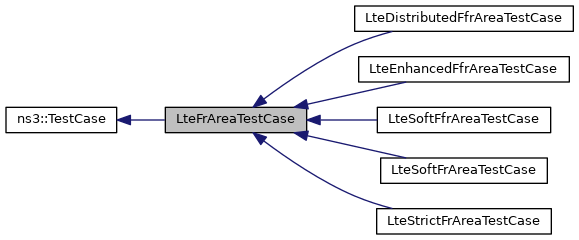

Inheritance diagram for LteFrAreaTestCase:

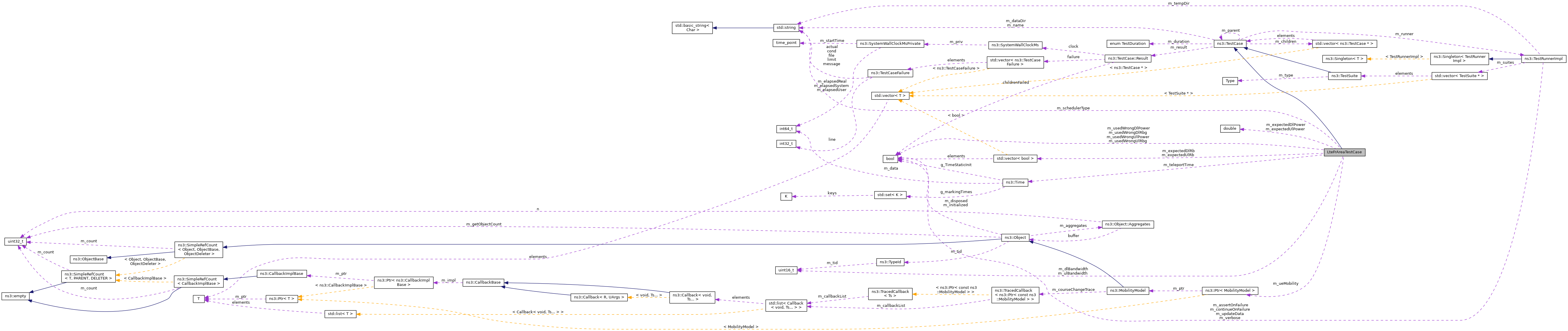

Collaboration diagram for LteFrAreaTestCase:

Public Member Functions
	LteFrAreaTestCase (std::string name, std::string schedulerType)
	Constructor. More...

	~LteFrAreaTestCase () override

void	DlDataRxStart (Ptr< const SpectrumValue > spectrumValue)
	DL data receive start function. More...

void	SetDlExpectedValues (double expectedPower, std::vector< bool > expectedDlRb)
	Set DL expected values function. More...

void	SetUlExpectedValues (double expectedPower, std::vector< bool > expectedDlRb)
	Set UL expected values function. More...

void	SimpleTeleportUe (uint32_t x, uint32_t y)
	Simple teleport UE function. More...

void	TeleportUe (uint32_t x, uint32_t y, double expectedPower, std::vector< bool > expectedDlRb)
	Teleport UE function. More...

void	TeleportUe2 (Ptr< Node > ueNode, uint32_t x, uint32_t y, double expectedPower, std::vector< bool > expectedDlRb)
	Teleport UE 2 function. More...

void	UlDataRxStart (Ptr< const SpectrumValue > spectrumValue)
	UL data receive start function. More...

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Protected Member Functions
void	DoRun () override
	Implementation to actually run this TestCase. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure () const
	Check if any tests failed. More...

bool	IsStatusSuccess () const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Protected Attributes
uint16_t	m_dlBandwidth
	the DL bandwidth More...

double	m_expectedDlPower
	the expected DL power More...

std::vector< bool >	m_expectedDlRb
	the expected DL per RB More...

double	m_expectedUlPower
	expected UL power More...

std::vector< bool >	m_expectedUlRb
	expected UL per RB More...

std::string	m_schedulerType
	the scheduler type More...

Time	m_teleportTime
	the telport time More...

Ptr< MobilityModel >	m_ueMobility
	the UE mobility model More...

uint16_t	m_ulBandwidth
	the UL bandwidth More...

bool	m_usedWrongDlPower
	used wrong DL power? More...

bool	m_usedWrongDlRbg
	used wrong DL RBG? More...

bool	m_usedWrongUlPower
	used wrong UL power? More...

bool	m_usedWrongUlRbg
	used wrong UL RBG? More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Detailed Description

Test frequency reuse algorithm by teleporing UEs to different parts of area and checking if the frequency is used according to the frequency pattern for different parts of area.

Test fails if the muted frequencies for a given part of area are being used by UE.

Definition at line 218 of file lte-test-frequency-reuse.h.

Constructor & Destructor Documentation

◆ LteFrAreaTestCase()

LteFrAreaTestCase::LteFrAreaTestCase	(	std::string	name,
		std::string	schedulerType
	)

Constructor.

Parameters

name	the reference name
schedulerType	the scheduler type

Definition at line 796 of file lte-test-frequency-reuse.cc.

References m_dlBandwidth, m_ulBandwidth, m_usedWrongDlRbg, and m_usedWrongUlRbg.

◆ ~LteFrAreaTestCase()

LteFrAreaTestCase::~LteFrAreaTestCase ( )

override

Definition at line 806 of file lte-test-frequency-reuse.cc.

Member Function Documentation

◆ DlDataRxStart()

void LteFrAreaTestCase::DlDataRxStart ( Ptr< const SpectrumValue > spectrumValue )

DL data receive start function.

Parameters

spectrumValue the DL receive specturm value

Definition at line 811 of file lte-test-frequency-reuse.cc.

References m_dlBandwidth, m_expectedDlPower, m_expectedDlRb, m_teleportTime, m_usedWrongDlRbg, ns3::MilliSeconds(), ns3::Now(), NS_LOG_DEBUG, and NS_TEST_ASSERT_MSG_EQ_TOL.

Referenced by DlDataRxStartNofiticationArea().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRun()

void LteFrAreaTestCase::DoRun ( )

overrideprotectedvirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Reimplemented in LteStrictFrAreaTestCase, LteSoftFrAreaTestCase, LteSoftFfrAreaTestCase, LteEnhancedFfrAreaTestCase, and LteDistributedFfrAreaTestCase.

Definition at line 955 of file lte-test-frequency-reuse.cc.

◆ SetDlExpectedValues()

void LteFrAreaTestCase::SetDlExpectedValues	(	double	expectedPower,
		std::vector< bool >	expectedDlRb
	)

Set DL expected values function.

Parameters

expectedPower	the expected power
expectedDlRb	the expected DL pwr RB

Definition at line 939 of file lte-test-frequency-reuse.cc.

References m_expectedDlPower, m_expectedDlRb, and NS_LOG_FUNCTION.

◆ SetUlExpectedValues()

void LteFrAreaTestCase::SetUlExpectedValues	(	double	expectedPower,
		std::vector< bool >	expectedDlRb
	)

Set UL expected values function.

Parameters

expectedPower	the expected power
expectedDlRb	the expected DL pwr RB

Definition at line 947 of file lte-test-frequency-reuse.cc.

References m_expectedUlPower, m_expectedUlRb, and NS_LOG_FUNCTION.

Referenced by LteStrictFrAreaTestCase::DoRun(), LteSoftFrAreaTestCase::DoRun(), LteSoftFfrAreaTestCase::DoRun(), LteEnhancedFfrAreaTestCase::DoRun(), and LteDistributedFfrAreaTestCase::DoRun().

Here is the caller graph for this function:

◆ SimpleTeleportUe()

void LteFrAreaTestCase::SimpleTeleportUe	(	uint32_t	x,
		uint32_t	y
	)

Simple teleport UE function.

Parameters

x	the X position
y	the Y position

Definition at line 899 of file lte-test-frequency-reuse.cc.

References m_teleportTime, m_ueMobility, ns3::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::MobilityModel::SetPosition().

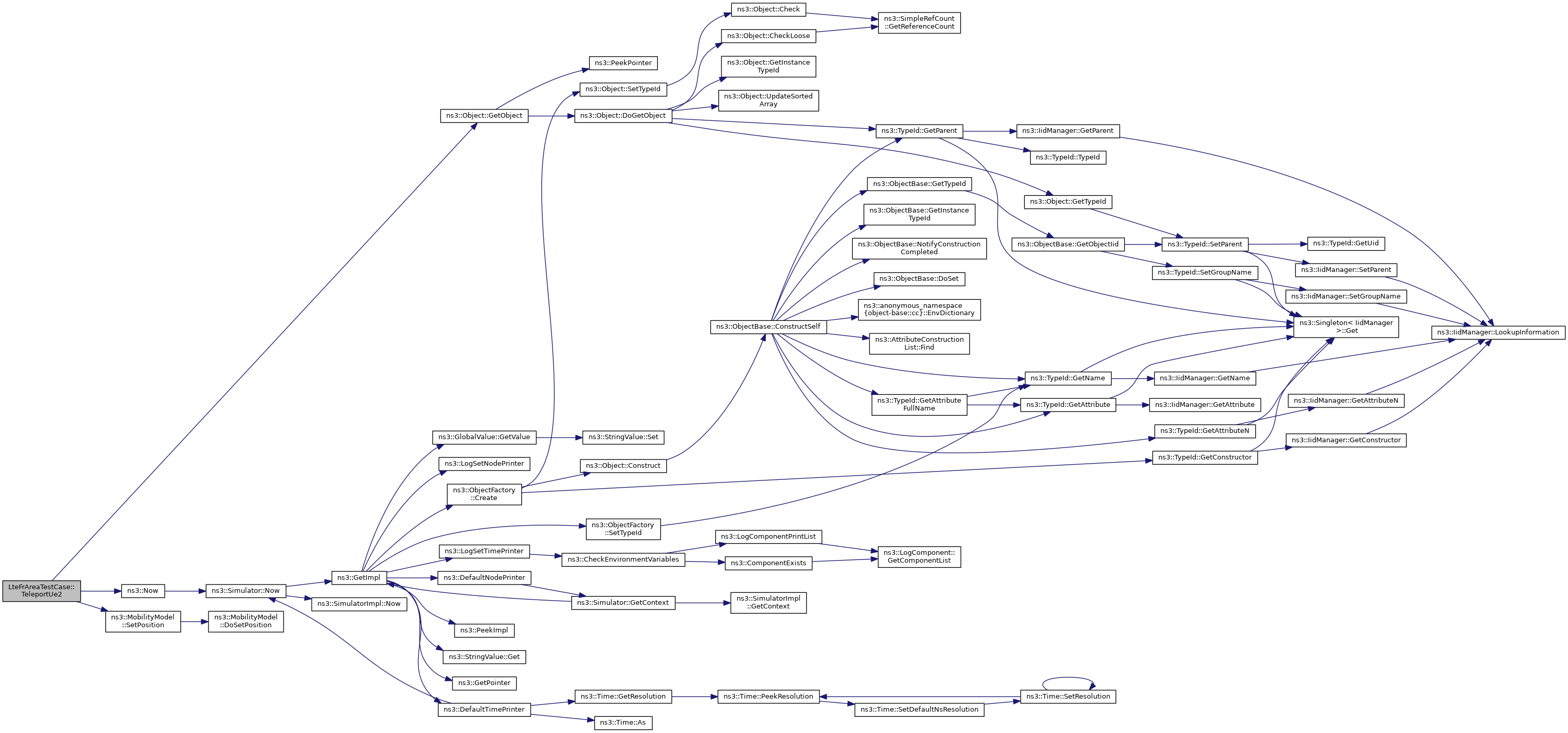

Here is the call graph for this function:

◆ TeleportUe()

void LteFrAreaTestCase::TeleportUe	(	uint32_t	x,
		uint32_t	y,
		double	expectedPower,
		std::vector< bool >	expectedDlRb
	)

Teleport UE function.

Parameters

x	the X position
y	the Y position
expectedPower	the expected power
expectedDlRb	the expected DL pwr RB

Definition at line 908 of file lte-test-frequency-reuse.cc.

References m_expectedDlPower, m_expectedDlRb, m_teleportTime, m_ueMobility, ns3::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::MobilityModel::SetPosition().

Referenced by LteStrictFrAreaTestCase::DoRun(), LteSoftFrAreaTestCase::DoRun(), LteSoftFfrAreaTestCase::DoRun(), LteEnhancedFfrAreaTestCase::DoRun(), and LteDistributedFfrAreaTestCase::DoRun().

Here is the call graph for this function:

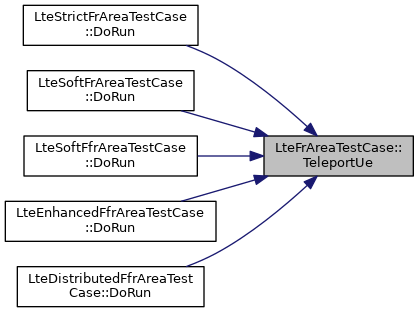

Here is the caller graph for this function:

◆ TeleportUe2()

void LteFrAreaTestCase::TeleportUe2	(	Ptr< Node >	ueNode,
		uint32_t	x,
		uint32_t	y,
		double	expectedPower,
		std::vector< bool >	expectedDlRb
	)

Teleport UE 2 function.

Parameters

ueNode	the UE node
x	the X position
y	the Y position
expectedPower	the expected power
expectedDlRb	the expected DL pwr RB

Definition at line 922 of file lte-test-frequency-reuse.cc.

References ns3::Object::GetObject(), m_expectedDlPower, m_expectedDlRb, m_teleportTime, ns3::Now(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::MobilityModel::SetPosition().

Referenced by LteDistributedFfrAreaTestCase::DoRun().

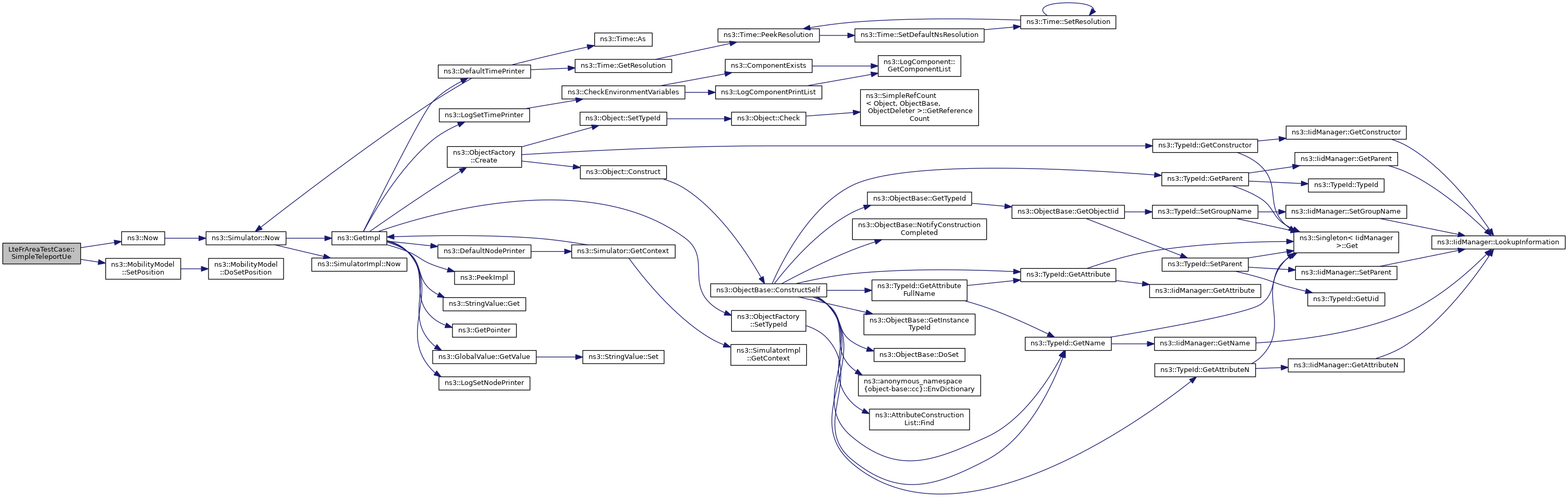

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UlDataRxStart()

void LteFrAreaTestCase::UlDataRxStart ( Ptr< const SpectrumValue > spectrumValue )

UL data receive start function.

Parameters

spectrumValue the UL receive specturm value

Definition at line 847 of file lte-test-frequency-reuse.cc.

References m_expectedUlPower, m_expectedUlRb, m_teleportTime, m_usedWrongUlRbg, ns3::MilliSeconds(), ns3::Now(), NS_LOG_DEBUG, and NS_TEST_ASSERT_MSG_EQ_TOL.

Referenced by UlDataRxStartNofiticationArea().

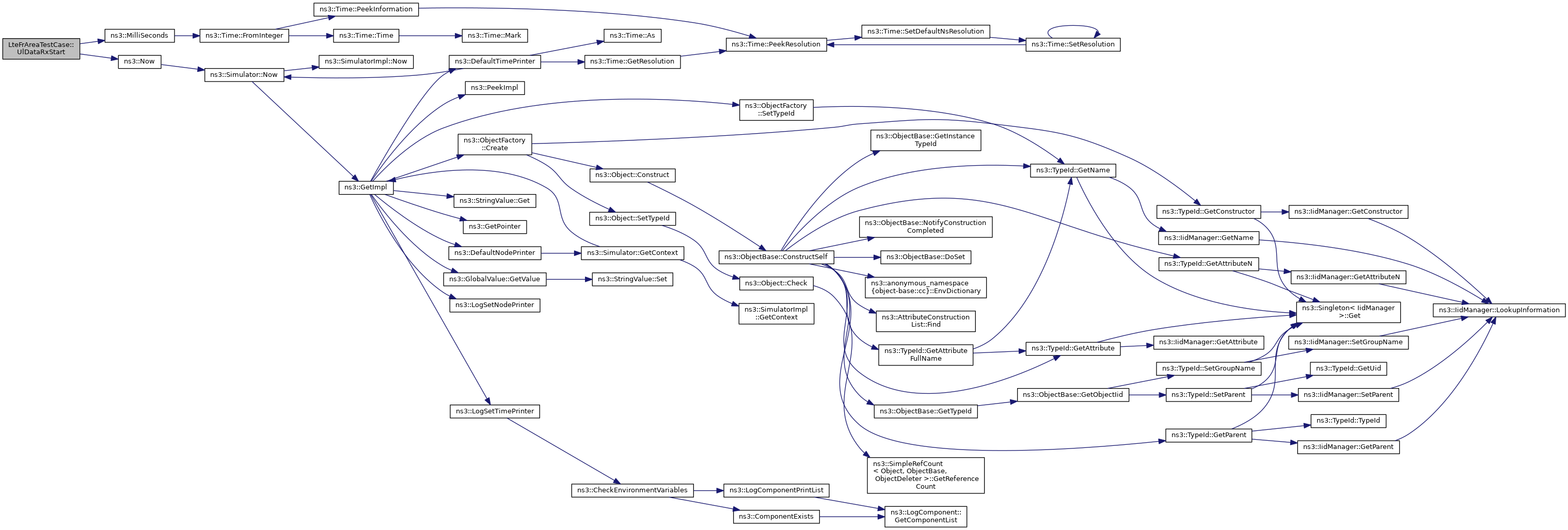

Here is the call graph for this function:

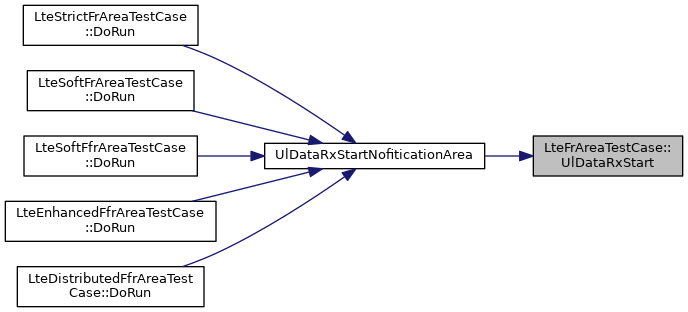

Here is the caller graph for this function:

Member Data Documentation

◆ m_dlBandwidth

uint16_t LteFrAreaTestCase::m_dlBandwidth

protected

the DL bandwidth

Definition at line 287 of file lte-test-frequency-reuse.h.

Referenced by LteFrAreaTestCase(), DlDataRxStart(), LteStrictFrAreaTestCase::DoRun(), LteSoftFrAreaTestCase::DoRun(), LteSoftFfrAreaTestCase::DoRun(), LteEnhancedFfrAreaTestCase::DoRun(), and LteDistributedFfrAreaTestCase::DoRun().

◆ m_expectedDlPower

double LteFrAreaTestCase::m_expectedDlPower

protected

the expected DL power

Definition at line 293 of file lte-test-frequency-reuse.h.

Referenced by DlDataRxStart(), SetDlExpectedValues(), TeleportUe(), and TeleportUe2().

◆ m_expectedDlRb

std::vector<bool> LteFrAreaTestCase::m_expectedDlRb

protected

the expected DL per RB

Definition at line 294 of file lte-test-frequency-reuse.h.

Referenced by DlDataRxStart(), SetDlExpectedValues(), TeleportUe(), and TeleportUe2().

◆ m_expectedUlPower

double LteFrAreaTestCase::m_expectedUlPower

protected

expected UL power

Definition at line 298 of file lte-test-frequency-reuse.h.

Referenced by SetUlExpectedValues(), and UlDataRxStart().

◆ m_expectedUlRb

std::vector<bool> LteFrAreaTestCase::m_expectedUlRb

protected

expected UL per RB

Definition at line 299 of file lte-test-frequency-reuse.h.

Referenced by SetUlExpectedValues(), and UlDataRxStart().

◆ m_schedulerType

std::string LteFrAreaTestCase::m_schedulerType

protected

the scheduler type

Definition at line 285 of file lte-test-frequency-reuse.h.

Referenced by LteStrictFrAreaTestCase::DoRun(), LteSoftFrAreaTestCase::DoRun(), LteSoftFfrAreaTestCase::DoRun(), LteEnhancedFfrAreaTestCase::DoRun(), and LteDistributedFfrAreaTestCase::DoRun().

◆ m_teleportTime

Time LteFrAreaTestCase::m_teleportTime

protected

the telport time

Definition at line 290 of file lte-test-frequency-reuse.h.

Referenced by DlDataRxStart(), SimpleTeleportUe(), TeleportUe(), TeleportUe2(), and UlDataRxStart().

◆ m_ueMobility

Ptr<MobilityModel> LteFrAreaTestCase::m_ueMobility

protected

the UE mobility model

Definition at line 291 of file lte-test-frequency-reuse.h.

Referenced by LteStrictFrAreaTestCase::DoRun(), LteSoftFrAreaTestCase::DoRun(), LteSoftFfrAreaTestCase::DoRun(), LteEnhancedFfrAreaTestCase::DoRun(), LteDistributedFfrAreaTestCase::DoRun(), SimpleTeleportUe(), and TeleportUe().

◆ m_ulBandwidth

uint16_t LteFrAreaTestCase::m_ulBandwidth

protected

the UL bandwidth

Definition at line 288 of file lte-test-frequency-reuse.h.

Referenced by LteFrAreaTestCase(), LteStrictFrAreaTestCase::DoRun(), LteSoftFrAreaTestCase::DoRun(), LteSoftFfrAreaTestCase::DoRun(), LteEnhancedFfrAreaTestCase::DoRun(), and LteDistributedFfrAreaTestCase::DoRun().

◆ m_usedWrongDlPower

bool LteFrAreaTestCase::m_usedWrongDlPower

protected

used wrong DL power?

Definition at line 296 of file lte-test-frequency-reuse.h.

◆ m_usedWrongDlRbg

bool LteFrAreaTestCase::m_usedWrongDlRbg

protected

used wrong DL RBG?

Definition at line 295 of file lte-test-frequency-reuse.h.

Referenced by LteFrAreaTestCase(), DlDataRxStart(), LteStrictFrAreaTestCase::DoRun(), LteSoftFrAreaTestCase::DoRun(), LteSoftFfrAreaTestCase::DoRun(), LteEnhancedFfrAreaTestCase::DoRun(), and LteDistributedFfrAreaTestCase::DoRun().

◆ m_usedWrongUlPower

bool LteFrAreaTestCase::m_usedWrongUlPower

protected

used wrong UL power?

Definition at line 301 of file lte-test-frequency-reuse.h.

◆ m_usedWrongUlRbg

bool LteFrAreaTestCase::m_usedWrongUlRbg

protected

used wrong UL RBG?

Definition at line 300 of file lte-test-frequency-reuse.h.

Referenced by LteFrAreaTestCase(), LteStrictFrAreaTestCase::DoRun(), LteSoftFrAreaTestCase::DoRun(), LteSoftFfrAreaTestCase::DoRun(), LteEnhancedFfrAreaTestCase::DoRun(), LteDistributedFfrAreaTestCase::DoRun(), and UlDataRxStart().

The documentation for this class was generated from the following files:

src/lte/test/lte-test-frequency-reuse.h
src/lte/test/lte-test-frequency-reuse.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ LteFrAreaTestCase()

◆ ~LteFrAreaTestCase()

Member Function Documentation

◆ DlDataRxStart()

◆ DoRun()

◆ SetDlExpectedValues()

◆ SetUlExpectedValues()

◆ SimpleTeleportUe()

◆ TeleportUe()

◆ TeleportUe2()

◆ UlDataRxStart()

Member Data Documentation

◆ m_dlBandwidth

◆ m_expectedDlPower

◆ m_expectedDlRb

◆ m_expectedUlPower

◆ m_expectedUlRb

◆ m_schedulerType

◆ m_teleportTime

◆ m_ueMobility

◆ m_ulBandwidth

◆ m_usedWrongDlPower

◆ m_usedWrongDlRbg

◆ m_usedWrongUlPower

◆ m_usedWrongUlRbg
