VHT PPDU (11ac) More...

#include "vht-ppdu.h"

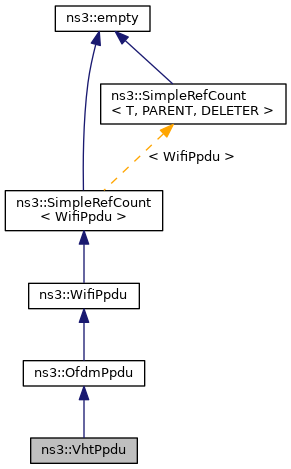

Inheritance diagram for ns3::VhtPpdu:

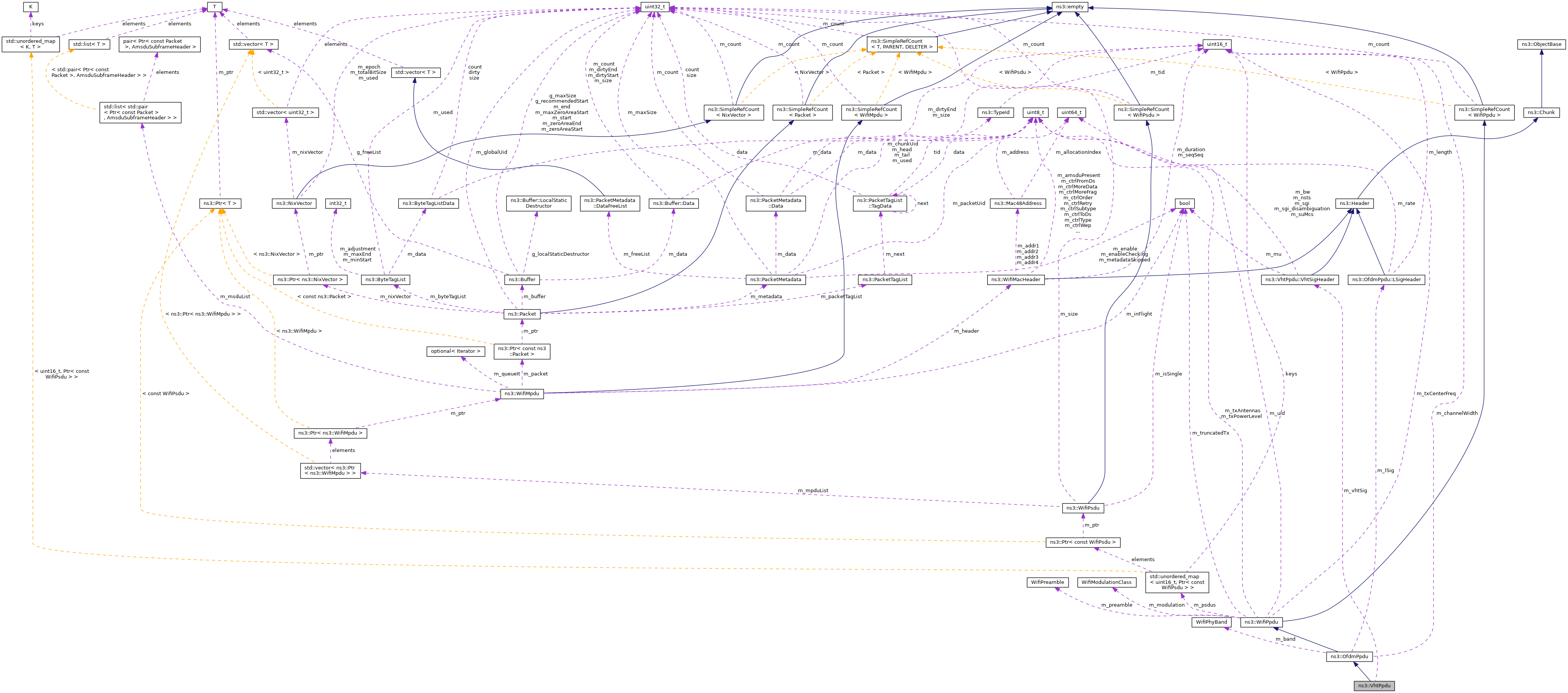

Collaboration diagram for ns3::VhtPpdu:

Classes
class	VhtSigHeader
	VHT PHY header (VHT-SIG-A1/A2/B). More...

Public Member Functions
	VhtPpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, uint16_t txCenterFreq, Time ppduDuration, WifiPhyBand band, uint64_t uid)
	Create a VHT PPDU. More...

	~VhtPpdu () override
	Destructor for VhtPpdu. More...

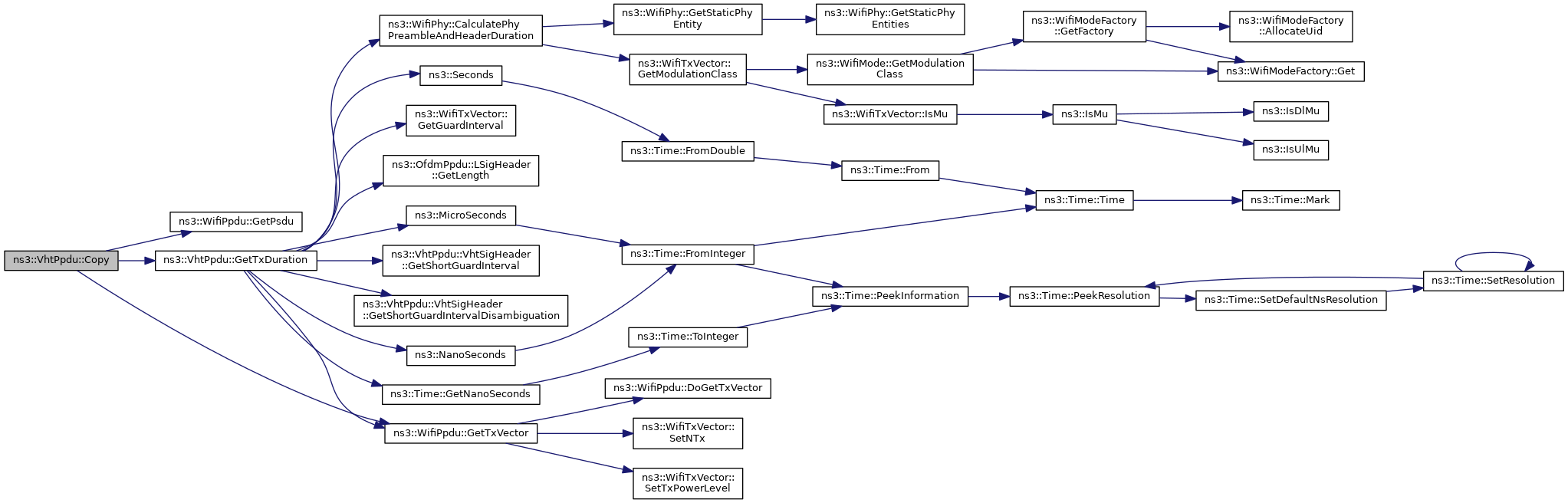

Ptr< WifiPpdu >	Copy () const override
	Copy this instance. More...

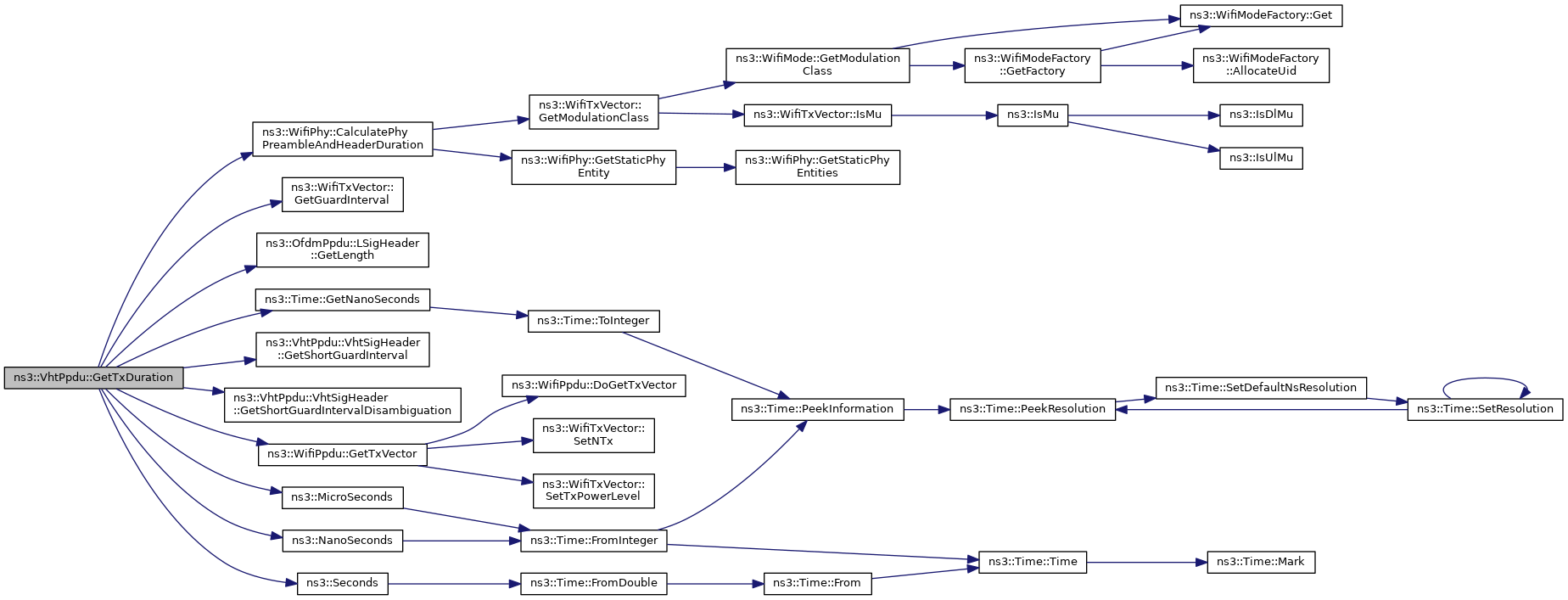

Time	GetTxDuration () const override
	Get the total transmission duration of the PPDU. More...

WifiPpduType	GetType () const override
	Return the PPDU type (. More...

Public Member Functions inherited from ns3::OfdmPpdu
	OfdmPpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, uint16_t txCenterFreq, WifiPhyBand band, uint64_t uid, bool instantiateLSig=true)
	Create an OFDM PPDU. More...

	~OfdmPpdu () override
	Destructor for OfdmPpdu. More...

Ptr< WifiPpdu >	Copy () const override
	Copy this instance. More...

Time	GetTxDuration () const override
	Get the total transmission duration of the PPDU. More...

Public Member Functions inherited from ns3::WifiPpdu
	WifiPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, uint16_t txCenterFreq, uint64_t uid)
	Create a PPDU storing a map of PSDUs. More...

	WifiPpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, uint16_t txCenterFreq, uint64_t uid=UINT64_MAX)
	Create a PPDU storing a PSDU. More...

virtual	~WifiPpdu ()
	Destructor for WifiPpdu. More...

virtual bool	CanBeReceived (uint16_t p20MinFreq, uint16_t p20MaxFreq) const
	Check whether the given PPDU can be received on the specified primary channel. More...

virtual Ptr< WifiPpdu >	Copy () const
	Copy this instance. More...

bool	DoesOverlapChannel (uint16_t minFreq, uint16_t maxFreq) const
	Check whether the given PPDU overlaps a given channel. More...

WifiModulationClass	GetModulation () const
	Get the modulation used for the PPDU. More...

WifiPreamble	GetPreamble () const
	Get the preamble of the PPDU. More...

Ptr< const WifiPsdu >	GetPsdu () const
	Get the payload of the PPDU. More...

virtual uint16_t	GetStaId () const
	Get the ID of the STA that transmitted the PPDU for UL MU, SU_STA_ID otherwise. More...

virtual uint16_t	GetTransmissionChannelWidth () const
	Get the channel width over which the PPDU will effectively be transmitted. More...

virtual Time	GetTxDuration () const
	Get the total transmission duration of the PPDU. More...

WifiTxVector	GetTxVector () const
	Get the TXVECTOR used to send the PPDU. More...

virtual WifiPpduType	GetType () const
	Return the PPDU type (. More...

uint64_t	GetUid () const
	Get the UID of the PPDU. More...

bool	IsTruncatedTx () const

void	Print (std::ostream &os) const
	Print the PPDU contents. More...

void	SetTruncatedTx ()
	Indicate that the PPDU's transmission was aborted due to transmitter switch off. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiPpdu >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Private Member Functions

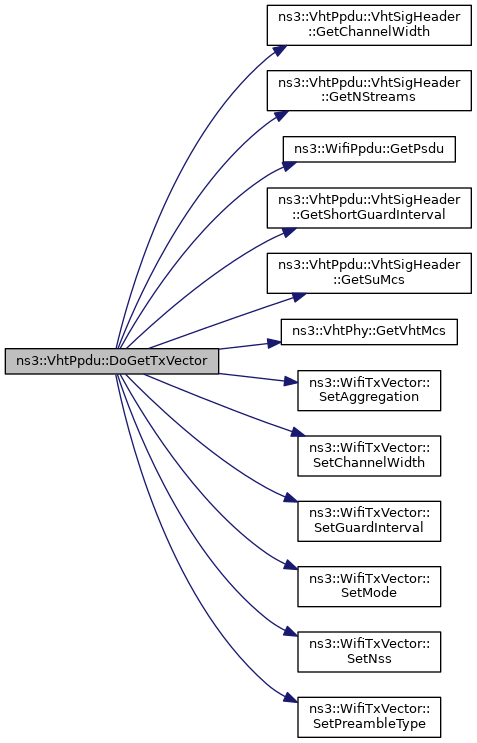

WifiTxVector	DoGetTxVector () const override
	Get the TXVECTOR used to send the PPDU. More...

Private Attributes
VhtSigHeader	m_vhtSig
	the VHT-SIG PHY header More...

Additional Inherited Members
Protected Member Functions inherited from ns3::WifiPpdu
virtual std::string	PrintPayload () const
	Print the payload of the PPDU. More...

Protected Attributes inherited from ns3::OfdmPpdu
WifiPhyBand	m_band
	the WifiPhyBand used to transmit that PPDU More...

uint16_t	m_channelWidth
	the channel width used to transmit that PPDU in MHz More...

LSigHeader	m_lSig
	the L-SIG PHY header More...

Protected Attributes inherited from ns3::WifiPpdu
WifiModulationClass	m_modulation
	the modulation used for the transmission of this PPDU More...

WifiPreamble	m_preamble
	the PHY preamble More...

WifiConstPsduMap	m_psdus
	the PSDUs contained in this PPDU More...

uint16_t	m_txCenterFreq
	the center frequency (MHz) used for the transmission of this PPDU More...

uint64_t	m_uid
	the unique ID of this PPDU More...

Detailed Description

VHT PPDU (11ac)

VhtPpdu stores a preamble, PHY headers and a PSDU of a PPDU with VHT header

Definition at line 44 of file vht-ppdu.h.

Constructor & Destructor Documentation

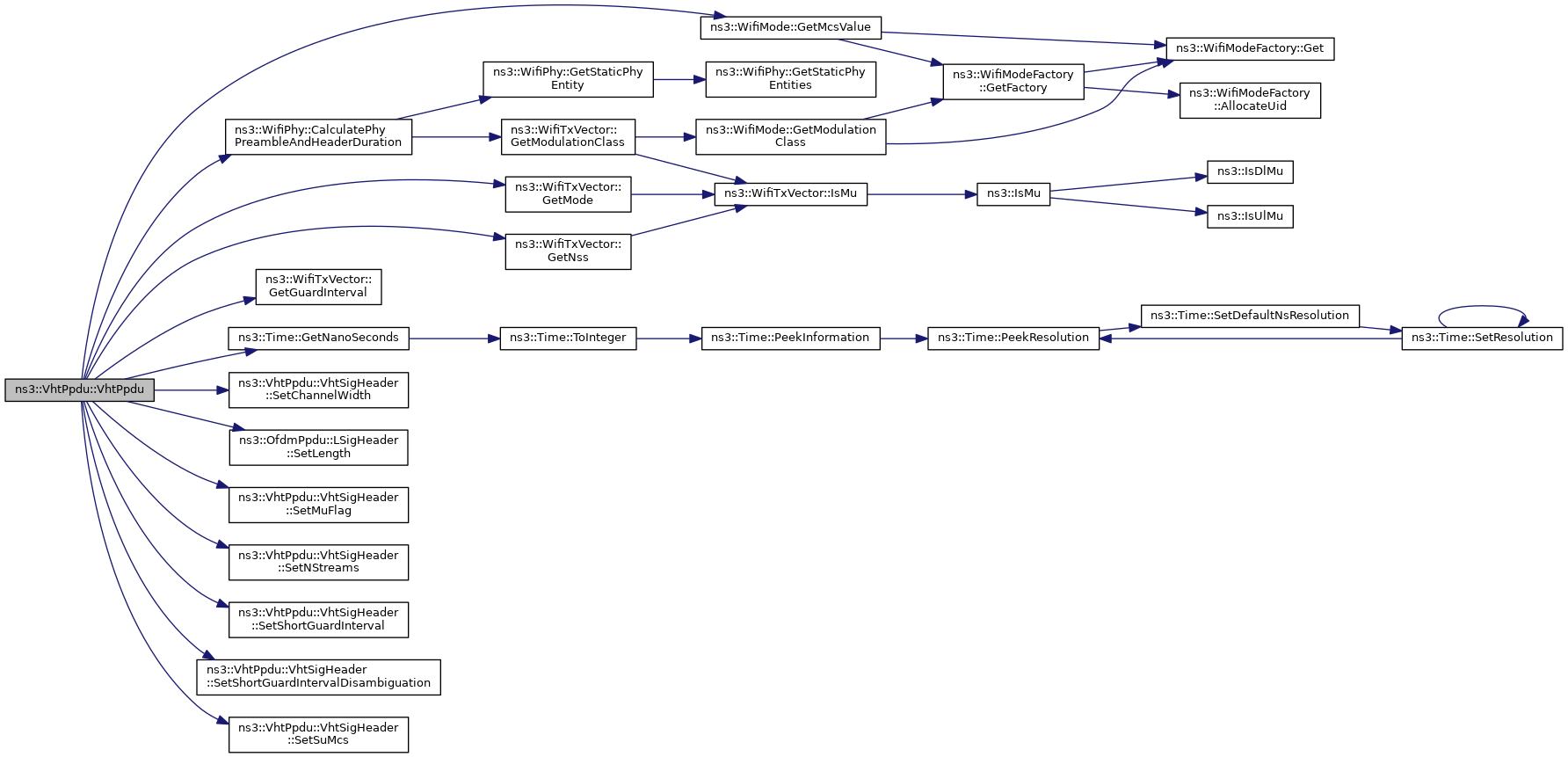

◆ VhtPpdu()

ns3::VhtPpdu::VhtPpdu	(	Ptr< const WifiPsdu >	psdu,
		const WifiTxVector &	txVector,
		uint16_t	txCenterFreq,
		Time	ppduDuration,
		WifiPhyBand	band,
		uint64_t	uid
	)

Create a VHT PPDU.

Parameters

psdu	the PHY payload (PSDU)
txVector	the TXVECTOR that was used for this PPDU
txCenterFreq	the center frequency (MHz) that was used for this PPDU
ppduDuration	the transmission duration of this PPDU
band	the WifiPhyBand used for the transmission of this PPDU
uid	the unique ID of this PPDU
