ns3::MemberEpcS1apSapEnb< C > Class Template Reference

Template for the implementation of the EpcS1apSapEnb as a member of an owner class of type C to which all methods are forwarded. More...

#include "epc-s1ap-sap.h"

Inheritance diagram for ns3::MemberEpcS1apSapEnb< C >:

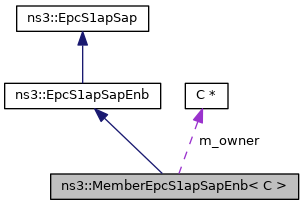

Collaboration diagram for ns3::MemberEpcS1apSapEnb< C >:

Public Member Functions
	MemberEpcS1apSapEnb (C *owner)
	Constructor. More...
void	InitialContextSetupRequest (uint64_t mmeUeS1Id, uint16_t enbUeS1Id, std::list< ErabToBeSetupItem > erabToBeSetupList) override
	Initial context setup request function. More...
void	PathSwitchRequestAcknowledge (uint64_t enbUeS1Id, uint64_t mmeUeS1Id, uint16_t cgi, std::list< ErabSwitchedInUplinkItem > erabToBeSwitchedInUplinkList) override
	Path switch request acknowledge function. More...
virtual void	InitialContextSetupRequest (uint64_t mmeUeS1Id, uint16_t enbUeS1Id, std::list< ErabToBeSetupItem > erabToBeSetupList)=0
	Initial context setup request. More...
virtual void	PathSwitchRequestAcknowledge (uint64_t enbUeS1Id, uint64_t mmeUeS1Id, uint16_t cgi, std::list< ErabSwitchedInUplinkItem > erabToBeSwitchedInUplinkList)=0
	PATH SWITCH REQUEST ACKNOWLEDGE message, see 3GPP TS 36.413 9.1.5.9. More...
Public Member Functions inherited from ns3::EpcS1apSap
virtual	~EpcS1apSap ()

Private Member Functions
	MemberEpcS1apSapEnb ()

Private Attributes
C *	m_owner
	owner class More...

Detailed Description

template<class C>
class ns3::MemberEpcS1apSapEnb< C >

Template for the implementation of the EpcS1apSapEnb as a member of an owner class of type C to which all methods are forwarded.

Definition at line 311 of file epc-s1ap-sap.h.

Constructor & Destructor Documentation

MemberEpcS1apSapEnb() [1/2]

template<class C >

ns3::MemberEpcS1apSapEnb< C >::MemberEpcS1apSapEnb

(

C *

owner

)

Constructor.

Parameters

owner

the owner class

Definition at line 350 of file epc-s1ap-sap.h.

MemberEpcS1apSapEnb() [2/2]

template<class C >

ns3::MemberEpcS1apSapEnb< C >::MemberEpcS1apSapEnb

private

Definition at line 356 of file epc-s1ap-sap.h.

Member Function Documentation

InitialContextSetupRequest()

template<class C >

void ns3::MemberEpcS1apSapEnb< C >::InitialContextSetupRequest ( uint64_t  mmeUeS1Id, uint16_t  enbUeS1Id, std::list< ErabToBeSetupItem >  erabToBeSetupList  )

overridevirtual

Initial context setup request function.

Parameters

mmeUeS1Id	in practice, we use the IMSI
enbUeS1Id	in practice, we use the RNTI
erabToBeSetupList	List of ERAB to be setup

Implements ns3::EpcS1apSapEnb.

Definition at line 362 of file epc-s1ap-sap.h.

PathSwitchRequestAcknowledge()

template<class C >

void ns3::MemberEpcS1apSapEnb< C >::PathSwitchRequestAcknowledge ( uint64_t  enbUeS1Id, uint64_t  mmeUeS1Id, uint16_t  cgi, std::list< ErabSwitchedInUplinkItem >  erabToBeSwitchedInUplinkList  )

overridevirtual

Path switch request acknowledge function.

Parameters

enbUeS1Id	in practice, we use the RNTI
mmeUeS1Id	in practice, we use the IMSI
cgi	CGI
erabToBeSwitchedInUplinkList	List of ERAB to be switched in uplink

Implements ns3::EpcS1apSapEnb.

Definition at line 371 of file epc-s1ap-sap.h.

Member Data Documentation

m_owner

template<class C >

C* ns3::MemberEpcS1apSapEnb< C >::m_owner

private

owner class

Definition at line 346 of file epc-s1ap-sap.h.

---

The documentation for this class was generated from the following file:

• src/lte/model/epc-s1ap-sap.h
