The IEEE 802.11be EHT Capabilities. More...

#include "eht-capabilities.h"

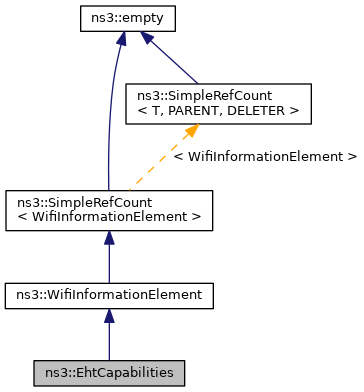

Inheritance diagram for ns3::EhtCapabilities:

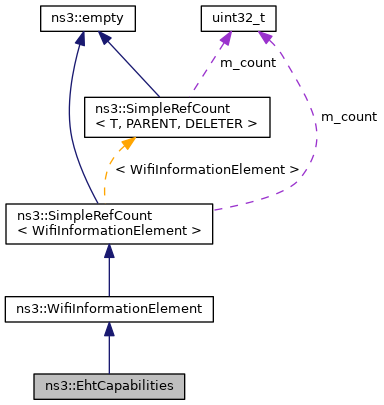

Collaboration diagram for ns3::EhtCapabilities:

Public Member Functions
	EhtCapabilities ()

WifiInformationElementId	ElementId () const override
	Get the wifi information element ID. More...

WifiInformationElementId	ElementIdExt () const override
	Get the wifi information element ID extension. More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE (which may possibly be fragmented into multiple elements), which must be present. More...

virtual WifiInformationElementId	ElementId () const =0
	Get the wifi information element ID. More...

virtual WifiInformationElementId	ElementIdExt () const
	Get the wifi information element ID extension. More...

uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields (for every element this IE is possibly fragmented into). More...

virtual bool	operator== (const WifiInformationElement &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

virtual void	Print (std::ostream &os) const
	Generate human-readable form of IE. More...

Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Private Member Functions
uint16_t	DeserializeInformationField (Buffer::Iterator start, uint16_t length) override
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

uint16_t	GetInformationFieldSize () const override
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

void	SerializeInformationField (Buffer::Iterator start) const override
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::WifiInformationElement
template<typename IE , typename... Args>
static Buffer::Iterator	DeserializeIfPresent (std::optional< IE > &optElem, Buffer::Iterator i, Args &&... args)
	Deserialize an entire IE (which may possibly be fragmented into multiple elements) that is optionally present. More...

Detailed Description

The IEEE 802.11be EHT Capabilities.

Definition at line 33 of file eht-capabilities.h.

Constructor & Destructor Documentation

◆ EhtCapabilities()

ns3::EhtCapabilities::EhtCapabilities ( )

Definition at line 25 of file eht-capabilities.cc.

Member Function Documentation

◆ DeserializeInformationField()

uint16_t ns3::EhtCapabilities::DeserializeInformationField	(	Buffer::Iterator	start,
		uint16_t	length
	)

overrideprivatevirtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length	the expected number of bytes to read

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 54 of file eht-capabilities.cc.

◆ ElementId()

WifiInformationElementId ns3::EhtCapabilities::ElementId ( ) const

overridevirtual

Get the wifi information element ID.

Returns: the wifi information element ID

Implements ns3::WifiInformationElement.

Definition at line 30 of file eht-capabilities.cc.

References IE_EXTENSION.

◆ ElementIdExt()

WifiInformationElementId ns3::EhtCapabilities::ElementIdExt ( ) const

overridevirtual

Get the wifi information element ID extension.

Returns: the wifi information element ID extension

Reimplemented from ns3::WifiInformationElement.

Definition at line 36 of file eht-capabilities.cc.

References IE_EXT_EHT_CAPABILITIES.

◆ GetInformationFieldSize()

uint16_t ns3::EhtCapabilities::GetInformationFieldSize ( ) const

overrideprivatevirtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field - if the IE is not fragmented)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 42 of file eht-capabilities.cc.

◆ SerializeInformationField()

void ns3::EhtCapabilities::SerializeInformationField ( Buffer::Iterator start ) const

overrideprivatevirtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 48 of file eht-capabilities.cc.

The documentation for this class was generated from the following files:

src/wifi/model/eht/eht-capabilities.h
src/wifi/model/eht/eht-capabilities.cc
