ns3::WifiScanParams Struct Reference

Structure holding scan parameters. More...

#include "sta-wifi-mac.h"

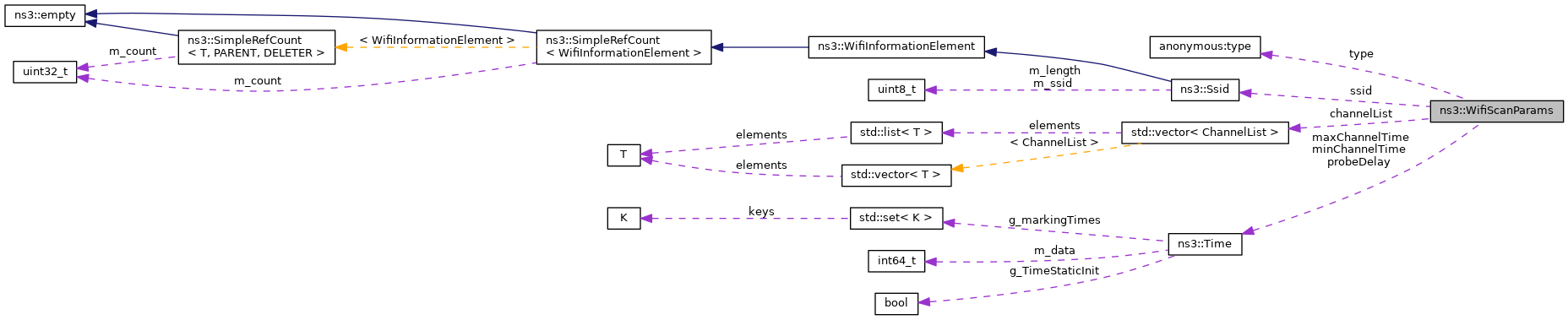

Collaboration diagram for ns3::WifiScanParams:

Classes
struct	Channel
	Struct identifying a channel to scan. More...

Public Types
enum	: uint8_t { ACTIVE = 0 , PASSIVE }
using	ChannelList = std::list< Channel >
	typedef for a list of channels More...

Public Attributes
std::vector< ChannelList >	channelList
	list of channels to scan, for each link More...
Time	maxChannelTime
	maximum time to spend on each channel More...
Time	minChannelTime
	minimum time to spend on each channel More...
Time	probeDelay
	delay prior to transmitting a Probe Request More...
Ssid	ssid
	desired SSID or wildcard SSID More...
enum ns3::WifiScanParams:: { ... }	type
	indicates either active or passive scanning More...

Detailed Description

Structure holding scan parameters.

Definition at line 47 of file sta-wifi-mac.h.

Member Typedef Documentation

ChannelList

using ns3::WifiScanParams::ChannelList = std::list<Channel>

typedef for a list of channels

Definition at line 62 of file sta-wifi-mac.h.

Member Enumeration Documentation

anonymous enum

anonymous enum : uint8_t

Enumerator
ACTIVE
PASSIVE

Definition at line 64 of file sta-wifi-mac.h.

Member Data Documentation

channelList

std::vector<ChannelList> ns3::WifiScanParams::channelList

list of channels to scan, for each link

Definition at line 71 of file sta-wifi-mac.h.

Referenced by ns3::WifiAssocManager::MatchScanParams(), and ns3::StaWifiMac::StartScanning().

maxChannelTime

Time ns3::WifiScanParams::maxChannelTime

maximum time to spend on each channel

Definition at line 74 of file sta-wifi-mac.h.

Referenced by ns3::StaWifiMac::StartScanning().

minChannelTime

Time ns3::WifiScanParams::minChannelTime

minimum time to spend on each channel

Definition at line 73 of file sta-wifi-mac.h.

Referenced by ns3::StaWifiMac::StartScanning().

probeDelay

Time ns3::WifiScanParams::probeDelay

delay prior to transmitting a Probe Request

Definition at line 72 of file sta-wifi-mac.h.

Referenced by ns3::StaWifiMac::StartScanning().

ssid

Ssid ns3::WifiScanParams::ssid

desired SSID or wildcard SSID

Definition at line 70 of file sta-wifi-mac.h.

Referenced by ns3::WifiAssocManager::MatchScanParams(), and ns3::StaWifiMac::StartScanning().

enum { ... } ns3::WifiScanParams::type

indicates either active or passive scanning

Referenced by ns3::StaWifiMac::StartScanning().

---

The documentation for this struct was generated from the following file:

• src/wifi/model/sta-wifi-mac.h
