ns3::WifiPhy Class Reference

802.11 PHY layer model More...

#include <wifi-phy.h>

Inheritance diagram for ns3::WifiPhy:
Inheritance graph
[legend]

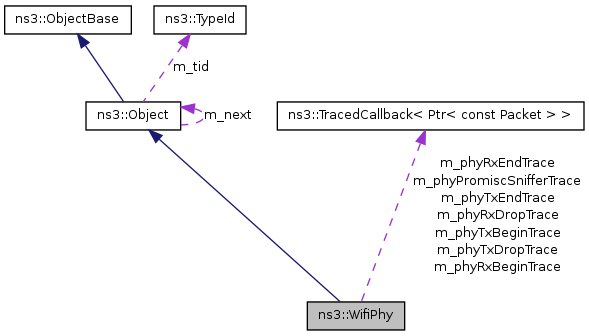

Collaboration diagram for ns3::WifiPhy:
Collaboration graph
[legend]

List of all members.

Public Types

enum  State { SYNC, TX, CCA_BUSY, IDLE }
typedef Callback< void, Ptr
< Packet >, double, WifiMode,
enum WifiPreamble > 		SyncOkCallback
typedef Callback< void, Ptr
< const Packet >, double > 		SyncErrorCallback

Public Member Functions

virtual uint32_t GetNTxPower (void) const =0
virtual void SetReceiveOkCallback (SyncOkCallback callback)=0
virtual void SetReceiveErrorCallback (SyncErrorCallback callback)=0
virtual void SendPacket (Ptr< const Packet > packet, WifiMode mode, enum WifiPreamble preamble, uint8_t txPowerLevel)=0
virtual void RegisterListener (WifiPhyListener *listener)=0
virtual bool IsStateCcaBusy (void)=0
virtual bool IsStateIdle (void)=0
virtual bool IsStateBusy (void)=0
virtual bool IsStateSync (void)=0
virtual bool IsStateTx (void)=0
virtual Time GetStateDuration (void)=0
virtual Time GetDelayUntilIdle (void)=0
virtual Time CalculateTxDuration (uint32_t size, WifiMode payloadMode, enum WifiPreamble preamble) const =0
virtual uint32_t GetNModes (void) const =0
virtual WifiMode GetMode (uint32_t mode) const =0
virtual double CalculateSnr (WifiMode txMode, double ber) const =0
void NotifyTxBegin (Ptr< const Packet > packet)
void NotifyTxEnd (Ptr< const Packet > packet)
void NotifyTxDrop (Ptr< const Packet > packet)
void NotifyRxBegin (Ptr< const Packet > packet)
void NotifyRxEnd (Ptr< const Packet > packet)
void NotifyRxDrop (Ptr< const Packet > packet)
void NotifyPromiscSniff (Ptr< const Packet > packet)

Static Public Member Functions

static TypeId GetTypeId (void)
 This method returns the TypeId associated to ns3::WifiPhy.

Private Attributes

TracedCallback< Ptr< const
Packet > > 		m_phyTxBeginTrace
TracedCallback< Ptr< const
Packet > > 		m_phyTxEndTrace
TracedCallback< Ptr< const
Packet > > 		m_phyTxDropTrace
TracedCallback< Ptr< const
Packet > > 		m_phyRxBeginTrace
TracedCallback< Ptr< const
Packet > > 		m_phyRxEndTrace
TracedCallback< Ptr< const
Packet > > 		m_phyRxDropTrace
TracedCallback< Ptr< const
Packet > > 		m_phyPromiscSnifferTrace

Detailed Description

802.11 PHY layer model

Member Typedef Documentation

typedef Callback<void,Ptr<const Packet>, double> ns3::WifiPhy::SyncErrorCallback

arg1: packet received unsuccessfully arg2: snr of packet

typedef Callback<void,Ptr<Packet>, double, WifiMode, enum WifiPreamble> ns3::WifiPhy::SyncOkCallback

arg1: packet received successfully arg2: snr of packet arg3: mode of packet arg4: type of preamble used for packet.

Member Enumeration Documentation

enum ns3::WifiPhy::State

The state of the PHY layer.

Enumerator:
SYNC

The PHY layer is synchronized upon a packet.

TX

The PHY layer is sending a packet.

CCA_BUSY

The PHY layer has sense the medium busy through the CCA mechanism

IDLE

The PHY layer is IDLE.

Member Function Documentation

virtual double ns3::WifiPhy::CalculateSnr ( WifiMode  txMode,
double  ber
) const [pure virtual]
Parameters:
txMode the transmission mode
ber the probability of bit error rate
Returns:
the minimum snr which is required to achieve the requested ber for the specified transmission mode. (W/W)

Implemented in ns3::YansWifiPhy.

virtual Time ns3::WifiPhy::CalculateTxDuration ( uint32_t  size,
WifiMode  payloadMode,
enum WifiPreamble  preamble
) const [pure virtual]
Parameters:
size the number of bytes in the packet to send
payloadMode the transmission mode to use for this packet
preamble the type of preamble to use for this packet.
Returns:
the total amount of time this PHY will stay busy for the transmission of these bytes.

Implemented in ns3::YansWifiPhy.

virtual Time ns3::WifiPhy::GetDelayUntilIdle ( void   )  [pure virtual]
Returns:
the predicted delay until this PHY can become WifiPhy::IDLE.

The PHY will never become WifiPhy::IDLE _before_ the delay returned by this method but it could become really idle later.

Implemented in ns3::YansWifiPhy.

virtual WifiMode ns3::WifiPhy::GetMode ( uint32_t  mode  )  const [pure virtual]
Parameters:
mode index in array of supported modes
Returns:
the mode whose index is specified.

Implemented in ns3::YansWifiPhy.

virtual uint32_t ns3::WifiPhy::GetNModes ( void   )  const [pure virtual]
Returns:
the number of transmission modes supported by this PHY.

Implemented in ns3::YansWifiPhy.

virtual uint32_t ns3::WifiPhy::GetNTxPower ( void   )  const [pure virtual]
Returns:
the number of tx power levels available for this PHY.

Implemented in ns3::YansWifiPhy.

virtual Time ns3::WifiPhy::GetStateDuration ( void   )  [pure virtual]
Returns:
the amount of time since the current state has started.

Implemented in ns3::YansWifiPhy.

static TypeId ns3::WifiPhy::GetTypeId ( void   )  [static]

This method returns the TypeId associated to ns3::WifiPhy.

This object is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3WifiNetDevice/Phy

No Attributes defined for this type.
TraceSources defined for this type:

  • PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium
  • PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel
  • PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission
  • PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device
  • PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device
  • PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception
  • PromiscSniffer: Trace source simulating a promiscuous packet sniffer attached to the device

Reimplemented from ns3::Object.

Reimplemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateBusy ( void   )  [pure virtual]
Returns:
true of the current state of the PHY layer is not WifiPhy::IDLE, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateCcaBusy ( void   )  [pure virtual]
Returns:
true of the current state of the PHY layer is WifiPhy::CCA_BUSY, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateIdle ( void   )  [pure virtual]
Returns:
true of the current state of the PHY layer is WifiPhy::IDLE, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateSync ( void   )  [pure virtual]
Returns:
true of the current state of the PHY layer is WifiPhy::SYNC, false otherwise.

Implemented in ns3::YansWifiPhy.

virtual bool ns3::WifiPhy::IsStateTx ( void   )  [pure virtual]
Returns:
true of the current state of the PHY layer is WifiPhy::TX, false otherwise.

Implemented in ns3::YansWifiPhy.

void ns3::WifiPhy::NotifyPromiscSniff ( Ptr< const Packet >  packet  )

Public method used to fire a PromiscSniffer trace. Implemented for encapsulation purposes.

void ns3::WifiPhy::NotifyRxBegin ( Ptr< const Packet >  packet  )

Public method used to fire a PhyRxBegin trace. Implemented for encapsulation purposes.

void ns3::WifiPhy::NotifyRxDrop ( Ptr< const Packet >  packet  )

Public method used to fire a PhyRxDrop trace. Implemented for encapsulation purposes.

void ns3::WifiPhy::NotifyRxEnd ( Ptr< const Packet >  packet  )

Public method used to fire a PhyRxEnd trace. Implemented for encapsulation purposes.

void ns3::WifiPhy::NotifyTxBegin ( Ptr< const Packet >  packet  )

Public method used to fire a PhyTxBegin trace. Implemented for encapsulation purposes.

void ns3::WifiPhy::NotifyTxDrop ( Ptr< const Packet >  packet  )

Public method used to fire a PhyTxDrop trace. Implemented for encapsulation purposes.

void ns3::WifiPhy::NotifyTxEnd ( Ptr< const Packet >  packet  )

Public method used to fire a PhyTxEnd trace. Implemented for encapsulation purposes.

virtual void ns3::WifiPhy::RegisterListener ( WifiPhyListener *  listener  )  [pure virtual]
Parameters:
listener the new listener

Add the input listener to the list of objects to be notified of PHY-level events.

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SendPacket ( Ptr< const Packet >  packet,
WifiMode  mode,
enum WifiPreamble  preamble,
uint8_t  txPowerLevel
) [pure virtual]
Parameters:
packet the packet to send
mode the transmission mode to use to send this packet
preamble the type of preamble to use to send this packet.
txPowerLevel a power level to use to send this packet. The real transmission power is calculated as txPowerMin + txPowerLevel * (txPowerMax - txPowerMin) / nTxLevels

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SetReceiveErrorCallback ( SyncErrorCallback  callback  )  [pure virtual]
Parameters:
callback the callback to invoke upon erronous packet reception.

Implemented in ns3::YansWifiPhy.

virtual void ns3::WifiPhy::SetReceiveOkCallback ( SyncOkCallback  callback  )  [pure virtual]
Parameters:
callback the callback to invoke upon successful packet reception.

Implemented in ns3::YansWifiPhy.

Member Data Documentation

TracedCallback<Ptr<const Packet> > ns3::WifiPhy::m_phyPromiscSnifferTrace [private]

A trace source that emulates a promiscuous mode protocol sniffer connected to the device. This trace source fire on packets destined for any host just like your average everyday packet sniffer.

On the transmit size, this trace hook will fire after a packet is dequeued from the device queue for transmission. In Linux, for example, this would correspond to the point just before a device hard_start_xmit where dev_queue_xmit_nit is called to dispatch the packet to the PF_PACKET ETH_P_ALL handlers.

On the receive side, this trace hook will fire when a packet is received, just before the receive callback is executed. In Linux, for example, this would correspond to the point at which the packet is dispatched to packet sniffers in netif_receive_skb.

See also:
class CallBackTraceSource
TracedCallback<Ptr<const Packet> > ns3::WifiPhy::m_phyRxBeginTrace [private]

The trace source fired when a packet begins the reception process from the medium.

See also:
class CallBackTraceSource
TracedCallback<Ptr<const Packet> > ns3::WifiPhy::m_phyRxDropTrace [private]

The trace source fired when the phy layer drops a packet it has received.

See also:
class CallBackTraceSource
TracedCallback<Ptr<const Packet> > ns3::WifiPhy::m_phyRxEndTrace [private]

The trace source fired when a packet ends the reception process from the medium.

See also:
class CallBackTraceSource
TracedCallback<Ptr<const Packet> > ns3::WifiPhy::m_phyTxBeginTrace [private]

The trace source fired when a packet begins the transmission process on the medium.

See also:
class CallBackTraceSource
TracedCallback<Ptr<const Packet> > ns3::WifiPhy::m_phyTxDropTrace [private]

The trace source fired when the phy layer drops a packet as it tries to transmit it.

See also:
class CallBackTraceSource
TracedCallback<Ptr<const Packet> > ns3::WifiPhy::m_phyTxEndTrace [private]

The trace source fired when a packet ends the transmission process on the medium.

See also:
class CallBackTraceSource
The documentation for this class was generated from the following files:
