ns3::Ipv6EndPoint Class Reference

An IPv6 end point, four tuples identification. More...

#include <ipv6-end-point.h>

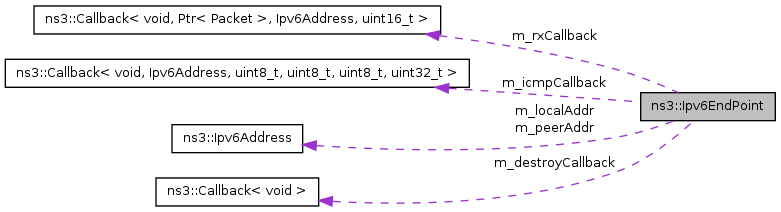

Collaboration diagram for ns3::Ipv6EndPoint:

List of all members.

Public Member Functions
	Ipv6EndPoint (Ipv6Address addr, uint16_t port)
	Constructor.
	~Ipv6EndPoint ()
	Destructor.
Ipv6Address	GetLocalAddress ()
	Get the local address.
void	SetLocalAddress (Ipv6Address addr)
	Set the local address.
uint16_t	GetLocalPort ()
	Get the local port.
void	SetLocalPort (uint16_t port)
	Set the local port.
Ipv6Address	GetPeerAddress ()
	Get the peer address.
uint16_t	GetPeerPort ()
	Get the peer port.
void	SetPeer (Ipv6Address addr, uint16_t port)
	Set the peer informations (address and port).
void	SetRxCallback (Callback< void, Ptr< Packet >, Ipv6Address, uint16_t > callback)
	Set the reception callback.
void	SetIcmpCallback (Callback< void, Ipv6Address, uint8_t, uint8_t, uint8_t, uint32_t > callback)
	Set the ICMP callback.
void	SetDestroyCallback (Callback< void > callback)
	Set the default destroy callback.
void	ForwardUp (Ptr< Packet > p, Ipv6Address addr, uint16_t port)
	Forward the packet to the upper level.
void	ForwardIcmp (Ipv6Address src, uint8_t ttl, uint8_t type, uint8_t code, uint32_t info)
	Function called from an L4Protocol implementation to notify an endpoint of an icmp message reception.
Private Member Functions
void	DoForwardUp (Ptr< Packet > p, Ipv6Address saddr, uint16_t sport)
	ForwardUp wrapper.
void	DoForwardIcmp (Ipv6Address src, uint8_t ttl, uint8_t type, uint8_t code, uint32_t info)
	ForwardIcmp wrapper.
Private Attributes
Ipv6Address	m_localAddr
	The local address.
uint16_t	m_localPort
	The local port.
Ipv6Address	m_peerAddr
	The peer address.
uint16_t	m_peerPort
	The peer port.
Callback< void, Ptr< Packet > , Ipv6Address, uint16_t >	m_rxCallback
	The RX callback.
Callback< void, Ipv6Address, uint8_t, uint8_t, uint8_t, uint32_t >	m_icmpCallback
	The ICMPv6 callback.
Callback< void >	m_destroyCallback
	The destroy callback.

---

Detailed Description

An IPv6 end point, four tuples identification.

---

Constructor & Destructor Documentation

ns3::Ipv6EndPoint::Ipv6EndPoint	(	Ipv6Address	addr,
		uint16_t	port
	)

Constructor.

Parameters:

	addr	the IPv6 address
	port	the port

---

Member Function Documentation

void ns3::Ipv6EndPoint::DoForwardIcmp	(	Ipv6Address	src,
		uint8_t	ttl,
		uint8_t	type,
		uint8_t	code,
		uint32_t	info
	)			[private]

ForwardIcmp wrapper.

Parameters:

	src	source IPv6 address
	ttl	time-to-live
	type	ICMPv6 type
	code	ICMPv6 code
	info	ICMPv6 info

void ns3::Ipv6EndPoint::DoForwardUp	(	Ptr< Packet >	p,
		Ipv6Address	saddr,
		uint16_t	sport
	)			[private]

ForwardUp wrapper.

Parameters:

	p	packet
	saddr	source IPv6 address
	sport	source port

void ns3::Ipv6EndPoint::ForwardIcmp	(	Ipv6Address	src,
		uint8_t	ttl,
		uint8_t	type,
		uint8_t	code,
		uint32_t	info
	)

Function called from an L4Protocol implementation to notify an endpoint of an icmp message reception.

Parameters:

	src	source IPv6 address
	ttl	time-to-live
	type	ICMPv6 type
	code	ICMPv6 code
	info	ICMPv6 info

void ns3::Ipv6EndPoint::ForwardUp	(	Ptr< Packet >	p,
		Ipv6Address	addr,
		uint16_t	port
	)

Forward the packet to the upper level.

Parameters:

	p	the packet
	addr	source address
	port	source port

Ipv6Address ns3::Ipv6EndPoint::GetLocalAddress

(

)

Get the local address.

Returns:

the local address

uint16_t ns3::Ipv6EndPoint::GetLocalPort

(

)

Get the local port.

Returns:

the local port

Ipv6Address ns3::Ipv6EndPoint::GetPeerAddress

(

)

Get the peer address.

Returns:

the peer address

uint16_t ns3::Ipv6EndPoint::GetPeerPort

(

)

Get the peer port.

Returns:

the peer port

void ns3::Ipv6EndPoint::SetDestroyCallback

(

Callback< void >

callback

)

Set the default destroy callback.

Parameters:

callback

callback function

void ns3::Ipv6EndPoint::SetIcmpCallback

(

Callback< void, Ipv6Address, uint8_t, uint8_t, uint8_t, uint32_t >

callback

)

Set the ICMP callback.

Parameters:

callback

callback function

void ns3::Ipv6EndPoint::SetLocalAddress

(

Ipv6Address

addr

)

Set the local address.

Parameters:

addr

the address to set

void ns3::Ipv6EndPoint::SetLocalPort

(

uint16_t

port

)

Set the local port.

Parameters:

port

the port to set

void ns3::Ipv6EndPoint::SetPeer	(	Ipv6Address	addr,
		uint16_t	port
	)

Set the peer informations (address and port).

Parameters:

	addr	peer address
	port	peer port

void ns3::Ipv6EndPoint::SetRxCallback

(

Callback< void, Ptr< Packet >, Ipv6Address, uint16_t >

callback

)

Set the reception callback.

Parameters:

callback

callback function

---

The documentation for this class was generated from the following file:

• src/internet-stack/ipv6-end-point.h
