ns3::Ipv6RoutingTableEntry Class Reference

A record of an IPv6 route. More...

#include <ipv6-routing-table-entry.h>

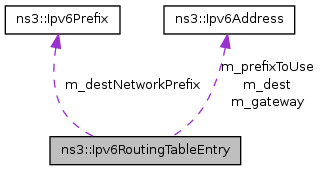

Collaboration diagram for ns3::Ipv6RoutingTableEntry:

List of all members.

Public Member Functions
	Ipv6RoutingTableEntry ()
	Constructor.
	Ipv6RoutingTableEntry (Ipv6RoutingTableEntry const &route)
	Copy constructor.
	Ipv6RoutingTableEntry (Ipv6RoutingTableEntry const *route)
	Copy constructor.
	~Ipv6RoutingTableEntry ()
	Destructor.
bool	IsHost () const
	Is the route entry correspond to a host ?
Ipv6Address	GetDest () const
	Get the destination.
Ipv6Address	GetPrefixToUse () const
	Get the prefix to use (for multihomed link).
void	SetPrefixToUse (Ipv6Address prefix)
	Set the prefix to use.
bool	IsNetwork () const
	Is the route entry correspond to a network ?
Ipv6Address	GetDestNetwork () const
	Get the destination network.
Ipv6Prefix	GetDestNetworkPrefix () const
	Get the destination prefix.
bool	IsDefault () const
	Is it the default route ?
bool	IsGateway () const
	Is it the gateway ?
Ipv6Address	GetGateway () const
	Get the gateway.
uint32_t	GetInterface () const
	Get the interface index.
Static Public Member Functions
static Ipv6RoutingTableEntry	CreateHostRouteTo (Ipv6Address dest, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse=Ipv6Address())
	Create a route to a host.
static Ipv6RoutingTableEntry	CreateHostRouteTo (Ipv6Address dest, uint32_t interface)
	Create a route to a host.
static Ipv6RoutingTableEntry	CreateNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, Ipv6Address nextHop, uint32_t interface)
	Create a route to a network.
static Ipv6RoutingTableEntry	CreateNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse)
	Create a route to a network.
static Ipv6RoutingTableEntry	CreateNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, uint32_t interface)
	Create a route to a network.
static Ipv6RoutingTableEntry	CreateDefaultRoute (Ipv6Address nextHop, uint32_t interface)
	Create a default route.
Private Member Functions
	Ipv6RoutingTableEntry (Ipv6Address network, Ipv6Prefix prefix, Ipv6Address gateway, uint32_t interface)
	Constructor.
	Ipv6RoutingTableEntry (Ipv6Address network, Ipv6Prefix prefix, uint32_t interface, Ipv6Address prefixToUse)
	Constructor.
	Ipv6RoutingTableEntry (Ipv6Address network, Ipv6Prefix prefix, Ipv6Address gateway, uint32_t interface, Ipv6Address prefixToUse)
	Constructor.
	Ipv6RoutingTableEntry (Ipv6Address dest, Ipv6Prefix prefix, uint32_t interface)
	Constructor.
	Ipv6RoutingTableEntry (Ipv6Address dest, Ipv6Address gateway, uint32_t interface)
	Constructor.
	Ipv6RoutingTableEntry (Ipv6Address dest, uint32_t interface)
	Constructor.
Private Attributes
Ipv6Address	m_dest
	IPv6 address of the destination.
Ipv6Prefix	m_destNetworkPrefix
	IPv6 prefix of the destination.
Ipv6Address	m_gateway
	IPv6 address of the gateway.
uint32_t	m_interface
	The interface index.
Ipv6Address	m_prefixToUse
	Prefix to use.

---

Detailed Description

A record of an IPv6 route.

---

Constructor & Destructor Documentation

ns3::Ipv6RoutingTableEntry::Ipv6RoutingTableEntry

(

Ipv6RoutingTableEntry const &

route

)

Copy constructor.

Parameters:

route

the route to copy

ns3::Ipv6RoutingTableEntry::Ipv6RoutingTableEntry

(

Ipv6RoutingTableEntry const *

route

)

Copy constructor.

Parameters:

route

the route to copy

ns3::Ipv6RoutingTableEntry::Ipv6RoutingTableEntry	(	Ipv6Address	network,
		Ipv6Prefix	prefix,
		Ipv6Address	gateway,
		uint32_t	interface
	)			[private]

Constructor.

Parameters:

	network	network address
	prefix	network prefix
	gateway	the gateway
	interface	the interface index

ns3::Ipv6RoutingTableEntry::Ipv6RoutingTableEntry	(	Ipv6Address	network,
		Ipv6Prefix	prefix,
		uint32_t	interface,
		Ipv6Address	prefixToUse
	)			[private]

Constructor.

Parameters:

	network	network address
	prefix	network prefix
	interface	the interface index
	prefixToUse	prefix to use

ns3::Ipv6RoutingTableEntry::Ipv6RoutingTableEntry	(	Ipv6Address	network,
		Ipv6Prefix	prefix,
		Ipv6Address	gateway,
		uint32_t	interface,
		Ipv6Address	prefixToUse
	)			[private]

Constructor.

Parameters:

	network	network address
	prefix	network prefix
	gateway	the gateway
	interface	the interface index
	prefixToUse	prefix to use

ns3::Ipv6RoutingTableEntry::Ipv6RoutingTableEntry	(	Ipv6Address	dest,
		Ipv6Prefix	prefix,
		uint32_t	interface
	)			[private]

Constructor.

Parameters:

	dest	destination address
	prefix	destiation prefix
	interface	interface index

ns3::Ipv6RoutingTableEntry::Ipv6RoutingTableEntry	(	Ipv6Address	dest,
		Ipv6Address	gateway,
		uint32_t	interface
	)			[private]

Constructor.

Parameters:

	dest	destination address
	gateway	the gateway
	interface	interface index

ns3::Ipv6RoutingTableEntry::Ipv6RoutingTableEntry	(	Ipv6Address	dest,
		uint32_t	interface
	)			[private]

Constructor.

Parameters:

	dest	destination address
	interface	interface index

---

Member Function Documentation

static Ipv6RoutingTableEntry ns3::Ipv6RoutingTableEntry::CreateDefaultRoute	(	Ipv6Address	nextHop,
		uint32_t	interface
	)			[static]

Create a default route.

Parameters:

	nextHop	next hop address to route the packet
	interface	interface index

Returns:

IPv6Route object

static Ipv6RoutingTableEntry ns3::Ipv6RoutingTableEntry::CreateHostRouteTo	(	Ipv6Address	dest,
		Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse = Ipv6Address()
	)			[static]

Create a route to a host.

Parameters:

	dest	destination address
	nextHop	next hop address to route the packet
	interface	interface index
	prefixToUse	prefix that should be used for source address for this destination

Returns:

IPv6Route object

static Ipv6RoutingTableEntry ns3::Ipv6RoutingTableEntry::CreateHostRouteTo	(	Ipv6Address	dest,
		uint32_t	interface
	)			[static]

Create a route to a host.

Parameters:

	dest	destination address
	interface	interface index

Returns:

IPv6Route object

static Ipv6RoutingTableEntry ns3::Ipv6RoutingTableEntry::CreateNetworkRouteTo	(	Ipv6Address	network,
		Ipv6Prefix	networkPrefix,
		uint32_t	interface
	)			[static]

Create a route to a network.

Parameters:

	network	network address
	networkPrefix	network prefix
	interface	interface index

Returns:

IPv6Route object

static Ipv6RoutingTableEntry ns3::Ipv6RoutingTableEntry::CreateNetworkRouteTo	(	Ipv6Address	network,
		Ipv6Prefix	networkPrefix,
		Ipv6Address	nextHop,
		uint32_t	interface
	)			[static]

Create a route to a network.

Parameters:

	network	network address
	networkPrefix	network prefix
	nextHop	next hop address to route the packet
	interface	interface index

Returns:

IPv6Route object

static Ipv6RoutingTableEntry ns3::Ipv6RoutingTableEntry::CreateNetworkRouteTo	(	Ipv6Address	network,
		Ipv6Prefix	networkPrefix,
		Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse
	)			[static]

Create a route to a network.

Parameters:

	network	network address
	networkPrefix	network prefix
	nextHop	next hop address to route the packet
	interface	interface index
	prefixToUse	prefix that should be used for source address for this destination

Returns:

IPv6Route object

Ipv6Address ns3::Ipv6RoutingTableEntry::GetDest

(

)

const

Get the destination.

Returns:

the IPv6 address of the destination of this route

Ipv6Address ns3::Ipv6RoutingTableEntry::GetDestNetwork

(

)

const

Get the destination network.

Returns:

the destination network

Ipv6Prefix ns3::Ipv6RoutingTableEntry::GetDestNetworkPrefix

(

)

const

Get the destination prefix.

Returns:

the destination prefix

Ipv6Address ns3::Ipv6RoutingTableEntry::GetGateway

(

)

const

Get the gateway.

Returns:

the IPv6 address of the gateway

uint32_t ns3::Ipv6RoutingTableEntry::GetInterface

(

)

const

Get the interface index.

Returns:

the index of the interface

Ipv6Address ns3::Ipv6RoutingTableEntry::GetPrefixToUse

(

)

const

Get the prefix to use (for multihomed link).

Returns:

prefix address to use

bool ns3::Ipv6RoutingTableEntry::IsDefault

(

)

const

Is it the default route ?

Returns:

true if this route is a default route, false otherwise

bool ns3::Ipv6RoutingTableEntry::IsGateway

(

)

const

Is it the gateway ?

Returns:

true if this route is a gateway, false otherwise

bool ns3::Ipv6RoutingTableEntry::IsHost

(

)

const

Is the route entry correspond to a host ?

Returns:

true if the route is a host, false otherwise

bool ns3::Ipv6RoutingTableEntry::IsNetwork

(

)

const

Is the route entry correspond to a network ?

Returns:

true if the route is a network, false otherwise

void ns3::Ipv6RoutingTableEntry::SetPrefixToUse

(

Ipv6Address

prefix

)

Set the prefix to use.

Parameters:

prefix

prefix to use

---

The documentation for this class was generated from the following file:

• src/routing/static-routing/ipv6-routing-table-entry.h
