Beacon is beacon header + list of arbitrary information elements. More...

#include <mesh-wifi-beacon.h>

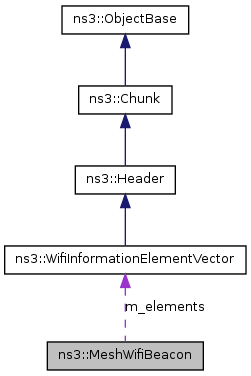

Collaboration diagram for ns3::MeshWifiBeacon:

Public Member Functions
	MeshWifiBeacon (Ssid ssid, SupportedRates rates, uint64_t us)
MgtBeaconHeader	BeaconHeader () const
	Read standard Wifi beacon header.
void	AddInformationElement (Ptr< WifiInformationElement > ie)
	Add information element.
WifiMacHeader	CreateHeader (Mac48Address address, Mac48Address mpAddress)
Ptr< Packet >	CreatePacket ()
	Create frame = { beacon header + all information elements sorted by ElementId () }.
Private Attributes
MgtBeaconHeader	m_header
	Beacon header.
WifiInformationElementVector	m_elements
	List of information elements added.

Detailed Description

Beacon is beacon header + list of arbitrary information elements.

It is supposed that distinct mesh protocols can use beacons to transport their own information elements.

Constructor & Destructor Documentation

ns3::MeshWifiBeacon::MeshWifiBeacon	(	Ssid	ssid,
		SupportedRates	rates,
		uint64_t	us
	)

C-tor

Parameters:

	ssid	is SSID for beacon header
	rates	is a set of supported rates
	us	beacon interval in microseconds

WifiMacHeader ns3::MeshWifiBeacon::CreateHeader	(	Mac48Address	address,
		Mac48Address	mpAddress
	)

Create wifi header for beacon frame.

Parameters:

	address	is sender address
	mpAddress	is mesh point address

The documentation for this class was generated from the following file:
