create non-qos MAC layers for a ns3::WifiNetDevice. This class can create MACs of type ns3::NqapWifiMac, ns3::NqstaWifiMac, and, ns3::AdhocWifiMac More...

#include <nqos-wifi-mac-helper.h>

Inheritance diagram for ns3::NqosWifiMacHelper:

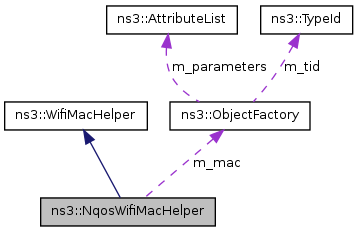

Collaboration diagram for ns3::NqosWifiMacHelper:

Public Member Functions
	NqosWifiMacHelper ()
void	SetType (std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())
Static Public Member Functions
static NqosWifiMacHelper	Default (void)
Private Member Functions
virtual Ptr< WifiMac >	Create (void) const

Detailed Description

create non-qos MAC layers for a ns3::WifiNetDevice. This class can create MACs of type ns3::NqapWifiMac, ns3::NqstaWifiMac, and, ns3::AdhocWifiMac

Constructor & Destructor Documentation

ns3::NqosWifiMacHelper::NqosWifiMacHelper ( )

Create a NqosWifiMacHelper to make life easier for people who want to work with non-QOS Wifi MAC layers.

virtual Ptr<WifiMac> ns3::NqosWifiMacHelper::Create ( void ) const [private, virtual]

Subclasses must implement this method to allow the ns3::WifiHelper class to create MAC objects from ns3::WifiHelper::Install.

static NqosWifiMacHelper ns3::NqosWifiMacHelper::Default ( void ) [static]

Create a mac helper in a default working state. i.e., this is an adhoc mac by default.

void ns3::NqosWifiMacHelper::SetType	(	std::string	type,
		std::string	n0 = `""`,
		const AttributeValue &	v0 = `EmptyAttributeValue()`,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue()`
	)

Parameters:

	type	the type of ns3::WifiMac to create.
	n0	the name of the attribute to set
	v0	the value of the attribute to set
	n1	the name of the attribute to set
	v1	the value of the attribute to set
	n2	the name of the attribute to set
	v2	the value of the attribute to set
	n3	the name of the attribute to set
	v3	the value of the attribute to set
	n4	the name of the attribute to set
	v4	the value of the attribute to set
	n5	the name of the attribute to set
	v5	the value of the attribute to set
	n6	the name of the attribute to set
	v6	the value of the attribute to set
	n7	the name of the attribute to set
	v7	the value of the attribute to set

All the attributes specified in this method should exist in the requested mac.

The documentation for this class was generated from the following file:
