A ping6 application. More...

#include <ping6.h>

Inheritance diagram for ns3::Ping6:

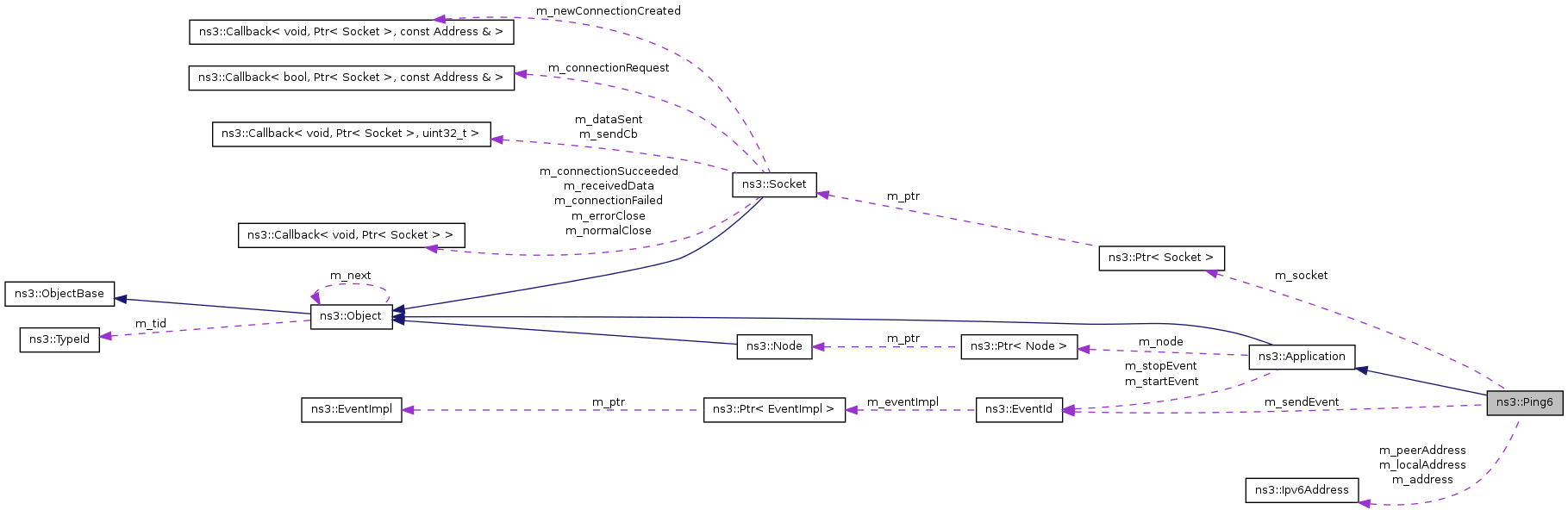

Collaboration diagram for ns3::Ping6:

Public Member Functions
	Ping6 ()
	Constructor.
virtual	~Ping6 ()
	Destructor.
void	SetLocal (Ipv6Address ipv6)
	Set the local address.
void	SetRemote (Ipv6Address ipv6)
	Set the remote peer.
void	SetIfIndex (uint32_t ifIndex)
	Set the out interface index. This is to send to link-local (unicast or multicast) address when a node has multiple interfaces.
Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID.
Protected Member Functions
virtual void	DoDispose ()
	Dispose this object;.
Private Member Functions
virtual void	StartApplication ()
	Start the application.
virtual void	StopApplication ()
	Stop the application.
void	ScheduleTransmit (Time dt)
	Schedule sending a packet.
void	Send ()
	Send a packet.
void	HandleRead (Ptr< Socket > socket)
	Receive method.
Private Attributes
Ipv6Address	m_address
	Peer IPv6 address.
uint32_t	m_count
	Number of "Echo request" packets that will be sent.
uint32_t	m_sent
	Number of packets sent.
uint32_t	m_size
	Size of the packet.
Time	m_interval
	Intervall between packets sent.
Ipv6Address	m_localAddress
	Local address.
Ipv6Address	m_peerAddress
	Peer address.
Ptr< Socket >	m_socket
	Local socket.
uint16_t	m_seq
	Sequence number.
EventId	m_sendEvent
	Event ID.
uint32_t	m_ifIndex
	Out interface (i.e. for link-local communication).

Detailed Description

A ping6 application.

Member Function Documentation

static TypeId ns3::Ping6::GetTypeId ( void ) [static]

Get the type ID.

This method returns the TypeId associated to ns3::Ping6.

Returns:: type ID

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/ApplicationList/[i]/$ns3::Ping6

Attributes defined for this type:

MaxPackets: The maximum number of packets the application will send
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 100
- Flags: construct write read
Interval: The time to wait between packets
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 1000000000ns
- Flags: construct write read
RemoteIpv6: The Ipv6Address of the outbound packets
- Set with class: Ipv6AddressValue
- Underlying type: Ipv6Address
- Initial value: 0000:0000:0000:0000:0000:0000:0000:0000
- Flags: construct write read
LocalIpv6: Local Ipv6Address of the sender
- Set with class: Ipv6AddressValue
- Underlying type: Ipv6Address
- Initial value: 0000:0000:0000:0000:0000:0000:0000:0000
- Flags: construct write read
PacketSize: Size of packets generated
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 100
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::Application.

void ns3::Ping6::HandleRead ( Ptr< Socket > socket ) [private]

Receive method.

Parameters:

socket

socket that receive a packet

void ns3::Ping6::ScheduleTransmit ( Time dt ) [private]

Schedule sending a packet.

Parameters:

dt

interval between packet

void ns3::Ping6::SetIfIndex ( uint32_t ifIndex )

Set the out interface index. This is to send to link-local (unicast or multicast) address when a node has multiple interfaces.

Parameters:

ifIndex

interface index

void ns3::Ping6::SetLocal ( Ipv6Address ipv6 )

Set the local address.

Parameters:

ipv6

the local IPv6 address

void ns3::Ping6::SetRemote ( Ipv6Address ipv6 )

Set the remote peer.

Parameters:

ipv6

IPv6 address of the peer

The documentation for this class was generated from the following files:

src/applications/ping6/ping6.h
doc/introspected-doxygen.h
