ns3::PointToPointChannel Class Reference

Simple Point To Point Channel. More...

#include <point-to-point-channel.h>

Inheritance diagram for ns3::PointToPointChannel:

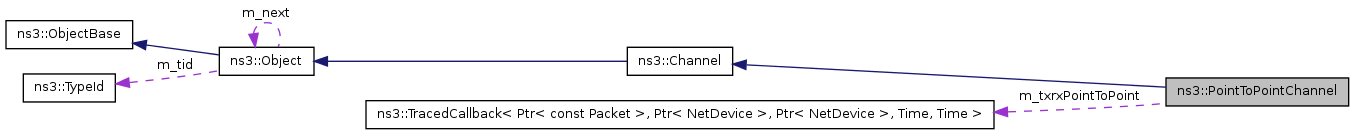

Collaboration diagram for ns3::PointToPointChannel:

List of all members.

Public Member Functions
	PointToPointChannel ()
	Create a PointToPointChannel.
void	Attach (Ptr< PointToPointNetDevice > device)
	Attach a given netdevice to this channel.
bool	TransmitStart (Ptr< Packet > p, Ptr< PointToPointNetDevice > src, Time txTime)
	Transmit a packet over this channel.
virtual uint32_t	GetNDevices (void) const
	Get number of devices on this channel.
virtual Ptr< NetDevice >	GetDevice (uint32_t i) const
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::PointToPointChannel.
Private Attributes
TracedCallback< Ptr< const Packet >, Ptr< NetDevice > , Ptr< NetDevice >, Time, Time >	m_txrxPointToPoint

---

Detailed Description

Simple Point To Point Channel.

This class represents a very simple point to point channel. Think full duplex RS-232 or RS-422 with null modem and no handshaking. There is no multi-drop capability on this channel -- there can be a maximum of two point-to-point net devices connected.

There are two "wires" in the channel. The first device connected gets the [0] wire to transmit on. The second device gets the [1] wire. There is a state (IDLE, TRANSMITTING) associated with each wire.

---

Constructor & Destructor Documentation

ns3::PointToPointChannel::PointToPointChannel

(

)

Create a PointToPointChannel.

By default, you get a channel that has zero transmission delay.

---

Member Function Documentation

void ns3::PointToPointChannel::Attach

(

Ptr< PointToPointNetDevice >

device

)

Attach a given netdevice to this channel.

Parameters:

device

pointer to the netdevice to attach to the channel

virtual Ptr<NetDevice> ns3::PointToPointChannel::GetDevice

(

uint32_t

i

)

const [virtual]

Parameters:

i

index of NetDevice to retrieve

Returns:

one of the NetDevices connected to this channel.

This method must be implemented by subclasses.

Implements ns3::Channel.

virtual uint32_t ns3::PointToPointChannel::GetNDevices

(

void

)

const [virtual]

Get number of devices on this channel.

Returns:

number of devices on this channel

Implements ns3::Channel.

static TypeId ns3::PointToPointChannel::GetTypeId

(

void

)

[static]

This method returns the TypeId associated to ns3::PointToPointChannel.

Attributes defined for this type:

• Delay: Transmission delay through the channel
  • Set with class: TimeValue
  • Underlying type: Time
  • Initial value: 0ns
  • Flags: construct write read

Attributes defined in parent class ns3::Channel:

• Id: The id (unique integer) of this Channel.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Flags: read

TraceSources defined for this type:

• TxRxPointToPoint: Trace source indicating transmission of packet from the PointToPointChannel, used by the Animation interface.

Reimplemented from ns3::Channel.

bool ns3::PointToPointChannel::TransmitStart	(	Ptr< Packet >	p,
		Ptr< PointToPointNetDevice >	src,
		Time	txTime
	)

Transmit a packet over this channel.

Parameters:

	p	Packet to transmit
	src	Source PointToPointNetDevice
	txTime	Transmit time to apply

Returns:

true if successful (currently always true)

---

Member Data Documentation

TracedCallback<Ptr<const Packet>, Ptr<NetDevice>, Ptr<NetDevice>, Time, Time > ns3::PointToPointChannel::m_txrxPointToPoint [private]

The trace source for the packet transmission animation events that the device can fire. Arguments to the callback are the packet, transmitting net device, receiving net device, transmittion time and packet receipt time.

See also:

class CallBackTraceSource

---

The documentation for this class was generated from the following files:

• src/devices/point-to-point/point-to-point-channel.h
• doc/introspected-doxygen.h
