Router advertisement daemon. More...

#include <radvd.h>

Inheritance diagram for ns3::Radvd:

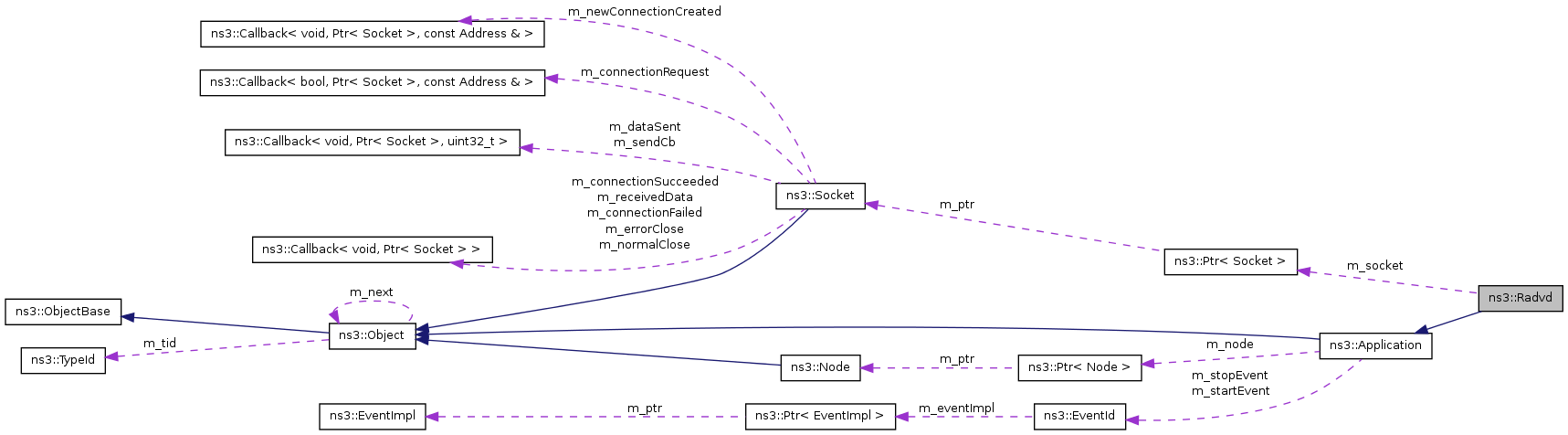

Collaboration diagram for ns3::Radvd:

Public Member Functions
	Radvd ()
	Constructor.
virtual	~Radvd ()
	Destructor.
void	AddConfiguration (Ptr< RadvdInterface > routerInterface)
	Add configuration for an interface;.
Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID.
Static Public Attributes
static const uint32_t	MAX_RA_DELAY_TIME = 500
	Default value for maximum delay of RA (ms).
Protected Member Functions
virtual void	DoDispose ()
	Dispose the instance.
Private Member Functions
virtual void	StartApplication ()
	Start the application.
virtual void	StopApplication ()
	Stop the application.
void	ScheduleTransmit (Time dt, Ptr< RadvdInterface > config, EventId &eventId, Ipv6Address dst=Ipv6Address::GetAllNodesMulticast(), bool reschedule=false)
	Schedule sending a packet.
void	Send (Ptr< RadvdInterface > config, Ipv6Address dst=Ipv6Address::GetAllNodesMulticast(), bool reschedule=false)
	Send a packet.
void	HandleRead (Ptr< Socket > socket)
	Handle received packet, especially router solicitation.
Private Attributes
Ptr< Socket >	m_socket
	Raw socket to send RA.
RadvdInterfaceList	m_configurations
	List of configuration for interface.
EventIdMap	m_eventIds
	Event ID map.

Detailed Description

Router advertisement daemon.

Member Function Documentation

void ns3::Radvd::AddConfiguration ( Ptr< RadvdInterface > routerInterface )

Add configuration for an interface;.

Parameters:

routerInterface

configuration

static TypeId ns3::Radvd::GetTypeId ( void ) [static]

Get the type ID.

This method returns the TypeId associated to ns3::Radvd.

This object is accessible through the following paths with Config::Set and Config::Connect:

No Attributes defined for this type.
No TraceSources defined for this type.

Reimplemented from ns3::Application.

void ns3::Radvd::HandleRead ( Ptr< Socket > socket ) [private]

Handle received packet, especially router solicitation.

Parameters:

socket

socket to read data from

void ns3::Radvd::ScheduleTransmit	(	Time	dt,
		Ptr< RadvdInterface >	config,
		EventId &	eventId,
		Ipv6Address	dst = `Ipv6Address::GetAllNodesMulticast()`,
		bool	reschedule = `false`
	)			`[private]`

Schedule sending a packet.

Parameters:

	dt	interval between packet
	config	interface configuration
	eventId	event ID associated
	dst	IPv6 destination address
	reschedule	if true another send will be reschedule (periodic)

void ns3::Radvd::Send	(	Ptr< RadvdInterface >	config,
		Ipv6Address	dst = `Ipv6Address::GetAllNodesMulticast()`,
		bool	reschedule = `false`
	)			`[private]`

Send a packet.

Parameters:

	config	interface configuration
	dst	destination address (default ff02::1)
	reschedule	if true another send will be reschedule (periodic)

The documentation for this class was generated from the following files:
