Hybrid wireless mesh protocol -- a routing protocol of IEEE 802.11s draft. More...

#include <hwmp-protocol.h>

Inheritance diagram for ns3::dot11s::HwmpProtocol:

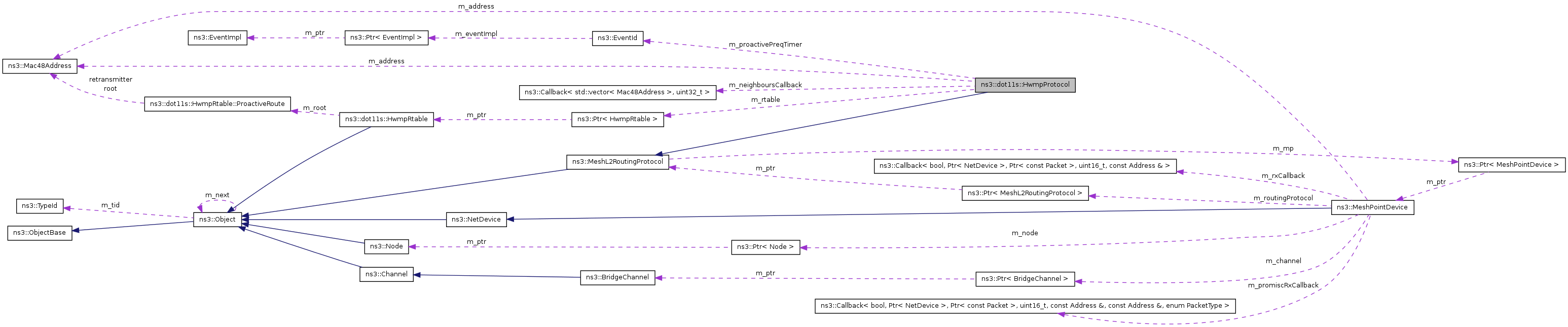

Collaboration diagram for ns3::dot11s::HwmpProtocol:

Classes
struct	FailedDestination
	structure of unreachable destination - address and sequence number More...
struct	PathError
	Structure of path error: IePerr and list of receivers: interfaces and MAC address. More...
struct	QueuedPacket
	Packet waiting its routing information. More...
Public Member Functions
void	DoDispose ()
bool	RequestRoute (uint32_t sourceIface, const Mac48Address source, const Mac48Address destination, Ptr< const Packet > packet, uint16_t protocolType, RouteReplyCallback routeReply)
	Route request, inherited from MeshL2RoutingProtocol.
bool	RemoveRoutingStuff (uint32_t fromIface, const Mac48Address source, const Mac48Address destination, Ptr< Packet > packet, uint16_t &protocolType)
	Cleanup packet from all tags.
bool	Install (Ptr< MeshPointDevice >)
	Install HWMP on given mesh point.
void	SetNeighboursCallback (Callback< std::vector< Mac48Address >, uint32_t > cb)
	This callback is used to obtain active neighbours on a given interface.
void	Report (std::ostream &) const
	Statistics:
Proactive PREQ mechanism:

void	SetRoot ()
void	UnsetRoot ()
Static Public Member Functions
static TypeId	GetTypeId ()
	This method returns the TypeId associated to ns3::dot11s::HwmpProtocol.
Private Member Functions
bool	ForwardUnicast (uint32_t sourceIface, const Mac48Address source, const Mac48Address destination, Ptr< Packet > packet, uint16_t protocolType, RouteReplyCallback routeReply, uint32_t ttl)
	Like RequestRoute, but for unicast packets.
Mac48Address	GetAddress ()
Interaction with HWMP MAC plugin

void	ReceivePreq (IePreq preq, Mac48Address from, uint32_t interface, Mac48Address fromMp, uint32_t metric)
void	ReceivePrep (IePrep prep, Mac48Address from, uint32_t interface, Mac48Address fromMp, uint32_t metric)
void	ReceivePerr (std::vector< FailedDestination >, Mac48Address from, uint32_t interface, Mac48Address fromMp)
void	SendPrep (Mac48Address src, Mac48Address dst, Mac48Address retransmitter, uint32_t initMetric, uint32_t originatorDsn, uint32_t destinationSN, uint32_t lifetime, uint32_t interface)
PathError	MakePathError (std::vector< FailedDestination > destinations)
	forms a path error information element when list of destination fails on a given interface
void	ForwardPathError (PathError perr)
	Forwards a received path error.
void	InitiatePathError (PathError perr)
	Pasess a selg-generated PERR to interface-plugin.
std::vector< std::pair < uint32_t, Mac48Address > >	GetPerrReceivers (std::vector< FailedDestination > failedDest)
std::vector< Mac48Address >	GetPreqReceivers (uint32_t interface)
std::vector< Mac48Address >	GetBroadcastReceivers (uint32_t interface)
bool	DropDataFrame (uint32_t seqno, Mac48Address source)
	MAC-plugin asks whether the frame can be dropped. Protocol automatically updates seqno.
Methods related to Queue/Dequeue procedures

bool	QueuePacket (QueuedPacket packet)
QueuedPacket	DequeueFirstPacketByDst (Mac48Address dst)
QueuedPacket	DequeueFirstPacket ()
void	ReactivePathResolved (Mac48Address dst)
void	ProactivePathResolved ()
Methods responsible for path discovery retry procedure:

bool	ShouldSendPreq (Mac48Address dst)
	checks when the last path discovery procedure was started for a given destination.
void	RetryPathDiscovery (Mac48Address dst, uint8_t numOfRetry)
	Generates PREQ retry when retry timeout has expired and route is still unresolved.
void	SendProactivePreq ()
	Proactive Preq routines:
Methods needed by HwmpMacLugin to access protocol parameters:

bool	GetDoFlag ()
bool	GetRfFlag ()
Time	GetPreqMinInterval ()
Time	GetPerrMinInterval ()
uint8_t	GetMaxTtl ()
uint32_t	GetNextPreqId ()
uint32_t	GetNextHwmpSeqno ()
uint32_t	GetActivePathLifetime ()
uint8_t	GetUnicastPerrThreshold ()
Private Attributes
Ptr< HwmpRtable >	m_rtable
	Routing table.
std::vector< QueuedPacket >	m_rqueue
Statistics:

Statistics	m_stats
Sequence number filters
Data sequence number database
std::map< Mac48Address, uint32_t >	m_lastDataSeqno
std::map< Mac48Address, uint32_t >	m_lastHwmpSeqno
	DSN databse.
std::map< Mac48Address, uint32_t >	m_lastHwmpMetric
	Metric database.
Timers:

std::map< Mac48Address, EventId >	m_preqTimeouts
EventId	m_proactivePreqTimer
Time	m_randomStart
	Random start in Proactive PREQ propagation.
HWMP-protocol parameters (attributes of GetTypeId)

uint16_t	m_maxQueueSize
uint8_t	m_dot11MeshHWMPmaxPREQretries
Time	m_dot11MeshHWMPnetDiameterTraversalTime
Time	m_dot11MeshHWMPpreqMinInterval
Time	m_dot11MeshHWMPperrMinInterval
Time	m_dot11MeshHWMPactiveRootTimeout
Time	m_dot11MeshHWMPactivePathTimeout
Time	m_dot11MeshHWMPpathToRootInterval
Time	m_dot11MeshHWMPrannInterval
bool	m_isRoot
uint8_t	m_maxTtl
uint8_t	m_unicastPerrThreshold
uint8_t	m_unicastPreqThreshold
uint8_t	m_unicastDataThreshold
bool	m_doFlag
bool	m_rfFlag

Detailed Description

Hybrid wireless mesh protocol -- a routing protocol of IEEE 802.11s draft.

Member Function Documentation

void ns3::dot11s::HwmpProtocol::DoDispose ( ) [virtual]

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

Reimplemented from ns3::Object.

bool ns3::dot11s::HwmpProtocol::DropDataFrame	(	uint32_t	seqno,
		Mac48Address	source
	)			`[private]`

MAC-plugin asks whether the frame can be dropped. Protocol automatically updates seqno.

Returns:: true if frame can be dropped

Parameters:

	seqno	is the sequence number of source
	source	is the source address

Mac48Address ns3::dot11s::HwmpProtocol::GetAddress ( ) [private]

Returns:: address of MeshPointDevice

std::vector<Mac48Address> ns3::dot11s::HwmpProtocol::GetBroadcastReceivers ( uint32_t interface ) [private]

Returns:: list of addresses where a broadcast should be

std::vector<std::pair<uint32_t, Mac48Address> > ns3::dot11s::HwmpProtocol::GetPerrReceivers ( std::vector< FailedDestination > failedDest ) [private]

Returns:: list of addresses where a PERR should be sent to

std::vector<Mac48Address> ns3::dot11s::HwmpProtocol::GetPreqReceivers ( uint32_t interface ) [private]

Returns:: list of addresses where a PERR should be sent to

static TypeId ns3::dot11s::HwmpProtocol::GetTypeId ( void ) [static]

This method returns the TypeId associated to ns3::dot11s::HwmpProtocol.

This object is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::MeshPointDevice/RoutingProtocol/$ns3::dot11s::HwmpProtocol

Attributes defined for this type:

RandomStart: Random delay at first proactive PREQ
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 100000000ns
- Flags: construct write read
MaxQueueSize: Maximum number of packets we can store when resolving route
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 1:65535
- Initial value: 255
- Flags: construct write read
Dot11MeshHWMPmaxPREQretries: Maximum number of retries before we suppose the destination to be unreachable
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:255
- Initial value: 3
- Flags: construct write read
Dot11MeshHWMPnetDiameterTraversalTime: Time we suppose the packet to go from one edge of the network to another
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 102400000ns
- Flags: construct write read
Dot11MeshHWMPpreqMinInterval: Minimal interval between to successive PREQs
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 102400000ns
- Flags: construct write read
Dot11MeshHWMPperrMinInterval: Minimal interval between to successive PREQs
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 102400000ns
- Flags: construct write read
Dot11MeshHWMPactiveRootTimeout: Lifetime of poractive routing information
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 5120000000ns
- Flags: construct write read
Dot11MeshHWMPactivePathTimeout: Lifetime of reactive routing information
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 5120000000ns
- Flags: construct write read
Dot11MeshHWMPpathToRootInterval: Interval between two successive proactive PREQs
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 2048000000ns
- Flags: construct write read
Dot11MeshHWMPrannInterval: Lifetime of poractive routing information
- Set with class: TimeValue
- Underlying type: Time
- Initial value: 5120000000ns
- Flags: construct write read
MaxTtl: Initial value of Time To Live field
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 2:255
- Initial value: 32
- Flags: construct write read
UnicastPerrThreshold: Maximum number of PERR receivers, when we send a PERR as a chain of unicasts
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:255
- Initial value: 32
- Flags: construct write read
UnicastPreqThreshold: Maximum number of PREQ receivers, when we send a PREQ as a chain of unicasts
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:255
- Initial value: 1
- Flags: construct write read
UnicastDataThreshold: Maximum number ofbroadcast receivers, when we send a broadcast as a chain of unicasts
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 1:255
- Initial value: 1
- Flags: construct write read
DoFlag: Destination only HWMP flag
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
RfFlag: Reply and forward flag
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

No TraceSources defined for this type.

Reimplemented from ns3::MeshL2RoutingProtocol.

bool ns3::dot11s::HwmpProtocol::Install ( Ptr< MeshPointDevice > )

Install HWMP on given mesh point.

Installing protocol cause installing its interface MAC plugins.

Also MP aggregates all installed protocols, HWMP protocol can be accessed via MeshPointDevice::GetObject<dot11s::HwmpProtocol>();

PathError ns3::dot11s::HwmpProtocol::MakePathError ( std::vector< FailedDestination > destinations ) [private]

forms a path error information element when list of destination fails on a given interface

Attention:: removes all entries from routing table!

void ns3::dot11s::HwmpProtocol::RetryPathDiscovery	(	Mac48Address	dst,
		uint8_t	numOfRetry
	)			`[private]`

Generates PREQ retry when retry timeout has expired and route is still unresolved.

When PREQ retry has achieved the maximum level - retry mechanism should be canceled

void ns3::dot11s::HwmpProtocol::SetNeighboursCallback ( Callback< std::vector< Mac48Address >, uint32_t > cb )

This callback is used to obtain active neighbours on a given interface.

Parameters:

cb

is a callback, which returns a list of addresses on given interface (uint32_t)

bool ns3::dot11s::HwmpProtocol::ShouldSendPreq ( Mac48Address dst ) [private]

checks when the last path discovery procedure was started for a given destination.

If the retry counter has not achieved the maximum level - preq should not be sent

Member Data Documentation

std::vector<QueuedPacket> ns3::dot11s::HwmpProtocol::m_rqueue [private]

Packet Queue

The documentation for this class was generated from the following files:

src/devices/mesh/dot11s/hwmp-protocol.h
doc/introspected-doxygen.h
