a position model for which the current speed does not change once it has been set and until it is set again explicitely to a new value. More...

#include <constant-velocity-mobility-model.h>

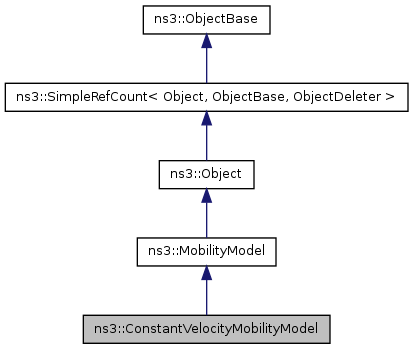

Inheritance diagram for ns3::ConstantVelocityMobilityModel:

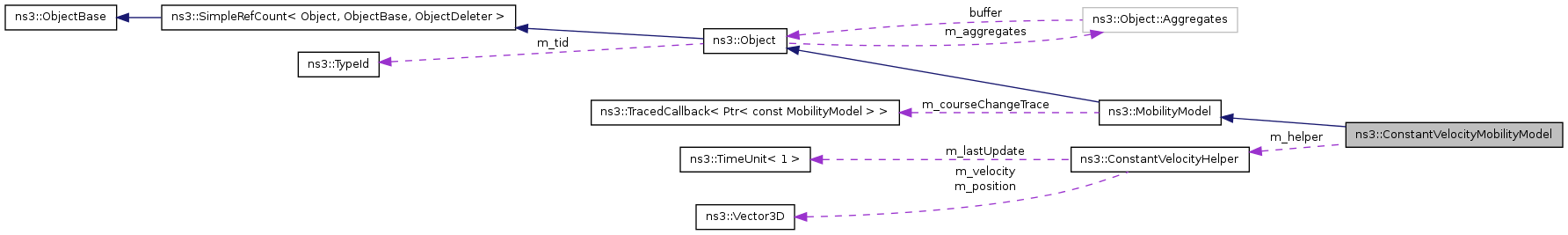

Collaboration diagram for ns3::ConstantVelocityMobilityModel:

Public Member Functions
	ConstantVelocityMobilityModel ()
void	SetVelocity (const Vector &speed)
Static Public Member Functions
static TypeId	GetTypeId (void)
	This method returns the TypeId associated to ns3::ConstantVelocityMobilityModel.

Detailed Description

a position model for which the current speed does not change once it has been set and until it is set again explicitely to a new value.

Constructor & Destructor Documentation

ns3::ConstantVelocityMobilityModel::ConstantVelocityMobilityModel ( )

Create position located at coordinates (0,0,0) with speed (0,0,0).

static TypeId ns3::ConstantVelocityMobilityModel::GetTypeId ( void ) [static]

This object is accessible through the following paths with Config::Set and Config::Connect:

No Attributes defined for this type.
Attributes defined in parent class ns3::MobilityModel:

Position: The current position of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: write read
Velocity: The current velocity of the mobility model.
- Set with class: Vector3DValue
- Underlying type: Vector3D
- Flags: read

No TraceSources defined for this type.
TraceSources defined in parent class ns3::MobilityModel:

Reimplemented from ns3::MobilityModel.

void ns3::ConstantVelocityMobilityModel::SetVelocity ( const Vector & speed )

Parameters:

speed

the new speed to set.

Set the current speed now to (dx,dy,dz) Unit is meters/s

The documentation for this class was generated from the following files:
