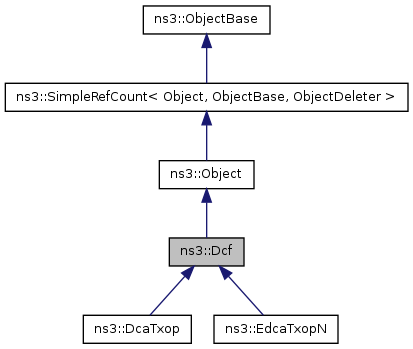

Inheritance diagram for ns3::Dcf:

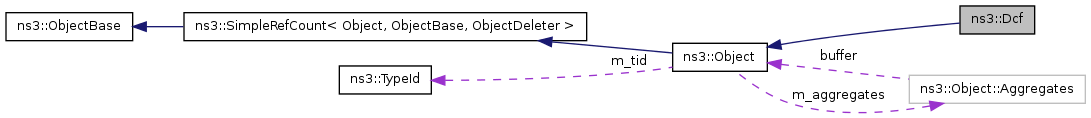

Collaboration diagram for ns3::Dcf:
Public Member Functions | |
| virtual void | SetMinCw (uint32_t minCw)=0 |
| virtual void | SetMaxCw (uint32_t maxCw)=0 |
| virtual void | SetAifsn (uint32_t aifsn)=0 |
| virtual uint32_t | GetMinCw (void) const =0 |
| virtual uint32_t | GetMaxCw (void) const =0 |
| virtual uint32_t | GetAifsn (void) const =0 |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| This method returns the TypeId associated to ns3::Dcf. | |
Member Function Documentation
| static TypeId ns3::Dcf::GetTypeId | ( | void | ) | [static] |
This method returns the TypeId associated to ns3::Dcf.
Attributes defined for this type:
-
MinCw: The minimum value of the contention window.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 15
- Flags: construct write read
-
MaxCw: The maximum value of the contention window.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1023
- Flags: construct write read
-
Aifsn: The AIFSN: the default value conforms to simple DCA.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 2
- Flags: construct write read
No TraceSources defined for this type.
Reimplemented from ns3::Object.
Reimplemented in ns3::DcaTxop, and ns3::EdcaTxopN.
The documentation for this class was generated from the following files:
- src/devices/wifi/dcf.h
- doc/introspected-doxygen.h
